Nissan Tiida C11. Manual - part 731





EM-276

< ON-VEHICLE REPAIR >

[K9K]

TURBOCHARGER

Inspection

INFOID:0000000001381481

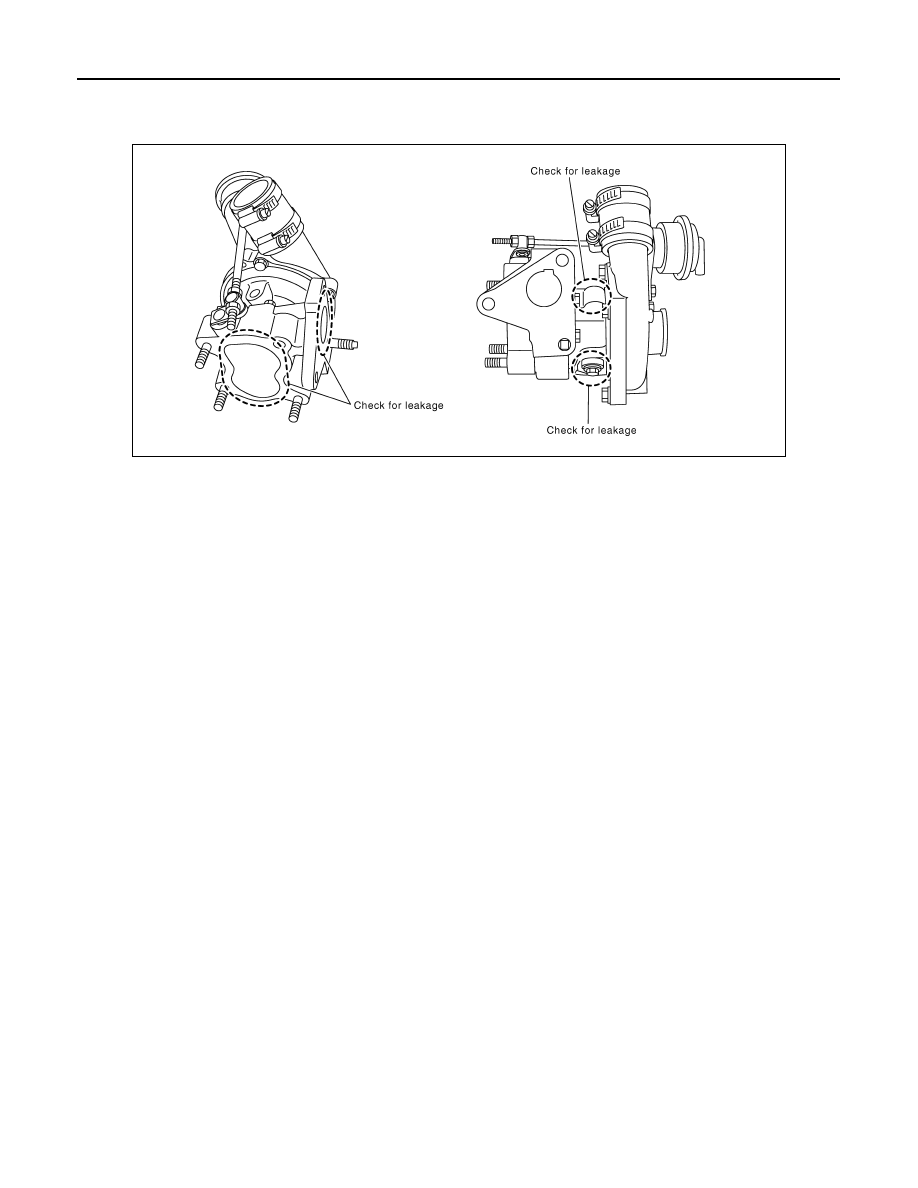

INSPECTION AFTER REMOVAL

CAUTION:

When the compressor wheel turbine wheel or rotor shaft is damaged, remove all the fragments and
foreign matter left in the following passages in order to prevent a secondary failure:

MBIB1419E

Suction side

: Between turbocharger and air cleaner

Exhaust side

: Between turbocharger and catalyst

EXHAUST MANIFOLD

EM-277

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

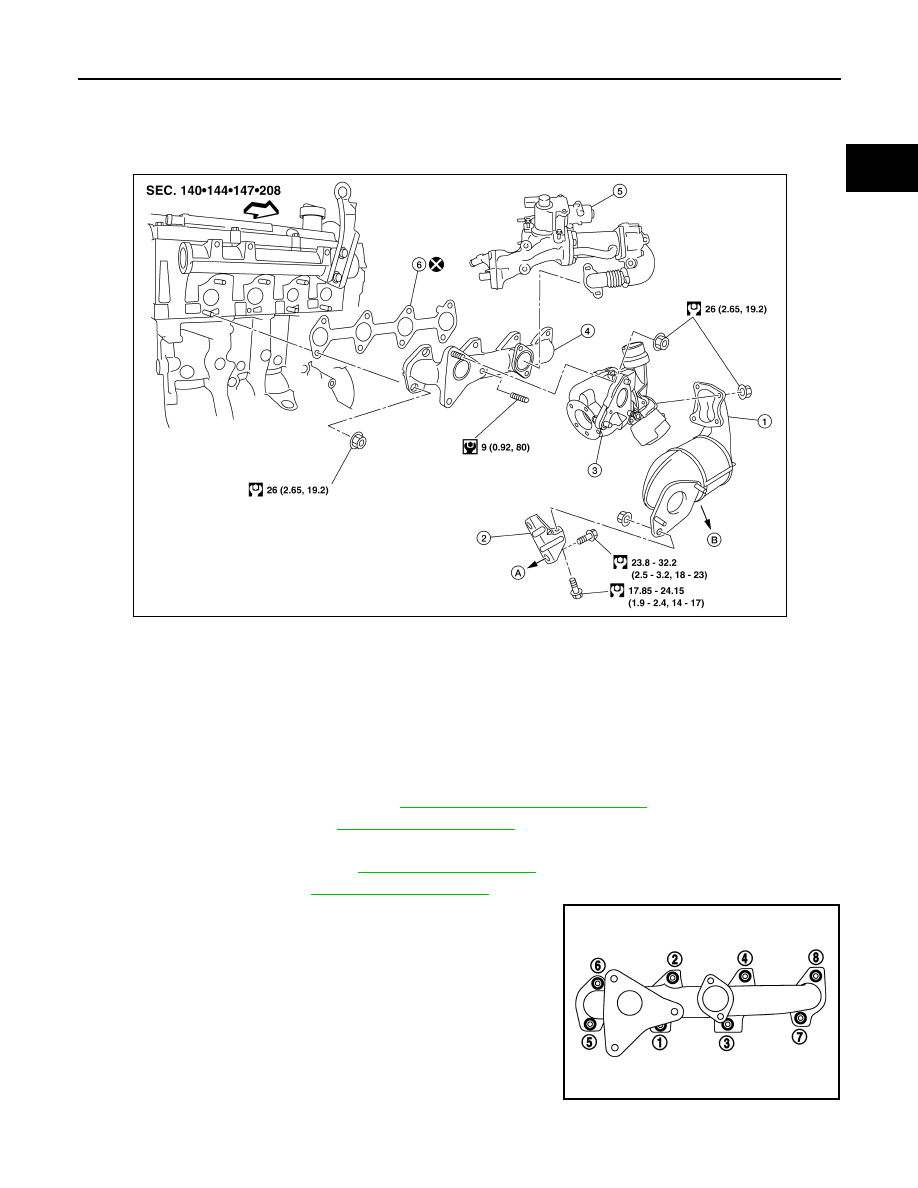

EXHAUST MANIFOLD

Exploded View

INFOID:0000000001381482

Removal and Installation

INFOID:0000000001381483

REMOVAL

1.

Remove battery ground cable.

2.

Remove turbocharger assembly. Refer to

EM-275, "Removal and Installation"

.

3.

Remove air duct (inlet). Refer to

EM-269, "Exploded View"

.

4.

Remove blow-by tube.

5.

Remove air duct (suction). Refer to

EM-269, "Exploded View"

.

6.

Remove EGR tube. Refer to

EM-272, "Exploded View"

.

7.

Loosen exhaust manifold nuts in the reverse order as shown.
Then remove exhaust manifold.

CAUTION:

Be careful not to deform turbocharger piping when removing
the assembly.

INSTALLATION

1.

Catalyst

2.

Bracket

3.

Turbocharger

4.

Exhaust manifold

5.

EGR unit

6.

Gasket

A.

To transaxle

B.

To exhaust front tube

Engine front

AWBIA0120GB

MBIB1417E

EM-278

< ON-VEHICLE REPAIR >

[K9K]

EXHAUST MANIFOLD

1.

Clean the surface of exhaust manifold and cylinder head.

2.

Install new gasket to cylinder head.

3.

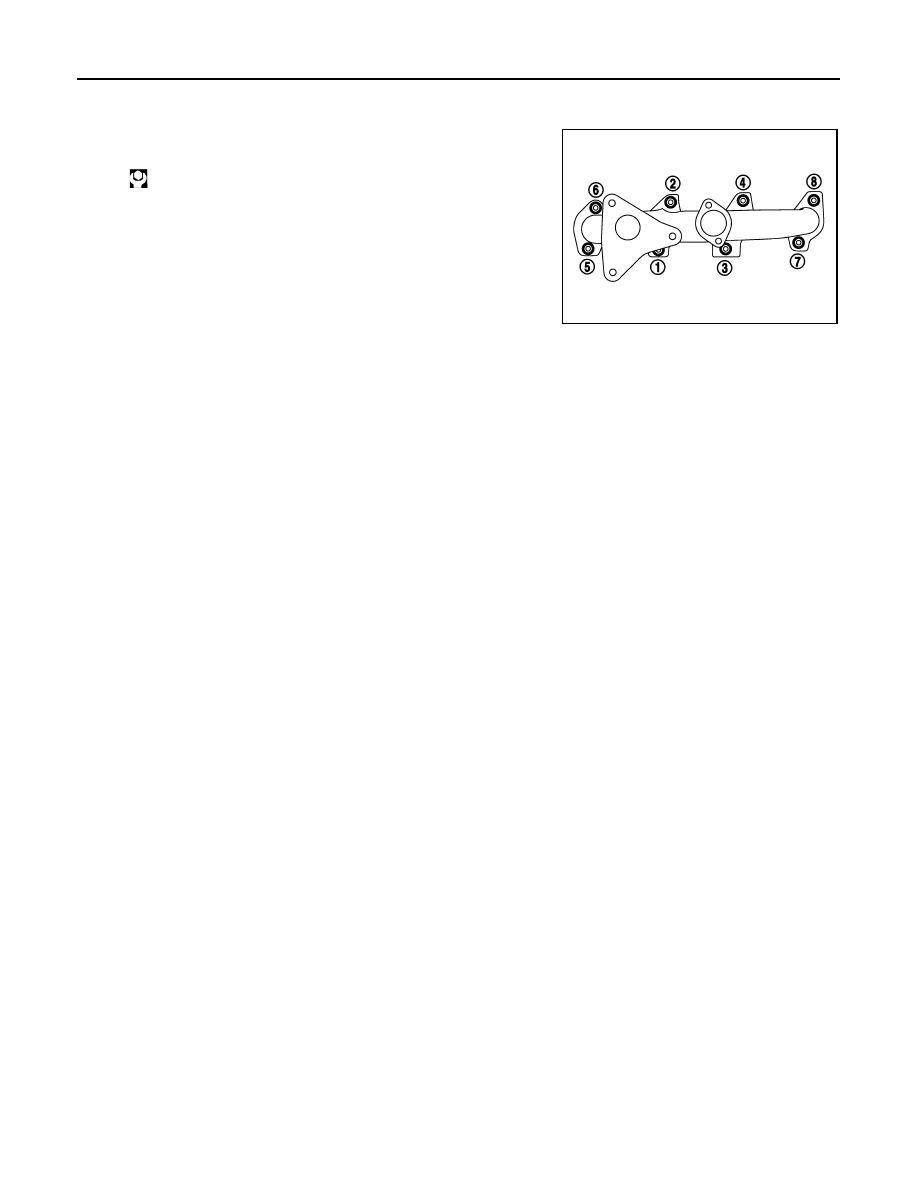

Tighten the exhaust manifold nuts in numerical order as shown.

4.

Installation is in the reverse order of removal for the remaining
components.

Inspection

INFOID:0000000001381484

INSPECTION AFTER INSTALLATION

Start engine and raise engine speed to check for exhaust emission leaks.

: 26.0 N·m (2.7 kg-m, 19 ft-lb)

MBIB1417E

GLOW PLUG

EM-279

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

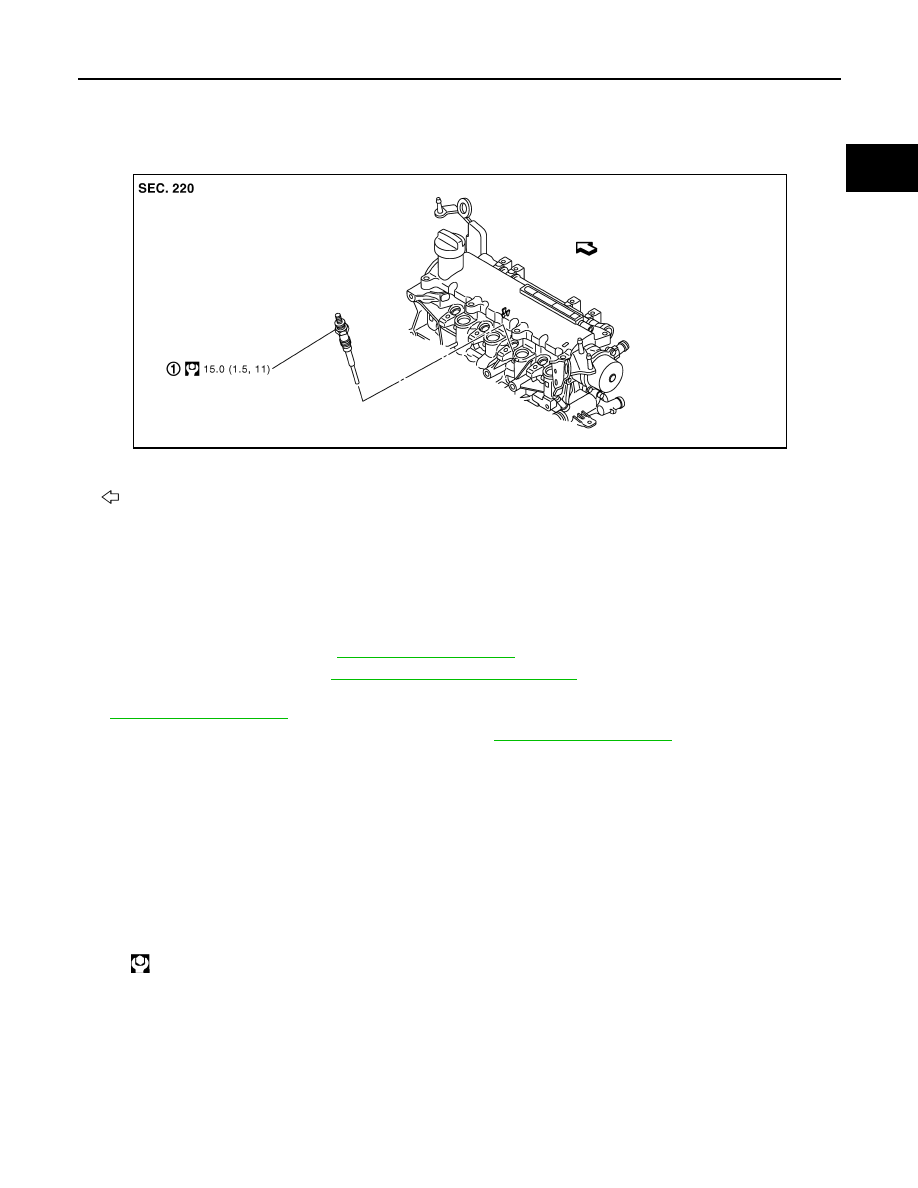

GLOW PLUG

Exploded View

INFOID:0000000001381485

Removal and Installation

INFOID:0000000001381486

REMOVAL

CAUTION:

Remove glow plug only if necessary. If carbon adheres, it may be stuck and broken.

1.

Disconnect battery ground cable.

2.

Remove air duct (inlet). Refer to

EM-269, "Exploded View"

.

3.

Remove engine cover. Refer to

EM-270, "Removal and Installation"

.

4.

Remove charge air cooler tubes and hoses at EGR unit and electronic throttle control actuator. Refer to

EM-270, "Exploded View"

5.

Remove high pressure pipes protection cover. Refer to

EM-281, "Exploded View"

.

6.

Disconnect harness connector from glow plug.

7.

Remove glow plug.

CAUTION:

• When removing or installing, do not use such tools as an air impact wrench.
• Handle it carefully without giving any impact, even after removal. [As a guide, if it drops from

height of 10 cm (3.94 in) or higher, always replace it.]

INSTALLATION

1.

Remove adhered carbon from glow plug installation hole with a suitable tool.

2.

Install glow plug.

3.

Installation is in the reverse order of removal.

1.

Glow plug

 : Engine front

E1BIA0005GB

: 15.0 N·m (1.5 kg-m, 11 ft-lb)
