DLK-366

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

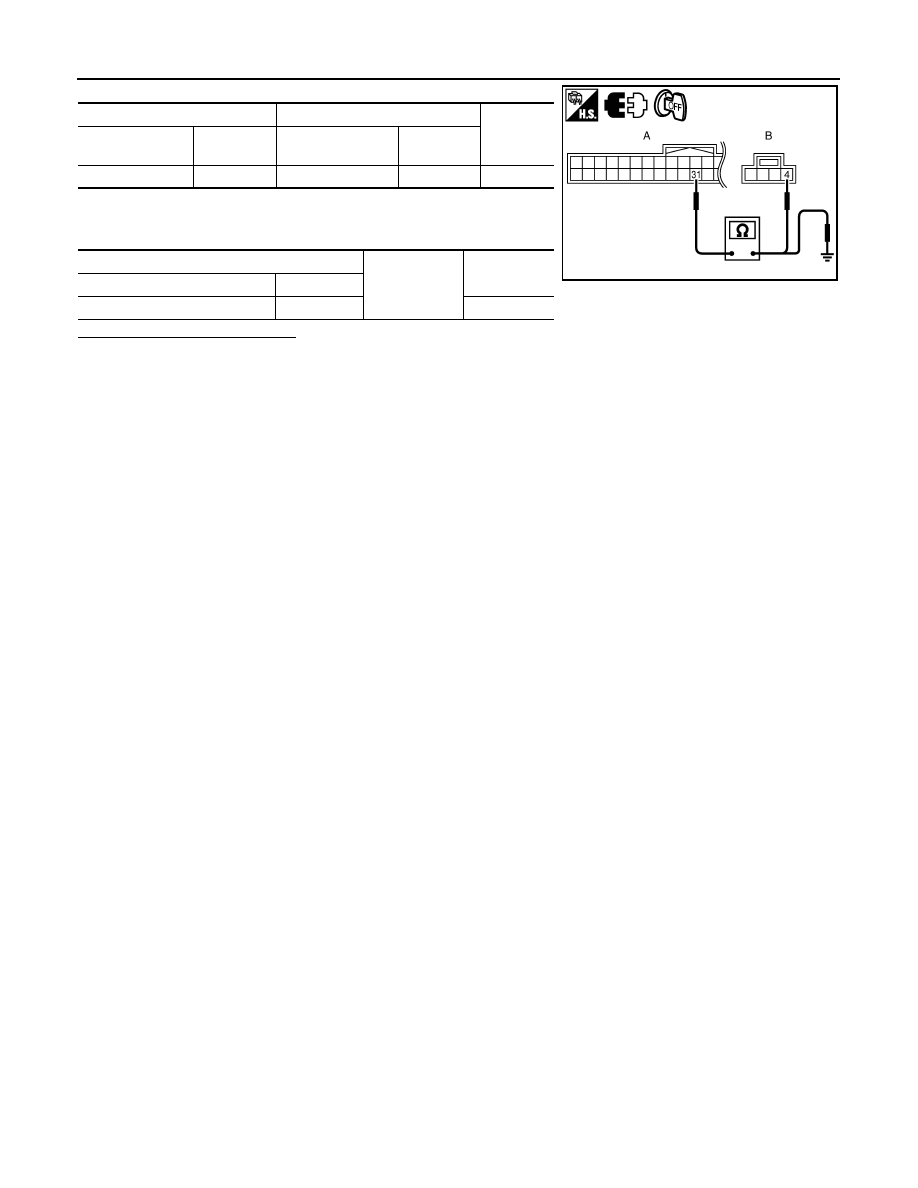

STEERING LOCK SOLENOID

3.

Check continuity between steering lock solenoid connector and
ground.

Is the inspection result normal?

YES

>>

Check the following.

• Intelligent Key unit ground circuit.
• Intelligent Key unit.

NO

>> Repair or replace harness between steering lock solenoid and Intelligent Key unit.

A

B

Continuity

Intelligent Key unit

connector

Terminal

Steering lock sole-

noid connector

Terminal

M52

31

M6

4

Yes

A

Ground

Continuity

Intelligent Key unit connector

Terminal

M52

31

No

PIIB6637E

KEY INTERLOCK SOLENOID (M/T)

DLK-367

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

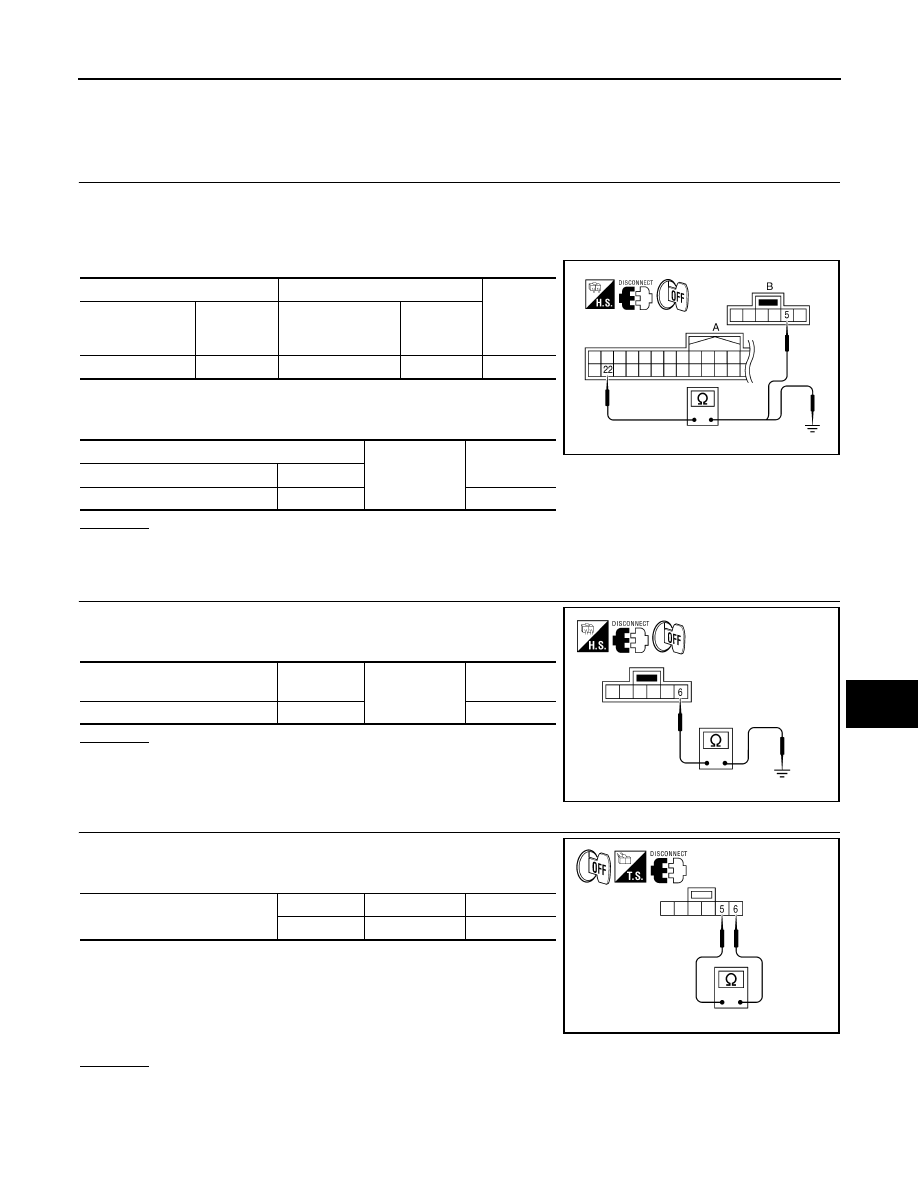

KEY INTERLOCK SOLENOID (M/T)

Diagnosis Procedure

INFOID:0000000001530366

1.

CHECK INTERLOCK SOLENOID POWER CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key unit and key switch and ignition knob switch connector.

3.

Check continuity between Intelligent Key unit connector M52 (A) terminal 22 and key switch and ignition
knob switch connector M32 (B) terminal 5.

4.

Check continuity between Intelligent Key unit connector (A) ter-
minal 22 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace harness between Intelligent Key unit and key switch and ignition knob switch.

2.

CHECK INTERLOCK SOLENOID GROUND CIRCUIT

Check continuity between key switch and ignition knob switch con-
nector M32 terminal 6 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK INTELLIGENT KEY SOLENOID RESISTANCE

Check resistance between key switch and ignition knob switch termi-
nals 5 and 6.

OK or NG

OK

>> Key switch and ignition knob switch is OK.

NG

>> Replace key switch and ignition knob switch.

A

B

Continuity

Intelligent Key unit

connector

Terminal

Key switch and ig-

nition knob switch

connector

Terminal

M52

22

M32

5

Yes

A

Ground

Continuity

Intelligent Key unit connector

Terminal

M52

22

No

ALKIA0786ZZ

Key switch and ignition knob

switch connector

Terminal

Ground

Continuity

M32

6

Yes

ALKIA0787ZZ

Key switch and ignition knob

switch

Terminal

Terminal

Resistance

5

6

1-10

Ω

WIIA1301E

DLK-368

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

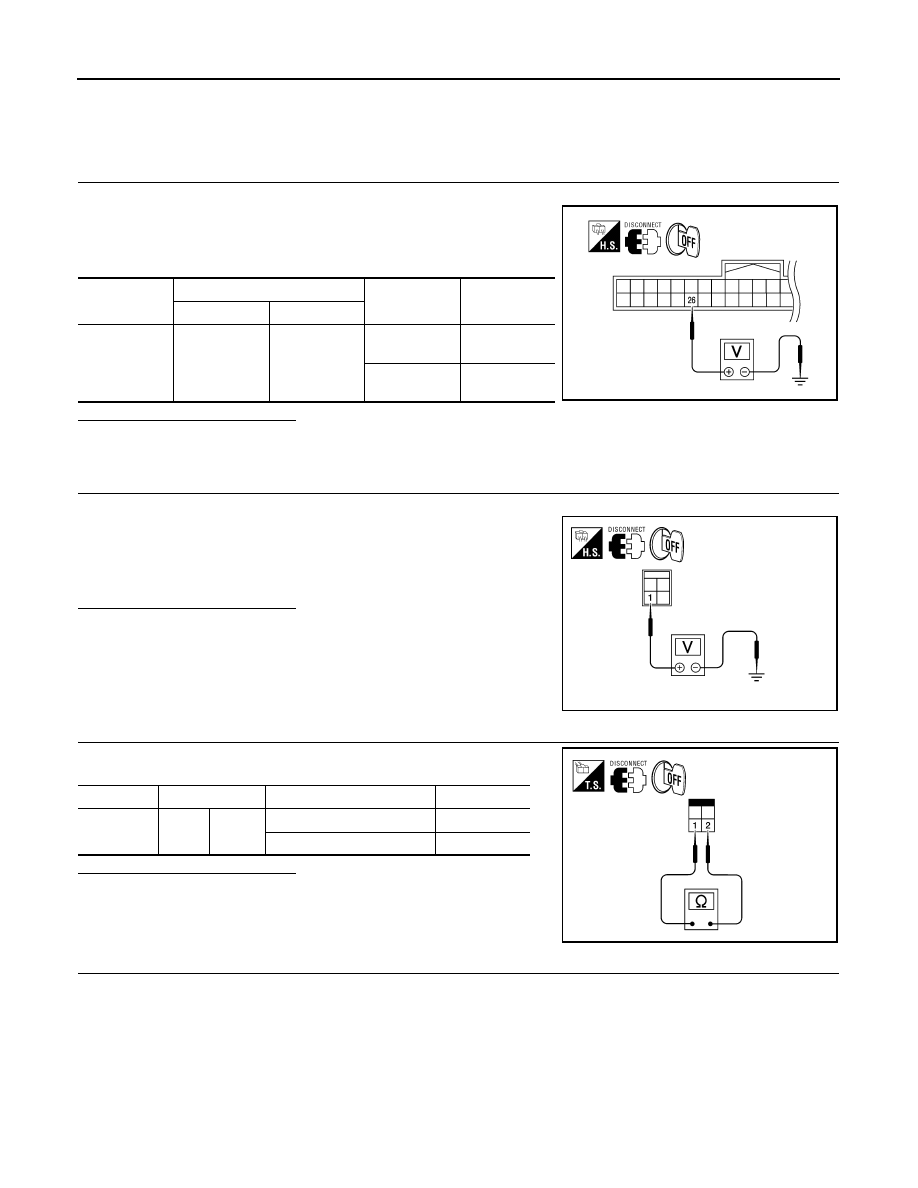

STOP LAMP SWITCH (A/T)

STOP LAMP SWITCH (A/T)

Diagnosis Procedure

INFOID:0000000001530367

1.

CHECK STOP LAMP SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key unit connector.

3.

Check voltage between Intelligent Key unit harness connector
M52 terminal 26 and ground.

Is the inspection result normal?

YES

>> Stop lamp switch is OK.

NO

>> GO TO 2.

2.

CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

1.

Disconnect stop lamp switch connector.

2.

Check voltage between stop lamp switch harness connector
E13 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between stop lamp switch

power supply circuit and fuse.

3.

CHECK STOP LAMP SWITCH OPERATION

Check continuity between stop lamp switch terminals 1 and 2.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace stop lamp switch.

4.

CHECK STOP LAMP SWITCH CIRCUIT

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M52

26

Ground

Brake pedal

depressed

Battery volt-

age

Brake pedal

released

0

WIIA1207E

1 - Ground

: Battery voltage

WIIA1255E

Component

Terminals

Condition

Continuity

Stop lamp

switch

1

2

Brake pedal depressed

Yes

Brake pedal released

No

WIIA1256E

STOP LAMP SWITCH (A/T)

DLK-369

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Check continuity between Intelligent Key unit harness connector
(A) M52 terminal 26 and stop lamp switch harness connector (B)
E13 terminal 2.

2.

Check continuity between Intelligent Key unit harness connector
M52 terminal 26 and ground.

Is the inspection result normal?

YES

>> Check condition of harness and connector.

NO

>> Repair or replace harness.

26 - 2

: Continuity should exist.

26 - Ground

: Continuity should not exist.

WIIA1257E
