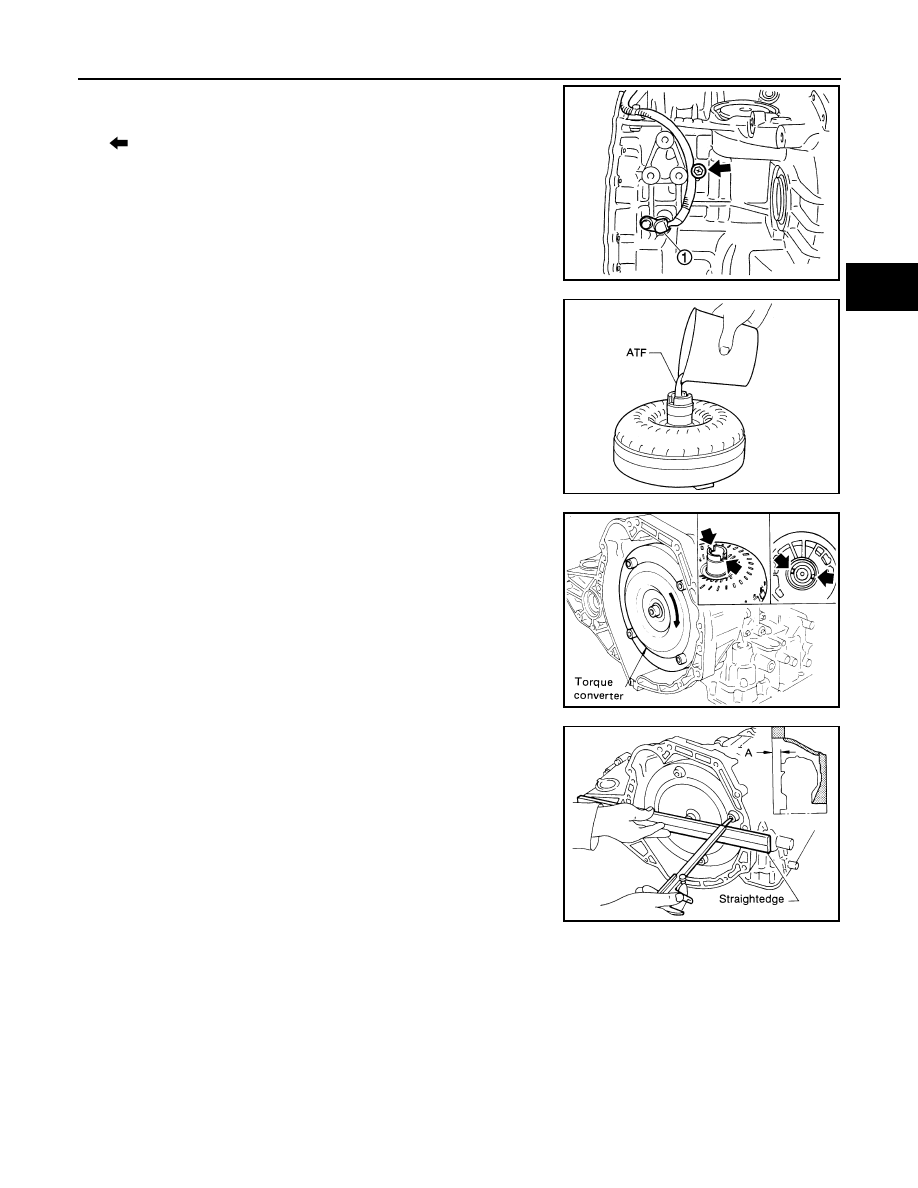

Ensure revolution sensor harness is firmly secured with
bolt.
(1): Revolution sensor

: Bolt

38. Install torque converter.
a.

Pour ATF into torque converter.
• Approximately 1 liter (7/8 Imp pt) of fluid is required for a

new torque converter.

• When reusing old torque converter, add the same amount

of ATF as was drained.

b.

Install torque converter while aligning notches of torque con-
verter with notches of oil pump.

c.

Measure distance “A” to make sure that torque converter is in
proper position.

SCIA6518J

SAT428DA

SAT429D

Distance “A”:

16.2 mm (0.638 in) or more

SAT430D

TM-612

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TYPE 2 (4AT: RE4F03B)]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001731453

*: Refer to

MA-19, "Fluids and Lubricants"

.

Vehicle Speed at Which Gear Shifting Occurs

INFOID:0000000001731454

• At half throttle, the accelerator opening is 1/2 of the full opening.

Vehicle Speed at When Lock-up Occurs/Releases

INFOID:0000000001731455

Stall Speed

INFOID:0000000001731456

Line Pressure

INFOID:0000000001731457

Engine

HR16DE

Automatic transaxle model

RE4F03B

Automatic transaxle assembly

Model code number

3CX3C

Transaxle gear ratio

1st

2.861

2nd

1.562

3rd

1.000

4th

0.697

Reverse

2.310

Final drive

4.072

Recommended fluid

Genuine NISSAN Matic J ATF or equivalent

*

Fluid capacity [

 (Imp qt)]

7.7 (6-3/4)

Throttle position

Vehicle speed km/h (MPH)

D

1



→

 D

2

D

2



→

 D

3

D

3



→

 D

4

D

4



→

 D

3

D

3



→

 D

2

D

2



→

 D

1

Full throttle

51 - 59

(32 - 37)

97 - 105

(60 - 65)

 154 - 162

(96 - 101)

150 - 158

(93 - 98)

87 - 95

(54 - 59)

41 - 49

(25 - 30)

Half throttle

31 - 39

(19 - 24)

60 - 68

(37 - 42)

122 - 130

(76 - 81)

63 - 71

(39 - 44)

36 - 44

(22 - 27)

5 - 13

(3 - 8)

Throttle position

Selector lever position

Vehicle speed km/h (MPH)

Lock-up ON

Lock-up OFF

2.0/8

“D” position

76 - 84 (47 - 52)

56 - 64 (35 - 40)

“D” position (OD OFF)

86 - 94 (53 - 58)

83 - 91 (52 - 57)

Stall revolution (rpm)

2,250 - 2,700

Engine speed

Line pressure kPa (bar, kg/cm

2

, psi)

“D”, “2” and “1” positions

“R” position

Idle speed

500 (5.0, 5.1, 73)

778 (7.8, 7.9, 113)

Stall speed

1,159 (11.6, 11.8, 168)

1,804 (18.0, 18.4, 262)

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-613

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings

INFOID:0000000001731458

NOTE:
Refer to

XX-XX, "*****"

 or

XX-XX, "*****"

.

OUTER DIAMETER AND INNER DIAMETER OF NEEDLE BEARINGS

Unit: mm (in)

OUTER DIAMETER AND INNER DIAMETER OF THRUST WASHERS

Unit: mm (in)

OUTER DIAMETER AND INNER DIAMETER OF BEARING RACES AND ADJUSTING SHIMS

Unit: mm (in)

OUTER DIAMETER OF SNAP RINGS

Unit: mm (in)

INNER DIAMETER OF SNAP RINGS

Unit: mm (in)

Location

Outer diameter

Inner diameter

A

47.0 (1.850)

32.0 (1.260)

B

35.0 (1.378)

20.1 (0.791)

C

60.0 (2.362)

42.0 (1.654)

D

60.0 (2.362)

45.0 (1.772)

E

47.0 (1.850)

30.0 (1.181)

F

42.6 (1.677)

26.1 (1.028)

G

48.0 (1.890)

33.5 (1.319)

H

58.99 (2.3224)

42.1 (1.657)

Location

Outer diameter

Inner diameter

I

72.0 (2.835)

55.5 (2.185)

J, K

82.0 (3.228)

59.0 (2.323)

L

78.5 (3.091)

62.4 (2.457)

Location

Outer diameter

Inner diameter

M

48.0 (1.890)

33.0 (1.299)

N

29.0 (1.142)

25.0 (0.984)

O

34.3 (1.350)

26.1 (1.028)

P

79.5 (3.130)

72.0 (2.835)

Location

Outer diameter

1

142.0 (5.59)

2

3

162.3 (6.39)

4

5

7

113.0 (4.45)

8

135.4 (5.33)

9

126.0 (4.96)

Location

Inner diameter

6

32.0 (1.260)

10

63.5 (2.500)

TM-614

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TYPE 2 (4AT: RE4F03B)]

SERVICE DATA AND SPECIFICATIONS (SDS)

Control Valves

INFOID:0000000001731459

CONTROL VALVE SPRINGS

Unit: mm (in)

Accumulator

INFOID:0000000001731460

RETURN SPRINGS

Unit: mm (in)

Unit: mm (in)

O-RINGS

Unit: mm (in)

Clutches and Brakes

INFOID:0000000001731461

REVERSE CLUTCH

Location

spring designation

Free length (l)

Outer diameter (D)

Upper body

L14

Pilot valve spring

38.98 (1.5346)

8.9 (0.350)

L15

1–2 accumulator valve spring

20.5 (0.807)

6.95 (0.2737)

1–2 accumulator piston spring

55.66 (2.1913)

19.5 (0.768)

L16

1st reducing valve spring

27.0 (1.063)

7.0 (0.276)

L17

3–2 timing valve spring

23.0 (0.906)

6.65 (0.2618)

L18

Overrun clutch reducing valve spring

37.5 (1.476)

7.0 (0.276)

L19

Torque converter relief valve spring

33.3 (1.311)

9.0 (0.354)

L20

Torque converter clutch control valve spring

53.01 (2.0870)

6.5 (0.256)

L21

Cooler check valve spring

28.04 (1.1039)

7.15 (0.2815)

Lower body

L3

Pressure regulator valve spring

45.0 (1.772)

15.0 (0.591)

L4

Overrun clutch control valve spring

21.7 (0.854)

7.0 (0.276)

L5

Accumulator control valve spring

22.0 (0.866)

6.5 (0.256)

L6

Shift valve A spring

21.7 (0.854)

7.0 (0.276)

L7

Shuttle valve spring

51.0 (2.008)

5.65 (0.2224)

L12

Shift valve B spring

21.7 (0.854)

7.0 (0.276)

L13

Pressure modifier valve spring

32.0 (1.260)

6.9 (0.272)

Pressure modifier piston spring

30.5 (1.201)

9.8 (0.386)

—

Line pressure relief valve spring

17.02 (0.6701)

8.0 (0.315)

—

Torque converter pressure holding spring

9.0 (0.354)

7.3 (0.287)

Location

Free length (L

1

)

Servo release accumulator

62.8 (2.472)

Location

Length (L

2

)

N-D accumulator

46.5 (1.831)

Location

Inner diameter (Small)

Inner diameter (Large)

Servo release accumulator

26.9 (1.059)

44.2 (1.740)

N-D accumulator

34.6 (1.362)

39.4 (1.551)

Number of drive plates

2

Number of driven plates

2

Drive plate thickness [mm (in)]

Standard

2.0 (0.079)

Allowable limit

1.8 (0.070)
