ASSEMBLY

TM-603

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

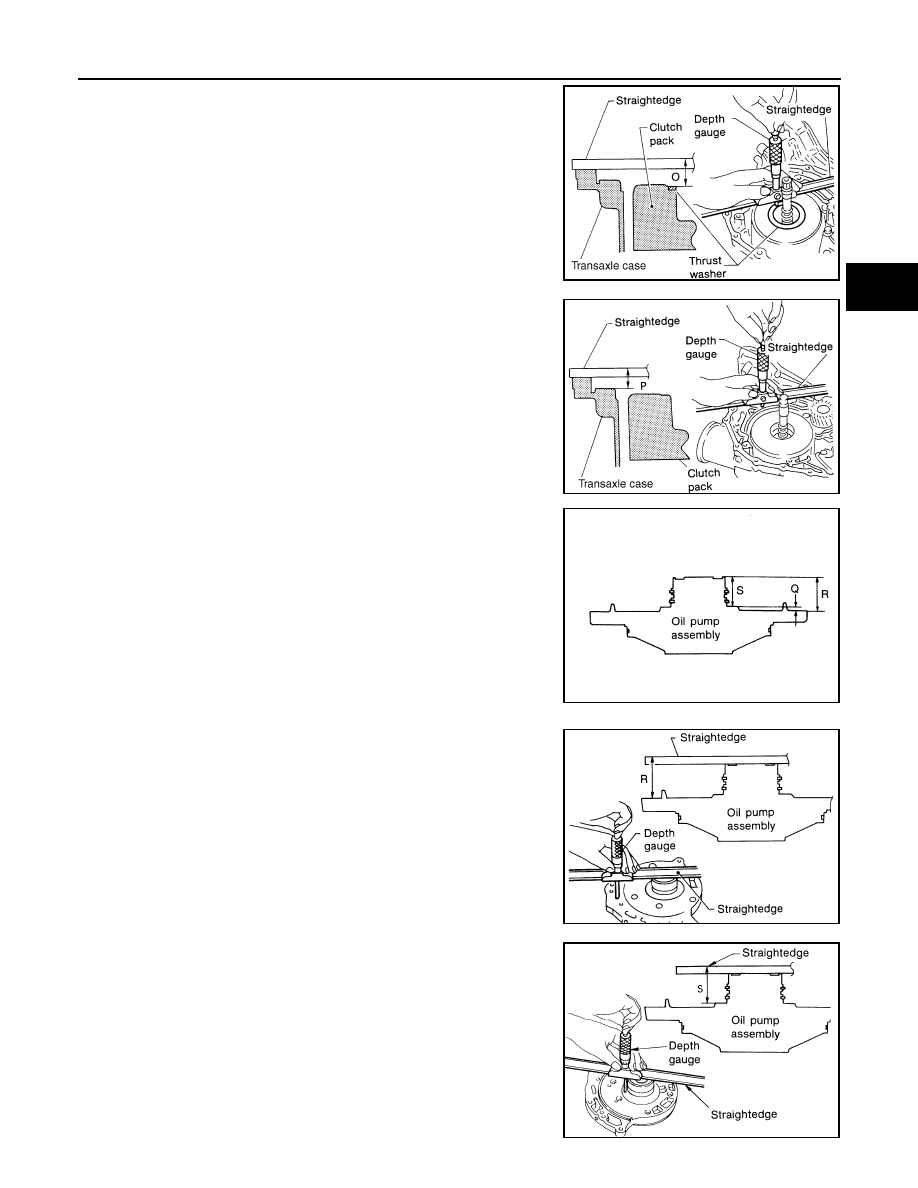

a.

Place thrust washer on reverse clutch drum.

b.

Measure dimension “O”.

c.

Measure dimension “P”.

d.

Calculate dimension “N”.

2.

Measure dimensions “R” and “S”, and then calculate dimension
“Q”.

a.

Measure dimension “R”.

b.

Measure dimension “S”.

c.

Calculate dimension “Q”.

SCIA3667E

“N”:

Distance between oil pump fitting surface of
transaxle case and thrust washer on reverse
clutch drum.

N = O – P

SCIA3668E

SAT384D

SAT385D

“Q”:

Distance between transaxle case fitting surface
and thrust washer mating surface.

Q = R – S

SAT386D

TM-604

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

ASSEMBLY

3.

Adjust reverse clutch end play “T

2

”.

• Select proper thickness of thrust washer so that reverse clutch end play is within specifications.

Assembly (3)

INFOID:0000000001731452

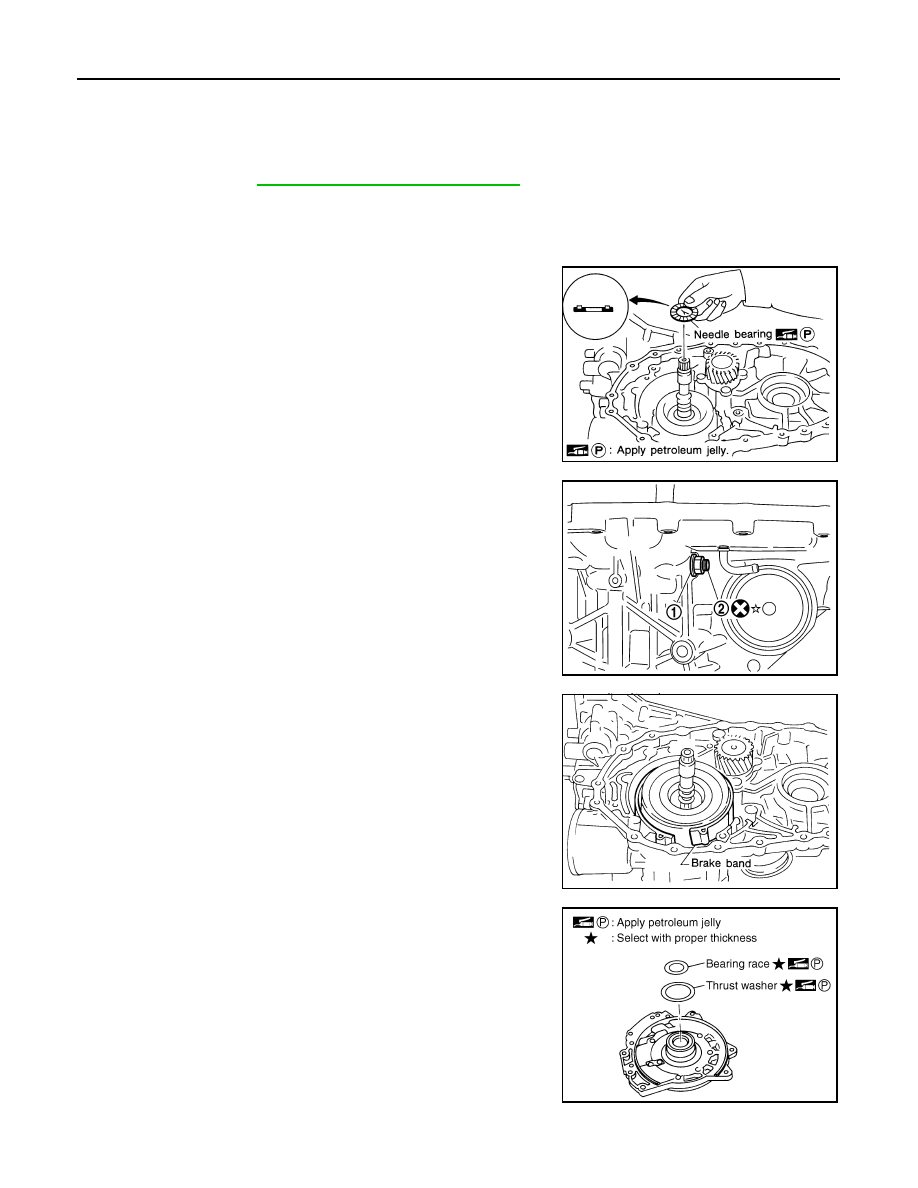

1.

Remove reverse clutch assembly.

2.

Install needle bearing on input shaft assembly (high clutch
drum).

CAUTION:

Be careful with the direction of needle bearing.

3.

Install reverse clutch assembly.

CAUTION:

Align teeth of reverse clutch drive plates before installing.

4.

Install anchor end pin (2) and lock nut (1) on transaxle case.

5.

Place brake band on outside of reverse clutch drum.

6.

Tighten anchor end pin just enough so that brake band is evenly
fitted on reverse clutch drum.

7.

Install bearing race selected in total end play adjustment step on
oil pump cover.

8.

Install thrust washer selected in reverse clutch end play adjust-
ment step on oil pump cover.

9.

Install O-ring to oil pump assembly.

CAUTION:

• Do not reuse O-ring.
• Apply ATF to O-ring.

T

2

 = N – Q

Reverse clutch end play:

Refer to

TM-324, "Reverse Clutch End Play"

.

SAT387D

SCIA6037J

SAT038D

SCIA3629E

ASSEMBLY

TM-605

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

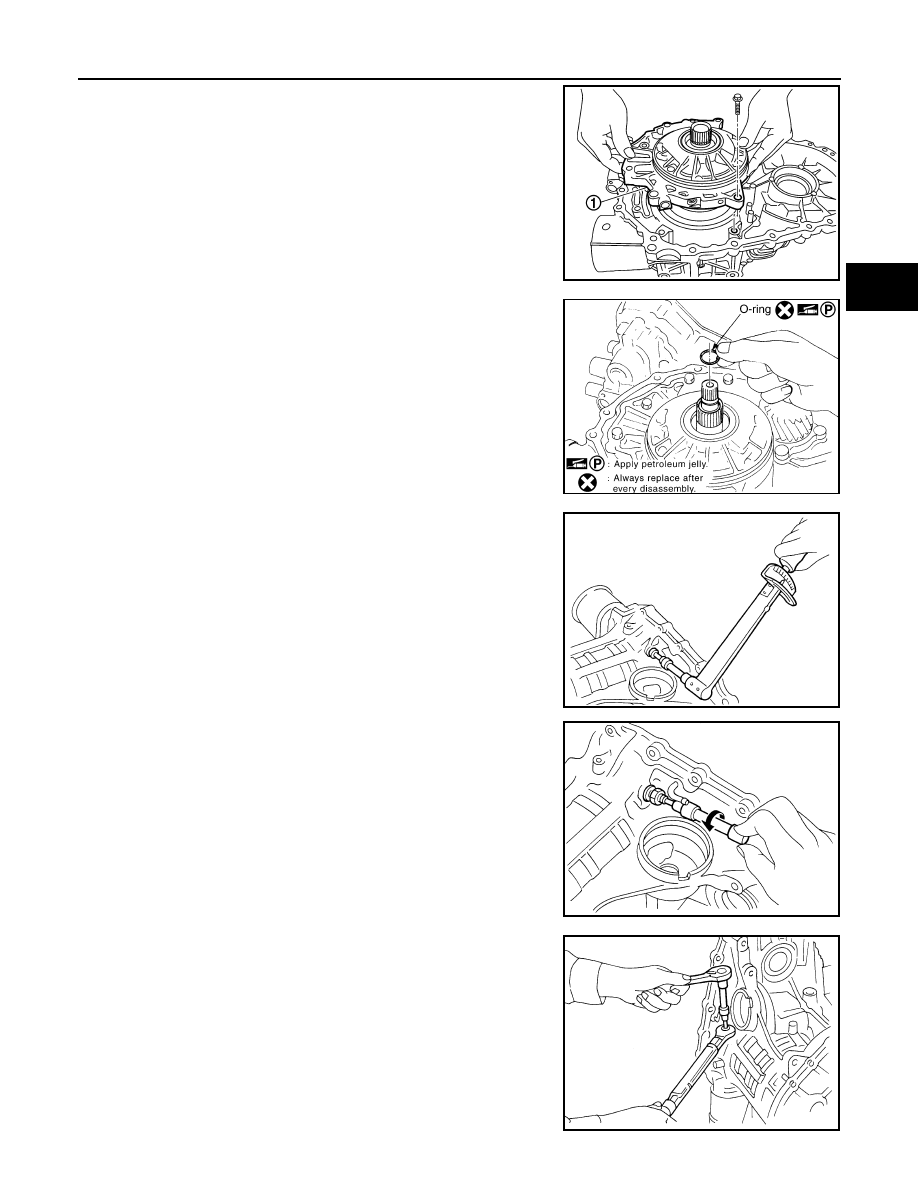

10. Install oil pump assembly (1) on transaxle case.

11. Tighten oil pump bolts to the specified torque.

12. Install O-ring to input shaft assembly (high clutch drum).

13. Adjust brake band.

a.

Tighten anchor end pin to the specified torque.

b.

Back off anchor end pin two and a half turns.

c.

Tighten lock nut while holding anchor end pin.

SCIA6036J

SCIA4928E

Anchor end pin

: 4.9 N·m (0.50 kg-m, 43 in-lb)

SAT394D

SAT395D

SAT396D

TM-606

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

ASSEMBLY

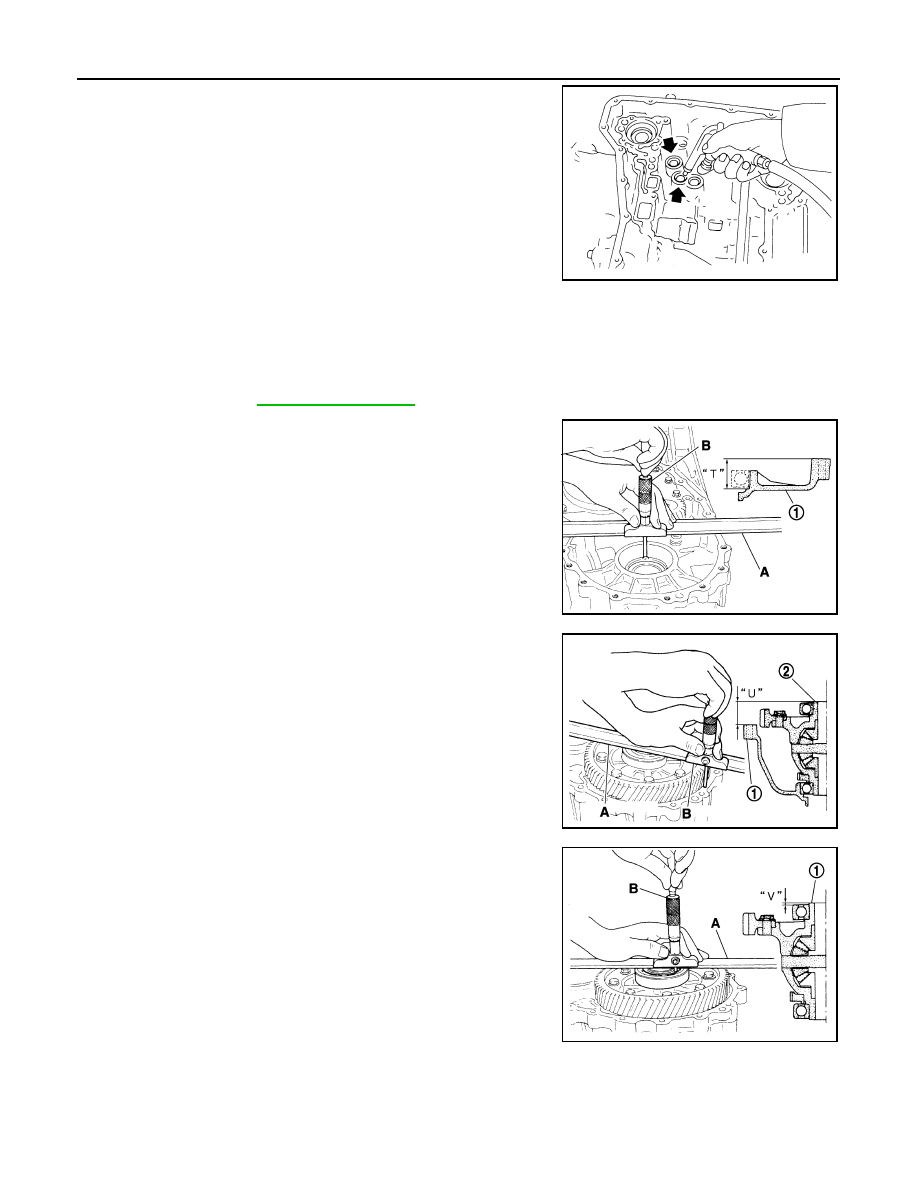

14. Apply compressed air into oil holes of transaxle case and check

operation of brake band.

15. Select proper thickness of differential side bearing adjusting shim using the following procedures.

• Measure differential side bearing end play, and calculate the adjusting shim thickness so that the end

play is within the specifications.

a.

Place a straightedge (A) onto transaxle case (1), and measure
the depth “T” of transaxle case (1) to the mating surface for dif-
ferential side bearing using depth gauge (B).

• Measure the depth “T” in at least two places, and take the

average.

b.

Install final drive assembly onto converter housing (1).

c.

Place a straightedge (A) onto differential case (2), and measure
the height “U” to the end of converter housing (1) using depth
gauge (B).
• Measure the height “U” in at least two places, and take the

average.

d.

Place a straightedge (A) onto differential case (1), and measure
the height “V” to the end of differential side bearing outer race
using depth gauge (B).
• Measure the height “V” in at least two places, and take the

average.

e.

Select proper thickness of differential side bearing adjusting
shim.

SAT397D

Differential side bearing end play:

Refer to

TM-323, "Final Drive"

.

T = (Measurement) - (Straightedge thickness)

SCIA7114E

SCIA7115E

Proper shim thickness

= T - U + V + [0 - 0.15 mm (0 - 0.0059 in)]

*

(

*

: differential side bearing end play)

SCIA7116E
