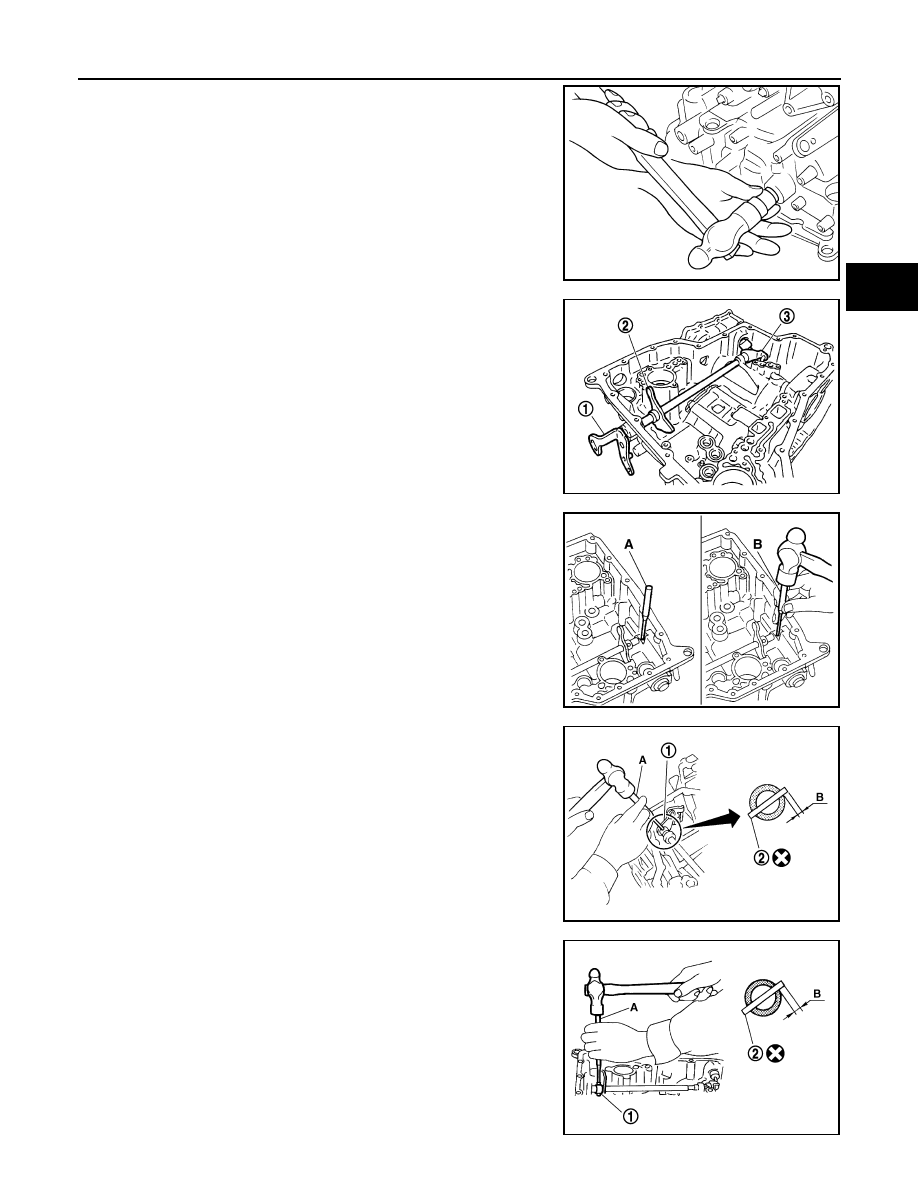

1.

Drive manual shaft oil seal into transaxle case using suitable
tool.

CAUTION:

• Do not reuse manual shaft oil seal.
• Apply ATF to outer surface of manual shaft oil seal.

2.

Install parking rod to parking rod plate.

3.

Insert manual shaft (1) to transaxle case, and install manual
plate (2) to manual shaft (1).

4.

Install parking rod plate (with parking rod) (3) to manual shaft
(1).

5.

Align groove of manual shaft and hole of transaxle case using
suitable tool (A).

6.

Drive retaining pin of manual shaft into transaxle case using Tool
(B).

CAUTION:

Do not reuse retaining pin.

7.

Set parking rod plate (1) onto manual shaft, and drive retaining
pin (2) of parking rod plate (1) using Tool (A).

CAUTION:

The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of parking rod plate (1).

8.

Set manual plate (1) onto manual shaft, and drive retaining pin
(2) of manual plate (1) using Tool (A).

CAUTION:

The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of manual plate (1).

SAT081D

SCIA7005E

Tool number B:

ST23540000

SCIA7006E

Tool number A:

ST23540000

SCIA7107E

Tool number A:

ST23540000

SCIA7108E

TM-240

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

9.

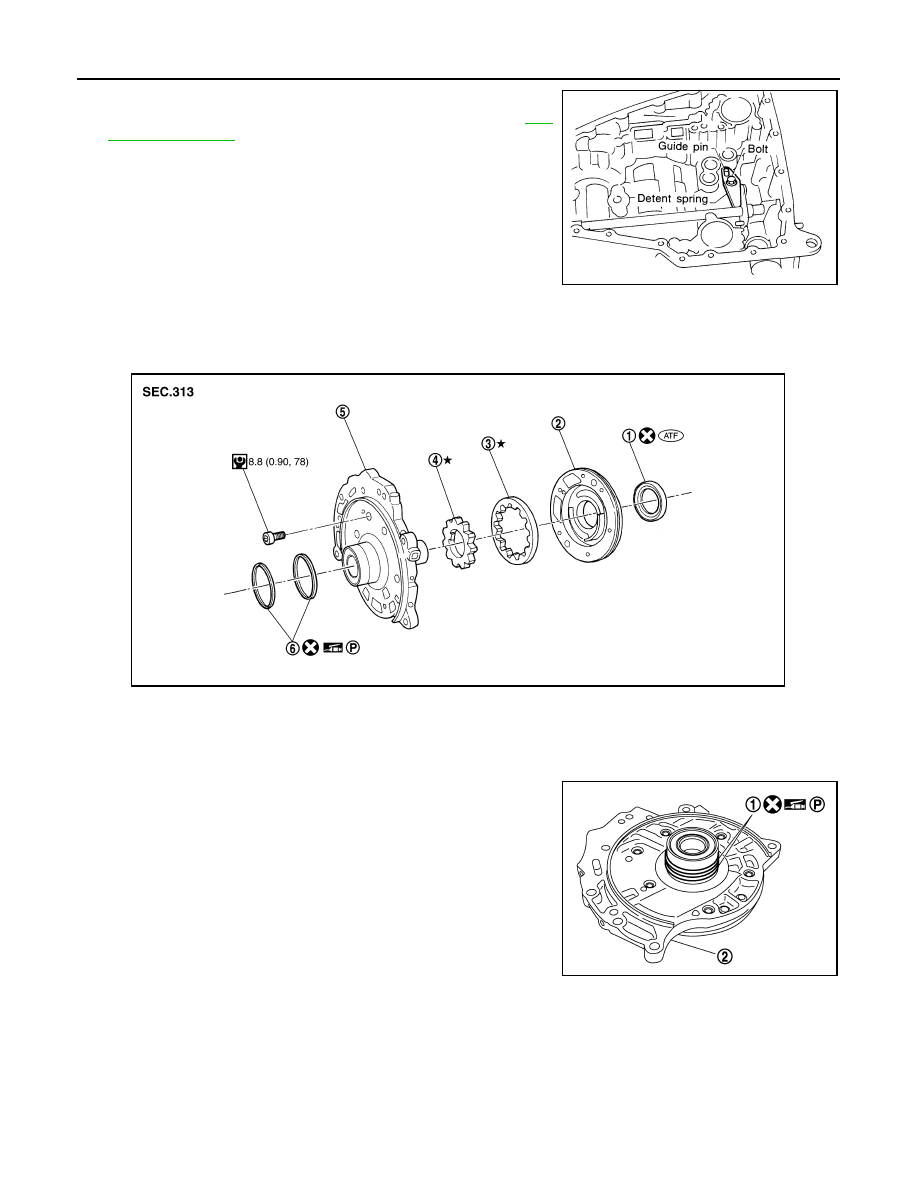

Install detent spring on transaxle case.

10. Tighten detent spring bolt to the specified torque. Refer to

TM-

213, "Component"

.

Oil Pump

INFOID:0000000001730984

COMPONENTS

DISASSEMBLY

1.

Remove seal rings (1) from oil pump assembly (2).

SAT042F

1.

Oil pump housing oil seal

2.

Oil pump housing

3.

Outer gear

4.

Inner gear

5.

Oil pump cover

6.

Seal ring

SCIA5908J

SCIA7016E

REPAIR FOR COMPONENT PARTS

TM-241

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

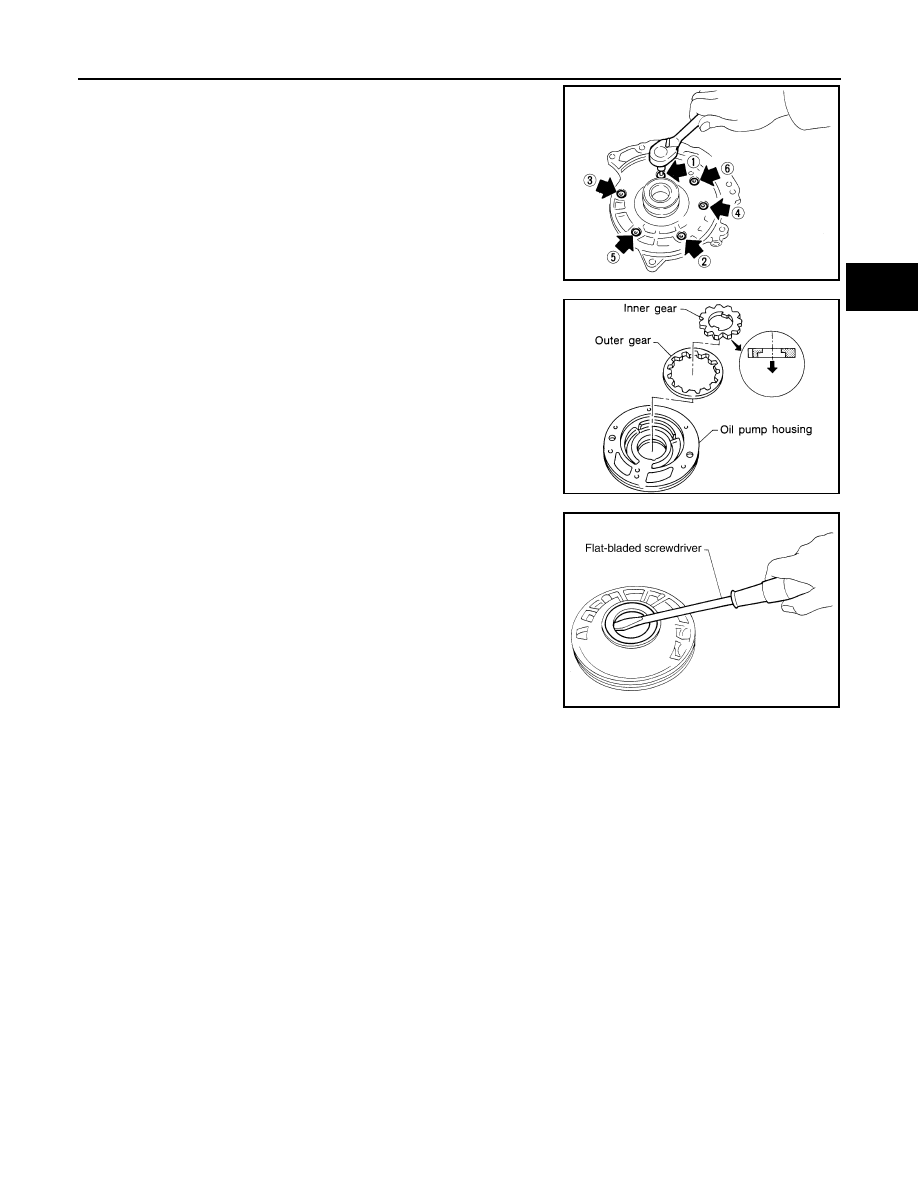

2.

Remove bolts in the order as shown, and remove oil pump
cover.

3.

Remove inner gear and outer gear from oil pump housing.

4.

Remove oil pump housing oil seal using suitable tool.

CAUTION:

Do not scratch oil pump housing.

INSPECTION

Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear

Check for wear or damage. Replace if necessary.

Side Clearances

SAT091D

SAT092D

SCIA2840E

TM-242

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

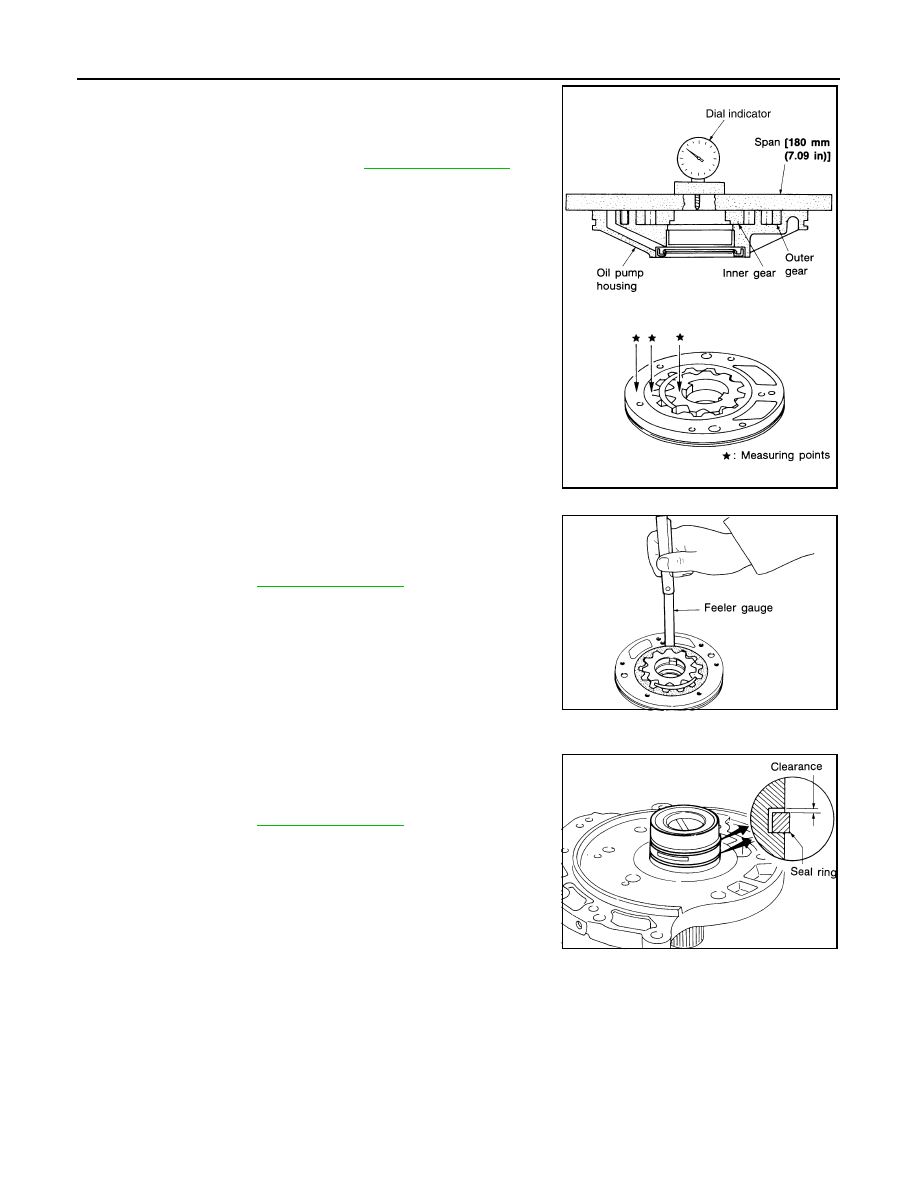

• Measure side clearance of inner gear and outer gear in at least

four places around each outside edge. Maximum measured values
should be within the specified clearance.

• If clearance is less than standard, select inner gear and outer gear

as a set so that clearance is within specifications.

• If clearance is more than standard, replace whole oil pump assem-

bly except oil pump cover.

• Measure clearance between outer gear and oil pump housing.

• If not within allowable limit, replace whole oil pump assembly

except oil pump cover.

Seal Ring Clearance

• Measure clearance between seal ring and ring groove.

• If not within allowable limit, replace oil pump cover assembly.

ASSEMBLY

Standard clearance:

Refer to

TM-323, "Oil Pump"

.

SCIA4957E

Standard clearance and allowable limit:

Refer to

TM-323, "Oil Pump"

.

SAT096D

Standard clearance and allowable limit:

Refer to

TM-323, "Oil Pump"

.

SAT097D
