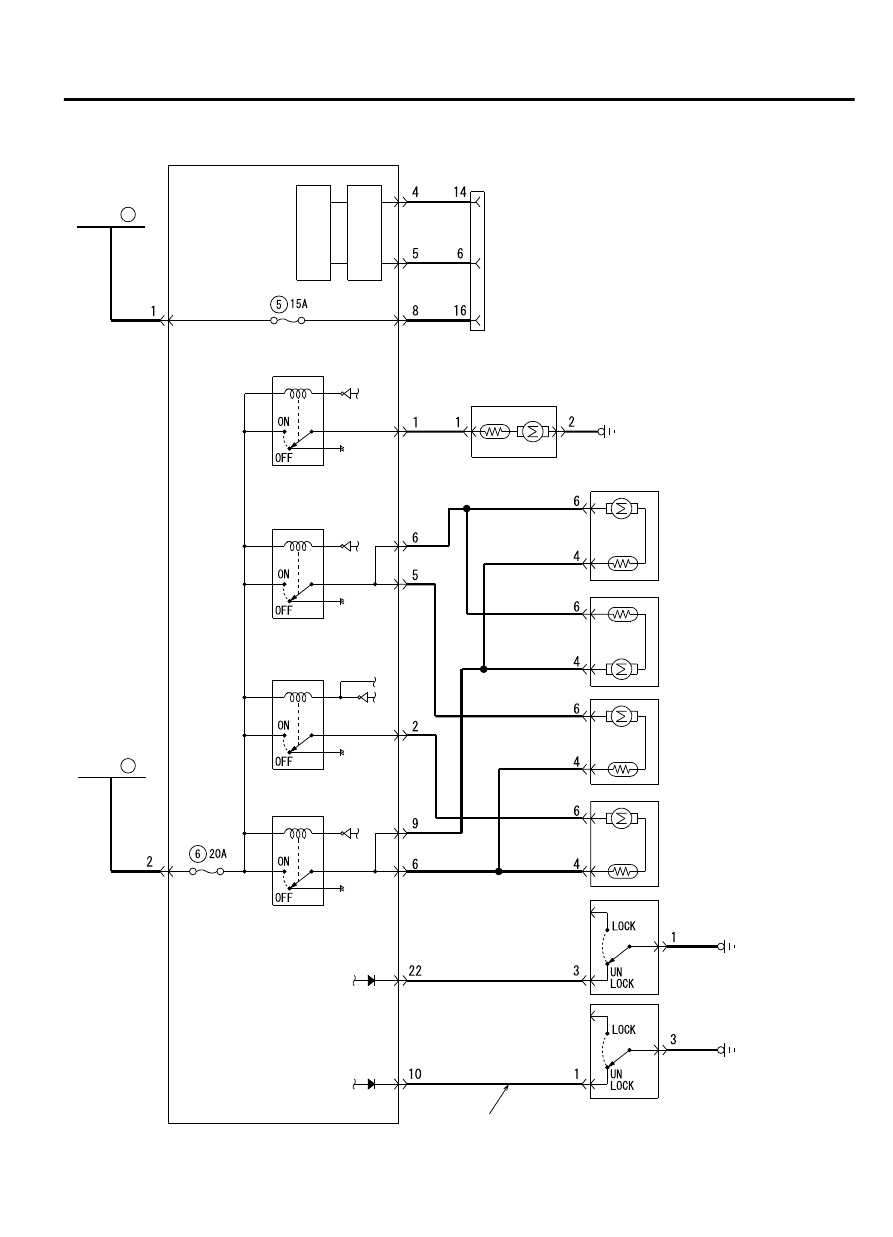

GENERAL CIRCUIT DIAGRAM FOR THE CENTRAL DOOR LOCKING

ZC602790

FRONT DOOR
LOCK
ACTUATOR
(RH)

FRONT DOOR
LOCK
ACTUATOR
(LH)

REAR DOOR
LOCK
ACTUATOR
(LH)

REAR DOOR
LOCK
ACTUATOR
(RH)

LIFTGATE



LOCK

ACTUATOR

ETACS-ECU

FUSIBLE
LINK

37

FUSIBLE
LINK

34

DOOR LOCK
RELAY

CAN DRIVE

CIRCUIT

INTERF

A

CE

CIRCUIT

DATA LINK
CONNECTOR

DRIVER'S DOOR
UNLOCK RELAY

PASSENGER'S
DOOR UNLOCK
RELAY

LIFTGATE LOCK
RELAY

FRONT DOOR
LOCK ACTUATOR (LH)

VEHICLES WITH KOS

FRONT DOOR
LOCK ACTUATOR (RH)

0000

DOOR

42Ab-7

GENERAL INFORMATION

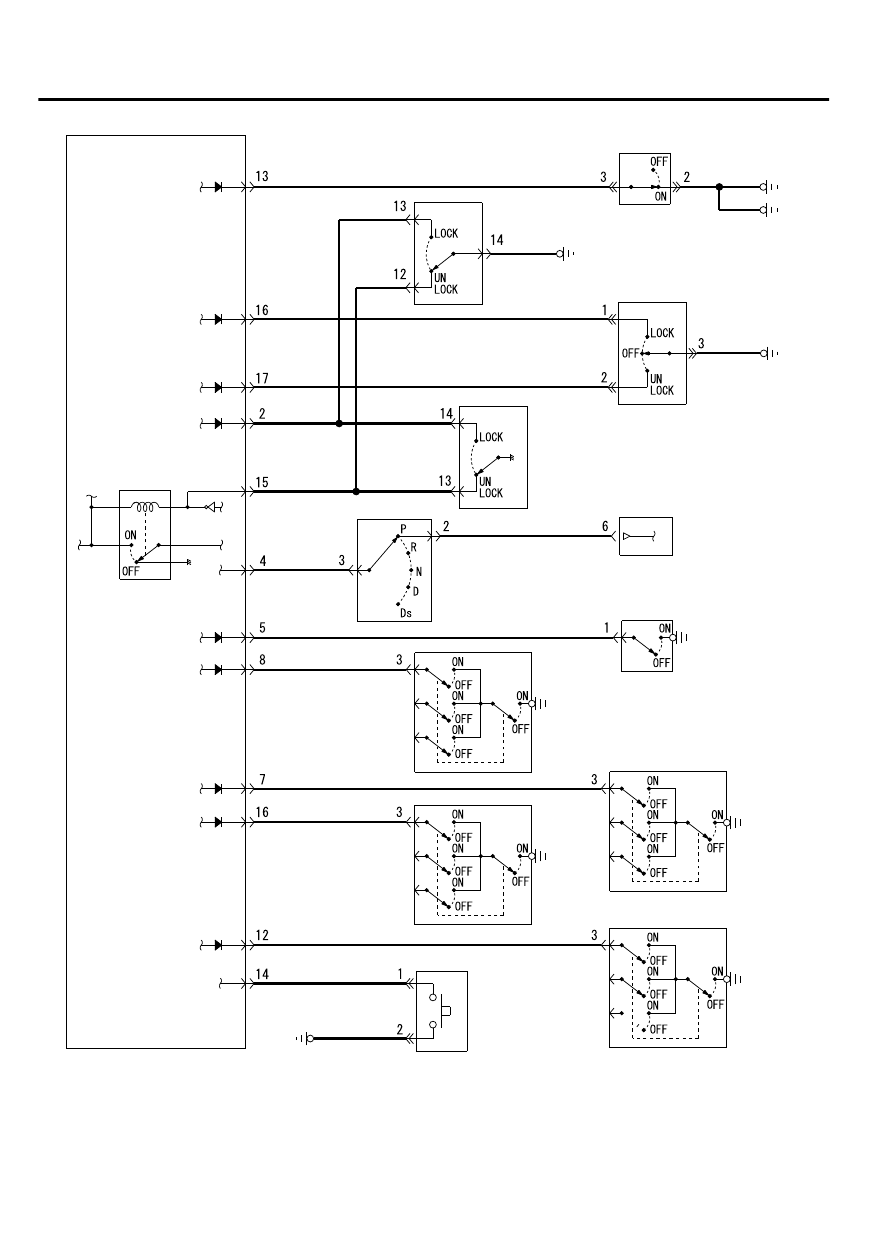

ZC602791

ETACS-ECU

REAR
DOOR
SWITCH
(RH)

FRONT
DOOR
SWITCH
(LH)

REAR
DOOR
SWITCH
(LH)

FRONT
DOOR
SWITCH
(RH)

LIFTGATE
SWITCH

TRANSMISSION
RANGE SWITCH

TRANSMISSION
CONTROL
MODULE

FRONT POWER
WINDOW
SUB SWITCH

POWER
WINDOW
MAIN
SWITCH

DOOR LOCK
KEY CYLINDER
SWITCH

KEY REMINDER
SWITCH

DRIVER'S DOOR
UNLOCK RELAY

LIFTGATE
LOCK
RELEASE
HANDLE

0000

42Ab-8

DOOR

GENERAL INFORMATION

POWER WINDOWS

When  the  power  window  (main  or  sub)  switch  is
operated, the door windows will open or close. This
system has the following operations and features:

｠

A power window lock switch on the power window
main switch prevents the door window glass from
opening/closing with the front passenger's and rear
power window sub switch.

｠

The power windows can be opened/closed for 30
seconds  after  the  ignition  switch  is  turned  OFF.
(The  timer  expires  if  the  front  door  LH  or  RH  is
opened).

｠

The  power  window  main  switch  contains  a  one-
touch switch that will automatically open and close
the driver's side door window only.

｠

With the safety mechanism, the power window main
switch detects the pinching of obstacle such as a
hand or a head when the driver's door window glass
is raised. Then, the mechanism lowers the driver's
door window glass for approximately 150 mm (6.0
inches). The safety mechanism is activated when
the power window main switch is operated by auto-
closing  operation  (the  status  when  the  hand  is
released  from  the  switch  knob  after  auto-closing
operation).  The  safety  mechanism  operates  as
follows.

｠

At  the  manual-closing  operation  or  the
continuous  auto-closing  operation  (keep
pulling up the switch knob) of the power window
switch, the door window glass can be forcibly
closed  without  safety  mechanism  activation
even  when  the  obstacle  is  detected  to  be
pinched.

｠

To secure the safety when the power window
switch

 manual-closing

 or

 auto-closing

operation is performed accidentally during the
safety  mechanism  activation,  the  power
window  switch  manual-closing  and  auto-
closing operations are prohibited for 3 seconds
after the activation of safety mechanism due to
the obstacle pinching detection.

POWER WINDOW TIMER FUNCTION

ZC600258

ON

OFF

ON

OFF

ON

(Open)

OFF

(Closed)

Ignition switch (IG1)

Power window relay

Driver's or
passenger's
door switch

t

t: 30 Seconds

0001

Even  after  the  ignition  is  switched  off,  the  ETACS-
ECU  keeps  the  power  window  relay  activated  for
approximately  30  seconds,  enabling  raising  or
lowering  of  the  power  windows  by  using  the  power
window  switches.  After  approximately  30  seconds,
the power window relay is deactivated.
During  this  timed  operation,  if  the  driver’s  or
passenger’s  doors  are  opened,  the  power  window
relay  is  deactivated  from  that  moment.  Using  a
customization  feature,  the  timer  period  can  be
changed (Refer to P.42Ab-94).

DOOR

42Ab-9

GENERAL INFORMATION

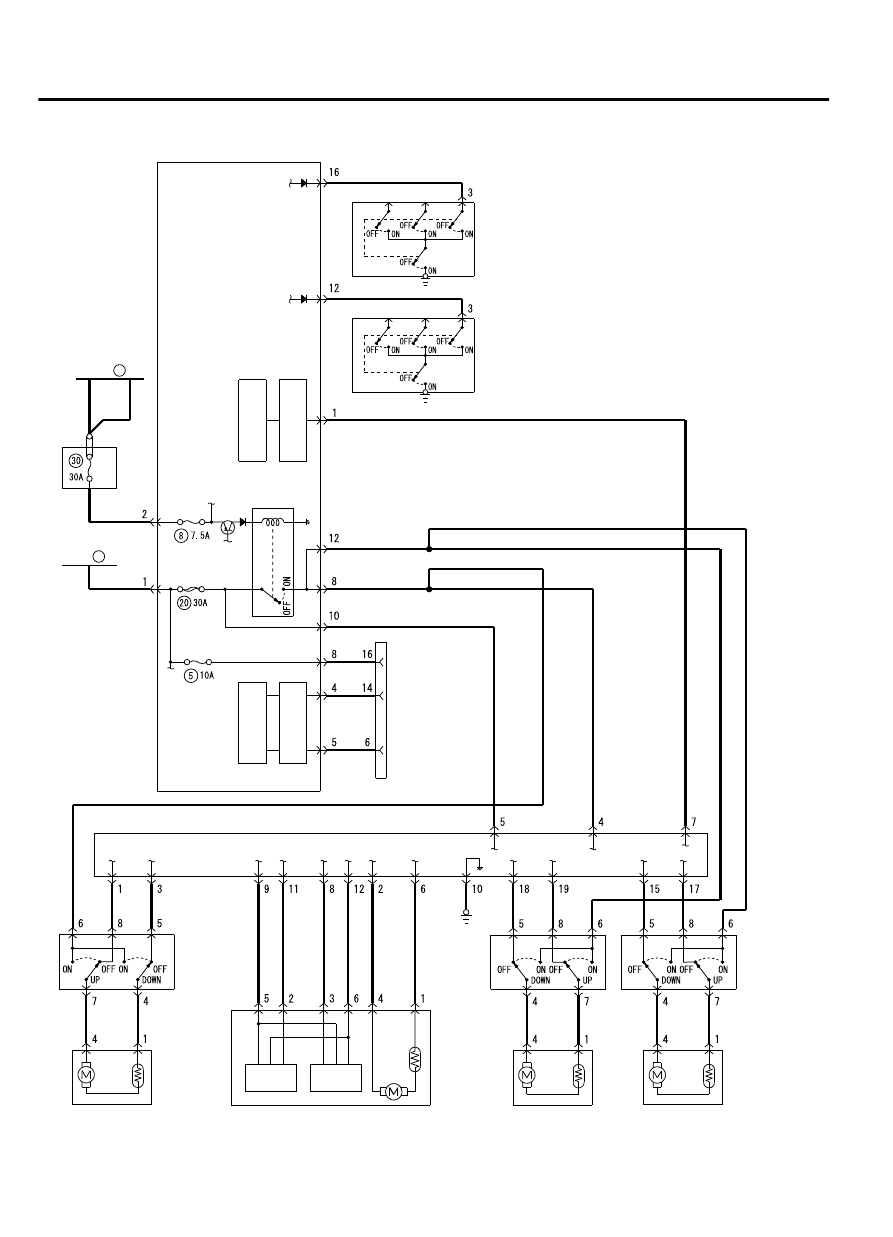

GENERAL CIRCUIT DIAGRAM FOR THE POWER WINDOWS

ZC602678

FRONT
POWER
WINDOW
SUB
SWITCH
(RH)

FRONT POWER
WINDOW
MOTOR (RH )

REAR
POWER
WINDOW
SUB
SWITCH
(RH)

REAR P OWER
WINDOW
MOTOR (RH )

REAR
POWER
WINDOW
SUB
SWITCH
(LH)

REAR P OWER
WINDOW
MOTOR (LH )

POWER WIND OW MAIN SWITC H

FRONT POWER WIND OW MOTOR (LH )

IC

IC

ETACS-ECU

POWER
WINDOW
RELAY

CAN DRIVE

CIRCUIT

INTER

F

A

C

E

CIRCUIT

LIN DRIVE

CIRCUIT

INTER

F

A

C

E

CIRCUIT

FRONT DOO R
SWITCH (LH)

FRONT DOO R
SWITCH (RH)

DATA LINK
CONNEC TOR

FUSIBLE
LINK

34

FUSIBLE
LINK

36

RELAY
BOX

0000

42Ab-10

DOOR

GENERAL INFORMATION
