REMOVAL SERVICE POINT

<<A>> LIFTGATE WINDOW GLASS REMOVAL
Remove the liftgate window glass by the same procedure as for
the windshield. (Refer to P.42Aa-15.)

NOTE:

Use a piano wire to remove the liftgate window glass.

INSTALLATION SERVICE POINTS

>>A<< LIFTGATE DAM LOWER/LIFTGATE DAM SIDE/
LIFTGATE DAM UPPER/GLASS STOPPER/FASTENER
INSTALLATION

Before the next operation, leave the decreased parts for 3
minutes or more to dry. Do not touch the degreased parts.

1.

Use white gasoline to degrease the inside circumference of
the liftgate window glass and the liftgate flanges.

BODY

42Aa-27

WINDOW GLASS

ZC6000620000

Liftgate dam side

Glass stopper

Align the glass stopper
end line with the liftgate
window glass mark

Ceramic line

Seal line

Liftgate window glass

Liftgate dam lower

Liftgate dam side

Liftgate dam lower

Seal line

Liftgate dam upper

Fastener

Align the fastener end line
with the liftgate window
glass mark

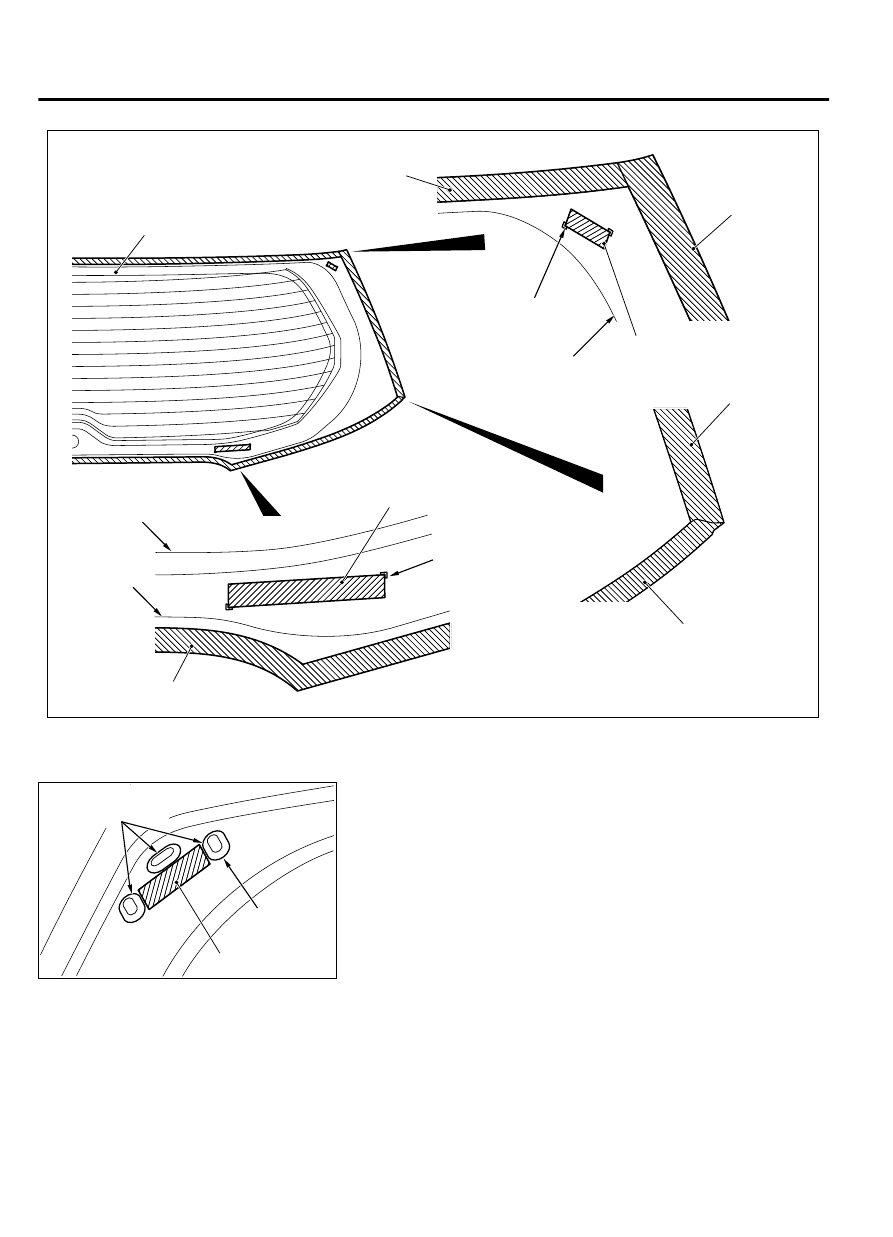

Fastener and glass stopper installation position

2.

Install the liftgate dam lower, liftgate dam side, liftgate dam
upper, glass stopper, and fastener to the specified position.

ZC6000630000

Fastener

Attach the fastener
between the
convexes

Convex on the
liftgate flange

3.

Install the fasteners to the specified positions on the liftgate
flange.

>>B<< LIFTGATE WINDOW GLASS ASSEMBLY
INSTALLATION

1.

Apply the primer and adhesive.

2.

Install the liftgate window glass by the same procedure as for
the windshield (Refer to P.42Aa-15).
