ZC6003550000

2

2

71 ± 10 N·m
52 ± 2 ft-lb

1

1

45 ± 7 N·m
33 ± 5 ft-lb

3

1

2

4

7

5

6

8

2

71 ± 10 N·m
52 ± 2 ft-lb

1

1

39 ± 6 N·m
29 ± 4 ft-lb

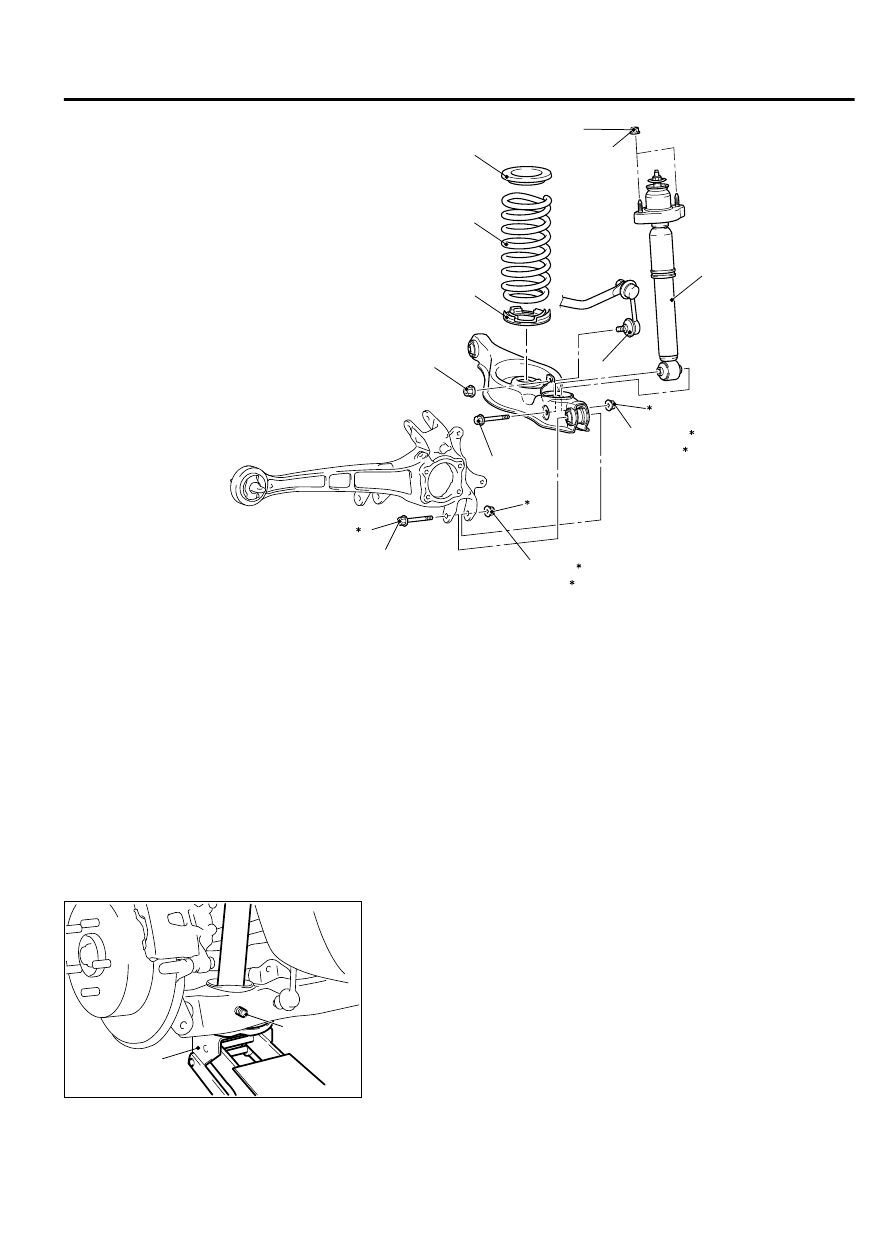

Shock absorber removal steps

1.

Stabilizer link connection

<<A>>

2.

Lower arm and trailing arm connection

<<A>>

3.

Shock  absorber  and  lower  arm
connection

<<B>>

4.

Shock absorber mounting nut

5.

Shock absorber assembly
Coil spring removal steps

1.

Stabilizer link connection

Coil spring removal steps

<<A>>

2.

Lower arm and trailing arm connection

<<A>>

3.

Shock  absorber  and  lower  arm
connection

6.

Coil spring

7.

Coil spring upper pad

8.

Coil spring lower pad

REMOVAL SERVICE POINT

<<A>> LOWER ARM AND TRAILING ARM/SHOCK
ABSORBER AND LOWER ARM DISCONNECTION

ZC6021160000

Mounting
bolt

Garage
jack

While jacking-up the lower arm with the garage jack, remove the
mounting bolts.



REAR SUSPENSION

34-19

SHOCK ABSORBER ASSEMBLY

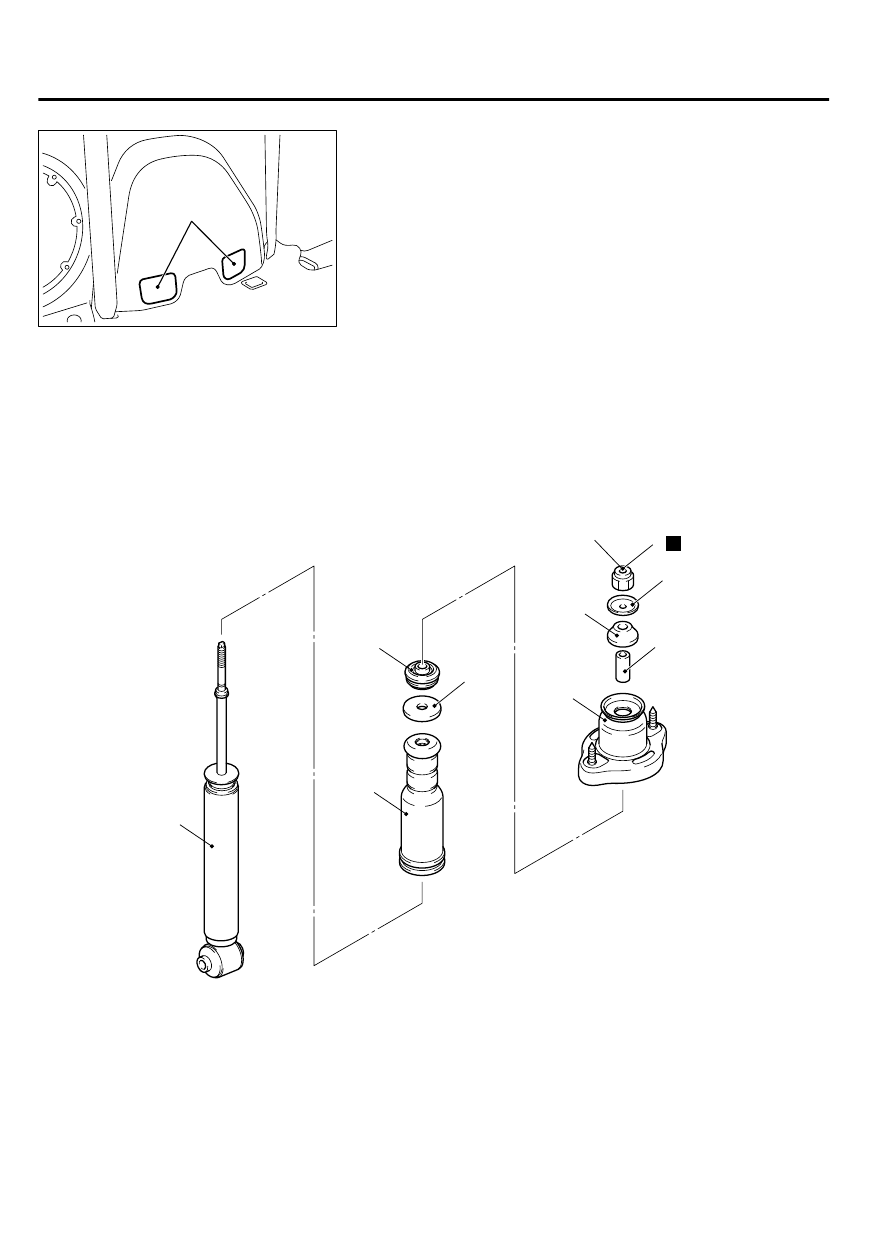

<<B>> SHOCK ABSORBER MOUNTING NUT REMOVAL

ZC3060420000

Maintenance lid

Remove the maintenance lid as shown in the figure, and then
remove the shock absorber mounting nut.

INSPECTION

M13401000026USA0000010000

｠

Check the rubber parts for cracks and wear.

｠

Check  the  shock  absorber  for  malfunctions,  oil  leakage,  or
abnormal noise.

DISASSEMBLY AND ASSEMBLY

M13401000027USA0000010000

ZC6003560000

25 ± 5 N·m
19 ± 3 ft-lb

3

1

2

9

4

7

5

6

8

N

Disassembly steps

<<A>>

>>A<<

1.

Self-locking nut

2.

Washer

3.

Bushing B

4.

Collar

Disassembly steps

5.

Spring upper bracket

6.

Bushing A

7.

Plate

8.

Bump rubber

34-20

REAR SUSPENSION

SHOCK ABSORBER ASSEMBLY

Disassembly steps

9.

Shock absorber

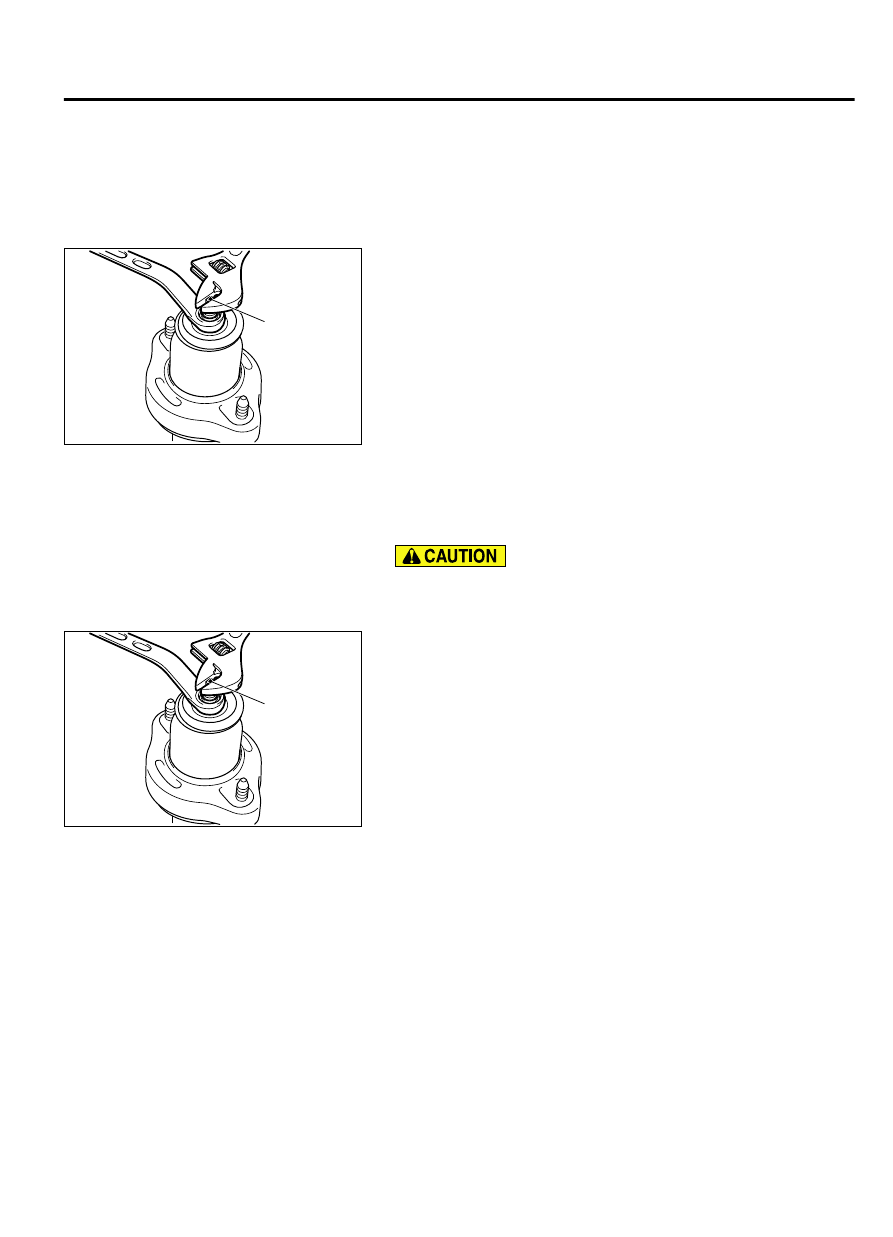

DISASSEMBLY SERVICE POINT

<<A>> SELF-LOCKING NUT REMOVAL

ZC6004200000

Piston rod

Counter the piston rod of the shock absorber as shown in the
figure to remove the self-locking nut.

ASSEMBLY SERVICE POINT

>>A<< SELF-LOCKING NUT INSTALLATION

The locking nut for the piston rod inside the shock absorber
may be loose. Do not use an impact wrench to tighten the
self-locking nut.

ZC6004200000

Piston rod

Counter the piston rod of the shock absorber as shown in the
figure, and tighten the self-locking nut to the specified torque.

Tightening torque: 25 ± 5 N·m (19 ± 3 ft-lb)

REAR SUSPENSION

34-21

SHOCK ABSORBER ASSEMBLY

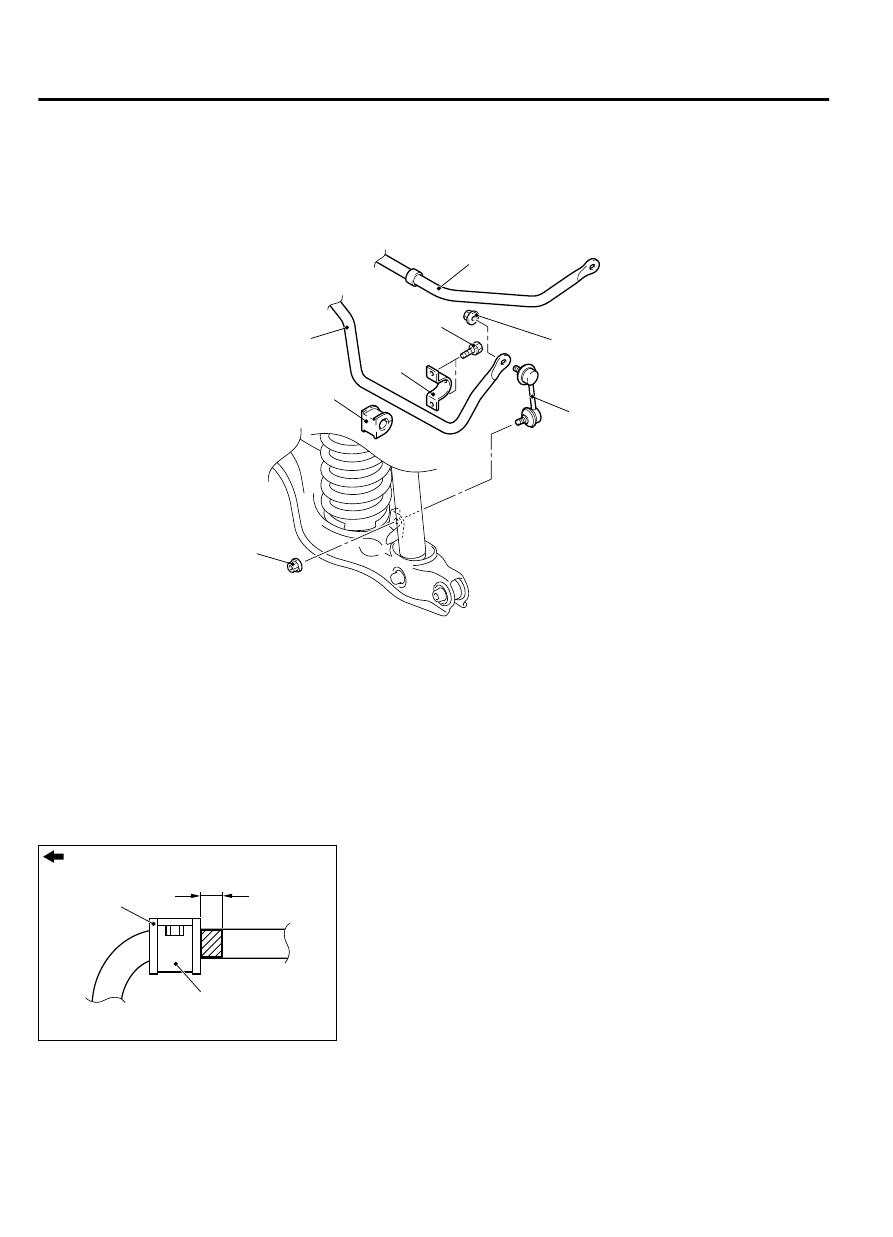

STABILIZER BAR

REMOVAL AND INSTALLATION

M13401000056USA0000010000

ZC6003570000

39 ± 6 N·m
29 ± 4 ft-lb

3

1

2

4

4

31 ± 4 N·m
23 ± 3 ft-lb

39 ± 6 N·m
29 ± 4 ft-lb

<4WD>

<2WD>

Removal steps

1.

Stabilizer link

>>A<<

2.

Stabilizer bracket

>>A<<

3.

Bushing

Removal steps

>>A<<

4.

Stabilizer bar

INSTALLATION SERVICE POINTS

>>A<< STABILIZER BAR/BUSHING/STABILIZER BRACKET
INSTALLATION

ZC3058410000

Outside of the vehicle

Approx.10 mm (0.39 in)

Bushing

Stabilizer bracket

Position the identification mark of the stabilizer bar at the left side
of the vehicle as shown in the figure, and tighten the stabilizer
bracket mounting nut.

34-22

REAR SUSPENSION

STABILIZER BAR
