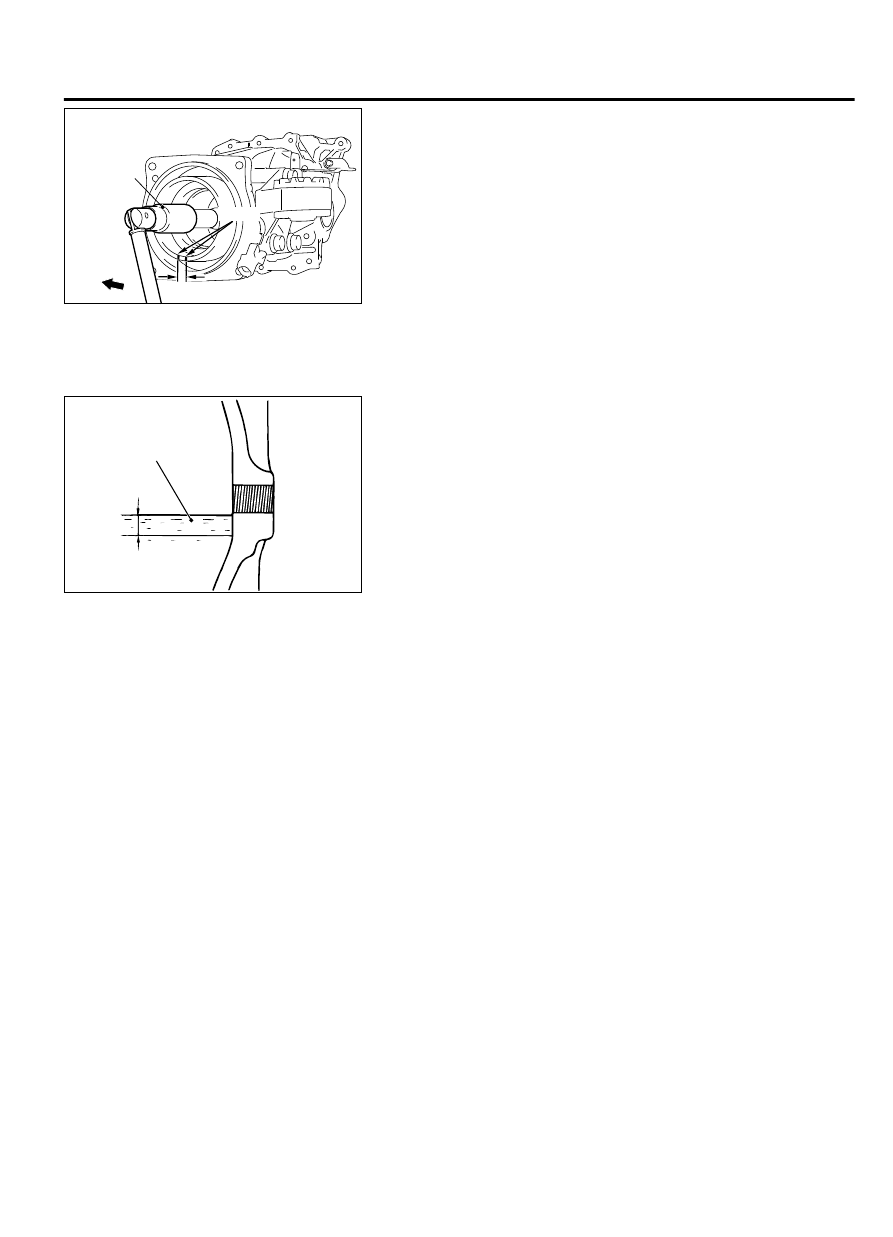

Rotate the special tool clockwise until it stops, and then put a
mark on the flange. Measure the distance between the marks.

Limit: 5 mm (0.2 inch)

GEAR OIL LEVEL CHECK

M12701000901USA0000010000

1.

Remove the filler plug.

ZC5000770000

8 mm
(0.3 in)

Upper
limit

Lower
limit

Gear oil

2.

Check  that  gear  oil  level  is  not  8  mm  (0.3  inch)  below  the
bottom of filler plug hole.

3.

Tighten the filler plug to the specified torque.

Tightening torque: 32 ± 2 N·m (23 ± 2 ft-lb)

GEAR OIL REPLACEMENT

M12701000909USA0000010000

1.

Remove the filler plug.

2.

Remove the drain plug and drain oil.

3.

Tighten the drain plug to the specified torque.

Tightening torque: 32 ± 2 N·m (23 ± 2 ft-lb)

4.

Add the oil until the level comes to the lower portion of the filler
plug hole.

Specified gear oil: Hypoid gear oil API classification
GL-5, SAE 80W

5.

Tighten the filler plug to the specified torque.

Tightening torque: 32 ± 2 N·m (23 ± 2 ft-lb)

WHEEL BEARING END PLAY CHECK

M12701000009USA0000010000

1.

Remove the caliper assembly and the brake disc. Retain the
caliper  assembly  with  a  wire  and  the  like  to  prevent  from
falling.

REAR AXLE<AWD>

27B-15

ON-VEHICLE SERVICE

ZC5018670000

2.

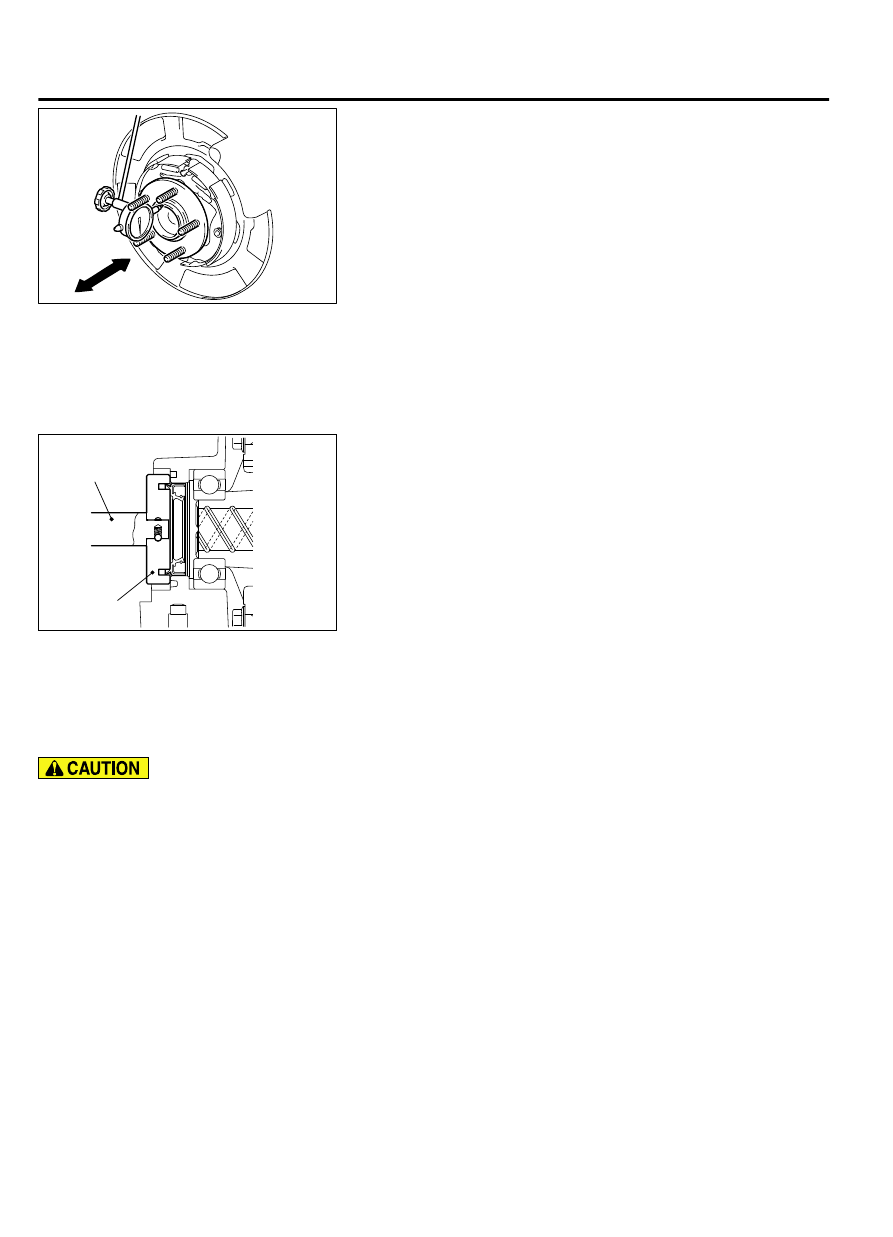

Set a dial gauge as shown in the figure. Move the hub in the
axial direction and measure the looseness.

Limit: 0.05 mm (0.002 inch)

3.

When the looseness exceeds the limit value, replace the rear
wheel hub assembly.

4.

After checking, install the brake disc and the caliper assembly,
and tighten the caliper mounting bolt to the specified torque.

Tightening torque: 55 ± 5 N·m (41 ± 3 ft-lb)

DIFFERENTIAL CARRIER OIL SEAL

REPLACEMENT

M12701000908USA0000010000

1.

Remove the driveshaft.(Refer to P.27B-19.)

2.

Remove the differential carrier oil seal.

ZC3051480000

MB990938

MB991115

3.

Use special tools MB990938 and MB991115 to press-fit a new
oil seal.

4.

Apply multi-purpose grease to the oil seal lip and driveshaft oil
seal seating area.

5.

Replace the drive shaft circlip with a new one, and install the
driveshaft. (Refer to P.27B-19.)

REAR AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION

M12701000020USA0000010000

｠

Do  not  disassemble  the  rear  wheel  hub
assembly.

｠

The  wheel  speed  detection  magnetic  encoder
collects metallic particles easily, because it is
magnetized.  Make  sure  that  the  magnetic
encoder  should  not  collect  metallic  particles.
Check  that  there  is  not  any  trouble  prior  to
reassembling it.

｠

When the rear wheel hub assembly is removed/
installed,  make  sure  that  the  wheel  speed

detection  magnetic  encoder  (integrated  with
inner  oil  seal)  does  not  contact  with
surrounding parts to avoid damage.

｠

When  removing  and  installing  the  rear  wheel
speed sensor, make sure that its pole piece at
the end does not contact with surrounding parts
to avoid damage.

｠

The part indicated with * is the bolt with friction
coefficient stabilizer. In removal, replace it with
a new one.

27B-16

REAR AXLE<AWD>

ON-VEHICLE SERVICE

ZC5019970000

3

1

2

4

7

5

6

8

N

N

55 ± 5 N·m
41 ± 3 ft-lb

144 - 176 N·m
107 - 129 ft-lb

95 ± 14 N·m
70 ± 10 ft-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

N

*

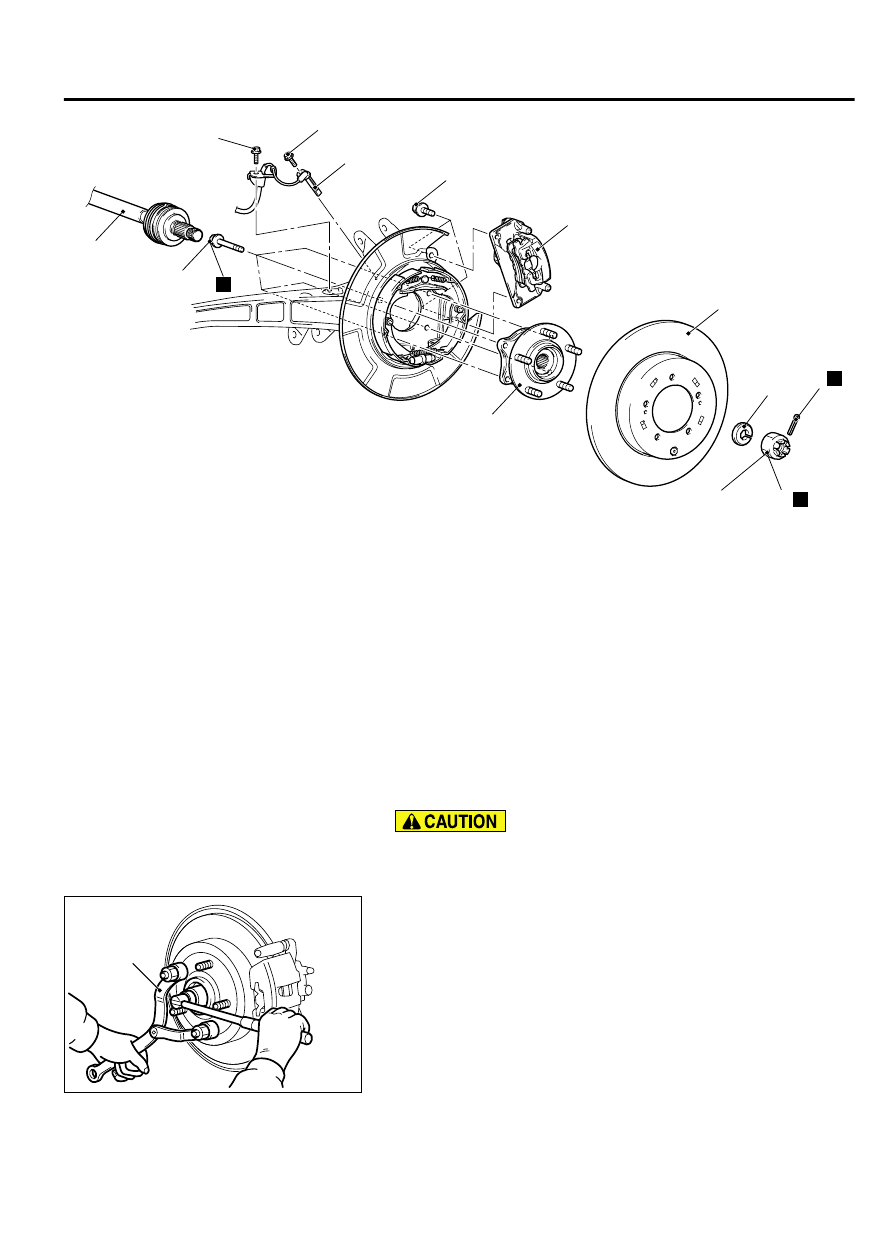

Removal steps

1.

Cotter pin

<<A>>

>>A<<

2.

Driveshaft nut

>>A<<

3.

Washer

4.

Rear wheel speed sensor

<<B>>

5.

Caliper assembly

Removal steps

6.

Brake disc

7.

Drive  shaft  (Refer  to  Drive  Shaft
Removal

 and

 Installation

 P.

27B-19.)

8.

Rear wheel hub assembly

Required Special Tool:

｠

MB990767: Front Hub and Flange Yoke Holder

REMOVAL SERVICE POINTS

<<A>> DRIVESHAFT NUT REMOVAL

Do  not  apply  the  vehicle  weight  on  the  rear  wheel  hub
assembly with the driveshaft nut loosened. Otherwise, the
wheel bearing will be broken.

ZC3003280000

MB990767

Use  special  tool  MB990767  to  fix  the  hub  and  remove  the
driveshaft nut.



REAR AXLE<AWD>

27B-17

REAR AXLE HUB ASSEMBLY

<<B>> CALIPER ASSEMBLY REMOVAL
Retain the removed caliper assembly with a wire and the like to
prevent from falling.

INSTALLATION SERVICE POINTS

>>A<< WASHER/DRIVESHAFT NUT INSTALLATION

ZC5019980000

Magnetic
encoder

Wheel
bearing

Rear hub
assembly

｠

The  wheel  speed  detection  magnetic  encoder  collects
metallic particles easily, because it is magnetized. Make
sure that the magnetic encoder does not collect metallic
particles.  Check  that  there  is  not  any  trouble  prior  to
reassembling it.

｠

When installing the drive shaft, make sure that it does not
contact with the wheel speed detection magnetic encoder
(integrated with the inner oil seal) to avoid damage.

｠

Do  not  apply  the  vehicle  weight  on  the  rear  wheel  hub
assembly  before  fully  tightening  the  driveshaft  nuts.
Otherwise, the wheel bearing will be broken.

AC302292

ZC3050520000

MB990767

Washer

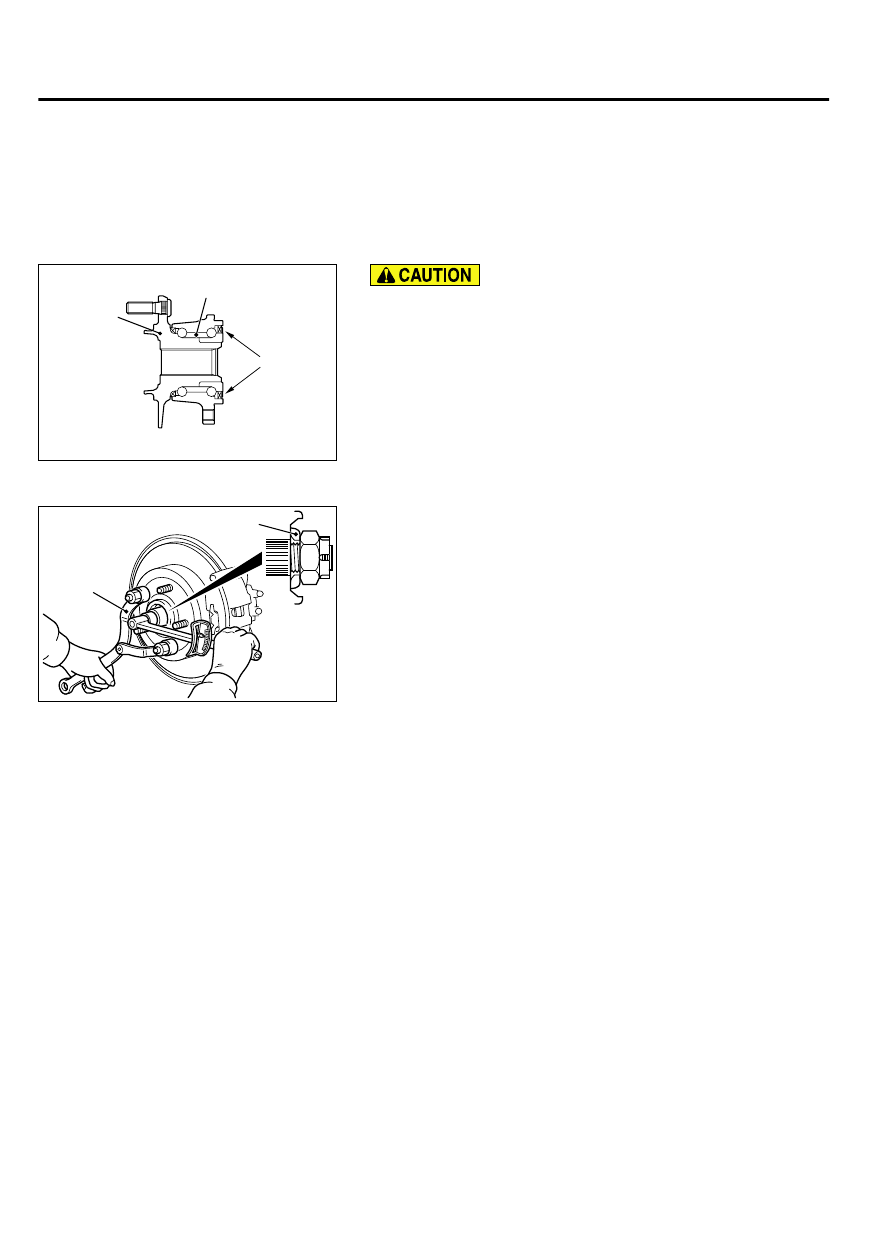

1.

Incorporate the driveshaft washer as shown in the figure.

2.

Use special tool MB990767 to tighten the driveshaft nuts. At
this  time,  tighten  the  nuts  within  the  specified  torque  range
considering the final tightening.

Tightening torque: 144 - 176 N·m (107 - 129 ft-lb)

3.

If the pin holes do not align with the pins, tighten the driveshaft
nut [less than 200 N·m (147 ft-lb)] and find the nearest hole
then bend the split ping to fit it.

INSPECTION

M12701000021USA0000010000

HUB ROTATION STARTING TORQUE AND WHEEL

BEARING END PLAY CHECK

Required Special Tools:

｠

MB990326: Preload Socket

｠

MB990998: Front Hub Remover and Installer

｠

MB991000: Spacer
