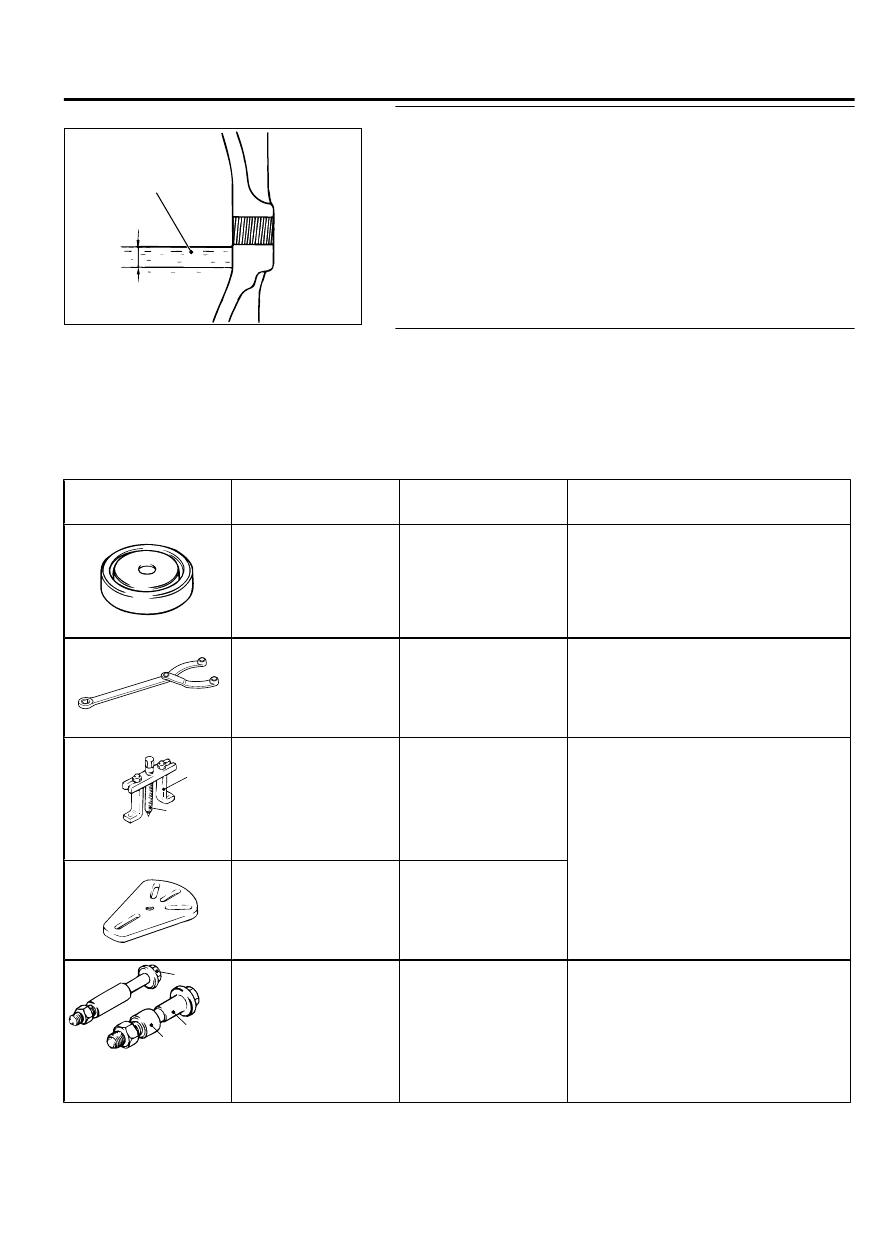

STEP 3. Check the oil level.

ZC5000770000

8 mm
(0.3 in)

Upper
limit

Lower
limit

Gear oil

Remove the filler plug and check the gear oil level.

Q:Is the gear oil level more than 8 mm (0.3 inch) below the

bottom of the filler plug hole?

YES:

 Refill Hypoid gear oil API classification GL-5 or

higher; Above -23°C(-10°F): SAE90, 85W-90, 80W-90, From
-34 to -23°C(-30 to -10°F): SAE80W, 80W-90, Below -34°
C(-30°F): SAE75W. Then go to Step 4.

NO:

 Go to Step 4.

STEP 4. Retest the system.

Q:Is there oil leakage?

YES:

 Start over at Step 1.

NO:

 The procedure is complete.

SPECIAL TOOL

M12701000006USA0000010000

Tool

Tool  number  and
name

Supersession

Application

MB991115
Oil seal installer

MB991115-01

Oil  seal  press-fitting  (used  in
combination with MB990938)

YB990767AA00

MB990767
Front  hub  and  flange
yoke holder

MB990767-01

Hub fixing

YB990241AA01

B

A

MB990241
Axle shaft puller

A: MB990242
Puller shaft
B: MB990244
Puller bar

MB990241-01

 or

General service tool

｠

Driveshaft removal

｠

Rear hub assembly removal

YB991354AA01

MB991354
Puller body

General service tool

YB991017AA02

A

B

C

A: MB991017
B: MB990998
C: MB991000
A,  B:  Front  hub
remover

 and

installer
C: Spacer

MB990998-01

｠

Wheel bearing temporarily fixing

｠

Hub

 rotation

 starting

 torque

measurement

｠

Wheel  bearing  axial  looseness
measurement
Use  MB991000  (a  part  of
MB990998) for spacer

REAR AXLE<AWD>

27B-11

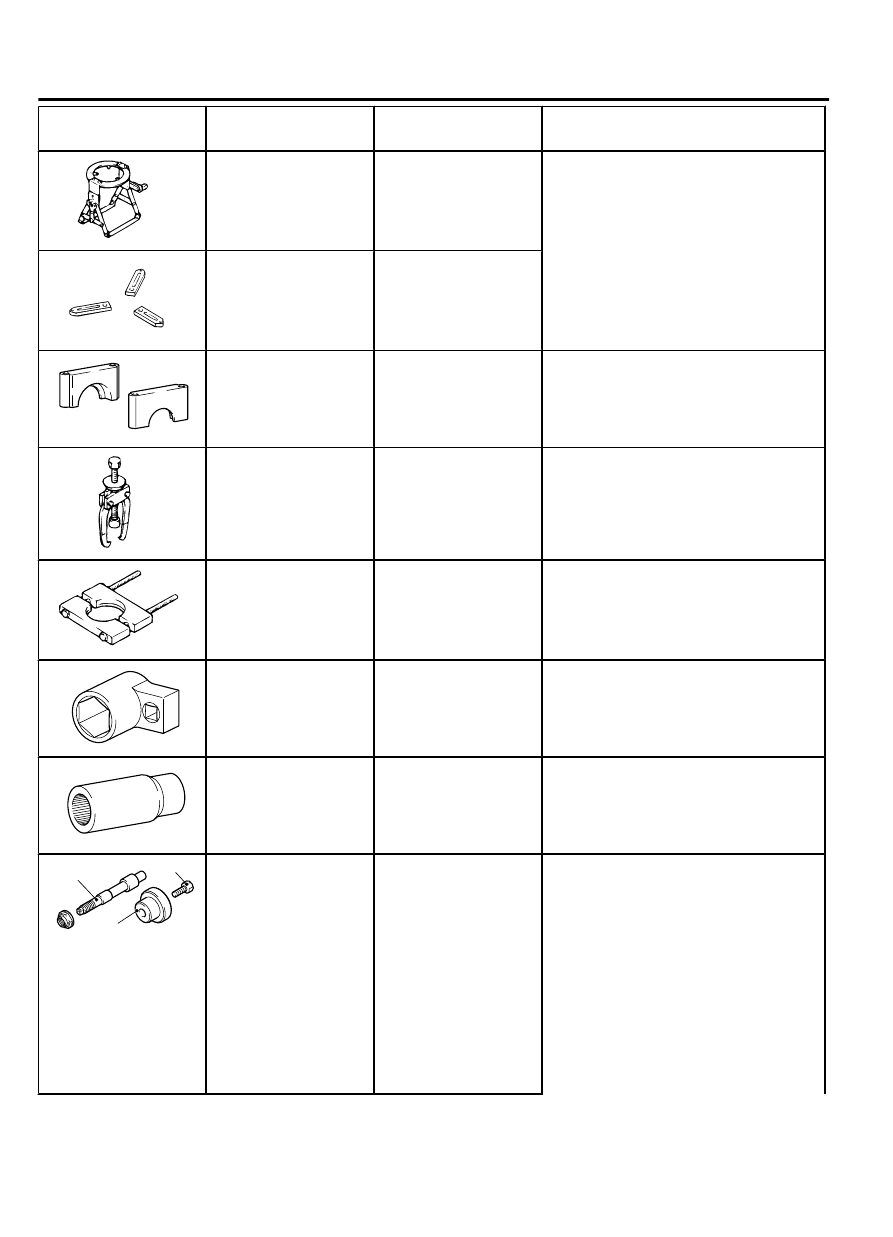

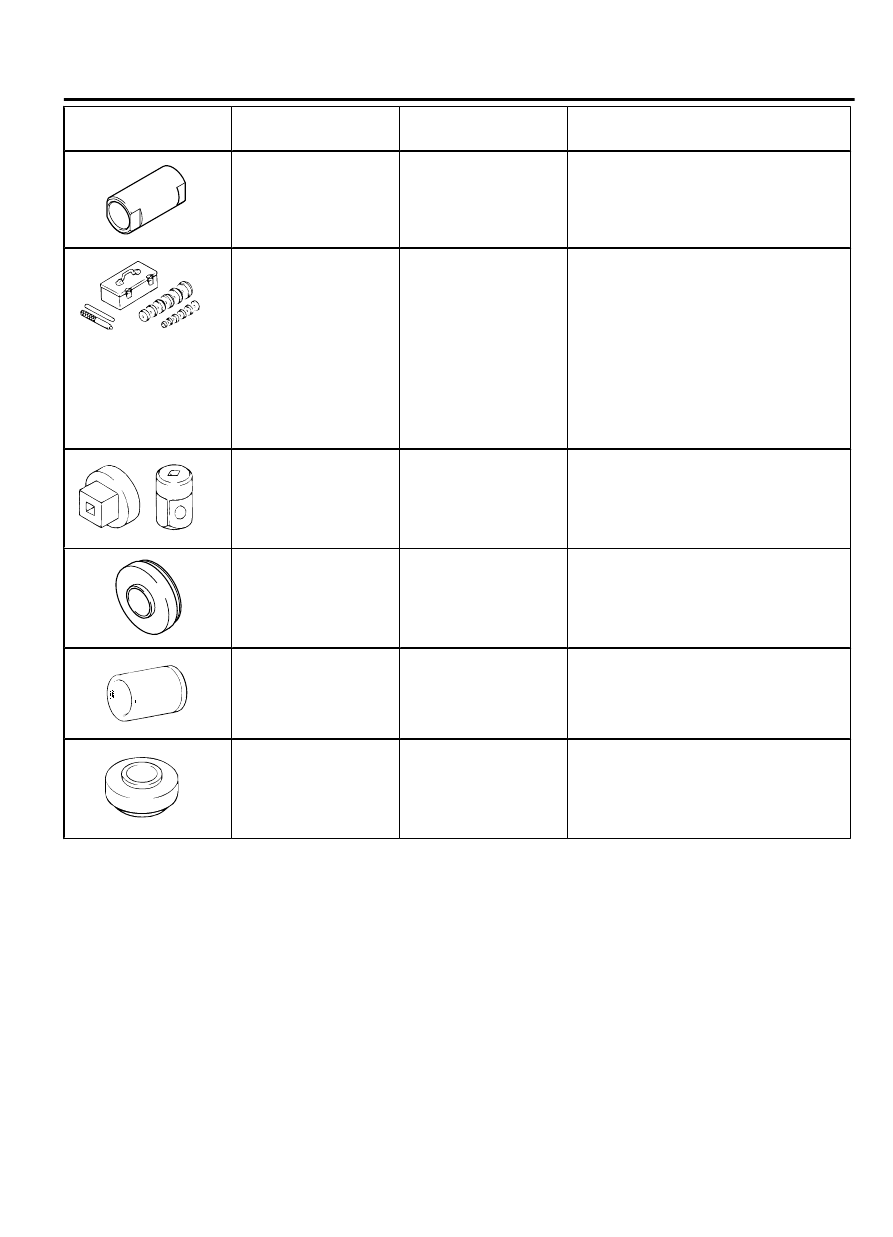

SPECIAL TOOL

Tool

Tool  number  and
name

Supersession

Application

YB990909AA00

MB990909
Working base

General service tool

Differential

 carrier

 assembly

disassembly/assembly

MB991116
Working

 base

adapter

General service tool

MB992111

MB992111
Side bearing holder

-

Differential carrier fixing

YB990810AA00

MB990810
Side bearing puller

MB990810-01

Differential  side  bearing  inner  race
removal

YB990560AA00

MB990560
Rear

 axle

 shaft

bearing remover

MD998348-01

Drive  pinion  rear  bearing  inner  race
removal

MB992112

MB992112
Locking nut wrench

-

Differential nut removal

MB992113

MB992113
Drive pinion holder

-

｠

Rear axle backlash inspection

｠

Drive pinion fixing

YB992114AA00

A

B

C

MB992114
Dummy pinion gauge
assembly

A: MB992115
Dummy

 pinion

gauge body
B: MB992116
Dummy

 pinion

gauge head
C: MB992128
Hex  socket  head
bolt

-

Drive pinion height adjustment

27B-12

REAR AXLE<AWD>

SPECIAL TOOL

Tool

Tool  number  and
name

Supersession

Application

MB992117

MB992117
Cylinder gauge

General service tool

YB990925AA00

A

B

C

MB990925
Bearing  and  oil  seal
installer set

A:  MB990926  to
MB990937
Installer adapter
B:MB990938
Installer bar
C:MB990939
Remover bar

MB990925-01

 or

General service tool

｠

Differential carrier oil seal driving in

｠

Final  drive  gear  teeth  contact
inspection

｠

Drive pinion bearing removal/press-
fitting

MB990326

MB990326
Preload socket

General service tool

Hub rotation torque measurement

MD998816
Bearing installer

-

Drive  pinion  rear  bearing  inner  race
press-fitting

MB991180

MB991180
Bushing remover and
installer base

-

Drive pinion oil seal press-fitting

MB990829

MB990829
Pinion

 and

 side

bearing installer

-

Side bearing inner race press-fitting

REAR AXLE<AWD>

27B-13

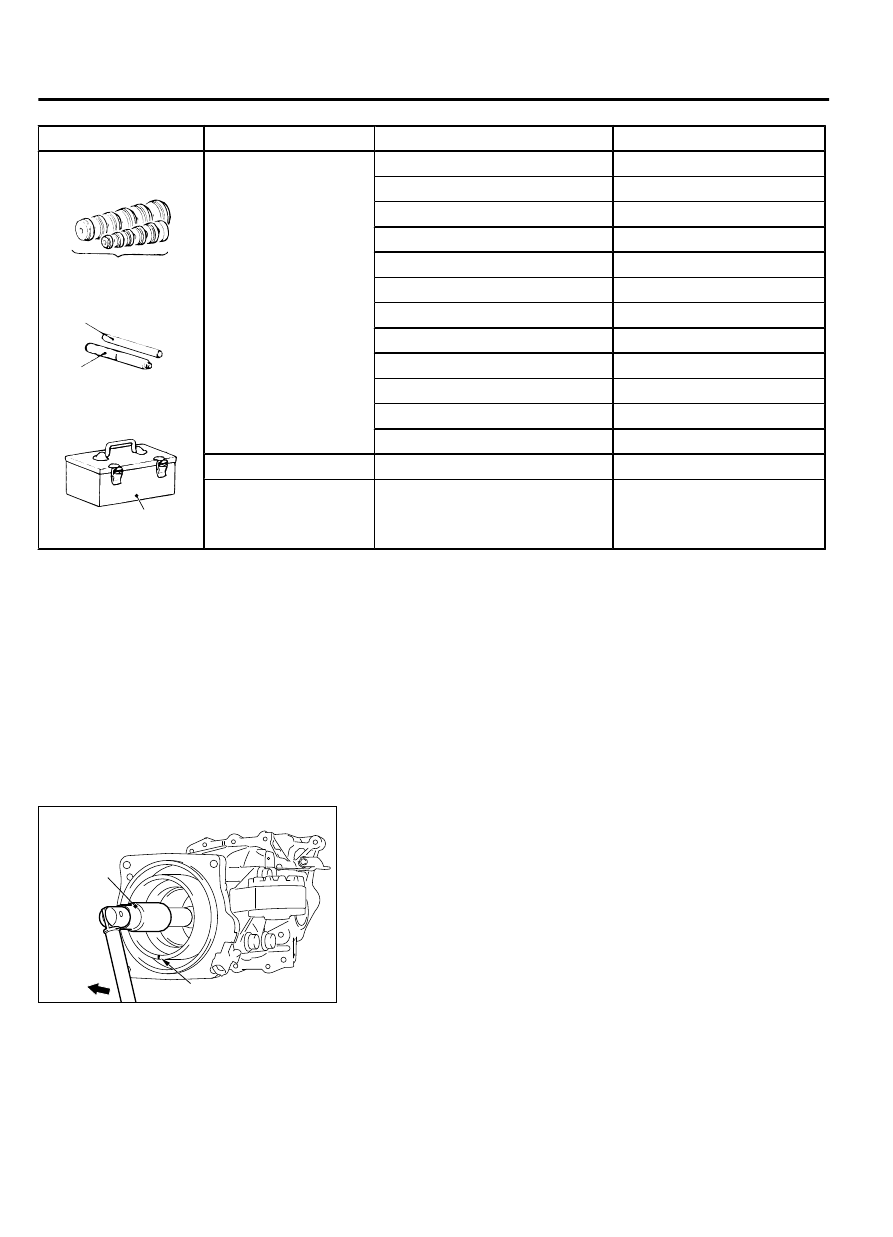

SPECIAL TOOL

MB990925 Bearing and oil seal installer set

Tool

Type

Number

O D mm (in)

ZC501852AA00

A

B

C

Brass bar

Bar (Snap-in type)

Tool box

MB990925

Installer adapter

A

MB990926

39.0 (1.54)

MB990927

45.0 (1.77)

MB990928

49.5 (1.95)

MB990929

51.0 (2.00)

MB990930

54.0 (2.13)

MB990931

57.0 (2.24)

MB990932

61.0 (2.40)

MB990933

63.5 (2.50)

MB990934

67.5 (2.66)

MB990935

71.5 (2.81)

MB990936

75.5 (2.97)

MB990937

79.0 (3.11)

B

MB990938

-

C

MB990939

-

ON-VEHICLE SERVICE

REAR AXLE TOTAL BACKLASH CHECK

M12701000012USA0000010000

1.

Shift the selector lever in the Neutral position, pull the parking
brake lever, and then raise the vehicle using a jack.

2.

Remove the propeller shaft. (Refer to GROUP 25 - Propeller
Shaft P.25-5.)

3.

Remove  the  electronic  control  coupling.(Refer  to  P.
27C-94.)

ZC3051410000

MB992113

Mark

4.

Install special tool MB992113 to the drive pinion. Lightly turn
the special tool clockwise to eliminate free play between the
drive pinion serration and the special tool, and then put a mark
on the flange.

27B-14

REAR AXLE<AWD>

ON-VEHICLE SERVICE
