COMBINATION METER

GENERAL INFORMATION

M25400000001USA0000010002

Metallic silver and black are used as the base color of
the  combination  meter.  The  meter  has  the
independently  arranged  speedometer  to  the  left,
indicator to the upper center, multi information display
(large full dot matrix LCD display) to the lower center,
tachometer to the right, so that its sporty design allows
a driver to easily distinguish the information from the
meters.  The  combination  meter  offers  the  following
features:

｠

The  multi  information  display  that  displays  two
colors (red and yellow) has been adopted.

｠

The  multi  information  display  can  be  switched  to
display the trip meter.

｠

The  service  reminder  function  has  been  adopted
which  notifies  the  users  of  the  next  periodic

inspection  timing  using  the  driving  distance  and
elapsed time.

｠

By operating the rheostat switch, the brightness of
the meter and illumination can be adjusted in eight
steps.

｠

The layout has been simplified by displaying what
is required to meet the legislative requirements with
the  indicator,  and  by  displaying  other  things  with
multi information display.

｠

Even with the ignition switch in the OFF position, the
odometer,  trip  meter,  or  service  reminder
information can be displayed by pressing the meter
information switch.

｠

A tone alarm is integrated in the combination meter
so that the alarm contents or the operation status of
switches can be checked with the tone alarm sound.

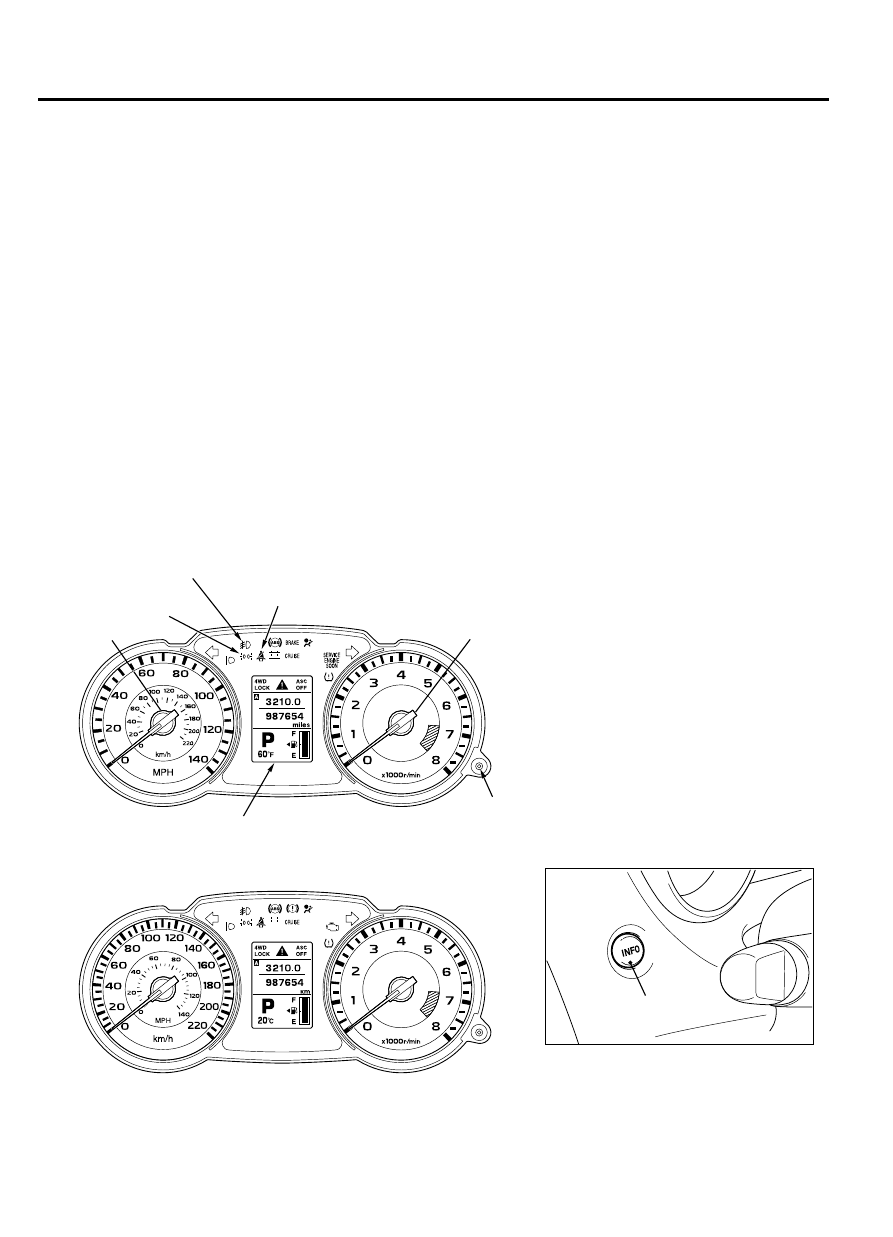

ZC5018250000

Seat belt warning light

Front fog light indicator

Rheostat switch

Multi information display

Tachometer

Speedometer

Meter information switch

<Vehicles for USA>

<Vehicles for CANADA>

ZC501965

Position indicator

54A-18

CHASSIS ELECTRICAL

COMBINATION METER

MULTI INFORMATION DISPLAY

M25400000121USA0000010000

The multi information display can display the following
items:  various  warnings,  odometer  and  trip  meter,
service  reminder  information,  engine  coolant
temperature,  remaining  fuel  amount,  ambient
temperature, selector lever position, AWD operation
status, average and instantaneous fuel consumption,

possible  cruising  distance,  average  vehicle  speed,
and  others.  Displayed  contents  can  be  switched  by
operating  the  meter  information  switch.  Also,  the
displayed  language  or  unit  on  the  multi  information
display  can  be  changed  from  the  function  setting
screen.

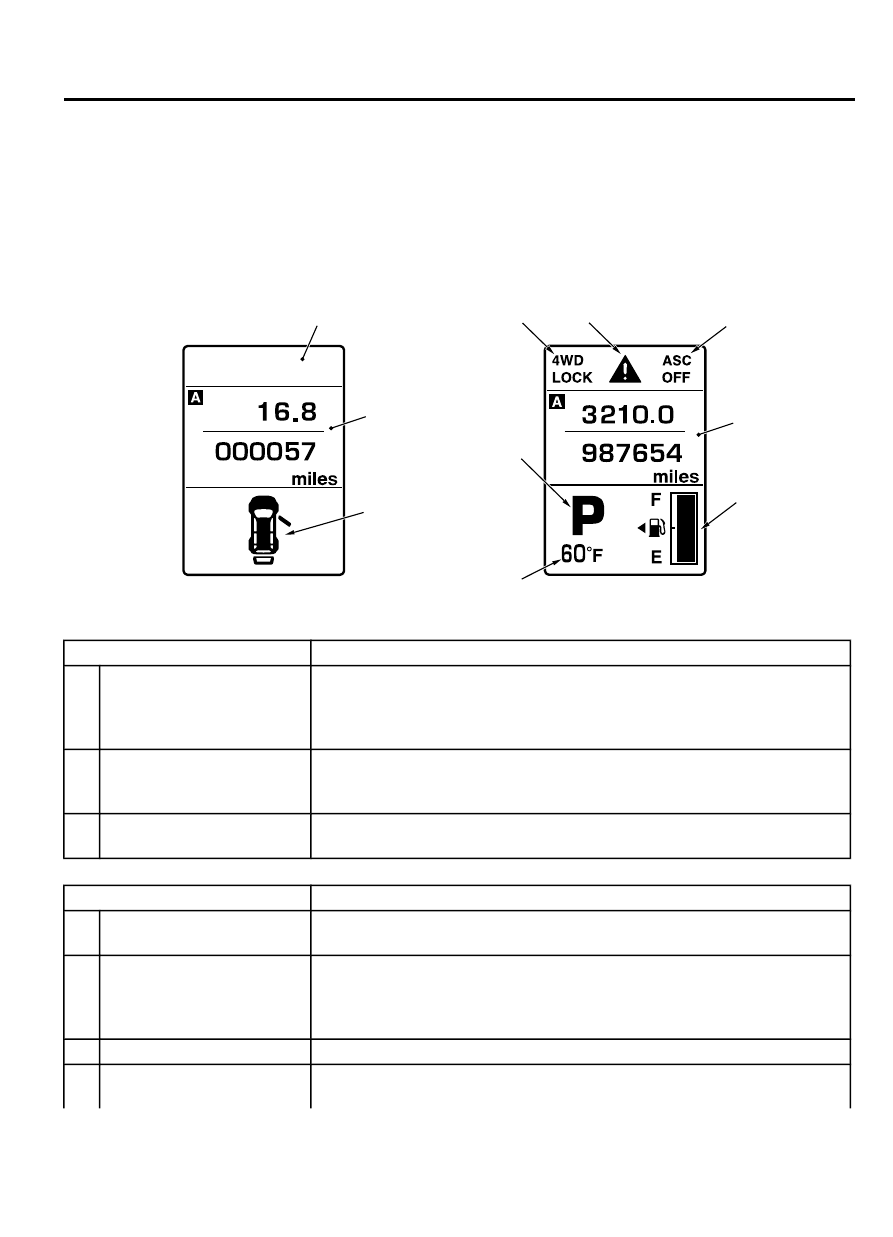

ZC5018580000

When the ignition switch is LOCK (OFF) position

When the ignition switch is ON position

1

2

3

4

5

6

7

8

9

10

When the ignition switch is LOCK (OFF) position

Item

Content

1

Caution

 mark

 display

screen

When warnings are displayed on the interrupt display screen, pressing the
meter information switch turns off the warning display and displays the
caution mark. Caution mark is displayed also when two or more alarms
occur simultaneously.

2

Information screen/interrupt
display screen

The  odometer  and  trip  meter  or  service  reminder  information  will  be
displayed.  Also,  appropriate  contents  are  displayed  when  a  warning  is
issued.

3

Door-ajar  warning  display
screen

Displays the door or liftgate that is open.

When the ignition switch is ON position

Item

Content

4

Drive

 mode

 indicator

display screen

Displays the AWD operation status.

5

Caution

 mark

 display

screen

When  warnings  are  displayed  on  the  information  screen,  pressing  the
meter information switch turns off the warning display and displays the
caution mark. Caution mark is displayed also when two or more alarms
occur simultaneously.

6

ASC OFF display screen

Displayed when the ASC system is turned OFF using the ASC OFF switch.

7

Information screen/interrupt
display screen

A screen changes in following order by operating meter information switch.

1.

Odometer/Trip odometer A

CHASSIS ELECTRICAL

54A-19

COMBINATION METER

Item

Content

2.

Odometer/Trip odometer B

3.

Service reminder (when service reminder function is effective)

4.

Engine coolant temperature display

5.

Driving range display

6.

Average speed display, average fuel consumption display, momentary
fuel consumption display

7.

Function setting screen

8.

Redisplay of a warning display screen

Also, appropriate contents are displayed when a warning is issued.

8

Selector

 lever

 position

display screen

Displays the selector lever position.

9

Outside

 temperature

display screen

Displays the ambient temperature.

10 Fuel  remaining  display

screen

Displays the remaining fuel amount.

Service reminder function

Displays the periodic inspection timing based on the
predetermined  schedule.  With  the  inspection  timing
coming up (warning start point of the warning criteria
is achieved), when the ignition switch is turned to ON
position,  the  service  reminder  function  displays
"PERIODIC  INSPECTION"  for  4  seconds  to  inform
the  inspection  timing.  When  the  "PERIODIC
INSPECTION"  achieves  the  warning  end  point  of
warning criteria, it will be turned off by the scan tool
MB991958 special function or the meter information
switch special operation*.

NOTE:

The service reminder function is disabled

at shipment. If any of the following conditions is

met, the function becomes available. When
delivering the vehicle to the customer, enable the
service reminder function, and check that the
schedule is "NAS 10".

｠

The ignition switch is turned to "ON" while pressing
the meter information switch.

｠

The driving distance of the odometer reaches 100
km or 60 miles.

NOTE:

Using the scan tool MB991958 special

functions or the meter information switch special
operation*, the schedule can be changed and the
service reminder function can be made unavailable.

NOTE:

 *: For details about the meter information

switch special operation, refer to the Service
Manual.

Schedule table

Schedule

Warning types

Warning criteria

NAS 10 (initial
setting)

Elapsed time (month)

Every 6 elapsed months

Driving distance (miles)

Every 7,500 miles of driving distance

Driving distance (km)

Every 12,000 km of driving distance

NAS 11

Elapsed time (month)

Every 3 elapsed months

Driving distance (miles)

Every 3,750 miles of driving distance

Driving distance (km)

Every 6,000 km of driving distance

NAS 20

Elapsed time (month)

Every 5 elapsed months

Driving distance (miles)

Every 5,000 miles of driving distance

Driving distance (km)

Every 8,000 km of driving distance

NAS 21

Elapsed time (month)

Every 4 elapsed months

Driving distance (miles)

Every 3,750 miles of driving distance

54A-20

CHASSIS ELECTRICAL

COMBINATION METER

Schedule

Warning types

Warning criteria

Driving distance (km)

Every 6,000 km of driving distance

NOTE:

For schedule, "JPN", "EU", "GCC/EXP" and

"MMAL" can also be selected.

Warning criteria (warning start and end points)

Elapsed time

Driving distance (km)

Driving distance (miles)

Warning  start
point

Warning

 end

point

Warning  start
point

Warning

 end

point

Warning  start
point

Warning

 end

point

-15 days

+15 days

-500 km

+500 km

-300 miles

+300 miles

TONE ALARM

M25400000122USA0000010000

Using  its  own  signal  or  signal  sent  via  CAN
communication,  the  combination  meter  sounds  the
integrated tone alarm.

Item

Relating ECU

Seat belt reminder function

Combination meter

Paddle shift cancel tone alarm

Transaxle control module

Theft-alarm function

ETACS-ECU

Keyless operation key reminder tone alarm function (vehicles with KOS)

WCM

Ignition key reminder tone alarm function (vehicles without KOS)

ETACS-ECU

Light reminder tone alarm function

ETACS-ECU

Door-ajar warning tone alarm function

ETACS-ECU

Freeze warning tone alarm

A/C-ECU

Parking brake reminder tone alarm function

Combination meter

Multi information display interrupt display tone alarm

Combination meter

ETACS-ECU function customization tone alarm

ETACS-ECU

A/C operation tone alarm

A/C-ECU

Audio operation tone alarm

Radio  and  CD  player,  CD
changer

 or

 audio

 visual

navigation unit

Meter information switch operation tone alarm

Combination meter

Turn-signal light tone alarm function

ETACS-ECU

SEAT BELT REMINDER FUNCTION

When the driver's seat belt is released

1.

When the ignition switch is turned ON, the driver's seat belt
indicator illuminates and the alarm sounds for 6 seconds.

2.

60  seconds  after  the  ignition  switch  is  turned  ON,  if  the
vehicle speed exceeds 8 km/h, the driver's seat belt indicator
illuminates  and  blinks  for  90  seconds.  The  alarm  sounds
simultaneously with the blinks of the indicator.

CHASSIS ELECTRICAL

54A-21

COMBINATION METER
