A ignition key cylinder light has been added to the
ignition key cylinder.

｠

The  dimmer  interior  light  control  function  and
ignition  key  cylinder  illumination  light  control
function  have  been  adopted  for  the  interior  light
(Refer  to  Function  and  Control  by  ETACS-
ECU P.54A-10).

Specifications

Item

Specifications

Front dome light (map and dome light) W × quantity

8 × 2

Rear dome light W

8

Luggage compartment light W

8

Glove box light W

1.4

Center console down light W

LED type

Foot light W

1.4

Ignition key cylinder illumination light W

1.5

FUNCTION AND CONTROL BY ETACS-ECU.

M25400000120USA0000010003

Following functions are controlled by ETACS-ECU.

Function

Function
description

Headlight

Headlight automatic-shutdown function

 P.54A-10

Flasher timer function

Turn-signal light

 P.54A-12

Comfort flasher function

 P.54A-12

Hazard warning light

 P.54A-12

Daytime running light

Daytime running light function

 P.54A-13

Fog  light  <Vehicles  without
discharge headlight>

Fog light function

 P.54A-14

Interior light

Interior light dimmer control function

 P.54A-15

Interior light automatic-shutoff function

 P.54A-16

Ignition key cylinder illumination light control function

 P.54A-16

54A-10

CHASSIS ELECTRICAL

LIGHTING

HEADLIGHT

HEADLIGHT AUTOMATIC-SHUTDOWN FUNCTION THE INITIAL CONDITION: WITH FUNCTION>
(Specification C: When the ignition switch is in OFF position is turned ON, the headlights are not turned
OFF automatically.)

ZC6032310000

OFF

OFF

ON

OFF

ON

OFF

ON

Driver's

door switch

Lighting switch

Headlight output

Tail light output

Ignition switch (IG)

Tail light

Headlight

(Closed) OFF

(Open) ON

1 second

3 minutes

Even  when  the  lighting  switch  (tail  light  switch  or
headlight switch) is ON, the headlight (including the
tail  lights)  turns  off  automatically  under  any  of  the
following conditions to prevent the battery discharge
caused by unattended operation.

｠

If the ignition switch is turned OFF with the lighting
switch ON, the light turns off automatically after 3
minutes. If the driver's door is opened during the 3
minutes, the light turns off after one second. (One
seconds before turning off, the light reminder tone
alarm  sounds.  However,  if  the  driver's  door  is
opened  with  the  ignition  key  inserted,  the  key

reminder  alarm  tone  alarm  operates  in  the  first
priority).

｠

If the lighting switch is turned to the tail light position
from OFF with the ignition switch OFF, the lights do
not turn off automatically.

NOTE:

The auto-turn off can be made by the

customize function (Refer to P.54A-17).

After  this  function  is  activated,  when  the  lighting
switch  is  turned  OFF  and  then  ON  or  the  ignition
switch is turned ON, the headlights illuminate again.

NOTE:

This function can be cancelled through

customization (Refer to Customize
Function P.54A-17).



CHASSIS ELECTRICAL

54A-11

LIGHTING

FLASHER TIMER FUNCTION

TURN-SIGNAL LIGHT (INITIAL SETTING: TURN SIGNAL
LIGHT CAN BE OPERATED WHEN THE IGNITION SWITCH
IS IN THE ON POSITION)

ZC603242

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

Ignition
switch (IG )

Turn-signal ligh t
switch R H

Turn-signal ligh t
switch L H

Turn-signal ligh t
output RH

Turn-signal ligh t
output LH

0000

When  the  turn-signal  light  switch  is  ON  (LH  or  RH)  with  the
ignition switch is ON, the turn-signal light output (flash signal) is
turned ON.
If the light bulb of the front or rear turn-signal light has burned
out, the flashing speed becomes faster to alert the driver that the
light bulb has burned out.

NOTE:

Using a customization function, this function

becomes available even when the ignition switch is in the
ACC position. For more information about the customization
feature, refer to P.54A-17.

COMFORT FLASHER FUNCTION (THE INITIAL CONDITION:
WITH FUNCTION)

ZC603243

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

0000

t: 0.4 seconds or les s

t

t

Ignition
switch (IG )

Turn-signal ligh t
switch R H

Turn-signal ligh t
switch L H

Turn-signal ligh t
output RH

Turn-signal ligh t
output LH

With the ignition switch in the ON position, when the turn signal
switch is turned ON momentarily (0.4 second or less), ETACS-
ECU turns ON the turn signal light output, and flashes the turn
signal light three times.

NOTE:

The comfort flasher function can be cancelled through

customization. (Refer to Customize Function P.54A-17.)



HAZARD WARNING LIGHT

ZC603244

ON

OFF

ON

OFF

ON

OFF

Hazard light
switc h

Turn signal
light output
RH

Turn signal
light output
LH

0000

ETACS-ECU detects the signal that changes the hazard light
switch from OFF to ON, and reverses the flashing state by the
signal (to the flashing state when the hazard light is not flashing,
and to the turned OFF state when flashing).

NOTE:

1.

The push-return switch has been adopted for the hazard light
switch.

2.

Even if the light bulb has burned out, the flashing speed of
the hazard light is not changed.



54A-12

CHASSIS ELECTRICAL

LIGHTING

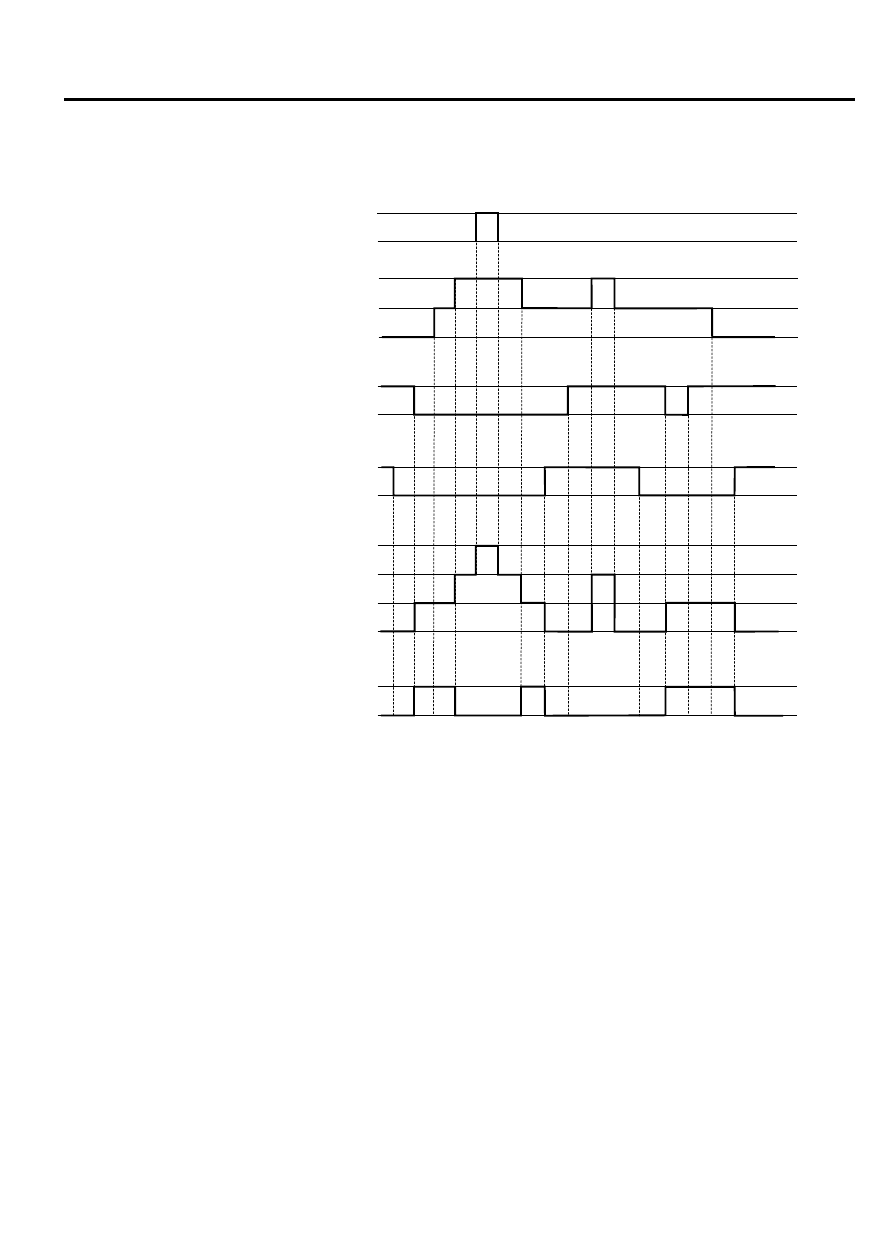

DAYTIME RUNNING LIGHT

DAYTIME RUNNING LIGHT FUNCTION

ZC6033510000

OFF

HEAD

Ignition switch (IG1)

OFF

ON

Daytime running light output

Lighting switch

Headlight

(Illuminated) ON

(Extinguished) OFF

TAIL

Parking brake switch

OFF

ON

OFF

ON

Passing / Dimmer switch

High-beam

Low-beam

(Normal)

Low-beam

(Dim)

OFF

ETACS-ECU releases the parking brake (the parking
brake switch turns OFF) with the ignition switch ON,
and illuminates the daytime running lights <vehicles
with discharge headlight> or illuminates the low-beam
headlights  <vehicles  without  discharge  headlight>
with the lighting switch OFF or in the taillight position.
Also, ETACS-ECU extinguishes the daytime running
light with the lighting switch in the headlight position
<vehicles with discharge headlight>, or illuminates the

low-beam headlights of 100% illuminance <vehicles
without discharge headlight>.
When  the  ignition  switch  is  turned  to  the
"LOCK" (OFF) position while the daytime running light
<vehicles with discharge headlight> is illuminated or
the low-beam headlights <vehicles without discharge
headlight>  are  illuminated  with  the  brightness
reduced, the ETACS-ECU extinguishes the daytime
running light <vehicles with discharge headlight> or
the low-beam headlights.



CHASSIS ELECTRICAL

54A-13
