BODY COLORING

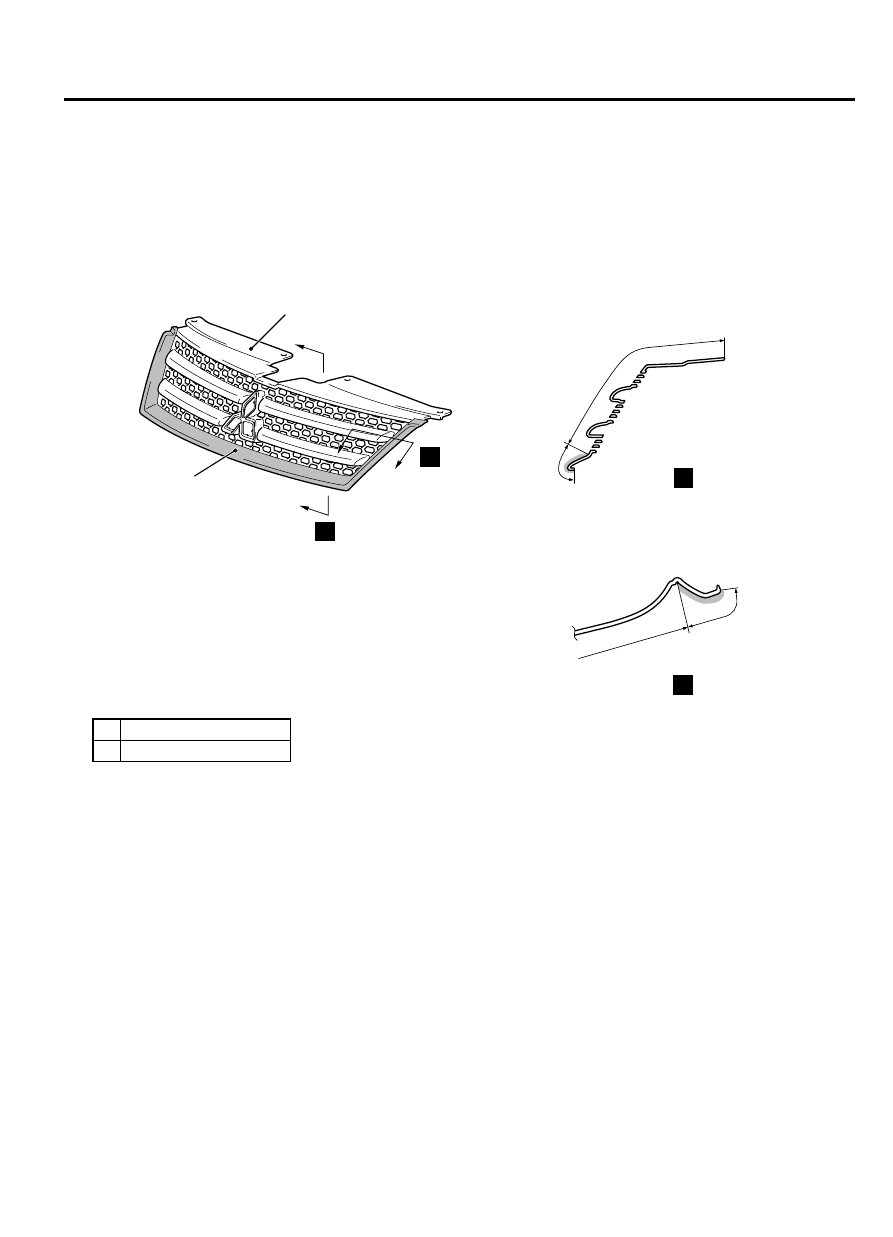

RADIATOR GRILLE

M40600000070USA0000010002

ZB5004290000

A

1

Silver             (CMH50061)

Dark Gray      (CMH18031)

1

2

2

1

2

1

2

A

B

B

BODY COLOR

6-3

BODY COLORING

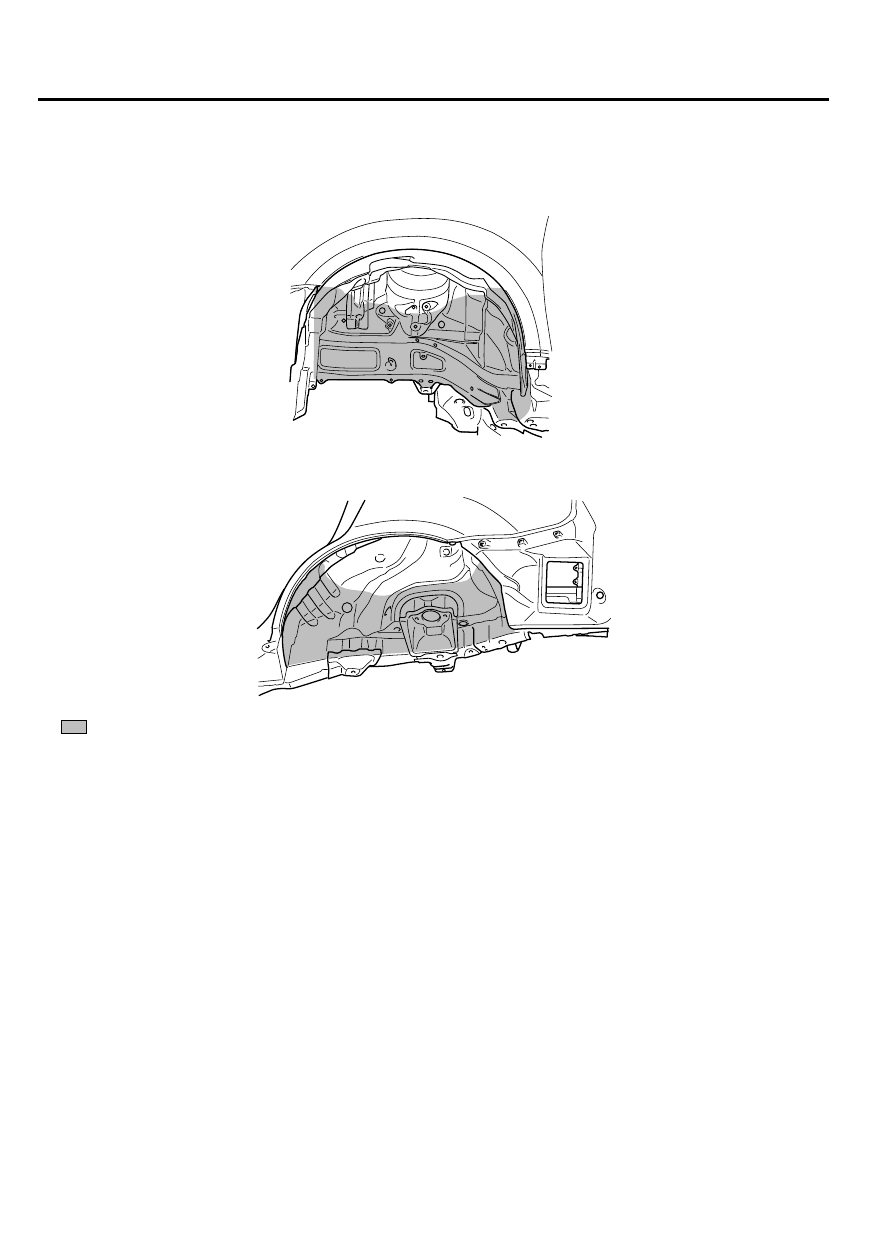

WHEELHOUSE

M40600000120USA0000010002

ZB500431

 : Black  (AC10657)

0000

Front wheelhouse

Rear wheelhouse

6-4

BODY COLOR

BODY COLORING

GROUP 8

REFERENCE MATERIAL

CONTENTS

BOLTED PANEL FIT AND ADJUSTMENT
.................................

8-2

HOOD.............................

8-2

FRONT DOOR FIT ADJUSTMENT........

8-3

LIFTGATE ALIGNMENT...............

8-5

FUEL FILLER LID..................

8-6

INSTALLATION AND REMOVAL OF ADHESIVE
COMPONENTS.......................

8-7

GARNISH.........................

.8-7

SIDE AIR DAM.....................

8-8

ADJUSTMENT OF OTHER PARTS.......

8-10

FRONT WHEEL ALIGNMENT CHECK AND
ADJUSTMENT......................

8-10

REAR WHEEL ALIGNMENT CHECK AND
ADJUSTMENT......................

8-11

HEADLIGHT AIMING................

8-12

FOG LIGHT AIMING................

8-14

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
- AIR BAG.......................

8-16

8-1

BOLTED PANEL FIT AND ADJUSTMENT

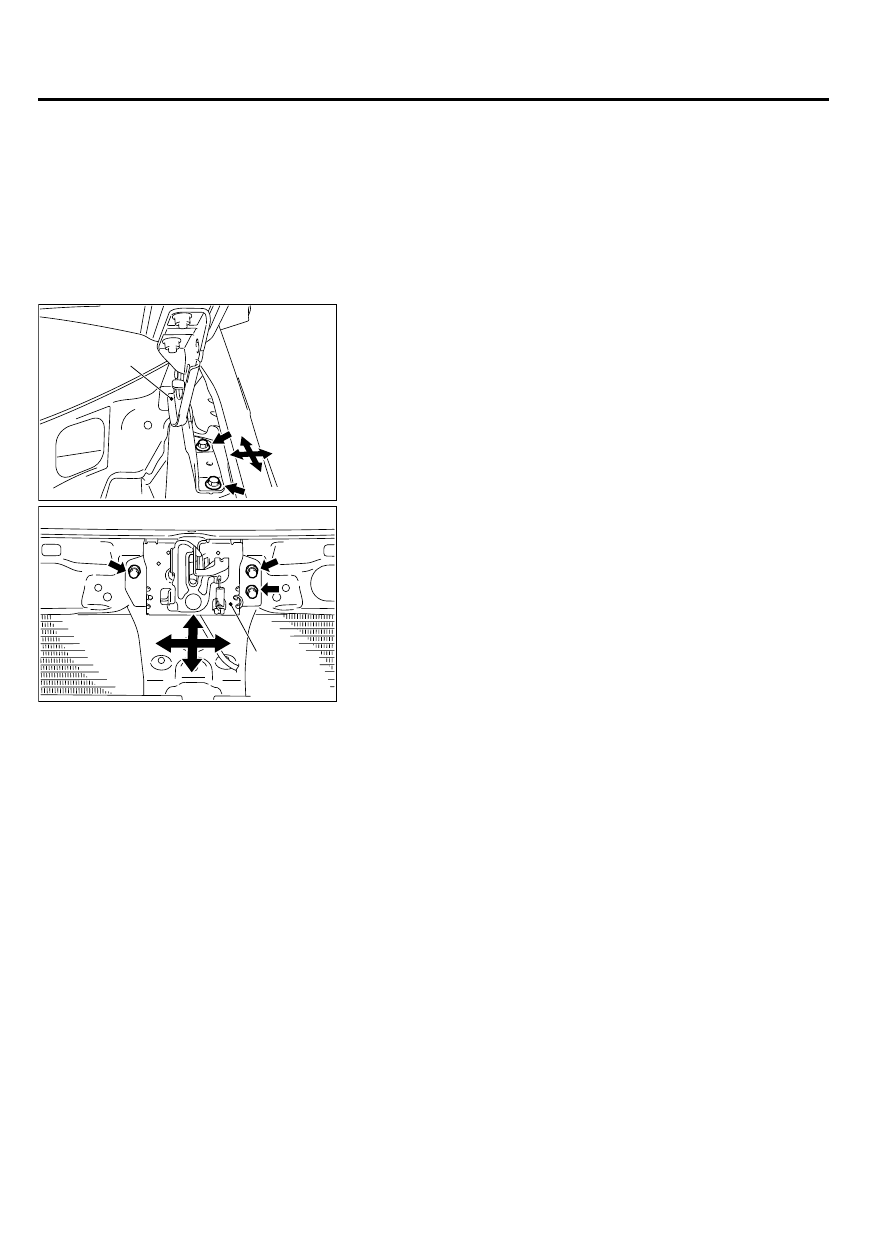

HOOD

M40800000050USA0000010000

Hood adjustment

ZB6004230000

Hood hinge

1.

When the clearance between the hood and the body is uneven
Remove the front deck garnish, and loosen the hood hinge
mounting bolts shown in the figure but do not remove them.
Then move the hood hinge up/down and left/right to adjust the
clearance around the hood. After adjustment, install the front
deck garnish.

Hood hinge mounting bolt tightening torque: 23 ± 6
N·m (17 ± 5 ft-lb)



ZB6004240000

Hood latch

2.

When adjusting hood level and hood striker linkage
Remove the headlight support upper panel cover, and loosen
the hood latch mounting bolts shown in the figure but do not
remove  them.  Then  move  the  hood  latch  up/down  and  left/
right to adjust the hood level and hood striker linkage. After
adjustment, install the headlight support upper panel cover.

Hood latch mounting bolt tightening torque: 9.0 ± 1.0
N·m (80 ± 9 in-lb)

8-2

REFERENCE MATERIAL

BOLTED PANEL FIT AND ADJUSTMENT
