Mitsubishi Outlander XL. Manual - part 29

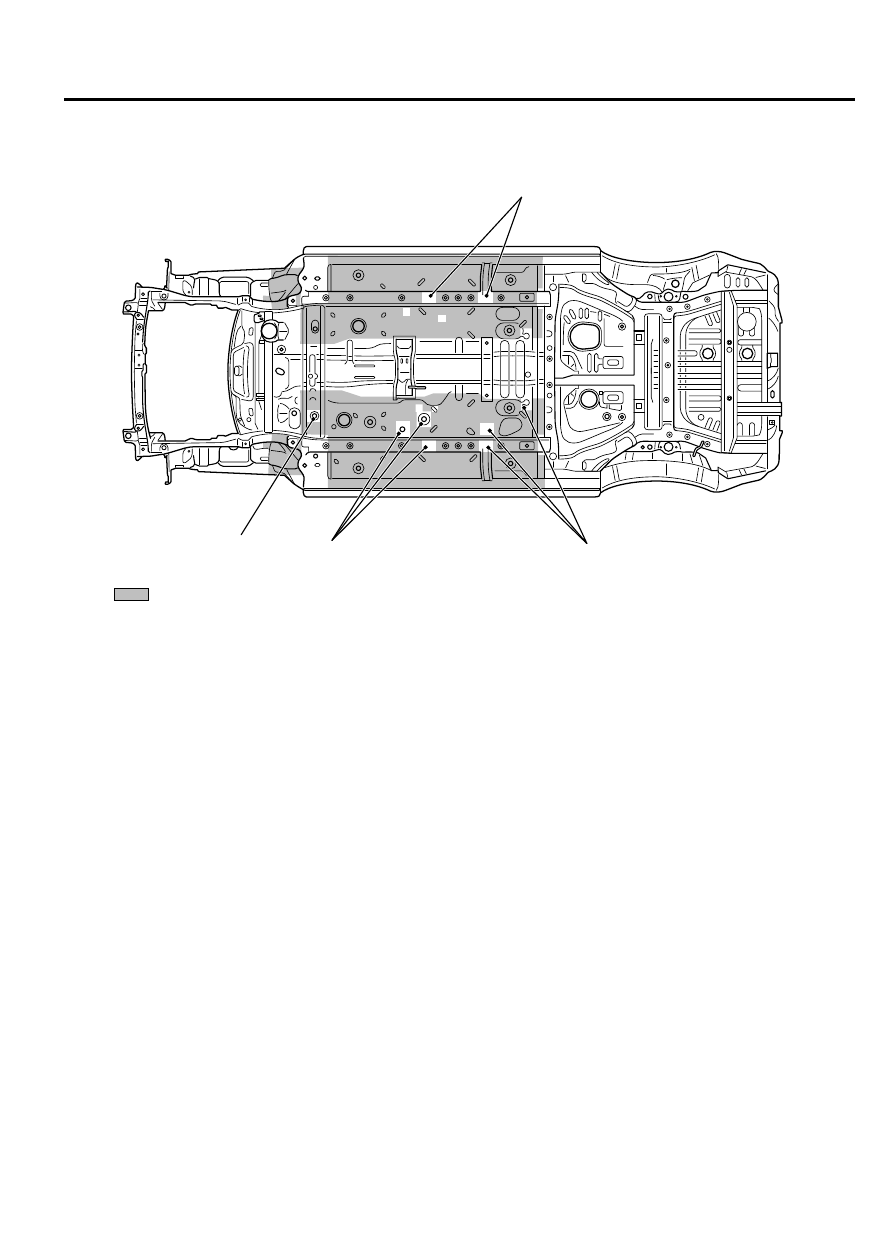

Tape the areas marked with an asterisks to protect
those areas from getting any undercoating on those

areas.

ZB5003690000

 : Undercoat [Film thickness is at least 0.5 mm]

*

*

*

*

CORROSION PROTECTION

4-7

UNDERCOAT APPLICATION LOCATIONS

MEMO

4-8

CORROSION PROTECTION

GROUP 5

SYNTHETIC-RESIN PARTS

CONTENTS

LOCATION OF SYNTHETIC-RESIN PARTS
.................................

5-2

5-1

LOCATION OF SYNTHETIC-RESIN PARTS

M40500000010USA0000010000

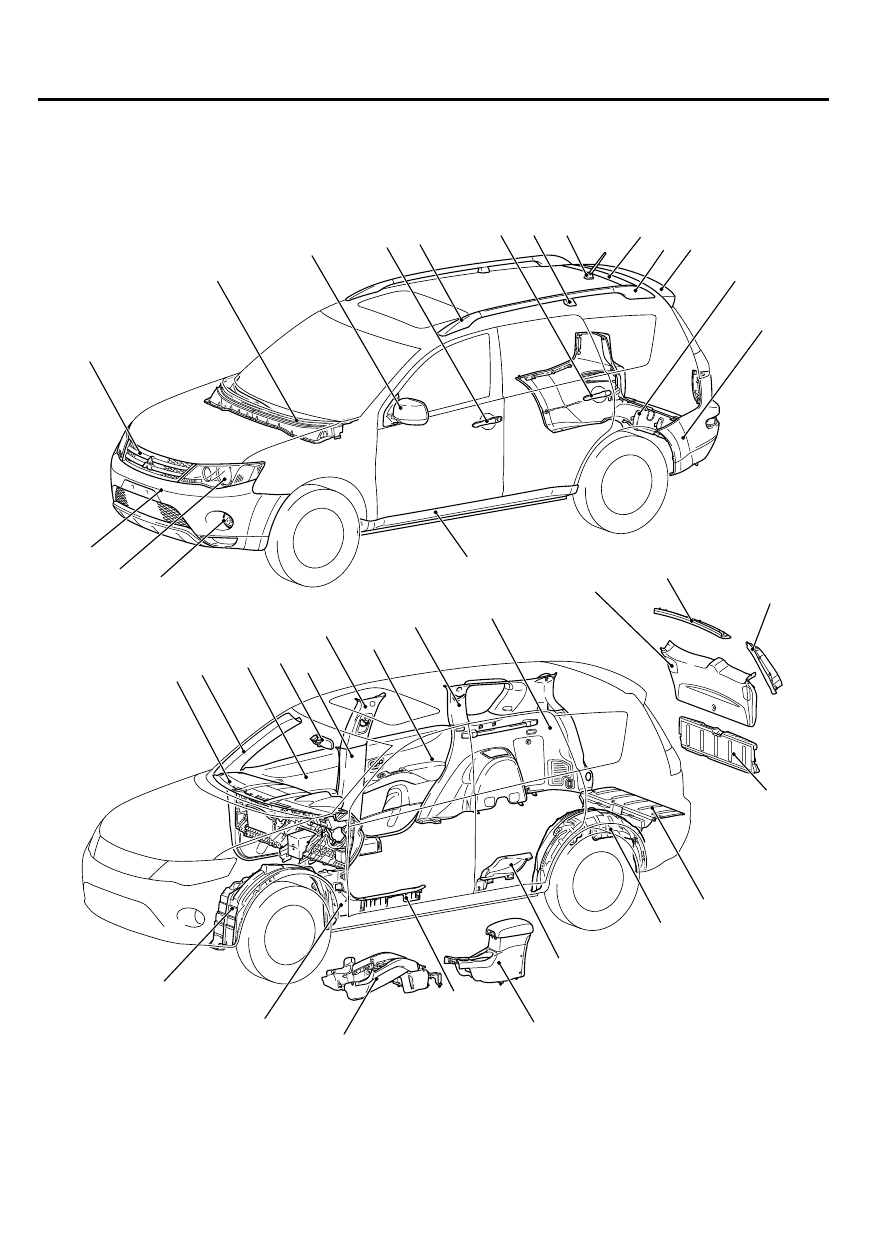

The  location  and  material  of  each  of  the  principal
synthetic-resin parts are shown below.

ZB600566

1

2

3

4

7

5

6

8

11

12

10

15

13

14

19

17

18

16

20

21

36

22

23

25

26

27

28

29

30

31

32

33

34

35

0000

9

37

24

38

5-2

SYNTHETIC-RESIN PARTS

LOCATION OF SYNTHETIC-RESIN PARTS
