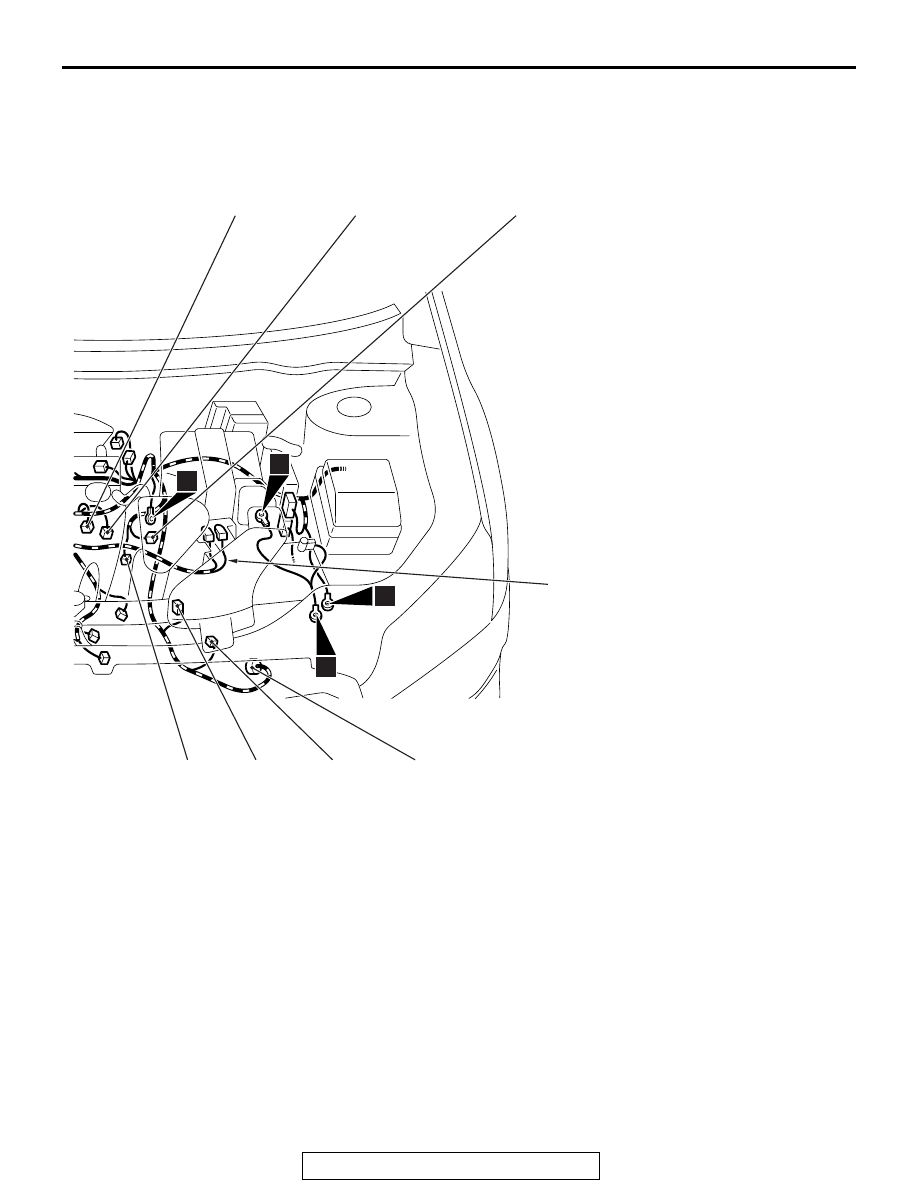

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

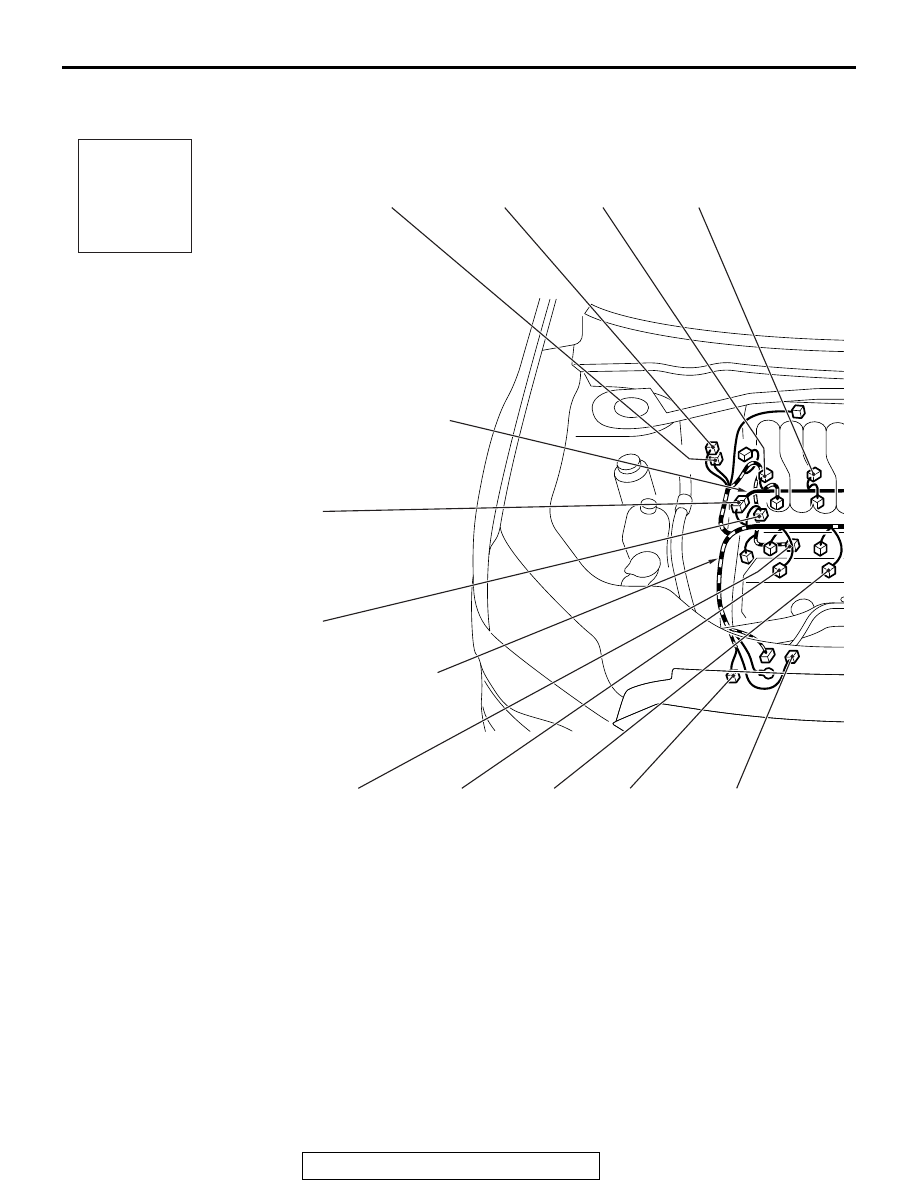

CONFIGURATION DIAGRAMS

80A-11

ACA01902

AB

13

3

B-18

B-22

B-09

B-10

B-11

B-08

B-07

B-12

Battery wiring
harness (+)

14

11

B-18

(3-B)

No.4 ignition coil

B-19

(3-B)

No.2 ignition coil

B-22

(3-GR)

Exhaust camshaft position sensor

B-23

(1-B)

Control wiring harness and battery
wiring harness (+) combination

B-24

(3-B)

Control wiring harness and engine sub
wiring harness combination

B-25

(2)

Intake engine oil control valve

B-26

(2)

Exhaust engine oil control valve

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-12

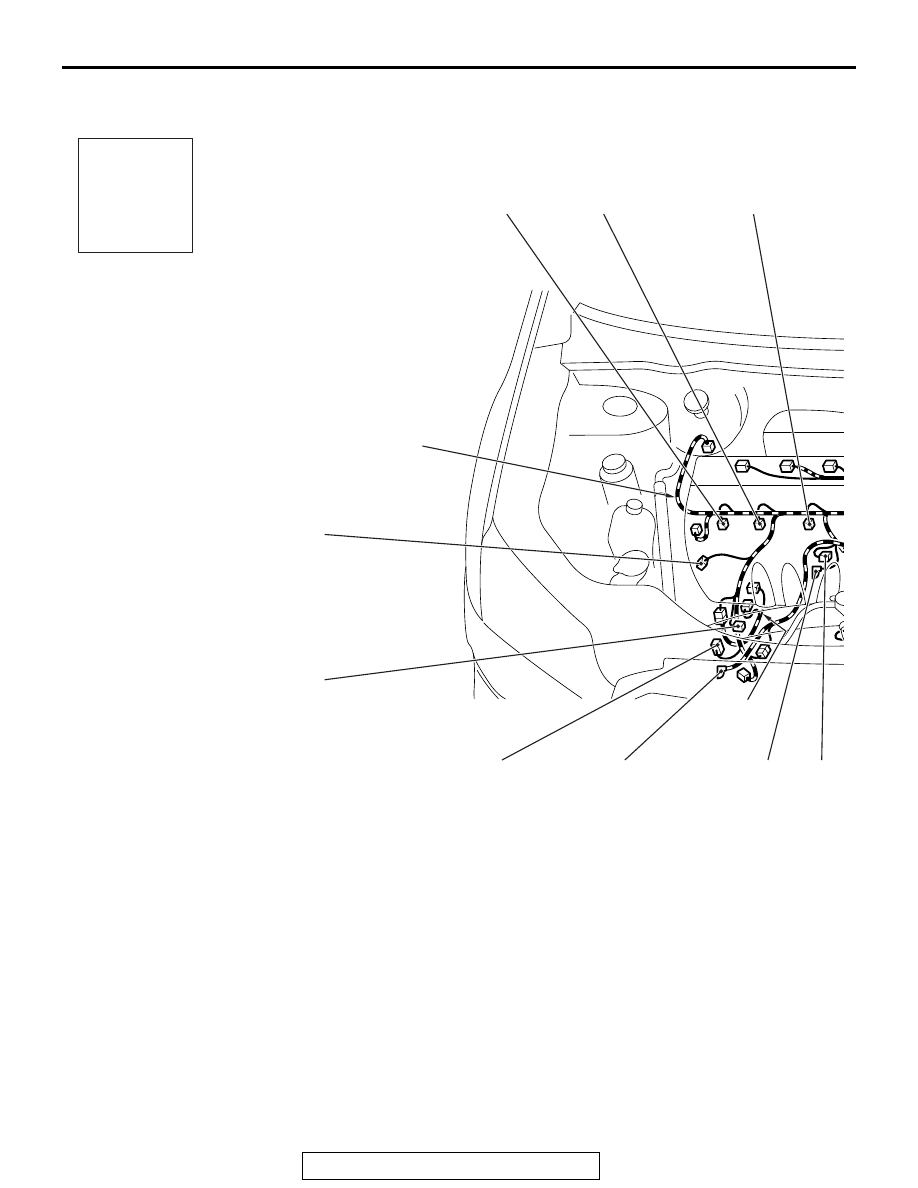

ENGINE AND TRANSAXLE <2.4L ENGINE> (CONTINUED)

AC900423

B-101

B-120

B-103

B-105

B-122

AC

B-114

B-113

B-117

B-118

Control wiring
harness

Connector
symbol

-101
thru
-126

B

Engine
sub wiring
harness

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

B-101 (2-GR)

No.1 injector

B-103 (2-GR)

No.3 injector

B-105 (3-B)

Manifold absolute pressure sensor

B-110 (10-B)

Transmission range switch

B-113 (1)

Starter

B-114 (1-B)

Starter

B-116 (2-GR)

No.4 injector

B-117 (1)

Generator

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-13

ACA01902

AC

13

3

B-116

B-123

B-124

B-119

B-125

B-126

B-110

Battery wiring
harness (+)

14

11

B-118 (4-GR)

Generator

B-119 (3-GR)

Crankshaft position sensor

B-120 (2-GR)

No.2 injector

B-122 (1-B)

Power steering pressure switch

B-123 (3-GR)

Intake camshaft position sensor

B-124 (3-B)

Secondary pulley speed sensor

B-125 (22-B)

CVT assembly

B-126 (3-B)

Primary pulley speed sensor

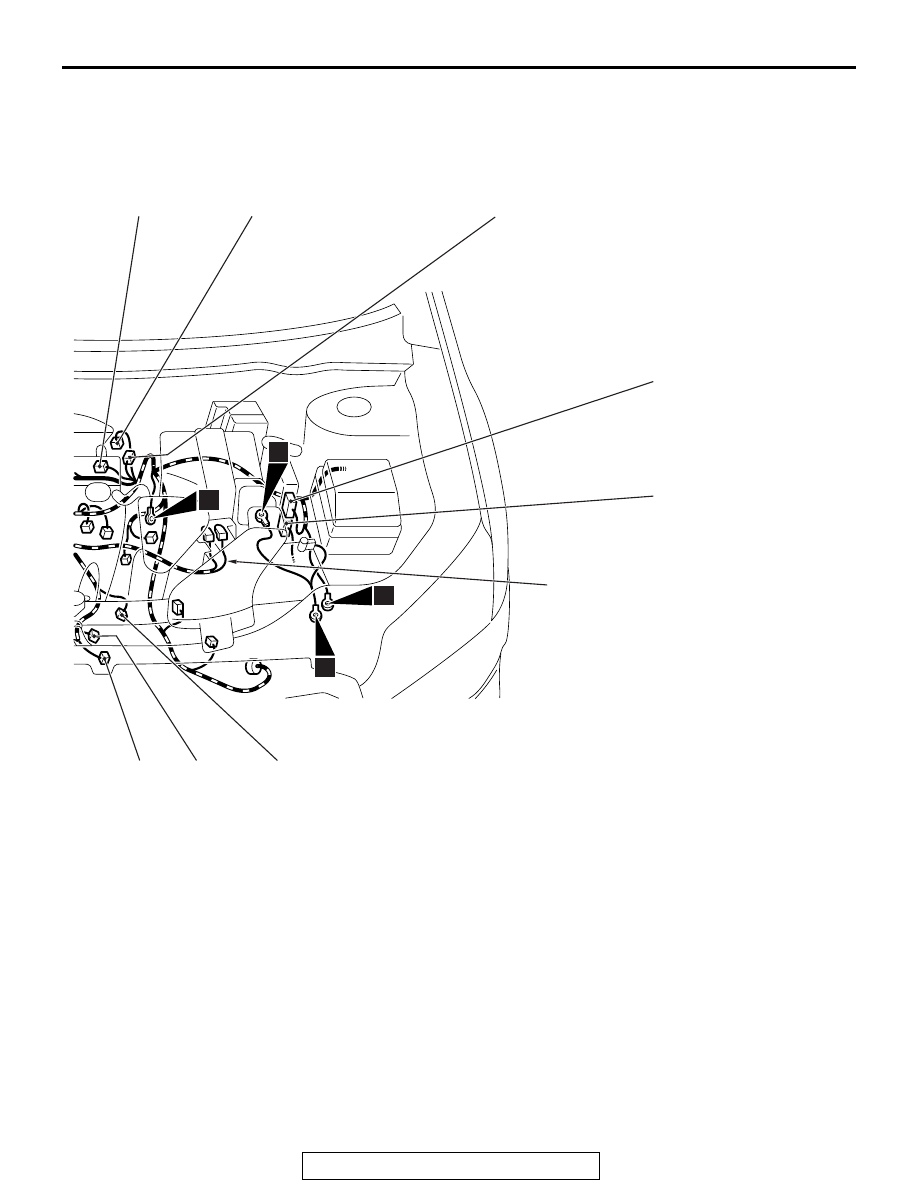

ENGINE AND TRANSAXLE <3.0L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-14

ENGINE AND TRANSAXLE <3.0L ENGINE>

M1801000404528

AC900425AB

B-03

B-01

B-04

Connector
symbol

-01
thru
-28

B

B-02

B-16

B-17

B-18

B-19

B-28

B-20

B-21

Injector
wiring
harness

Control
wiring
harness

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

B-01

(3-B)

No.1 ignition coil

B-02

(4-B)

Right bank heated oxygen sensor
(Rear)

B-03

(4-GR)

Right bank heated oxygen sensor
(Front)

B-04

(3-B)

No.3 ignition coil

B-05

(3-B)

No.5 ignition coil

B-06

(2-B)

Knock sensor 1

B-07

(2-B)

Evaporative emission purge solenoid

B-08

(6-B)

Throttle body assembly

B-09

(2-B)

Engine coolant temperature sensor

B-10

(64-GR) Engine control module

B-11

(48-GR) Engine control module

B-12

(6-GR)

Exhaust gas recirculation valve
