VEHICLE IDENTIFICATION

TSB Revision

GENERAL

00-27

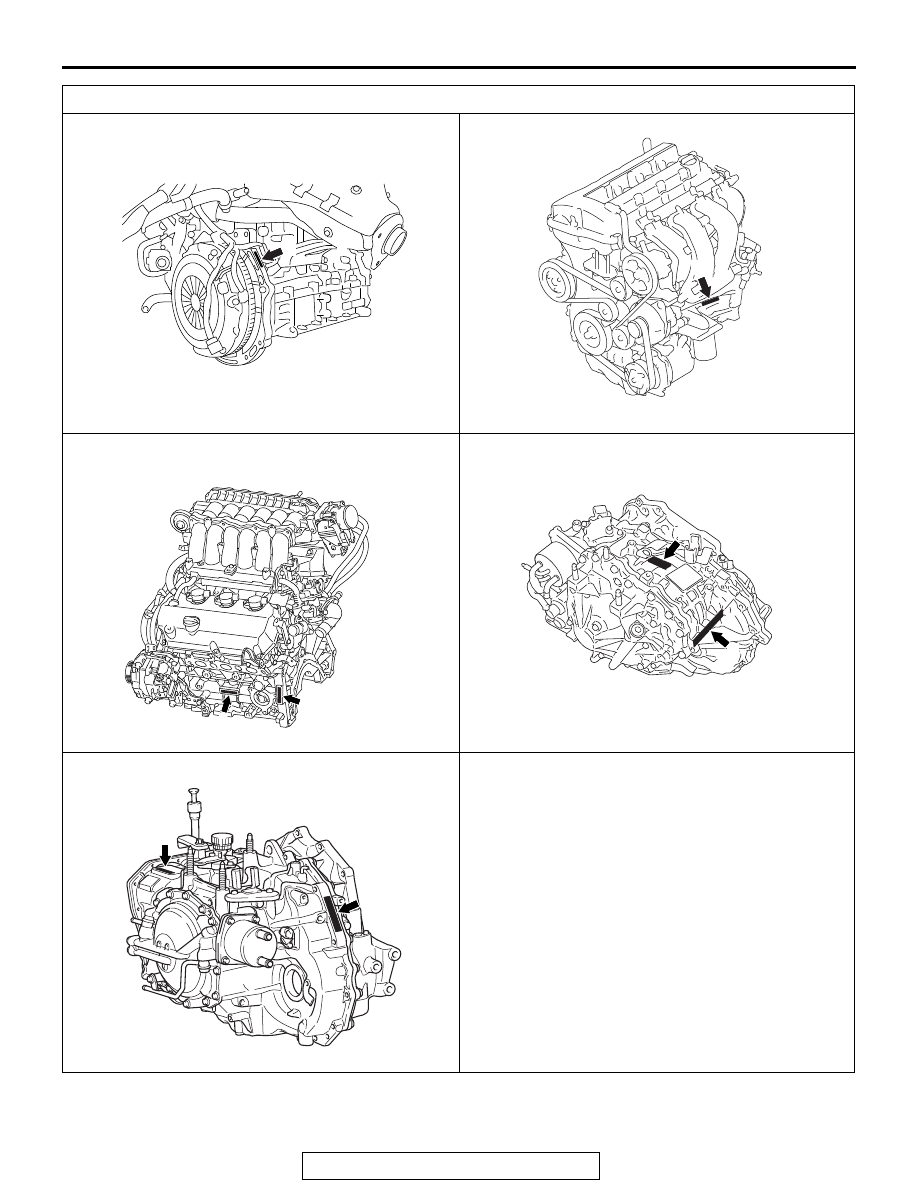

Label area (A: Original equipment parts, B: Replacement parts)

AC609841

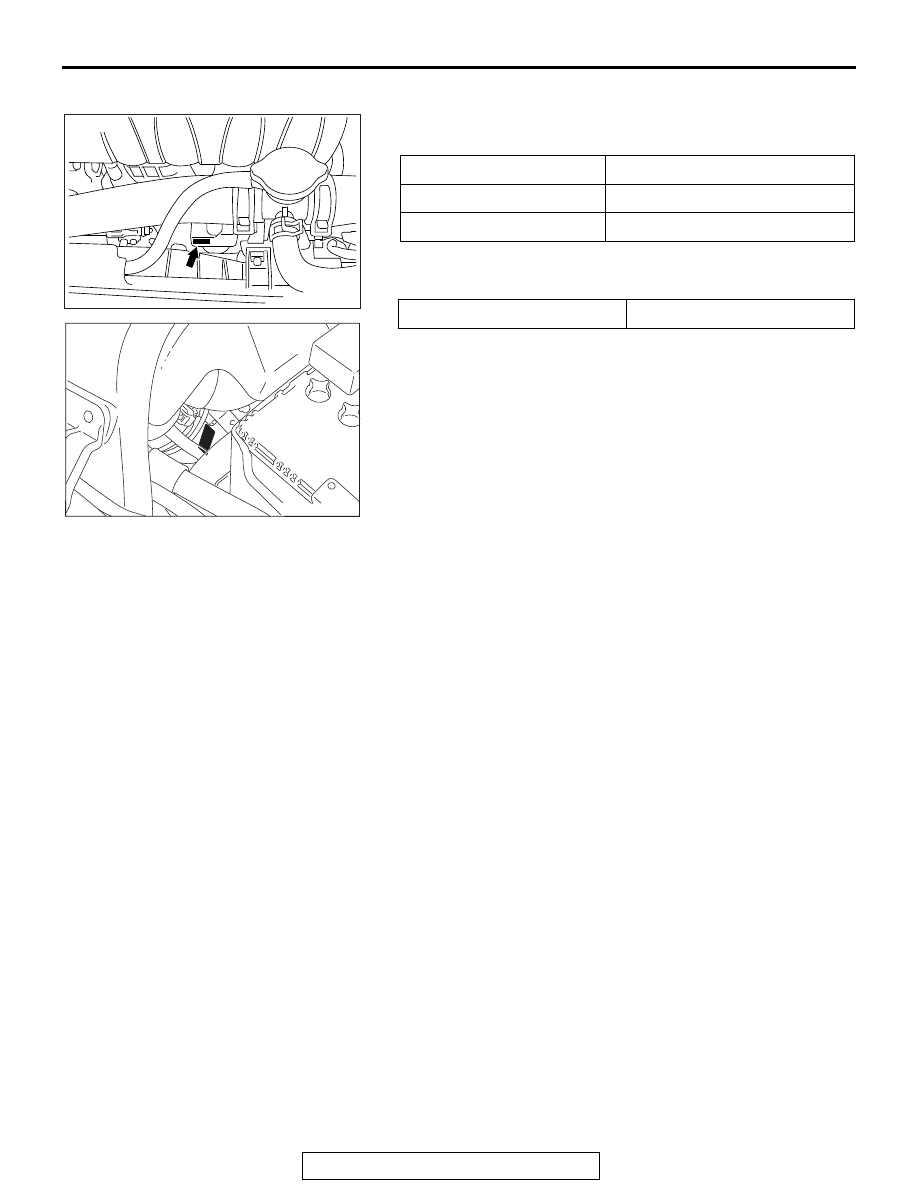

Engine (exhaust manifold side) <4B1>

AD

A

AC612304AD

Engine (intake manifold side) <4B1>

B

AC704148

A

B

AC

Engine <6B3>

AC610554

Transaxle <

CVT>

AD

B

A

AC709353

A

B

AC

Transaxle <6A/T>

VEHICLE IDENTIFICATION

TSB Revision

GENERAL

00-28

ENGINE MODEL STAMPING

M1001005700366

The engine model is stamped on the cylinder block.
These engine model numbers are as shown as follows.

The engine serial number is stamped near the engine model
number.

Engine model

Engine displacement

4B1

2.4L

6B3

3.0L

Engine number

AA0201 to YY9999

AC507578AH

<4B1>

AC704147AC

<6B3>

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL

00-29

GENERAL DATA AND SPECIFICATIONS

M1001000906028

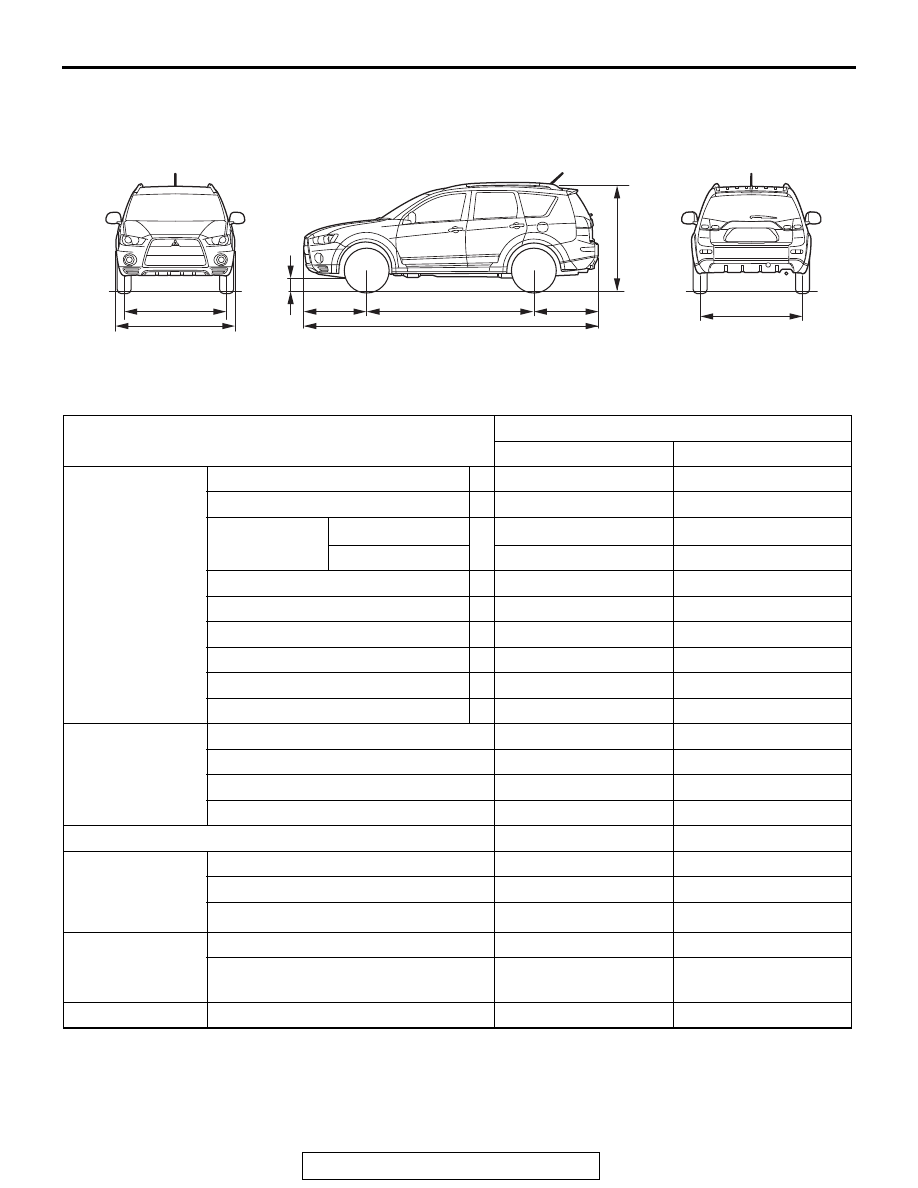

VEHICLES FOR USA

.

2.4L ENGINE

AC901145

5
2

9

7

4

8

1

3

6

AB

Item

CW5WX
TSHL2M/3M

THHL2M

Vehicle dimension
mm (in)

Overall length

1 4,665 (183.7)

4,665 (183.7)

Overall width

2 1,800 (70.9)

1,800 (70.9)

Overall height
(unladen)

Without roof rail

3 1,680 (66.1)

−

With roof rail

1,720 (67.7)

1,720 (67.7)

Wheelbase

4 2,670 (105.1)

2,670 (105.1)

Tread-front

5 1,540 (60.6)

1,540 (60.6)

Tread-rear

6 1,540 (60.6)

1,540 (60.6)

Overhang-front

7 990 (39.0)

990 (39.0)

Overhang-rear

8 1,005 (39.6)

1,005 (39.6)

Ground clearance

9 215 (8.5)

215 (8.5)

Vehicle weight kg
(lb)

Curb weight

1,535 (3,384)

1,545 (3,406)

Gross vehicle weight rating

2,070 (4,564)

2,070 (4,564)

Gross axle weight rating-front

1,090 (2,403)

1,090 (2,403)

Gross axle weight rating-rear

1,050 (2,315)

1,050 (2,315)

Seating capacity

5

5

Engine

Model No.

4B12

4B12

Type

DOHC MIVEC

DOHC MIVEC

Piston displacement cm

3

 (cu in)

2,359 (143.9)

2,359 (143.9)

Transaxle

Model No.

F1CJA

F1CJA

Type

FWD, INVECS-III CVT
with sport mode

FWD, INVECS-III CVT
with sport mode

Fuel system

Fuel supply system

MFI

MFI

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL

00-30

Item

CW5WX
TXHL2M

TSHZL2M/3M

Vehicle dimension
mm (in)

Overall length

1 4,665 (183.7)

4,665 (183.7)

Overall width

2 1,800 (70.9)

1,800 (70.9)

Overall height
(unladen)

Without roof rail

3 −

1,680 (66.1)

With roof rail

1,720 (67.7)

1,720 (67.7)

Wheelbase

4 2,670 (105.1)

2,670 (105.1)

Tread-front

5 1,540 (60.6)

1,540 (60.6)

Tread-rear

6 1,540 (60.6)

1,540 (60.6)

Overhang-front

7 990 (39.0)

990 (39.0)

Overhang-rear

8 1,005 (39.6)

1,005 (39.6)

Ground clearance

9 215 (8.5)

215 (8.5)

Vehicle weight kg
(lb)

Curb weight

1,595 (3,516)

1,600 (3,527)

Gross vehicle weight rating

2,240 (4,939)

2,080 (4,586)

Gross axle weight rating-front

1,090 (2,403)

1,090 (2,403)

Gross axle weight rating-rear

1,270 (2,800)

1,050 (2,315)

Seating capacity

7

5

Engine

Model No.

4B12

4B12

Type

DOHC MIVEC

DOHC MIVEC

Piston displacement cm

3

 (cu in)

2,359 (143.9)

2,359 (143.9)

Transaxle

Model No.

F1CJA

W1CJA

Type

FWD, INVECS-III CVT
with sport mode

AWD, INVECS-III CVT
with sport mode

Fuel system

Fuel supply system

MFI

MFI
