TPMS TRANSMITTER

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-119

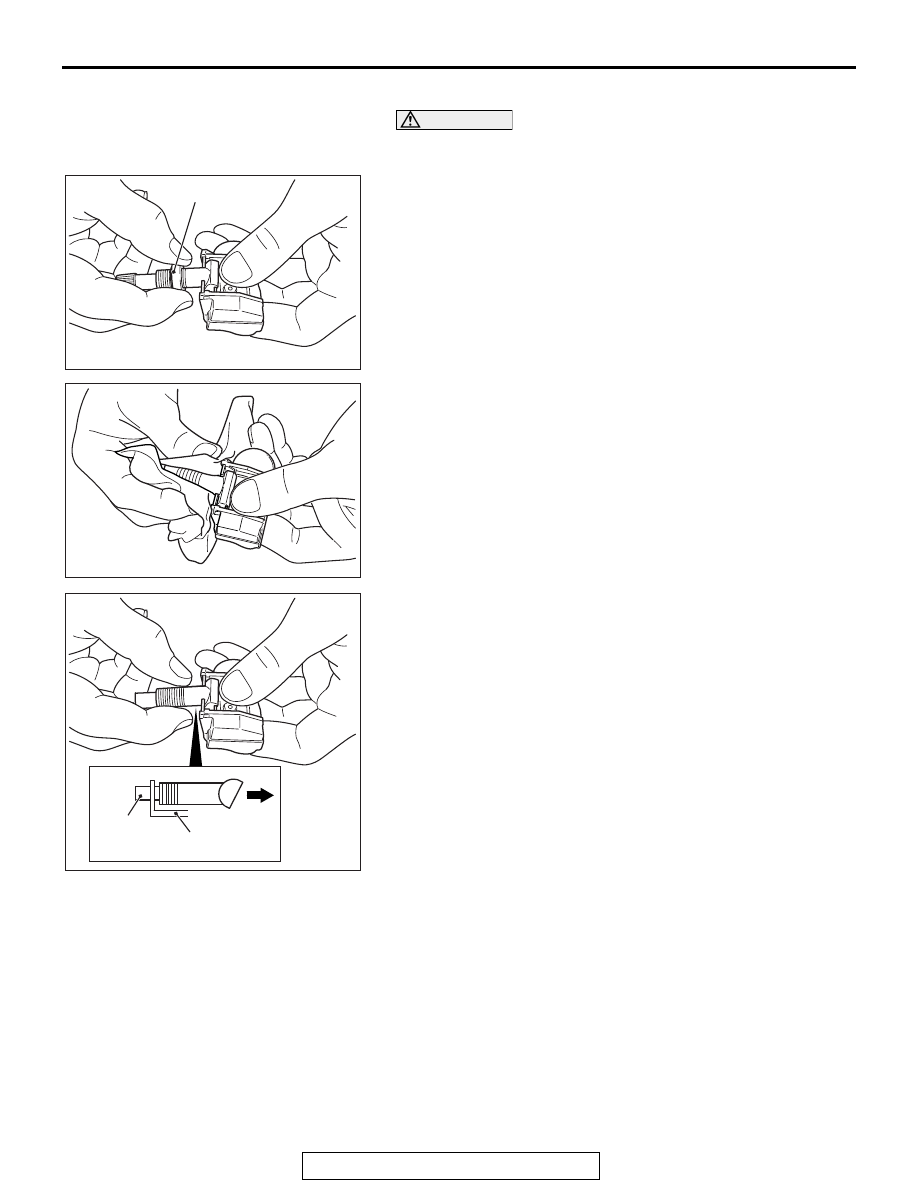

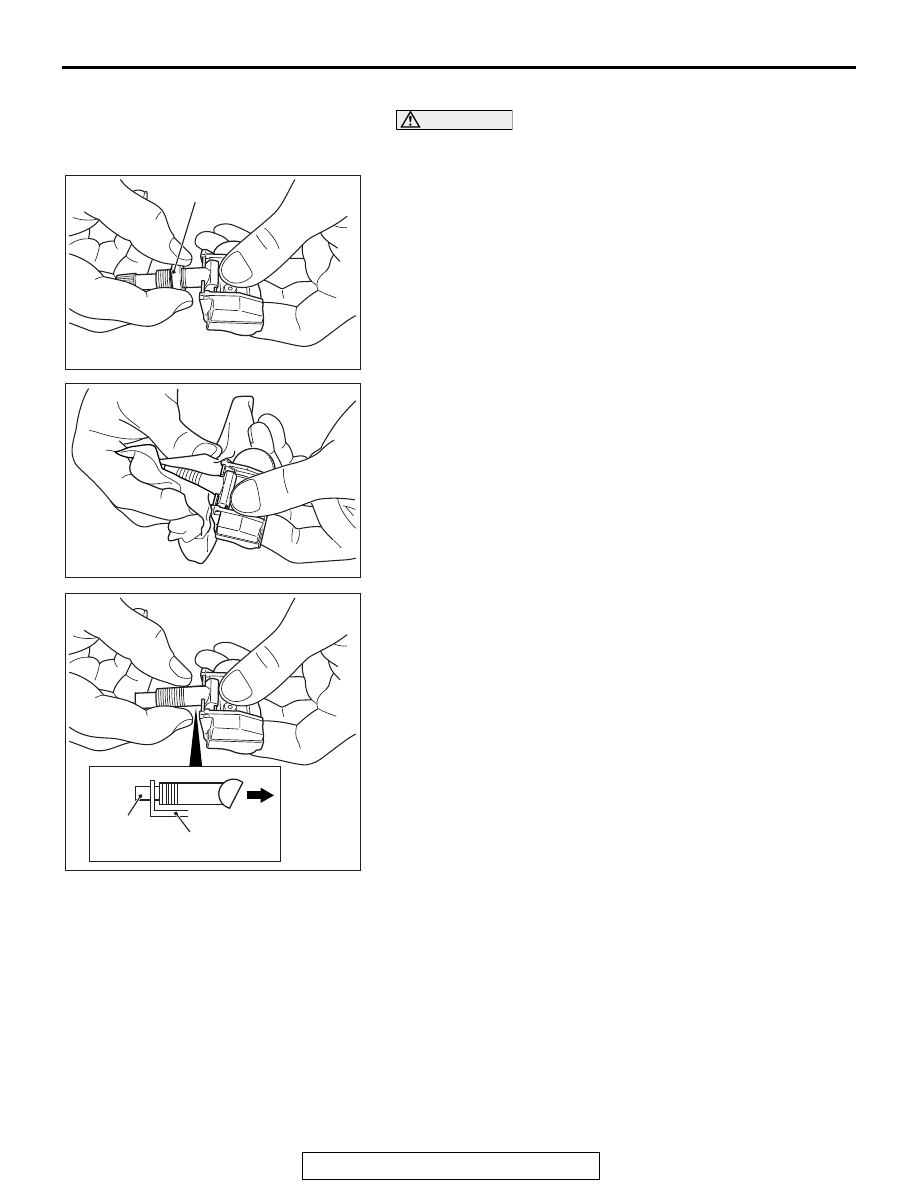

<<C>> SEAL WASHER/VALVE REMOVAL

CAUTION

Remove the seal washer to prevent scratching the valve of

the TPMS transmitter.

1. Hold the TPMS transmitter and the seal washer, then extract

the seal washer. Take care to not damage the valve thread.

2. Clean the TPMS transmitter and the valve stem. <In case of

not removing the valve>
NOTE: If the valve comes out from the transmitter, install it
to where it was. (This is not failure)

3. Removal the valve from housing as shown.

AC609528

AC808700 AB

Seal washer

AC808701AB

AC609528

AC904883

Valve

Housing

AB

TPMS TRANSMITTER

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-120

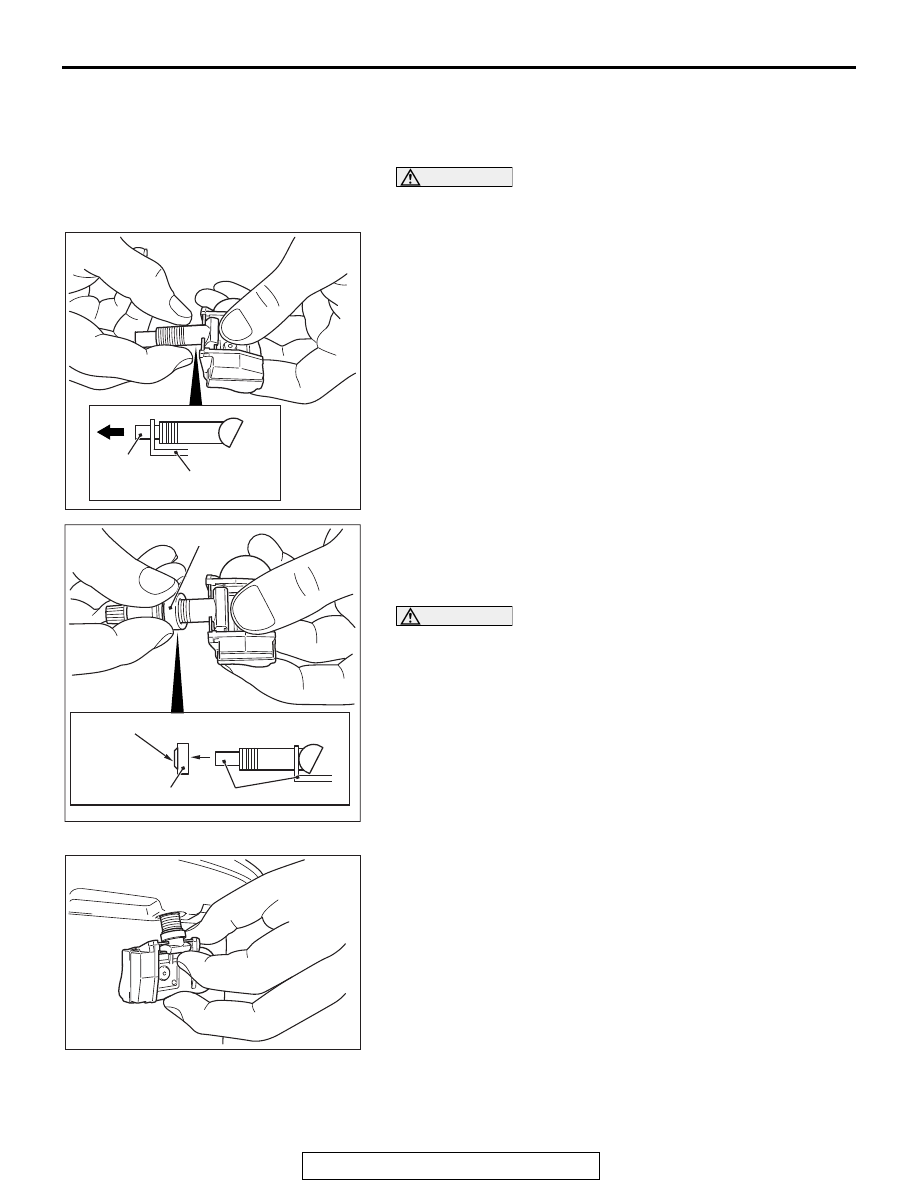

INSTALLATION SERVICE POINTS

.

>>A<< VALVE/SEAL WASHER/TPMS TRANSMIT-
TER/NUT INSTALLATION

CAUTION

Install the seal washer to prevent scratching the valve of

the TPMS transmitter.

1. Install the valve to housing as shown.

2. Insert the seal washer up to the base of the TPMS

transmitter, making sure to secure the valve base with a
thumb as shown.
Wipe the seal and threading.

CAUTION

• Visually check that TPMS transmitter is not deformed

or damaged.

• When installing the TPMS transmitter, be sure the rim,

seal valve and nut are clean.

• Ensure the grommet is located inside the valve hole

before installing the nut.

• While installing the nut, push the TPMS transmitter to

maintain the lower lip of the transmitter case is in con-
tact with the rim without clearance.

• While installing the valve nut, ensure the tool is kept

aligned to the valve and the valve hole.

3. Install the valve, in the valve hole, without modifying the

angle of the stem (retain position of delivery). The laser
marking should be visible at the operator.

AC609528

AC904883

Valve

Housing

AC

AC808702

AB

Seal washer

Seal washer

TPMS transmitter

Part of rubber

AC808703AB

TPMS TRANSMITTER

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-121

4. When the valve is completely inserted, maintain the TPMS

transmitter in contact with the rim, then screw manually the
nut until the contact with the wheel.

5. While maintaining the TPMS transmitter contact with the rim

by applying pressure to the back of the valve, slightly press
on the cap to wards the center of the wheel in order to adapt
the angle of the valve/TPMS transmitter to the profile of the
rim.
It is mandatory to guarantee the contact of the housing unit
on the rim drop center.

6. While maintaining the TPMS transmitter and valve in

position, screw the nut with a torque wrench.
Take care that the wrench socket is correctly inserted on the
nut.

Specified torque: 8.0

± 0.5 N⋅m (71 ± 4 in-lb)

.

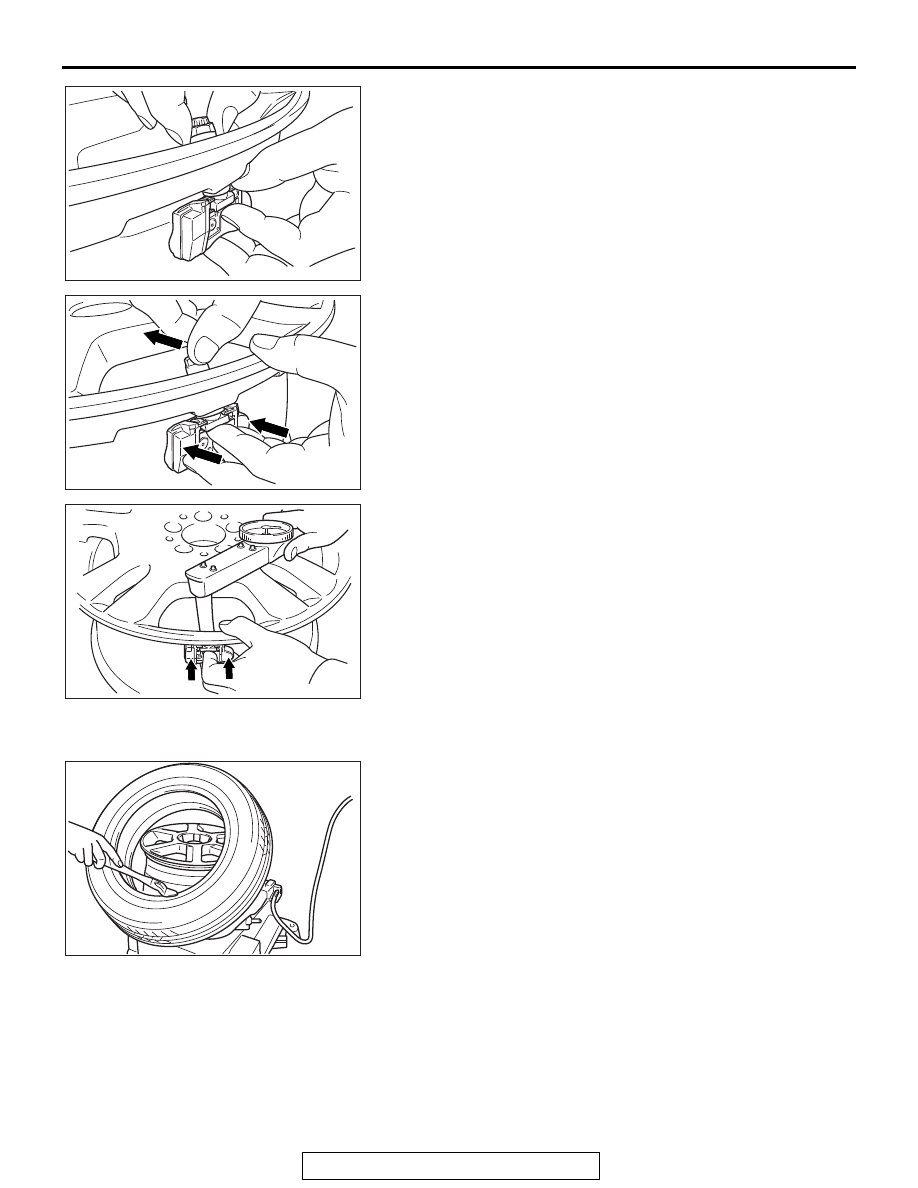

>>B<< TIRE BEAD MOUNTING

1. Prepare the tire and fix the rim as usual.

AC808704 AB

AC808705 AB

AC808709 AB

AC609532

TPMS TRANSMITTER

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-122

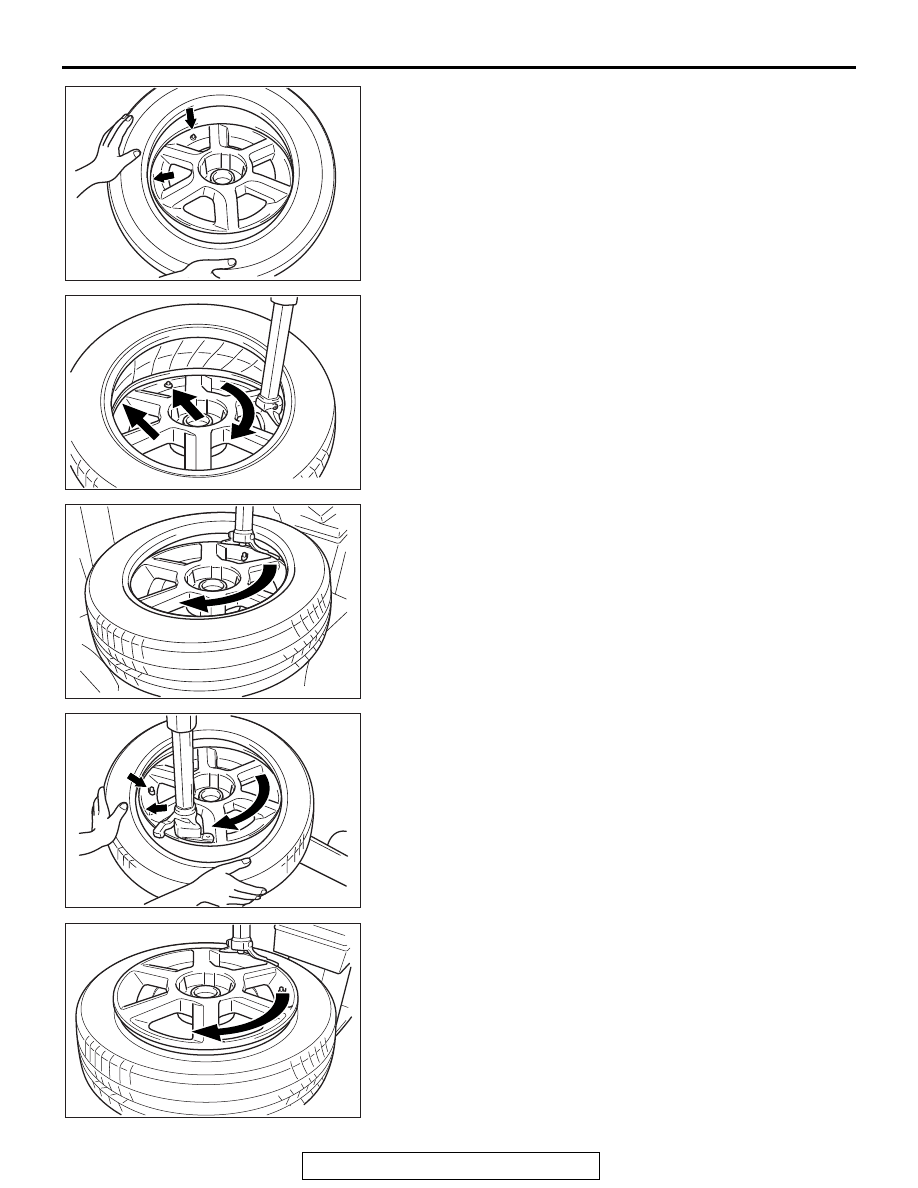

2. Put the tire on the rim, so that the cross point of the belt with

the rim is approximately 20 cm (7.9 inch) away from the
valve.

3. Engage the shoe and make sure that 20 cm (7.9 inch) is

maintained between the cross point and the valve.
The arrow shows the direction of rotation of the wheel.

4. Turn the wheel in order to engage all the first side of the tire.

NOTE: The standard shoes can pass over the sensor with-
out damaging it.

5. Put the second side of the tire in position, so that the cross

point of the belt with the rim is approximately 20 cm (7.9
inch) away from the valve. The curved arrow shows the
direction of rotation of the wheel.

6. Turn the wheel in order to engage all of the second side of

the tire.
NOTE: The standard shoes can pass over the sensor with-
out damaging it.

.

AC609533AB
