WIRELESS CONTROL MODULE (WCM)

42C-111

• When the engine speed is more than 200 r/min

• The EEPROM abnormality occurs [When the EEPROM

abnormality occurs during the transmitter registration,
delete all the transmitters stored (including the transmitters
used for the shift to the customer-programming mode), and
finish the customer-programming mode.]

KEYLESS ENTRY SYSTEM CHECK

M1427505600102

Check the keyless entry system function as described below. If
it does not work, perform troubleshooting. Refer to

P.42C-80

• Operate the transmitter to check that the doors and liftgate

can be locked and unlocked.

• Operate the transmitter to check that the answerback func-

tion works in response to door and liftgate locking/unlock-
ing.
NOTE: The hazard and horn answerback setting can be
changed using the customization function. Confirm which
setting is activated before performing these checks. Refer
to

P.42B-199

INSPECTION OF KEYLESS ENTRY TIMER LOCK
FUNCTION

M1427505800106

Attempt to unlock the doors and the liftgate by using the trans-
mitter. If the doors and the liftgate are not locked within 30 sec-
onds, carry out diagnosis. Note that the doors and the liftgate
will not be locked if the ignition key is inserted within the
30-second period, one of the doors or the liftgate is opened.
Refer to

P.42C-80

NOTE: The operation time of the keyless entry timer lock func-
tion can be set using the customization function. Confirm the
operation time before performing the diagnosis. Refer to

P.42B-199

POWER DOOR LOCKS WITH SELECTIVE
UNLOCKING INSPECTION

M1427510800016

Press the unlock button on the transmitter once to unlock only
the driver's door. Press the unlock button of the transmitter
once again within 2 seconds after the driver's door is unlocked,
and check that the front passenger's door, rear doors, and lift-
gate are unlocked. If they are not unlocked, carry out trouble-
shooting. Refer to

P.42C-80

NOTE: Press the unlock button on the transmitter once to
unlock only the driver's door. When the unlock button of the
transmitter is pressed once again more than 2 seconds after
the driver's door is unlocked, only the driver's door is unlocked.
NOTE: The setting of the power door locks with selective
unlocking can be changed using the customization function.
Confirm which setting is activated before performing these
checks. Refer to

P.42C-112

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-112

TIRE PRESSURE SENSOR CHECK

M1427509900019

Refer to ID codes registration procedure

P.42C-99

TIRE PRESSURE SENSOR ID CHECK

M1427510000010

Refer to ID codes registration procedure

P.42C-99

CUSTOMIZATION FUNCTION

M1427504500823

Using the ETACS system of scan tool MB991958,
the following functions can be programmed. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

Hazard answer
back

Adjustment of the
number of keyless
hazard warning light
answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (initial condition)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

Without function

Door unlock
mode

Adjustment of
power door locks
with selective
unlocking

All doors unlock

Without function: The first operation of
keyless entry system or unlock operation
by KOS unlocks all doors.

Dr door unlock

With function: The first operation of
keyless entry system or unlock operation
by KOS unlocks the driver's door only, and
the second unlock operation within 2
seconds after that unlocks all doors. (initial
condition)

Auto door
unlock

Adjustment of the
auto door unlock
function

Disabled

Without function (initial condition)

Always (P pos)

With function: Operates when the shift
lever or the selector lever is moved to the
P position.

Always(Lock pos)

With function: Operates when the ignition
switch is moved to the LOCK (OFF)
position.

Duration of horn
chirp

Horn sounding time
during horn answer
back

Short

0.01 second (initial condition)

Long

0.02 second

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-113

NOTE: *: F.A.S.T. (Free-hand Advanced Security
Transmitter)

Horn chirp by
keyless

Horn chirp by
keyless entry
system <vehicles
without auto light>

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(initial condition)

Horn chirp by
keyless entry
system <vehicles
with auto light>

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

Lock/auto ON

During daytime, while the lighting switch is
in the AUTO position, the horn sounds
once when the lock is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(initial condition)

Timer lock timer Timer lock period

adjustment

30 sec

30 seconds (initial condition)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Panic alarm
switch

With/without panic
alarm function

Disable

Without function

Enable

With function (initial condition)

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

WCM

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-114

WCM

REMOVAL AND INSTALLATION

M1427500800297

CAUTION

When WCM has been replaced, all key ID codes should be registered, referring to the ID code regis-
tration judgment table

P.42C-10

INSTALLATION SERVICE POINT

>>A<< WCM INSTALLATION

Check that the top claw of WCM is fixed securely to the boss of
steering lock and the antenna is not floated on the key cylinder.

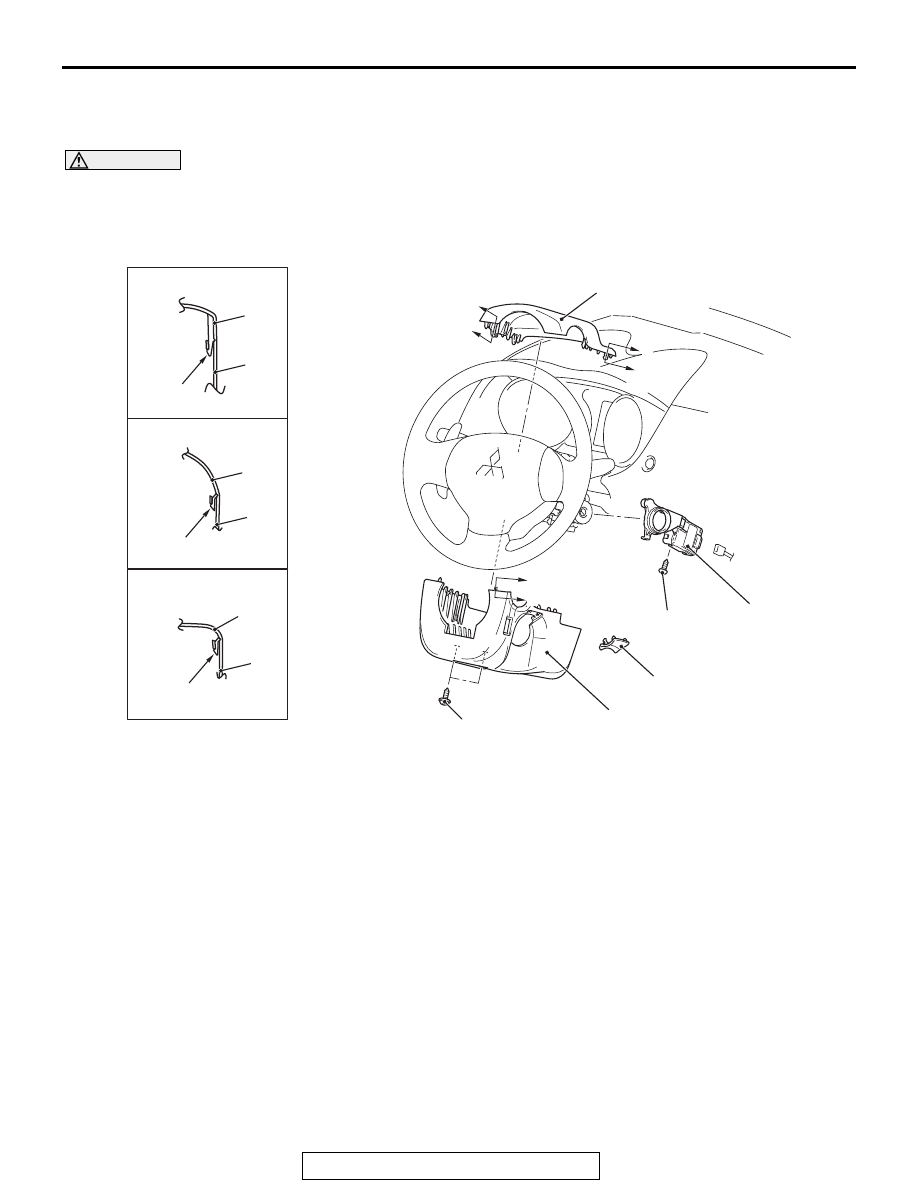

AC708536

AC708747

Section A-A

Section B-B

Section C-C

Claw

NOTE: Claw position is symmetrical

2.0 ± 0.5 N·m
18 ± 4 in-lb

2.5 ± 0.5 N·m
22 ± 4 in-lb

Removal steps

Ignition key cover

Steering column upper cover

Steering column lower cover

<< 4.

WCM

Removal steps (Continued)
