Mitsubishi Outlander (2013+). Manual - part 695

2

3

Clear

1

5

6

4

8

9

7

0

#

+

01234567890_

Back

Redial

12:00

Mobile Phone

ACC00175AB

Sub-menu

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-265

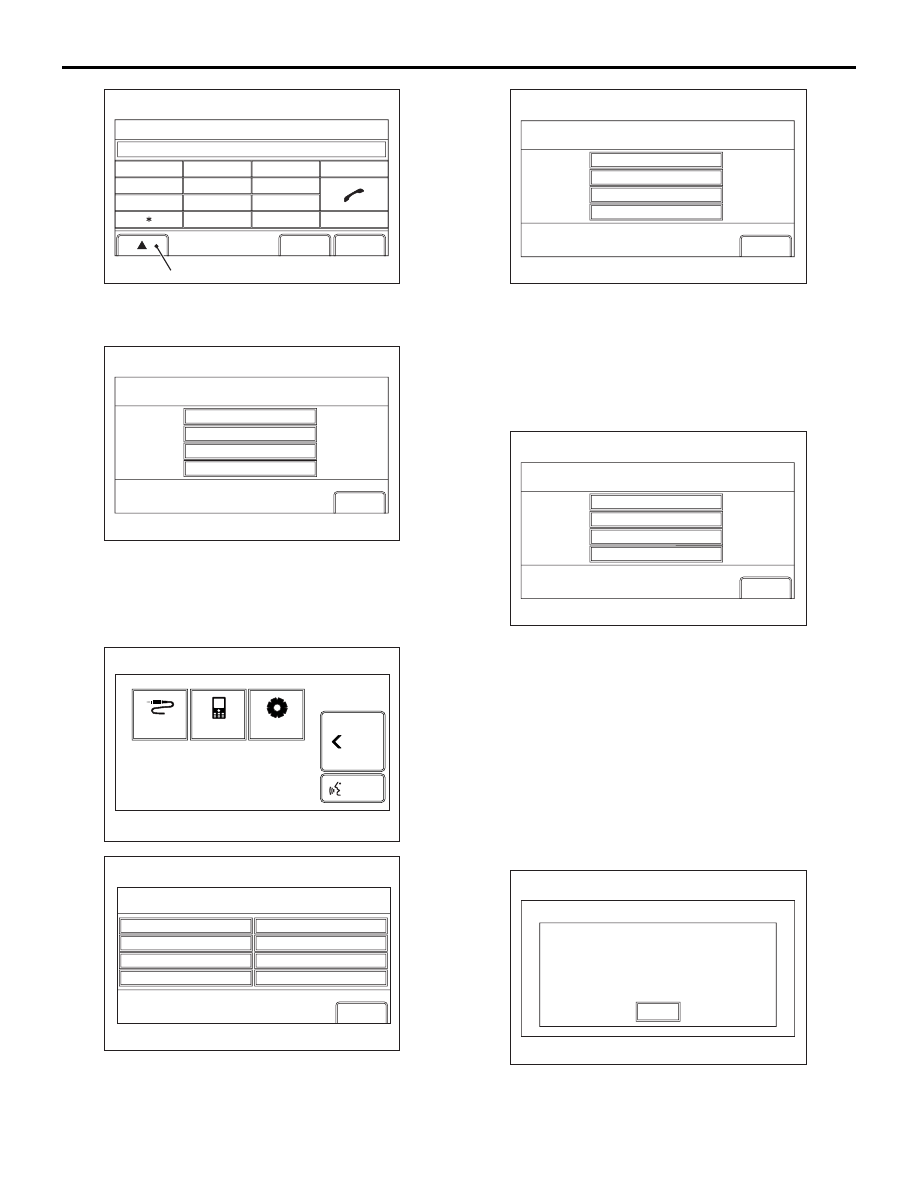

2. Select the sub-menu button on "Mobile Phone"

screen to go to the sub-menu screen.

Select Device to Connect

Register Device

Delete Registered Device

Set Passkey

Back

12:00

Bluetooth

ACC00207

3. Select "Bluetooth Setting" in the sub-menu to go

to "Bluetooth" screen.

OPERATION ON THE MENU SCREEN

AUX

Phone

12:00

Setting

Back

Voice

ACC00173

Display Off

Clock Screen

System Setting

RDS Setting

Color Contrast

Bluetooth Setting

Sound Control

Version Info

Back

12:00

Setting

ACC00174

1. Select "Setting" button on the menu screen.

Select Device to Connect

Register Device

Delete Registered Device

Set Passkey

Back

12:00

Bluetooth

ACC00207

2. Select "Bluetooth Setting" button in "Setting"

screen to go to "Bluetooth" screen.

HOW TO REGISTER BLUETOOTH

®

DEVICE

Go to "Bluetooth" screen.

Select Device to Connect

Register Device

Delete Registered Device

Set Passkey

Back

12:00

Bluetooth

ACC00207

1. Select "Register Device" button on "Bluetooth"

screen.

NOTE: "Register Device" is inactive under the fol-
lowing cases:

.

•

Seven Bluetooth

®

 devices have been regis-

tered.

•

Mobile phone is being used.

•

Bluetooth

®

 device(s) are being removed.

•

Cancel

12:00

Register Device

The connection between Bluetooth device is in

progress. Use the passkey as 1212

Confirm the user manual of the Bluetooth device

for passkey input method related to Bluetooth

device.

ACC00211

Registration of Bluetooth

®

 device(s) are being

cancelled.

2. "Starting registration to Bluetooth device" will be

displayed. Then "Register Device" screen will be

displayed. Enter the passkey (4-digit number),
which is displayed on the screen, to the
appropriate Bluetooth

® device.

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-266

NOTE: A predetermined 4-digit number may be
assigned to some Bluetooth

®

 devices.

Back

Enter

Connect Telephone

Device Name : XXXX XXXXXX

Connect Audio

12:00

Select Device to Connect

ACC00213

3. If the registration is successfully completed,

"Bluetooth device certification process finished
with XXXX(Bluetooth

® device name)" will be

displayed. It will be switched to "Select Device to
Connect" screen in several seconds and then
display registered Bluetooth

® device(s).

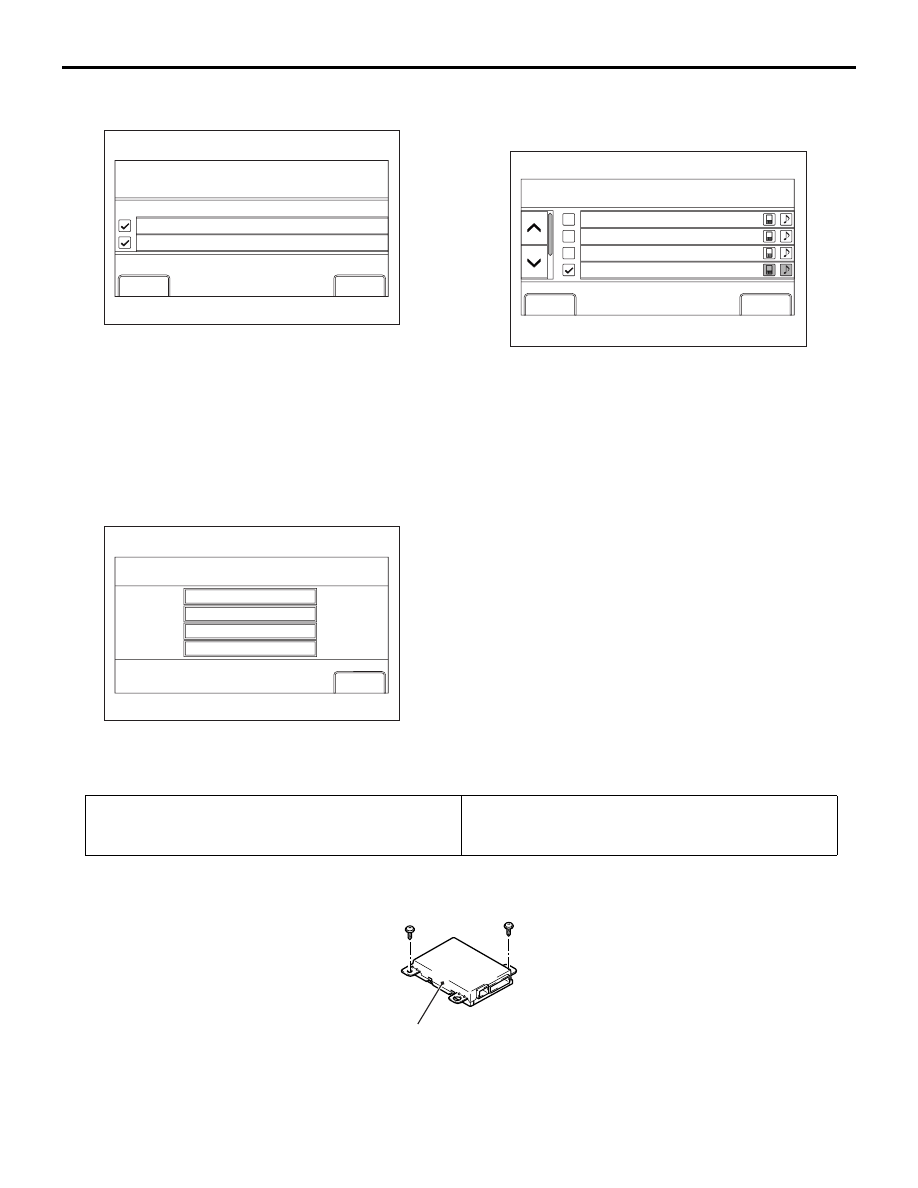

HOW TO DELETE  BLUETOOTH

® DEVICE

Go to "Bluetooth" screen.

Select Device to Connect

Register Device

Delete Registered Device

Set Passkey

Back

12:00

Bluetooth

ACC00207

1. If you select "Delete Registered Device" button on

"Bluetooth" screen, "Delete Registered Device"
screen will be displayed.

Back

Delete

XXXXX

XXXX XXXXXX

XX-XXX

XXX_XXXXXX

12:00

Delete Registered Device

ACC00209

2. On "Delete Registered Device" screen, select a

Bluetooth

® device you want to remove. Then

select "Delete" button.

NOTE: You cannot select the Bluetooth

®



device(s) you are using.

3. When "Do you want to delete the Bluetooth device

entry?" is displayed, select "Delete" button again.

4. If at least one Bluetooth

® device is still registered,

it will be switched to "Delete Registered Device"
screen. If no devices are registered, it will be
switched to "Bluetooth" screen.

HANDS FREE ECU

REMOVAL AND INSTALLATION

M1544405400305

Pre-removal Operation
• Centre Lower Box Assembly Removal (Refer to GROUP

52A

− Instrument Panel Assembly ).

Post-installation Operation
• Centre Lower Box Assembly Installation (Refer to

GROUP 52A

− Instrument Panel Assembly ).

ACB05453

AB

Hands free ECU

REMOVAL AND INSTALLATION

M1549101300355

For the USB cable removal and installation proce-

dures, refer to

P.54A-248

.

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-267

REMOVAL AND INSTALLATION

M1549100800476

For the USB adapter removal and installation proce-
dures, refer to

P.54A-249

.

REMOVAL AND INSTALLATION

M1546024200331

For the steering wheel remote control switch removal
and installation procedures, refer to GROUP 37

−

Steering .

REMOVAL AND INSTALLATION

M1546023300324

For the microphone unit removal and installation pro-
cedures, refer to

P.54A-167

.

USB ADAPTER CHECK

M1549101100328

For the inspection procedures, refer to

P.54A-249

.

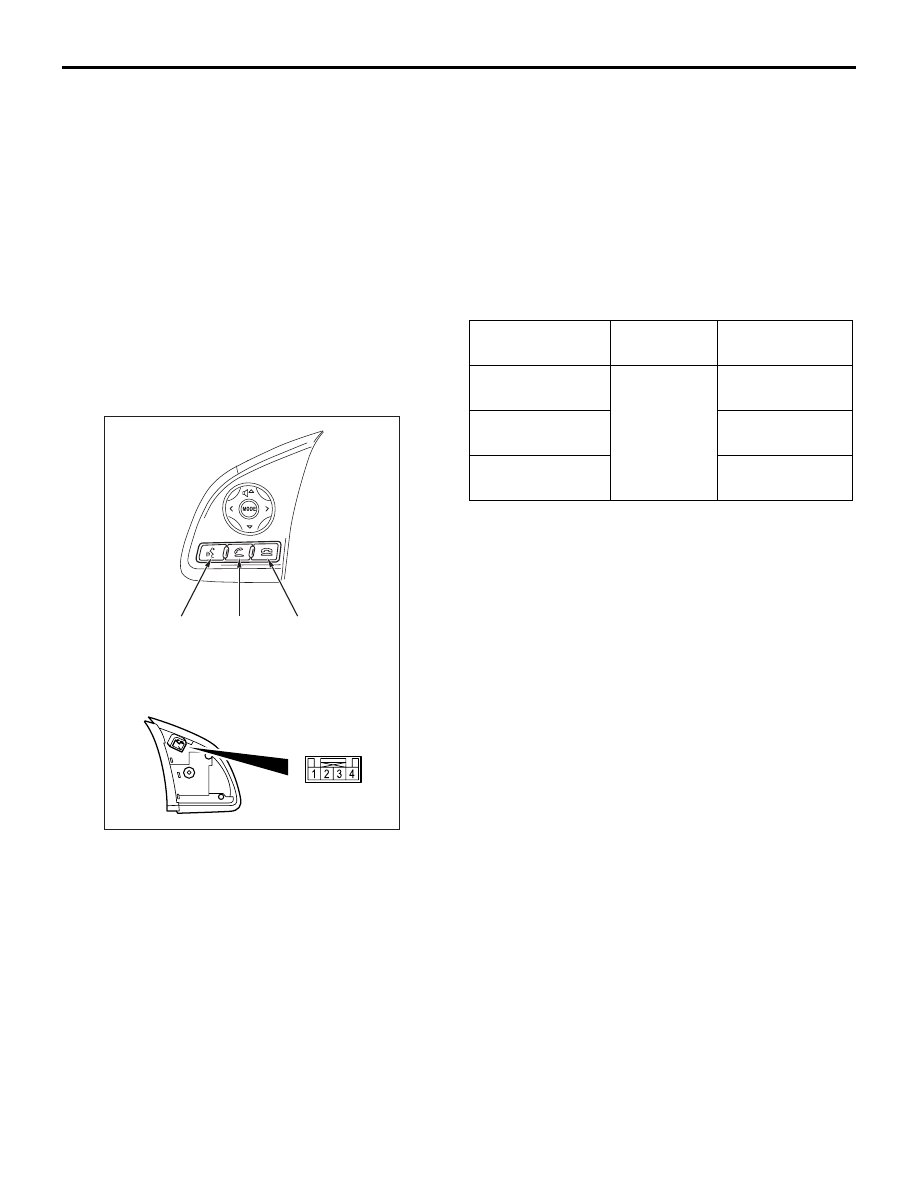

STEERING WHEEL VOICE CONTROL
SWITCH CHECK

M1544401100476

ACB05549AB

"SPEECH"
switch

"OFF HOOK"
switch

"ON HOOK"
switch

Switch position

Tester
connection

Resistance

"SPEECH" switch
pushed

1

− 2

Approximately
4.6 k

Ω

"OFF HOOK"
switch pushed

Approximately
6.3 k

Ω

"ON HOOK"
switch pushed

Approximately
8.6 k

Ω

ILLUMINATION CHECK

Apply the battery voltage to the connector terminal
No. 3, earth the terminal No. 4, and then check that
the illumination lights up.

AMPLIFIER

CHASSIS ELECTRICAL

54A-268

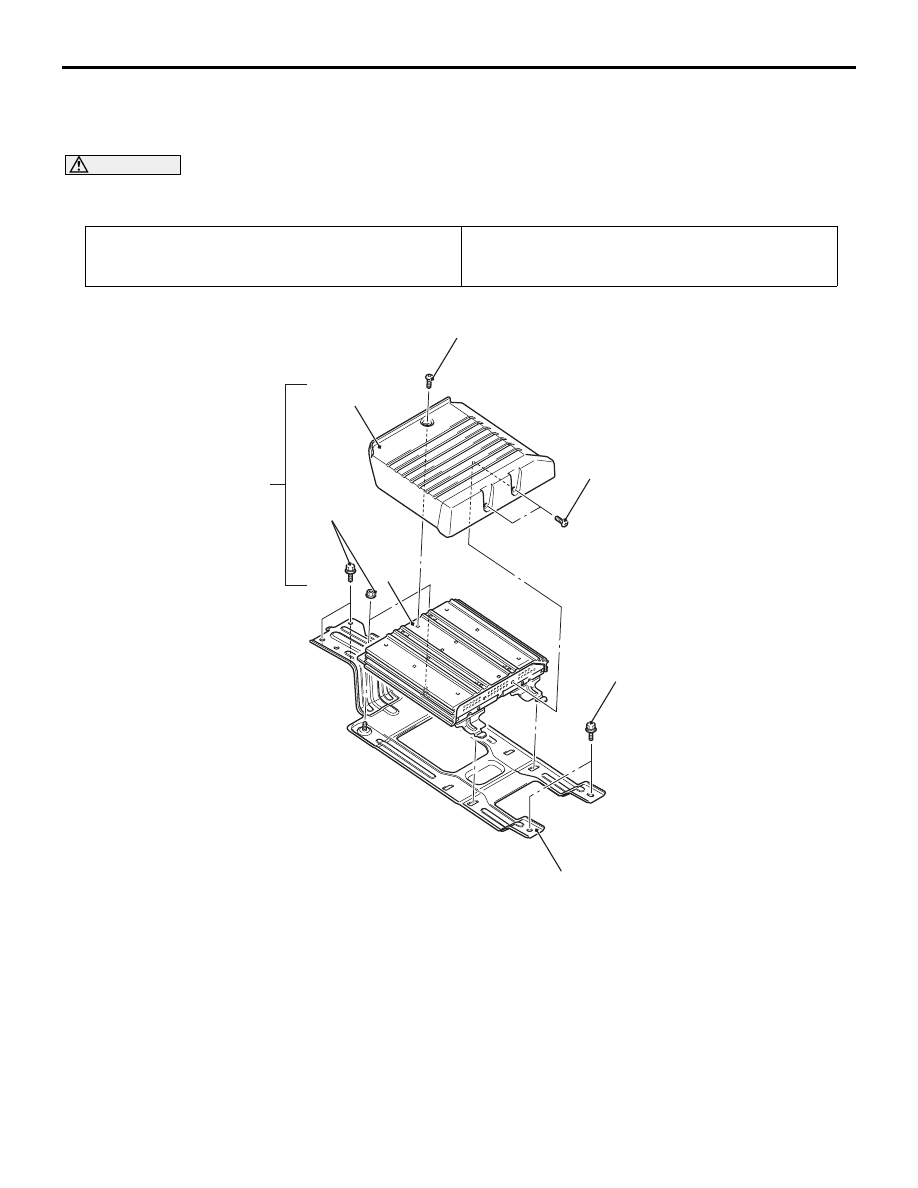

AMPLIFIER

REMOVAL AND INSTALLATION

M1544004100789

CAUTION

To remove the front seat assembly of vehicle with side-air bag, refer to GROUP 52B

− Service Precau-

tions  and Side-airbag Module(s) .

Pre-removal Operation
• Front Seat Assembly Removal (Refer to GROUP 52A −

Front Seat Assembly ).

Post-installation Operation
• Front Seat Assembly Installation (Refer to GROUP 52A −

Front Seat Assembly ).

ACB05392AB

1.5 ± 0.5 N·m

1

4

3

2

1.5 ± 0.5 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

Removal steps

1.

Audio amplifier assembly

2.

Audio amplifier cover

3.

Audio amplifier

<<

A

>>

4.

Bracket

REMOVAL SERVICE POINT

 <<A>> BRACKET REMOVAL

Turn up and remove the carpet.
