HANDS FREE ECU

CHASSIS ELECTRICAL

54A-261

• The hands free-ECU may be defective.

• The steering wheel remote control switch may be

defective.

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the diagnosis mode
Check if the hands free-ECU can be switched to the
diagnosis mode. (Refer to

P.54A-254

 <Vehicles with

1CD audio> or

P.54A-256

 <Vehicles with display

audio>.)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Perform Inspection Procedure 5
"DIAGNOSIS MODE cannot be made an
entry." (Refer to

P.54A-261

.)

STEP 2. Operation check of the steering wheel
remote control switch (audio remote control
switch)
Check that the radio and CD player can be operated
by the steering wheel remote control switch.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Troubleshoot the steering wheel remote
control switch.

STEP 3. Check the steering wheel remote control
switch (speech switch).
Check the continuity of the steering wheel remote
control switch. (Refer to

P.54A-267

)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the steering wheel remote control
switch.

STEP 4. Temporarily replace the hands free-ECU,
and check the trouble symptom.

Q: Is the check result normal?

YES :

Replace the hands free-ECU.

NO :

Replace the radio and CD player.

Inspection Procedure 5: DIAGNOSIS MODE cannot be made an entry. Mobile Phone item is not
displayed on the MENU screen of display audio.

CAUTION

Before replacing the hands free-ECU or radio and
CD player, ensure that the power supply circuit,
the earth circuit and the communication circuit
are normal.

COMMENTS ON TROUBLE SYMPTOM

If the diagnosis mode cannot be made an entry, the
hands free-ECU, the communication between the
hands free-ECU and the radio and CD player, or the
power supply system of hands free-ECU may have a
problem.

PROBABLE CAUSES

• The hands free-ECU may be defective.

• The radio and CD player may be defective.

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the radio and CD player
operation.
Check if the radio and CD player work normally and
the sound is output.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Troubleshoot the radio and CD player.
(Refer to

P.54A-228

.)

STEP 2. Check of short to power supply, short to
earth, and open circuit in IE+, IE- line between
hands free-ECU connector and radio and CD
player connector.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector(s) or wiring harness.

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-262

STEP 3. Check if the power supply circuit of
hands free-ECU have a problem.
Perform the Inspection procedure 1 "Check the
hands free-ECU power supply circuit." of the trouble-
shooting. (Refer to

P.54A-258

.)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair according to the troubleshooting for
reference.

STEP 4. Replace the hands free-ECU temporarily,
and check the trouble symptom.

Q: Is the check result normal?

YES :

Replace the hands free-ECU.

NO :

Replace the radio and CD player.

Inspection Procedure 6: Voice guide "Unable to obtain vehicle speed. Please try again or contact your
dealer for service" is sent from the speaker

CAUTION

Before replacing the hands free-ECU or radio and
CD player, ensure that the power supply circuit,
the earth circuit and the communication circuit
are normal.

COMMENTS ON TROUBLE SYMPTOM

If the voice guide "Unable to obtain vehicle speed.
Please try again or contact your dealer for service" is
sent from the speaker, the vehicle speed signal of
hands free-ECU has a problem. At this time, the
hands free-ECU, and the vehicle speed signal of
radio and CD player may have a problem.

PROBABLE CAUSES

• The hands free-ECU may be defective.

• The radio and CD player may be defective.

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the radio and CD player
operation.
Check if the speed compensated volume function of
radio and CD player works normally during driving.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Troubleshoot the radio and CD player
(Refer to

P.54A-228

).

STEP 2. M.U.T.-III CAN bus diagnostics
Use the M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 3. M.U.T.-III other system diagnosis code
Check again if the diagnosis code is set to the radio
and CD player.

Q: Is the diagnosis code set?

YES :

Troubleshoot the radio and CD player

(Refer to

P.54A-220

).

NO :

Go to Step 4.

STEP 4. Check the diagnosis mode
Check if the hands free-ECU can be switched to the
diagnosis mode.(Refer to

P.54A-254

 <Vehicles with

1CD audio> or

P.54A-256

 <Vehicles with display

audio>.)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Perform Inspection Procedure 5:
"DIAGNOSIS MODE cannot be made an
entry." (Refer to

P.54A-261

.)

STEP 5. Replace the hands free-ECU temporarily,
and check the trouble symptom.

Q: Is the check result normal?

YES :

Replace the hands free-ECU.

NO :

Replace the radio and CD player.

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-263

ON-VEHICLE SERVICE

METHODS FOR PAIRING AND PAIRING DELETION WITH BLUETOOTH

® DEVICE

<USING STEERING WHEEL REMOTE CONTROL SWITCH>

M1544405500454

NOTE:

.

•

For detail of the hands free-ECU, you can see to
access via the MITSUBISHI MOTORS web site.
Please read and agree the "Warning about Links
to the Web Sites of Other Companies" because it
connects other than MITSUBISHI MOTORS web
site.



http://www.mitsubishi-motors.com/en/prod-
ucts/index.html

•

Some Bluetooth

®

 devices (mobile phone or

music player) may not be compatible with the
hands free-ECU.

•

A maximum of seven Bluetooth

®

 devices can be

registered.

•

 This system cannot be used when a battery of
Bluetooth

®

 devices was exhausted.

PAIRING METHOD

Turn the ignition switch to "ACC" or "ON" position.

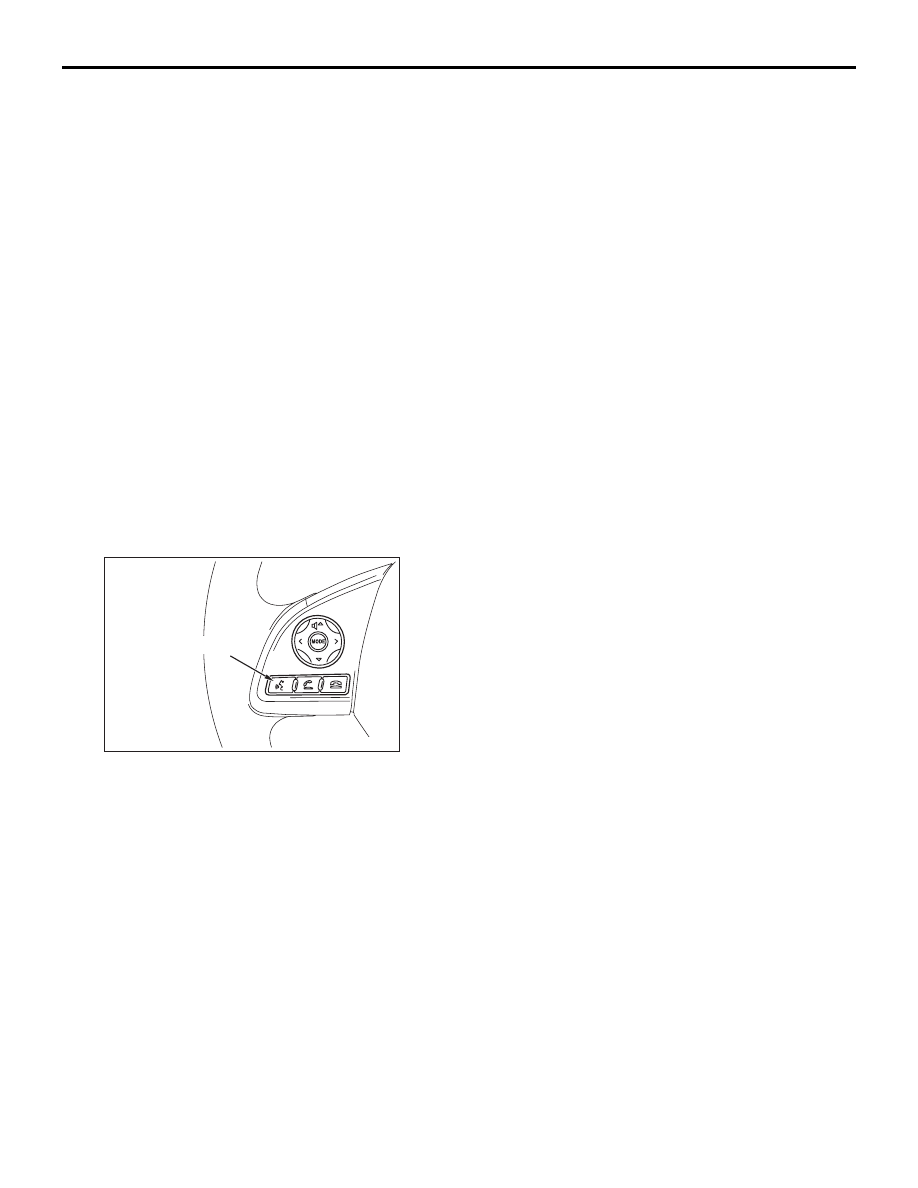

ACB05490AC

"SPEECH" switch

1. Press the "SPEECH" switch.

2. Say "Setup."

3. Say "Pairing options."

4. The voice guide will say "Select one of the

following: pair, edit, delete, or list?"

5. Say "Pair."

6. The voice guide will say "Please say a 4-digit

pairing code."

7. Say a 4 digit number. The 4 digit number will be

registered as a pairing code for the device.

• When the confirmation function is on, the system

will confirm whether the number said is accepta-
ble. Answer "Yes" to go Step 8. Say "No" to return
to pairing code selection.

NOTE:

.

•

The pairing code entered here is only used for
the Bluetooth

®

 connection certification. It is

any 4-digit number the user would like to
select. A predetermined 4-digit number may
be assigned to some Bluetooth

®

 devices.

•

Remember the pairing code as it needs to be
keyed into the device later in the pairing proc-
ess.

•

Depending on the connection settings of the
Bluetooth

®

 device, this code may have to be

entered each time you connect the Bluetooth

®



device to the hands free-ECU. For the default
connection settings, refer to the instructions
for device.

8. The voice guide will say "Start pairing procedure

on device. See device manual for instructions."
Refer to the owner’s manual for your device and
enter into the device the pairing code that was
registered in Step 7.

9. When this system finds a Bluetooth

® device, the

voice guide will say "Please say the name of the
device after the beep."

10.After you hear the beep, name the device by

saying a name of your preference.

NOTE: When the confirmation function is on, after
repeating the device tag you have said, the voice
guide will ask "Is this correct?" Answer "Yes".



To change the device tag, answer "No" and then
say the device tag again.

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-264

11.The voice guide will say "Pairing complete," after

which a beep will be played and the pairing
process will end.

PAIRING DELETION METHOD

1. Turn the ignition switch to "ACC" or "ON" position.

2. Press the Speech switch.

3. Say "Setup."

4. Say "Pairing options"

5. The voice guide will say "Select one of the

following: pair, edit, delete, or list"

6. Say "Delete."

7. After the voice guide says "Please say," the

numbers of the devices and device tags of
corresponding devices will be read out in order,
starting with the device that has been most
recently connected. After it completes reading all
pairs, the voice guide will say "or all."



Say the number of the device that you want to
delete from the system.



If you want to delete all paired devices from the
system, say "All."

8. For confirmation purposes, the voice guide will

say "Deleting (device tag) (number). Is this
correct?" or "Deleting all devices, Is this correct?"

9. Answer "Yes" to delete the devices.



Answer "No" the system will return to Step 5.

10.The voice guide will say "Deleted", and then the

system will end the device deletion process.

• If the device deletion process fails for some rea-

son, the voice guide will say "Delete failed." and
then the system will cancel deleting the device.

HOW TO REGISTER AND DELETE BLUETOOTH

® DEVICE <USING DISPLAY AUDIO>

M1544405500465

It is possible to perform Bluetooth

® pairing and

remove a paired Bluetooth

® device from the hands

free-ECU via a touch panel operation on the radio
and CD player screen.

NOTE:

.

•

For detail of the hands free-ECU, you can see to
access via the MITSUBISHI MOTORS web site.
Please read and agree the "Warning about Links
to the Web Sites of Other Companies" because it
connects other than MITSUBISHI MOTORS web
site.



http://www.mitsubishi-motors.com/en/prod-
ucts/index.html

•

Some Bluetooth

®

 devices (cellular phone and

music player) may not be compatible with the
hands free-ECU.

•

A maximum of seven Bluetooth

®

 devices can be

registered.

•

This system cannot be used when a battery of
Bluetooth

®

 devices was exhausted.

HOW TO DISPLAY "BLUETOOTH"
SCREEN

OPERATION ON THE MOBILE PHONE
SCREEN

AUX

Phone

12:00

Setting

Back

Voice

ACC00173

1. Select "Phone" button on the menu screen.
