AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-105

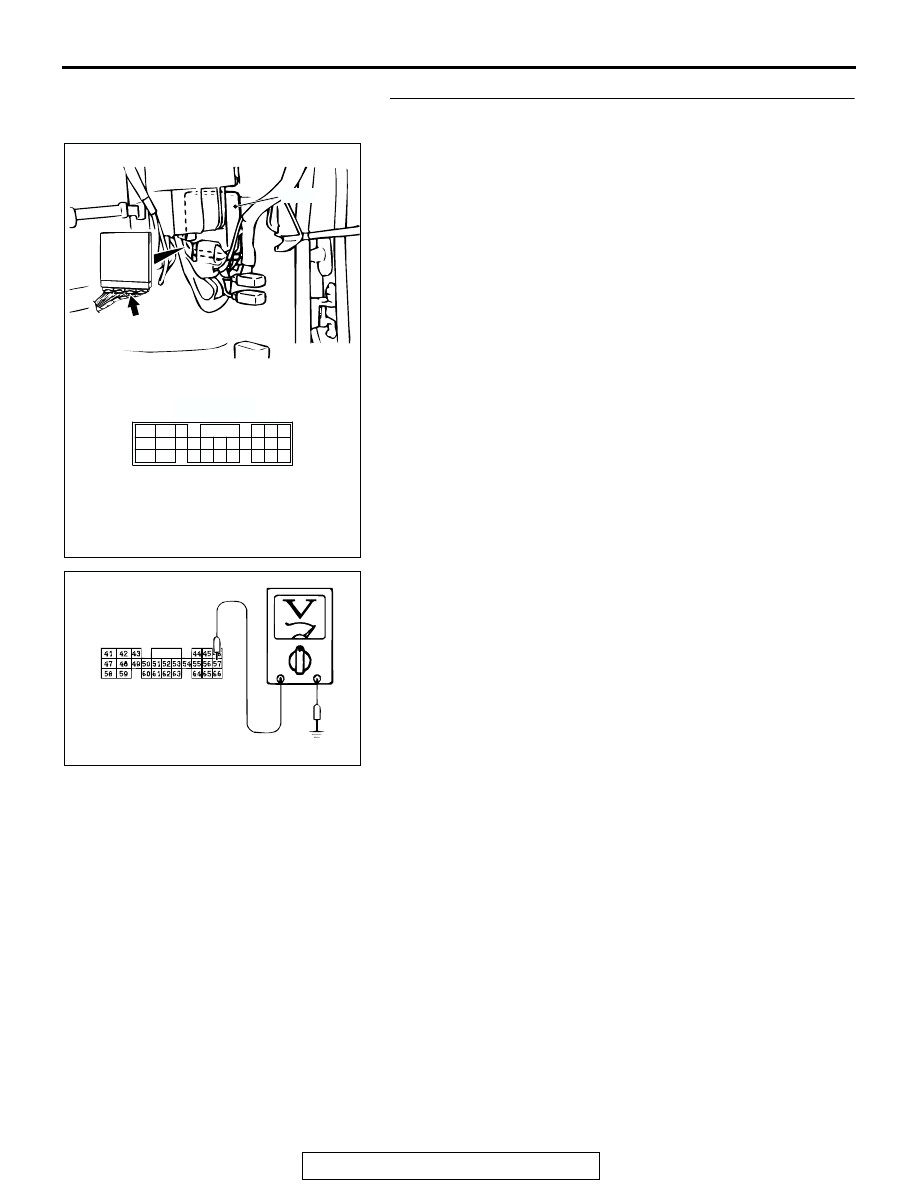

STEP 12. Measure the resistance at PCM connector C-90
by backprobing.

(1) Do not disconnect connector C-90.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the resistance between terminal 57 and ground by

backprobing.

• The resistance should measure less than 2 ohms.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 13.
NO :  Go to Step 15.

PCM

60

46

66

57

45

44

64

55 56

65

62 63

52 53

5051

61

42

59

48

41
47
58

43
49

54

AC202313

C-90 (GR)

AB

CONNECTOR: C-90

C-90 (GR)

AC001791

C-90 HARNESS  CONNECTOR:
HARNESS SIDE

AP

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-106

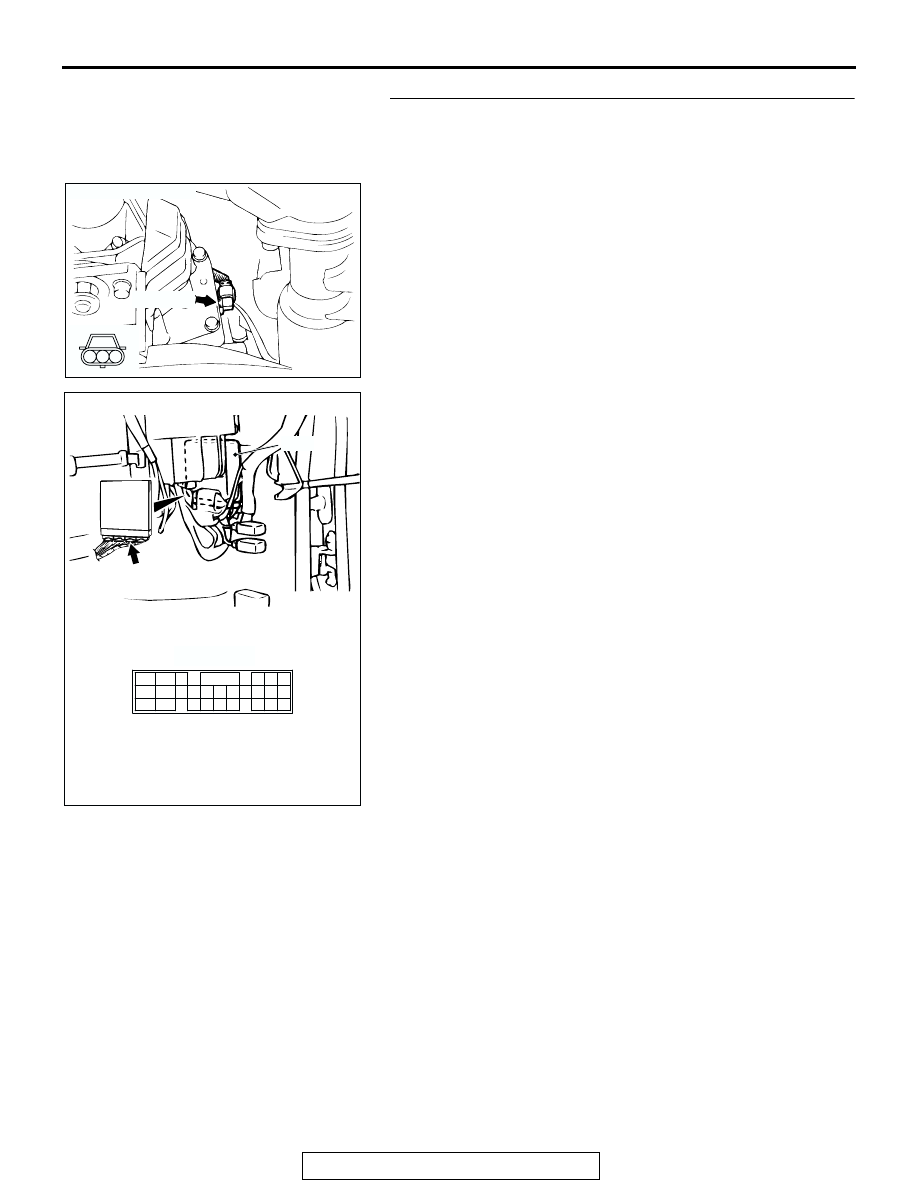

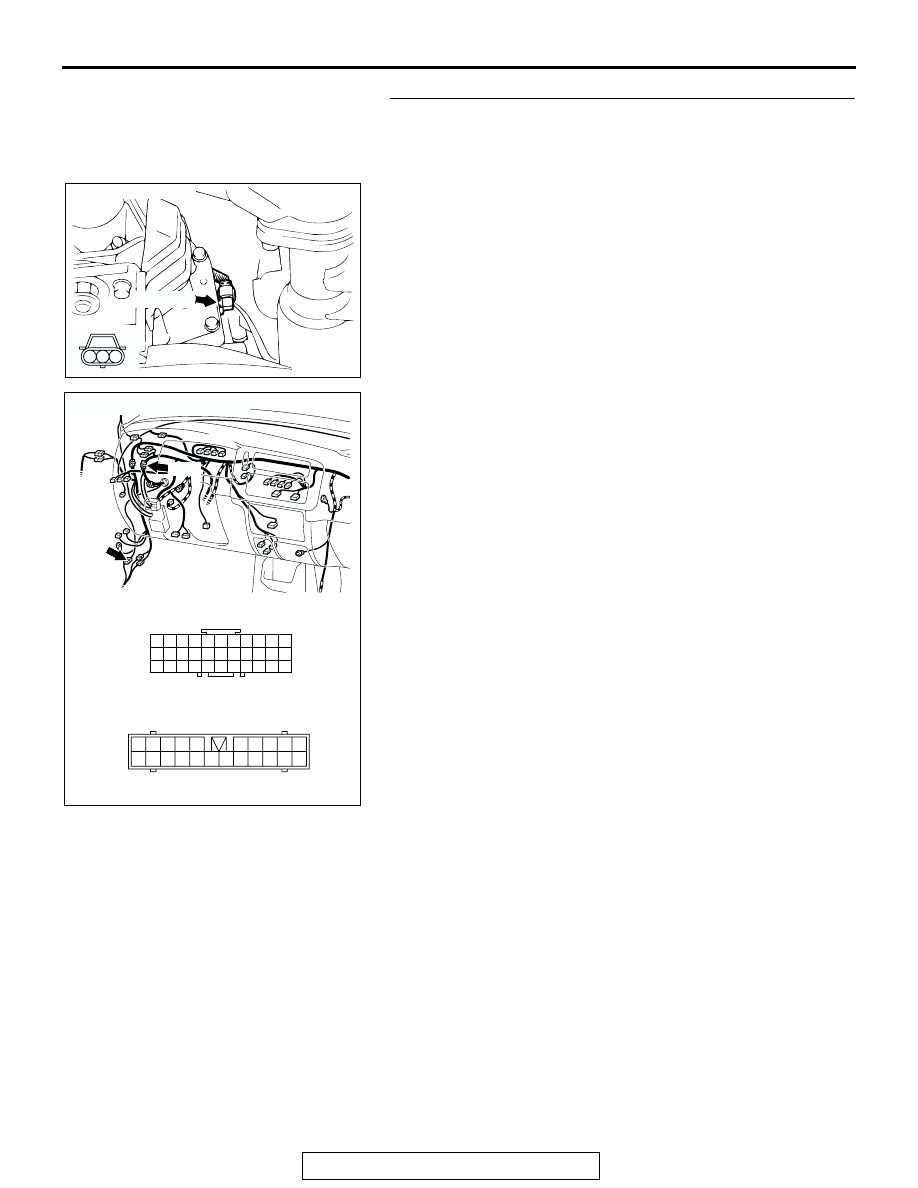

STEP 13. Check output shaft speed sensor connector
B-15, joint connector C-71, intermediate connector C-96
and PCM connector C-90 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

AC202387

1 2 3

CONNECTOR: B-15

B-15 (GR)

AB

AC202364

9 10

8

6 7

31 32

30

29

21

20

19

18

5

4

2

1

3

27

26

24

23

25

16

15

14

13

12

28

17

33

22

11

22

9 10

20

19

6 7 8

21

17

1516

5

14

12 13

3

2

4

18

11

1

CONNECTORS: C-71, C-96

C-96

C-71

C-96

C-71

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-107

Q: Are the connectors and terminals in good condition?

YES : Go to Step 14.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

PCM

60

46

66

57

45

44

64

55 56

65

62 63

52 53

5051

61

42

59

48

41
47
58

43
49

54

AC202313

C-90 (GR)

AB

CONNECTOR: C-90

C-90 (GR)

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-108

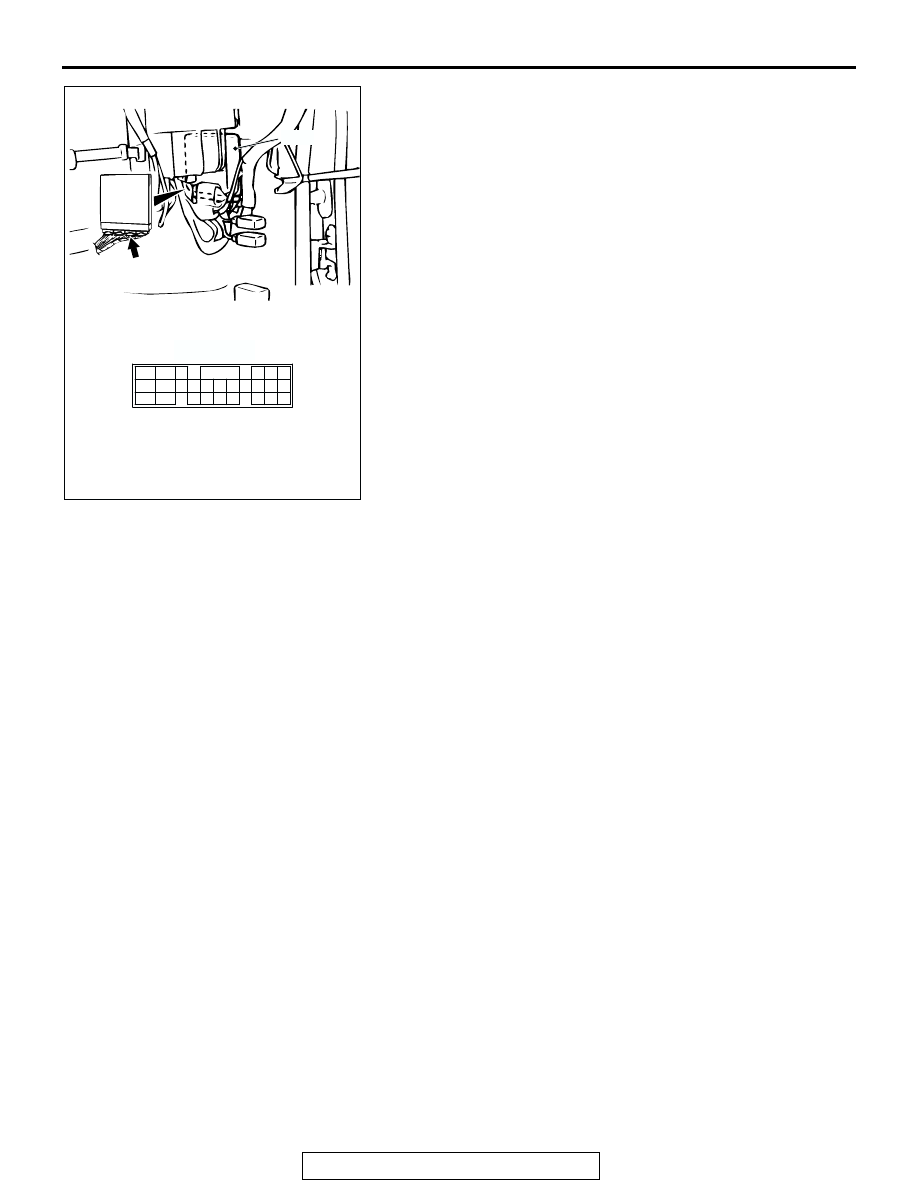

STEP 14. Check the harness for open circuit or damage
between output shaft speed sensor harness side
connector B-15 terminal 1 and PCM connector C-90
terminal 57.

Q: Is the harness wire in good condition?

YES : Go to Step 16.
NO :  Repair or replace the harness wire.

AC202387

1 2 3

CONNECTOR: B-15

B-15 (GR)

AB

PCM

60

46

66

57

45

44

64

55 56

65

62 63

52 53

5051

61

42

59

48

41
47
58

43
49

54

AC202313

C-90 (GR)

AB

CONNECTOR: C-90

C-90 (GR)
