AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-97

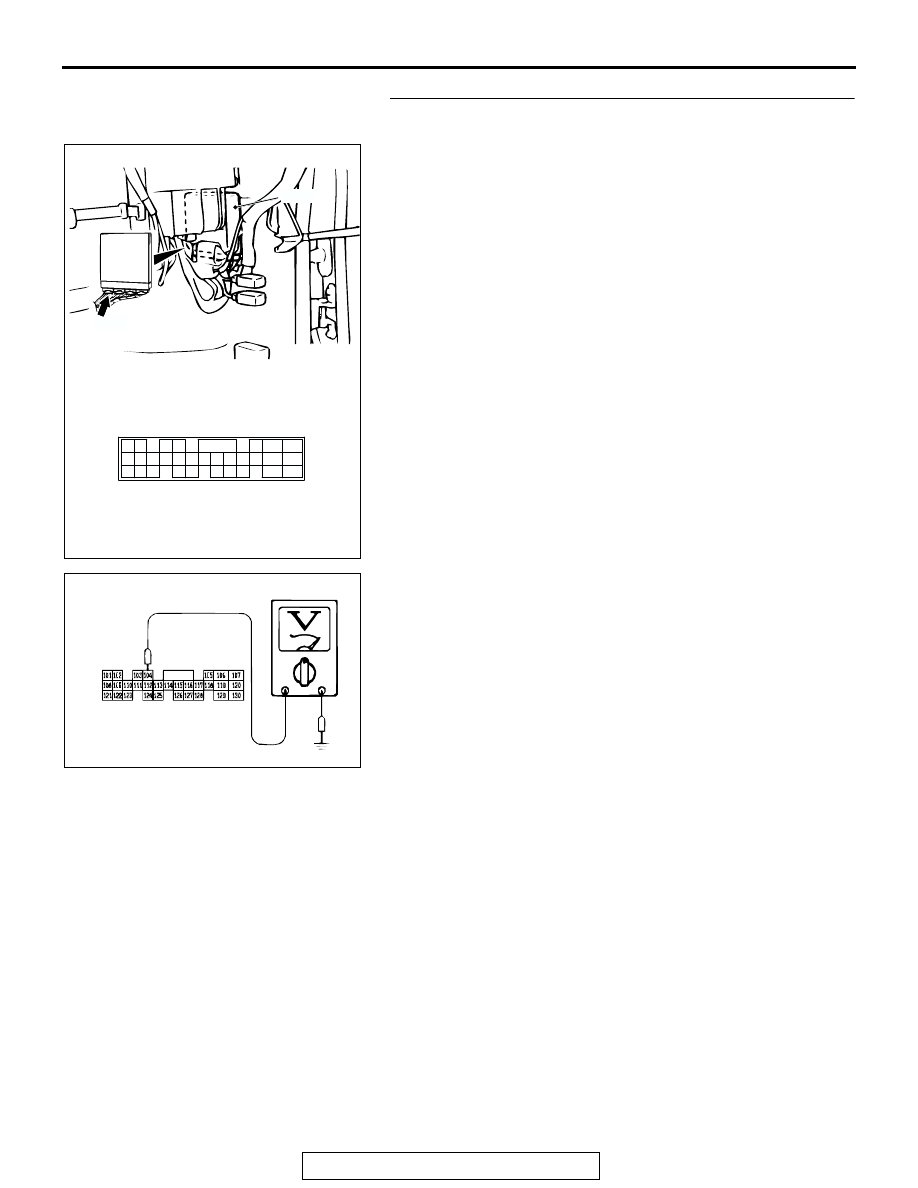

STEP 6. Measure the PCM output voltage to the speed
sensor at PCM connector C-92 by backprobing.

(1) Do not disconnect connector C-92.
(2) Disconnect connector B-15 at the output shaft speed

sensor.

(3) Turn the ignition switch to the "ON" position.

(4) Measure the voltage between PCM terminal 104 and

ground by backprobing.

• The voltage should measure between 4.5 and 4.9 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 7.
NO :  Go to Step 9.

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AC001811AJ

C-92 HARNESS CONNECTOR:
HARNESS SIDE

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-98

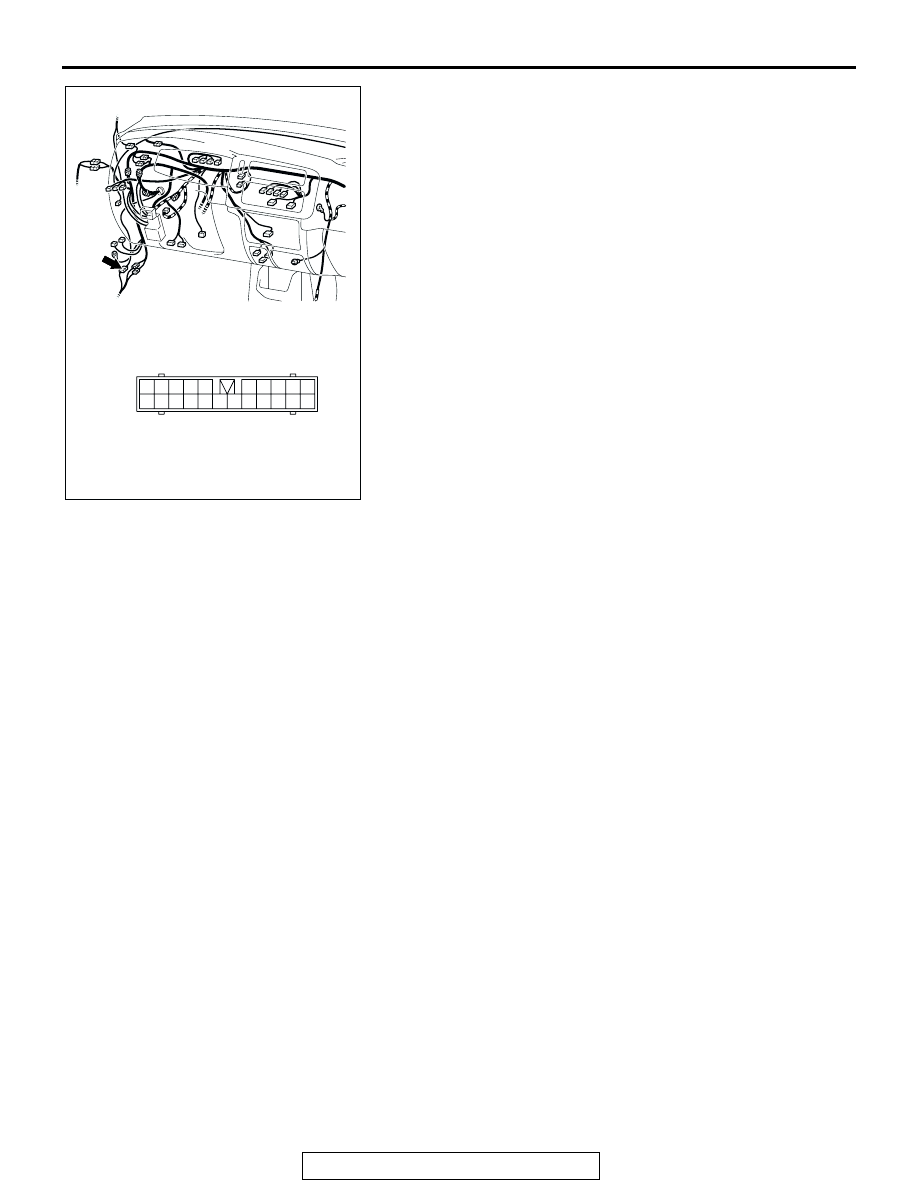

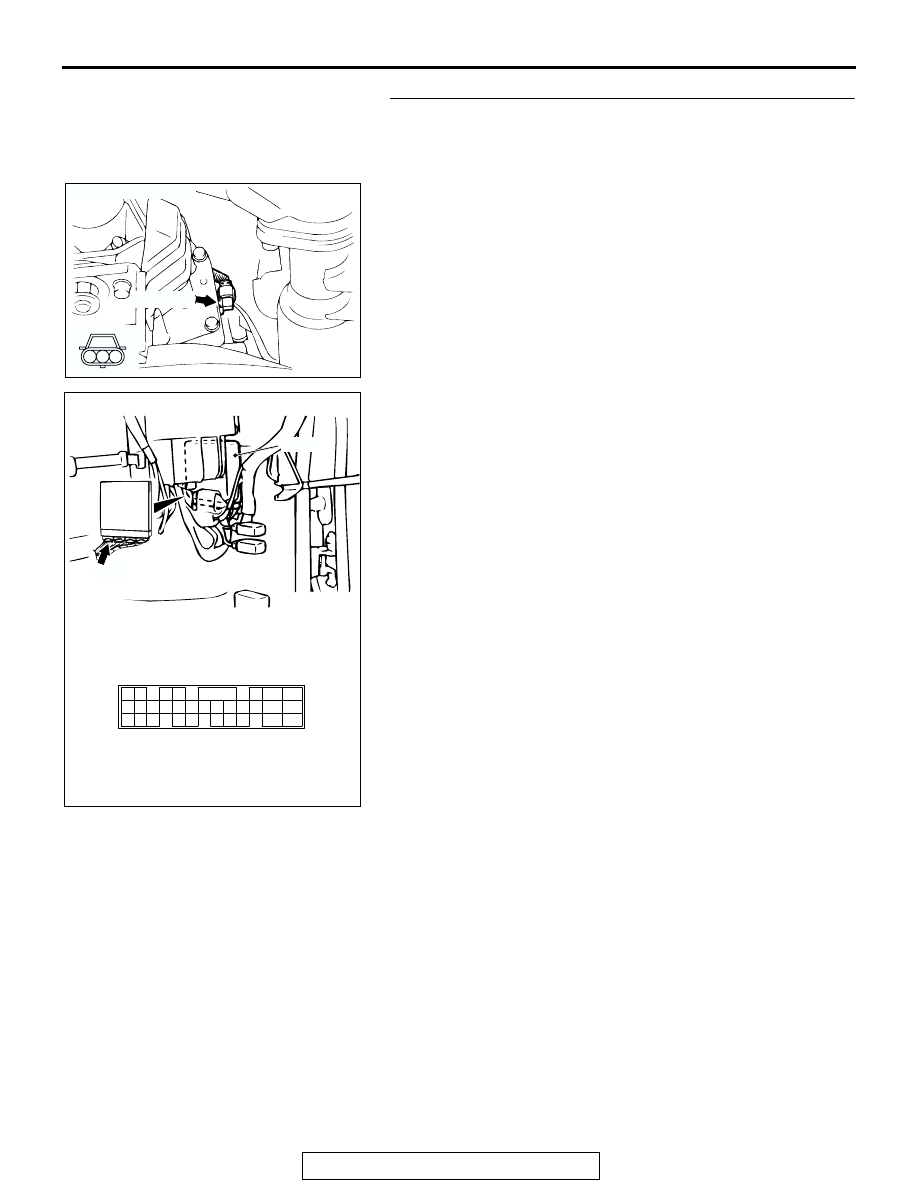

STEP 7. Check output shaft speed sensor connector B-15,
PCM connector C-92 and intermediate connector C-96 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

AC202387

1 2 3

CONNECTOR: B-15

B-15 (GR)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-99

Q: Are the connectors in good condition?

YES : Go to Step 8.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202318

22

9 10

20

19

6 7 8

21

17

1516

5

14

1213

3

2

4

18

11

1

AB

CONNECTOR: C-96

C-96

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-100

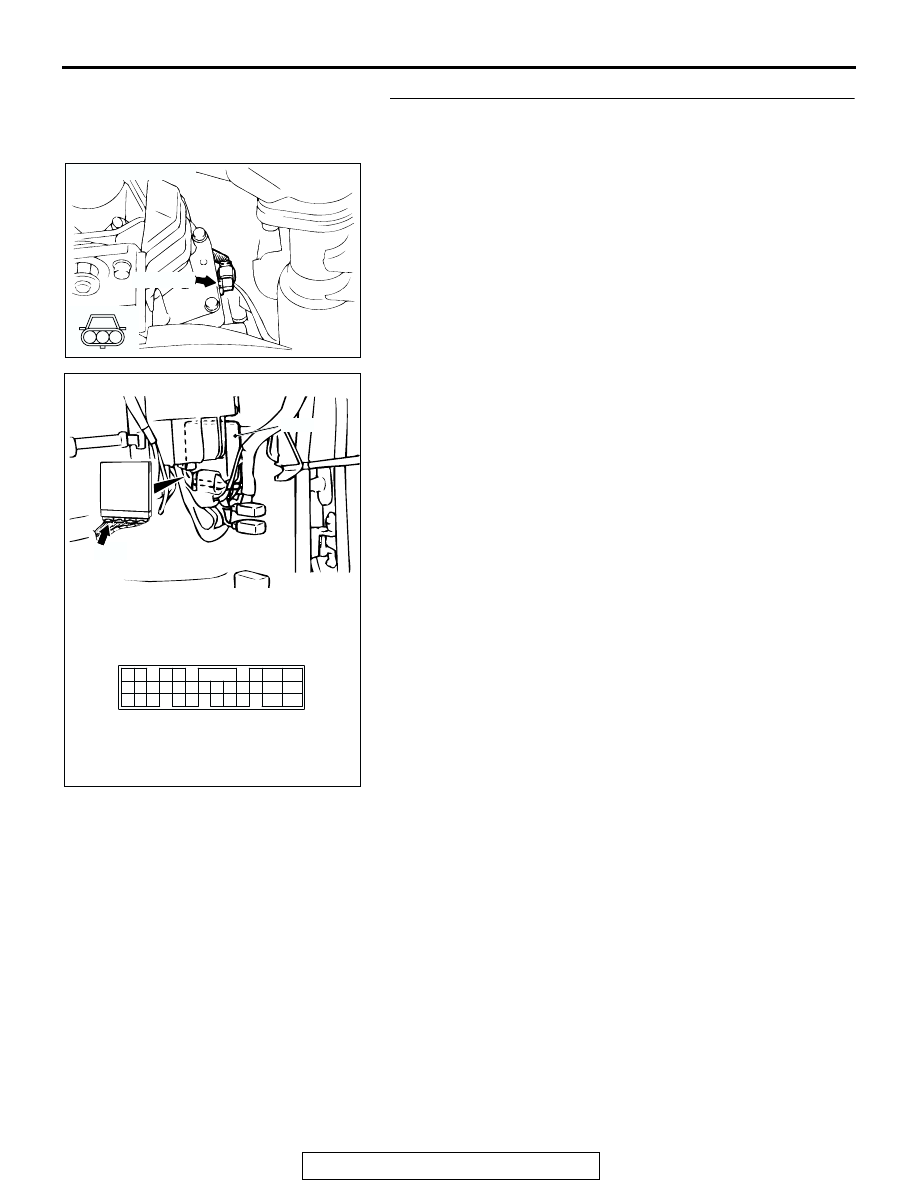

STEP 8. Check the harness for open circuit or damage
between output shaft speed sensor connector B-15
terminal 2 and PCM connector C-92 terminal 104.

Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair or replace the harness wire.

AC202387

1 2 3

CONNECTOR: B-15

B-15 (GR)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB
