TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-27

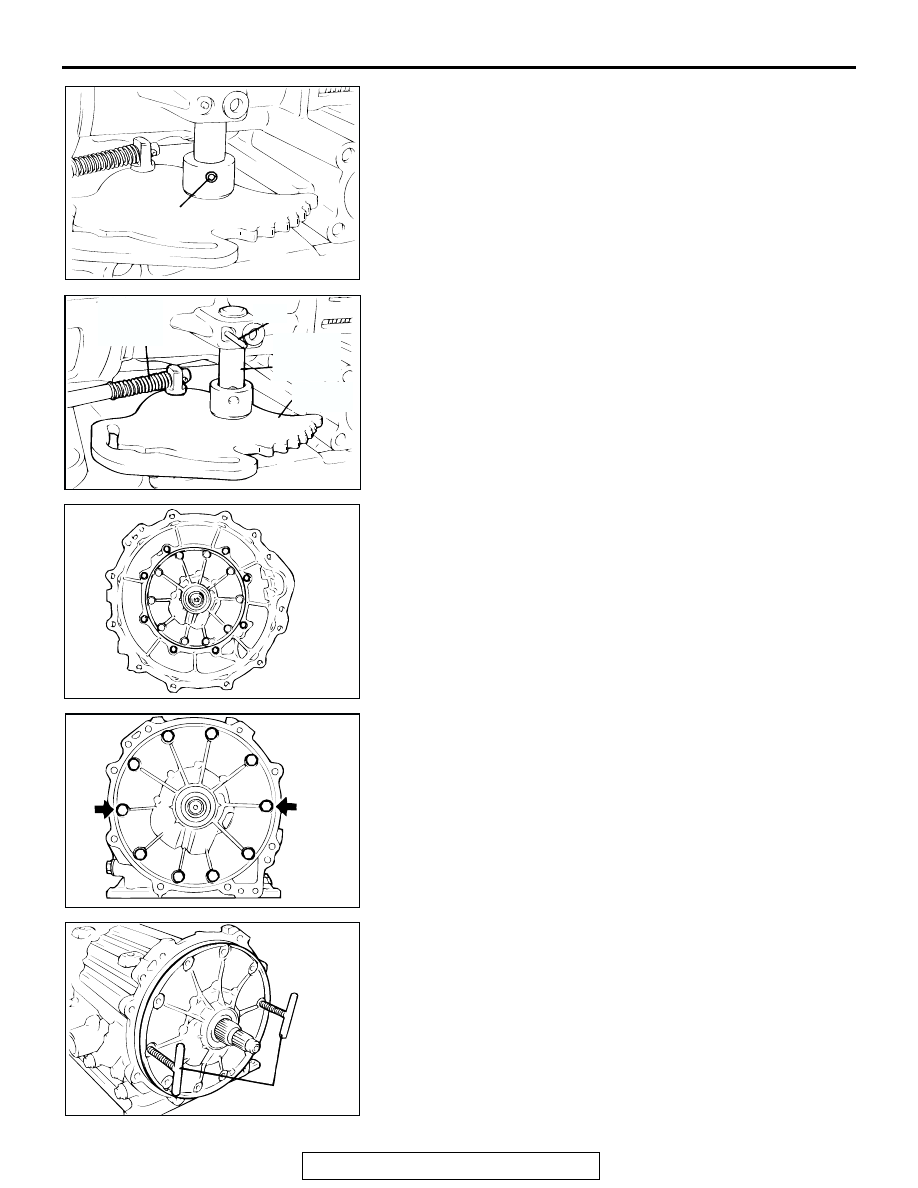

13.Remove the detent lever spring pin.

14.Remove the pin, and then remove the manual control shaft,

two O-rings, detent lever and parking roller rod.

15.Remove the eight converter housing mounting bolts, and

then the converter housing.

16.Remove the ten oil pump mounting bolts.
17.Install special tool MD998333 into the bolt hole shown in the

illustration.

18.While screwing in special tools MD998333 evenly, remove

the oil pump.

19.Remove the oil pump gasket.

AKX00034

SPRING PIN

AB

AKX00035

DETENT
LEVER

MANUAL
CONTROL
SHAFT

PARKING
ROLLER
ROD

PIN

AB

AKX00036

AKX00037

AKX00038

MD998333

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-28

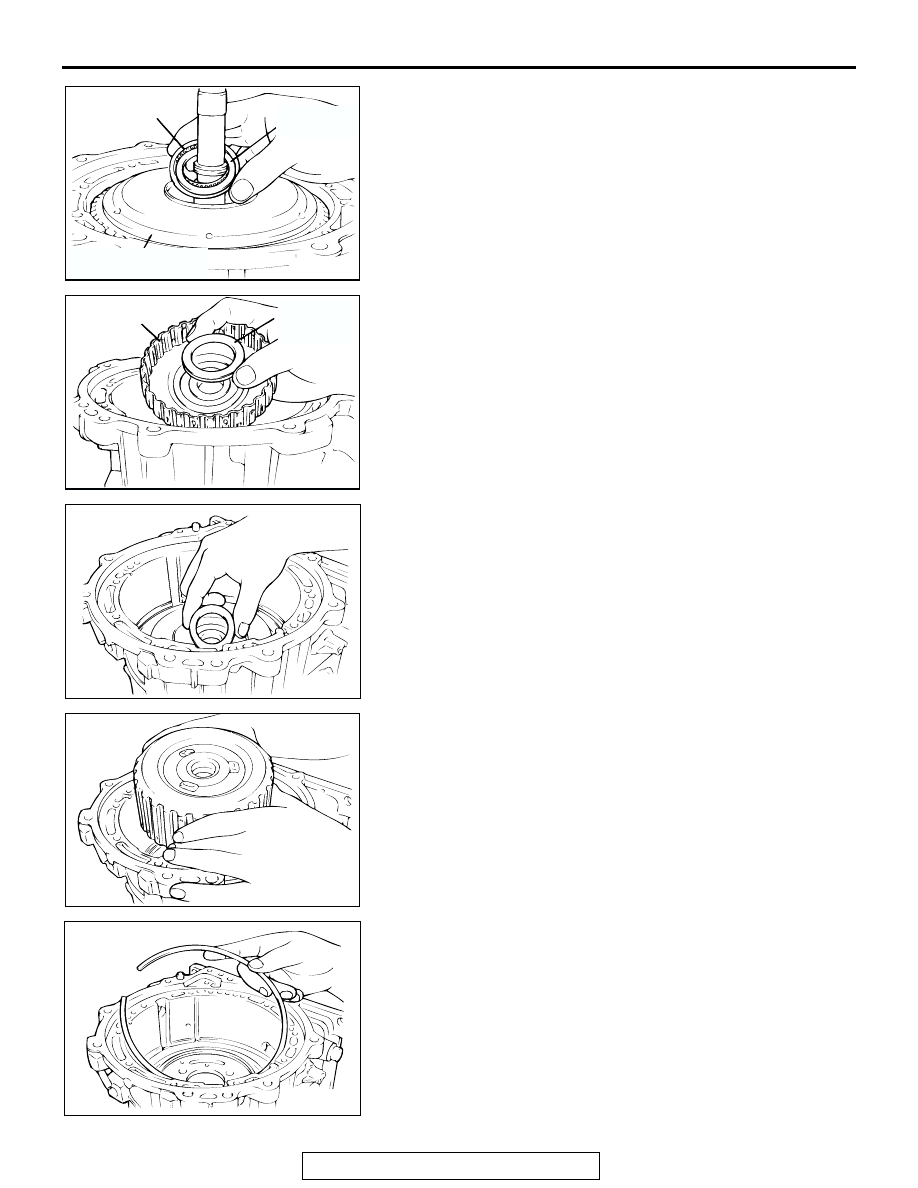

20.Remove the reverse and overdrive clutch, thrust race

number 1 and thrust bearing number 2.
NOTE: The thrust race number 1 may be attached to the oil
pump.

21.Remove the overdrive clutch hub and thrust bearing number

3.

22.Remove the thrust bearing number 4.

NOTE: The thrust bearing number 4 may be attached to the
overdrive clutch hub.

23.Remove the reverse sun gear.

24.Remove the snap ring.

AKX00039

THRUST
BEARING
NO.2

THRUST
RACE NO.1

REVERSE AND
OVERDRIVE CLUTCH

AB

AKX00040

THRUST
BEARING
NO.3

OVERDRIVE
CLUTCH HUB

AB

AKX00041

AKX00042

AKX00043

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-29

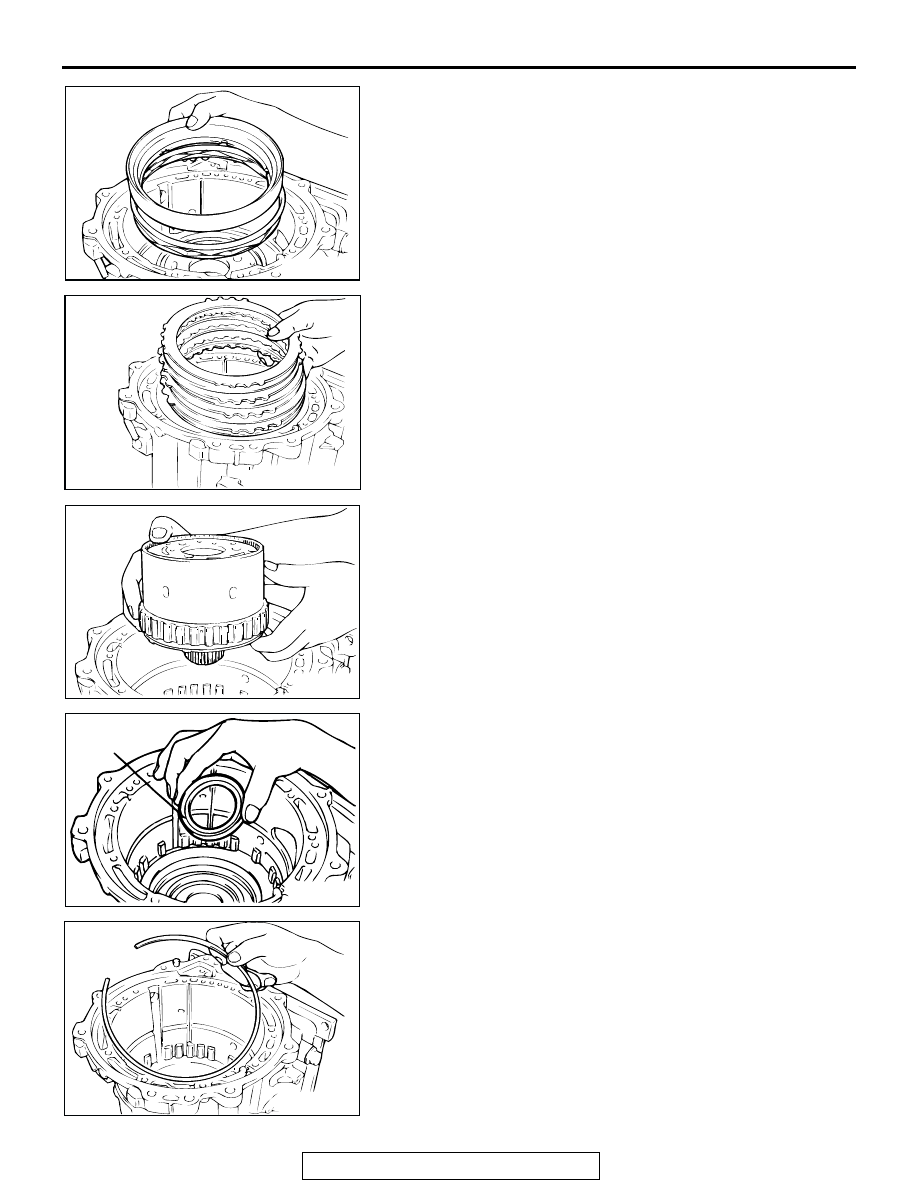

25.Remove the second brake and return spring.

26.Remove the pressure plate, brake plates and brake discs.

27.Remove the low/reverse annulus gear.

28.Remove the thrust bearing number 7.

NOTE: The thrust bearing number 7 may be attached to the
low/reverse annulus gear.

29.Remove the snap ring.

AKX00044

AKX00045

AKX00046

AKX00047

THRUST
BEARING
NO.7

AB

AKX00048

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-30

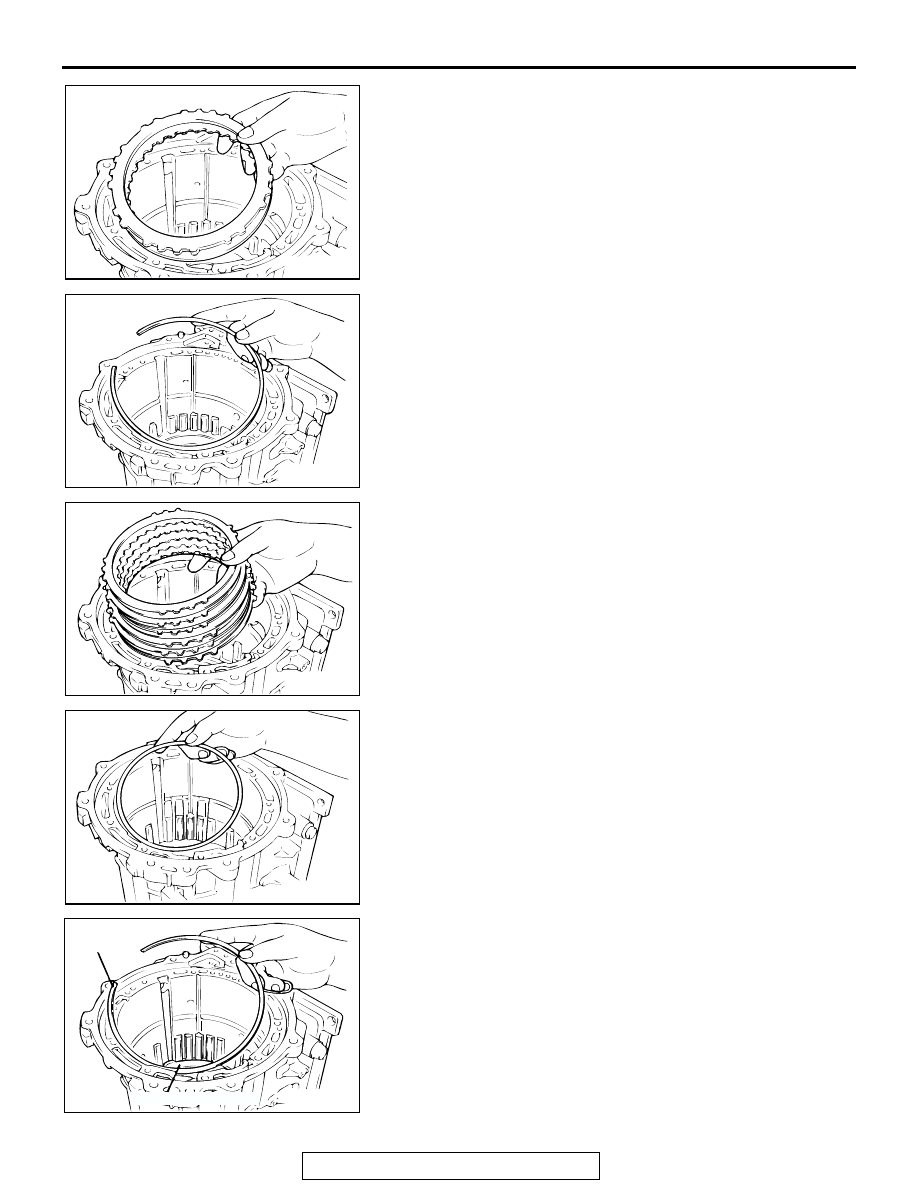

30.Remove the reaction plate and one brake disc.

31.Remove the snap ring.

32.Remove the brake plates, brake discs, and pressure plate.

33.Remove the wave spring.

34.Remove the snap ring and center support.

AKX00049

AKX00050

AKX00051

AKX00052

AKX00053

SNAP RING

CENTER SUPPORT

AB
