Mitsubishi Montero (1991+). Manual - part 259

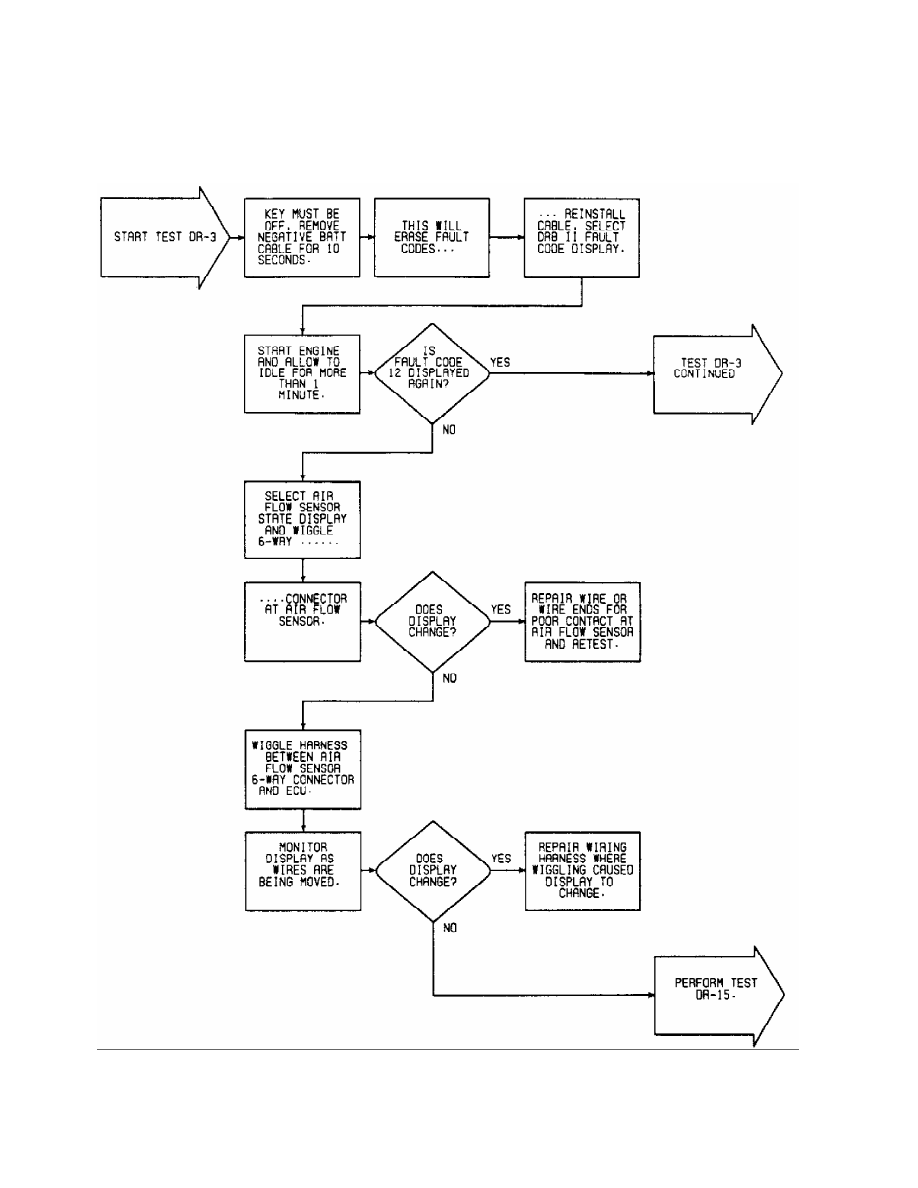

Fig. 190:  Flow Chart DR-3 (1.8L) (1 of 3)

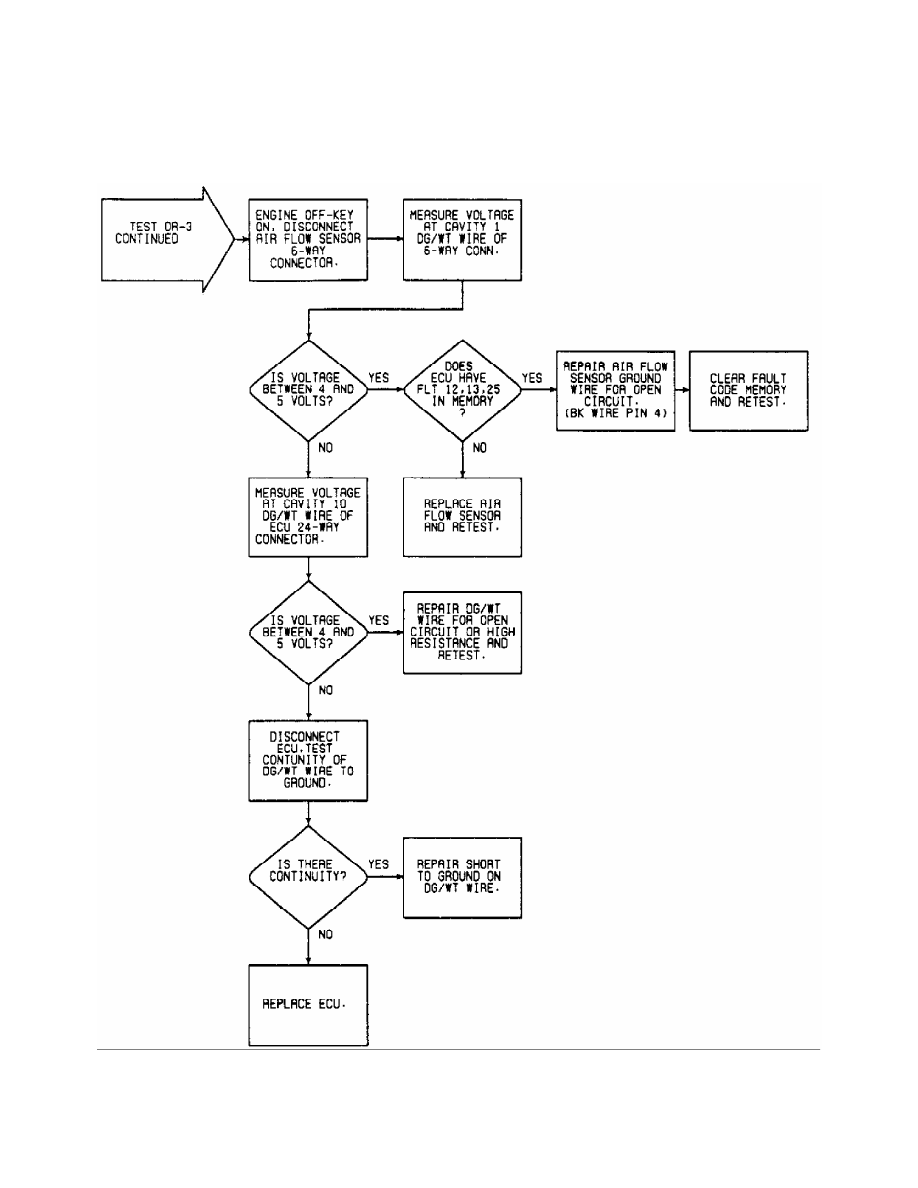

Fig. 191:  Flow Chart DR-3 (1.8L) (2 of 3)

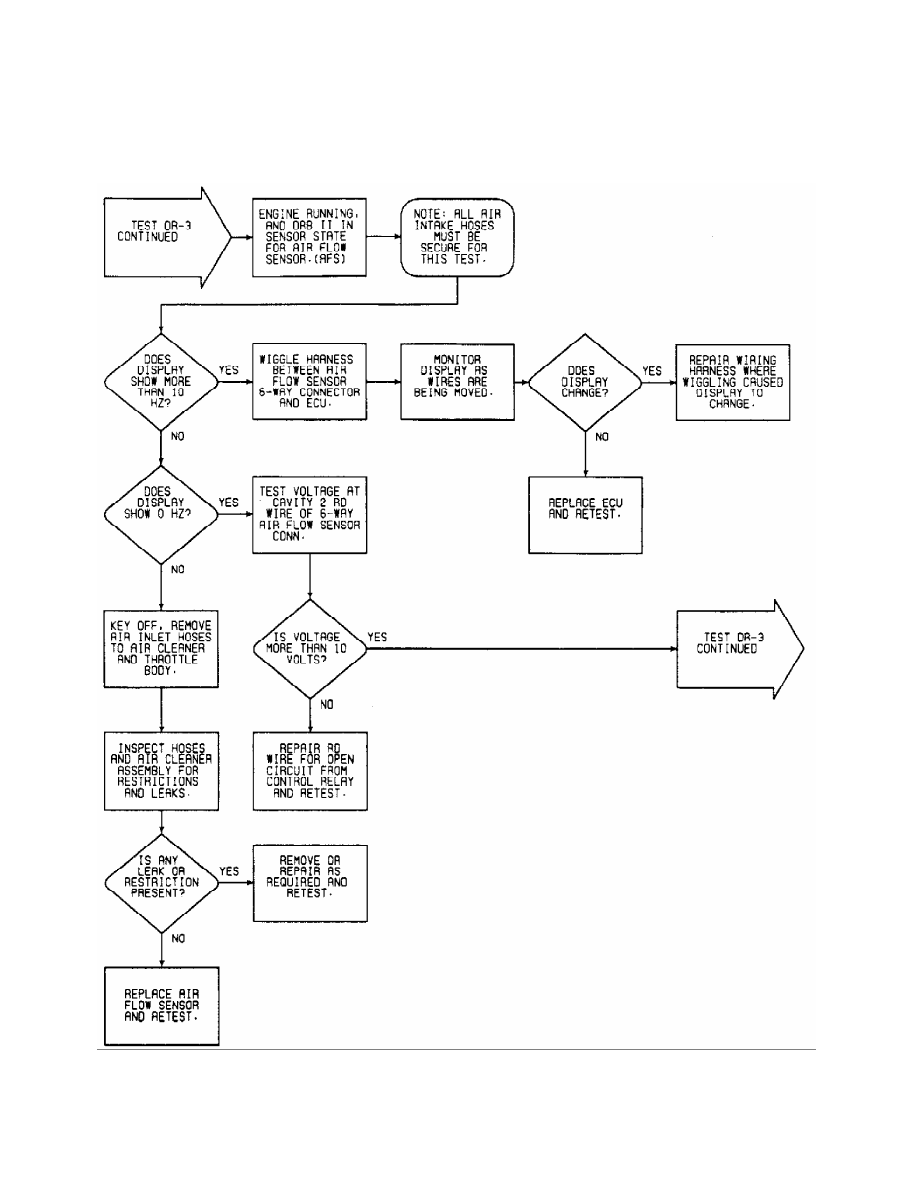

Fig. 192:  Flow Chart DR-3 (1.8L) (3 of 3)

         DR-4: CODE 13 INTAKE AIR TEMP. SENSOR CIRCUIT - 1.8L

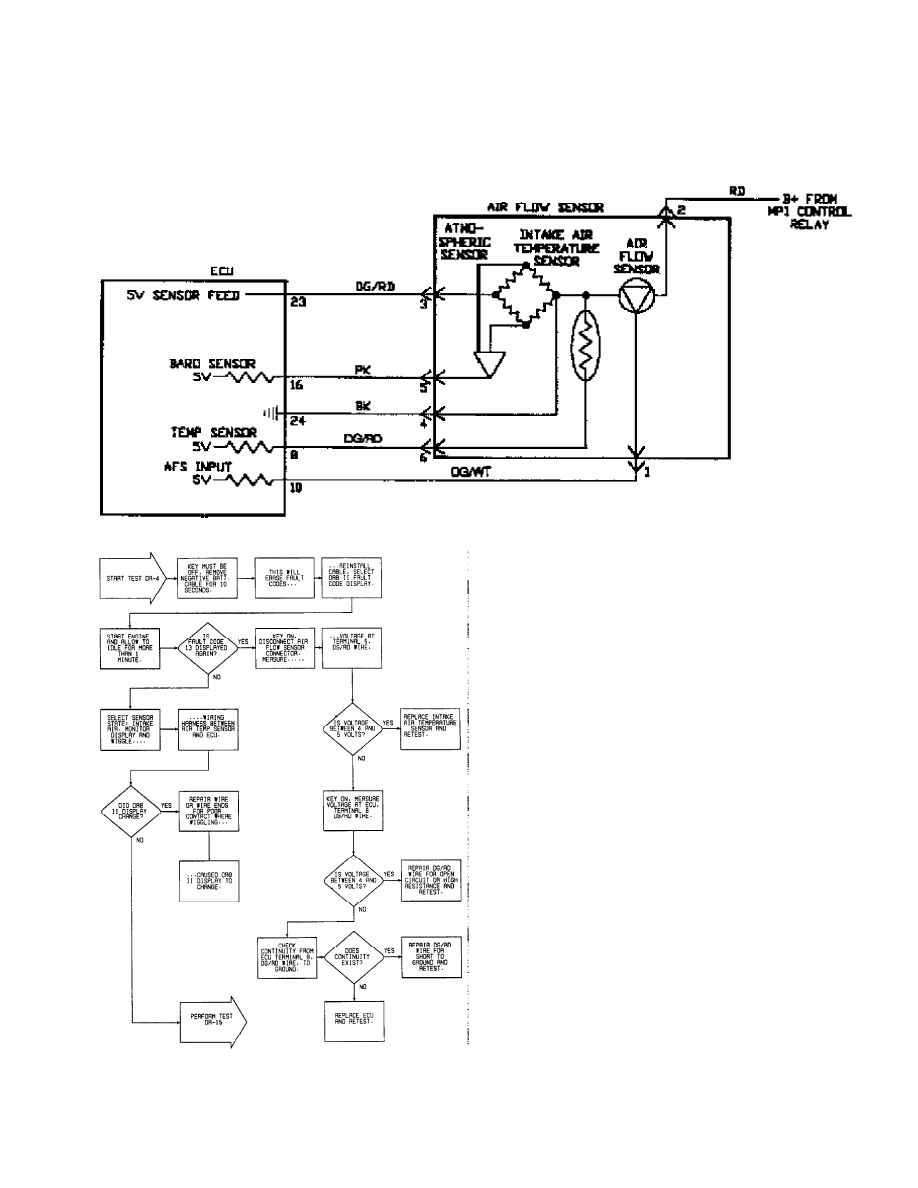

Fig. 193:  Circuit Diagram DR-4 (1.8L)

Fig. 194:  Flow Chart DR-4 (1.8L)

         DR-5: CODE 14 THROTTLE POSITION SENSOR CIRCUIT - 1.8L
