Mitsubishi Montero (1991+). Manual - part 258

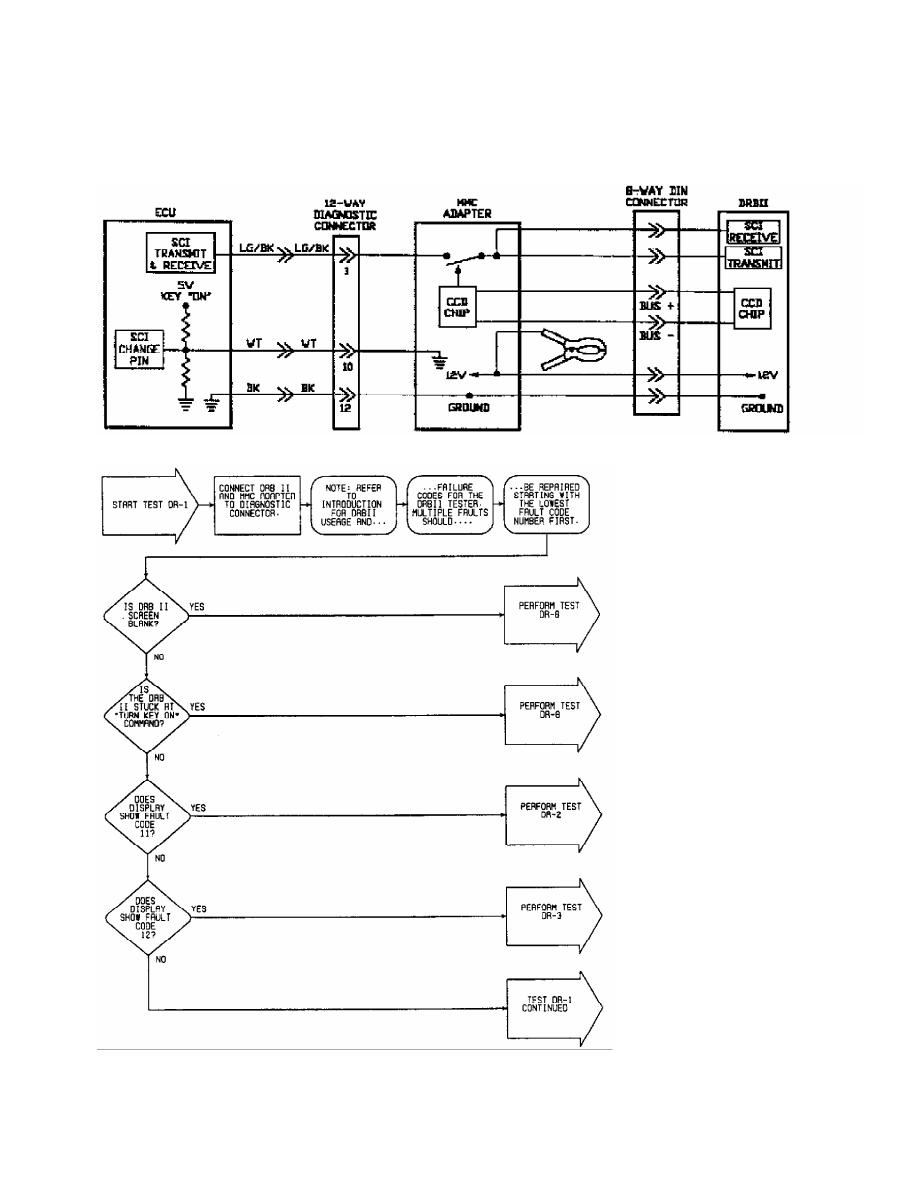

Fig. 184:  Circuit Diagram DR-1 (1.8L)

Fig. 185:  Flow Chart DR-1 (1.8L) (1 of 2)

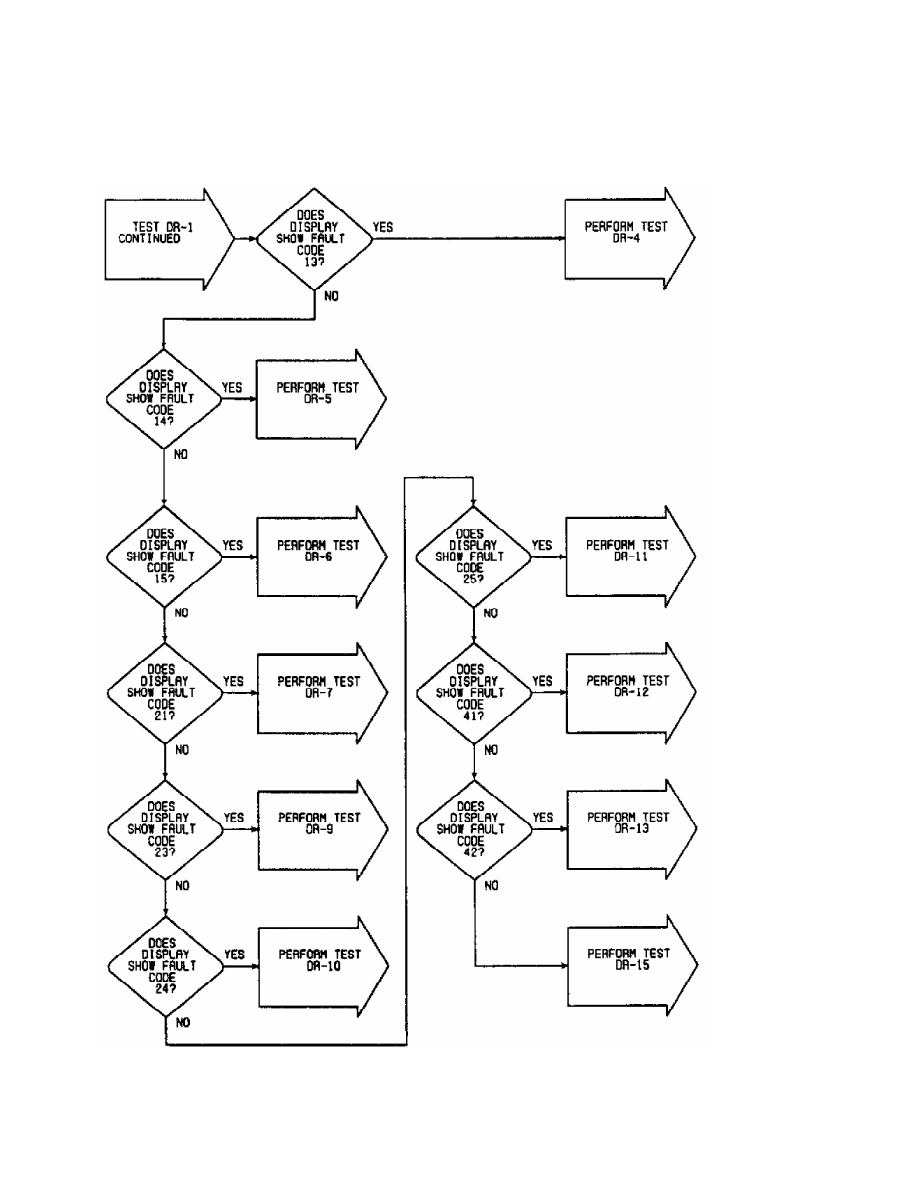

Fig. 186:  Flow Chart DR-1 (1.8L) (2 of 2)

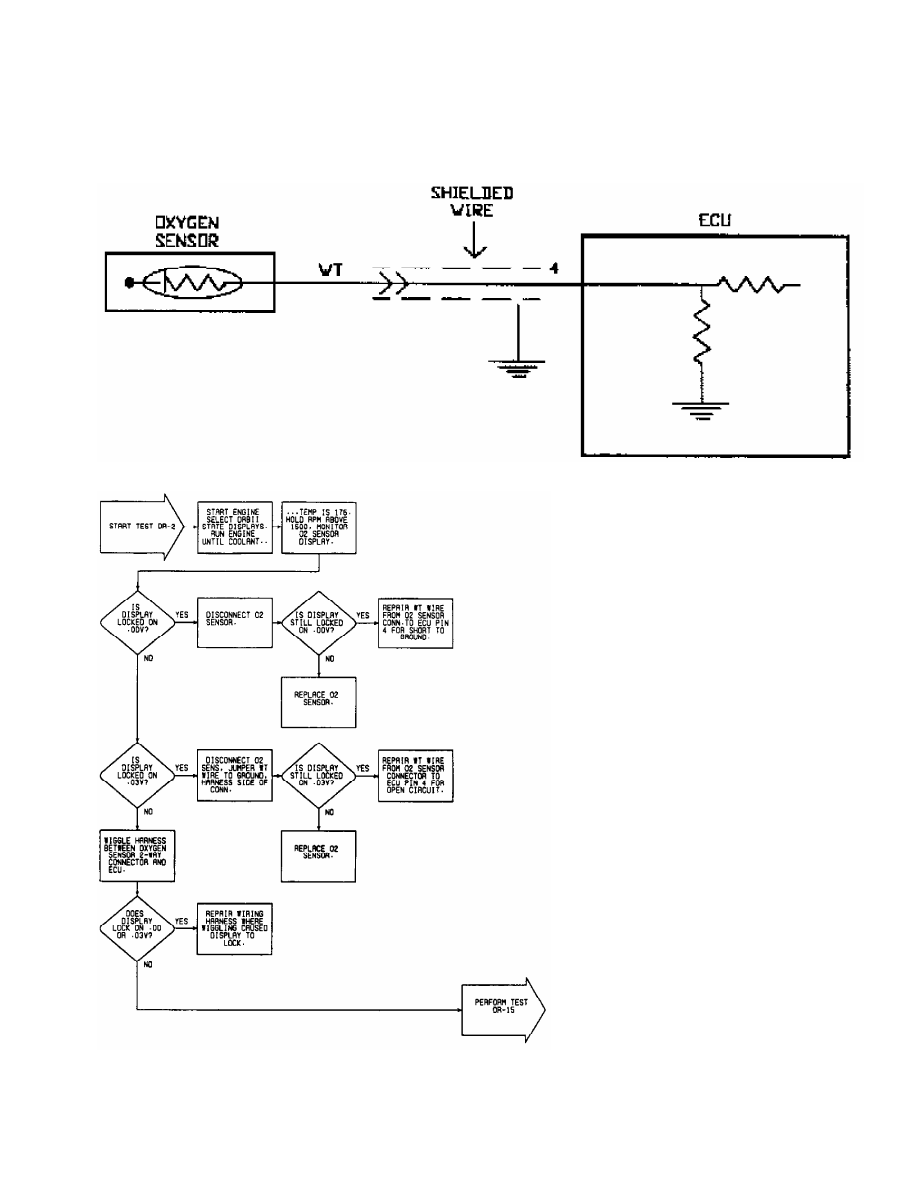

         DR-2: CODE 11 OXYGEN SENSOR CIRCUIT - 1.8L

Fig. 187:  Circuit Diagram DR-2 (1.8L)

Fig. 188:  Flow Chart DR-2 (1.8L)

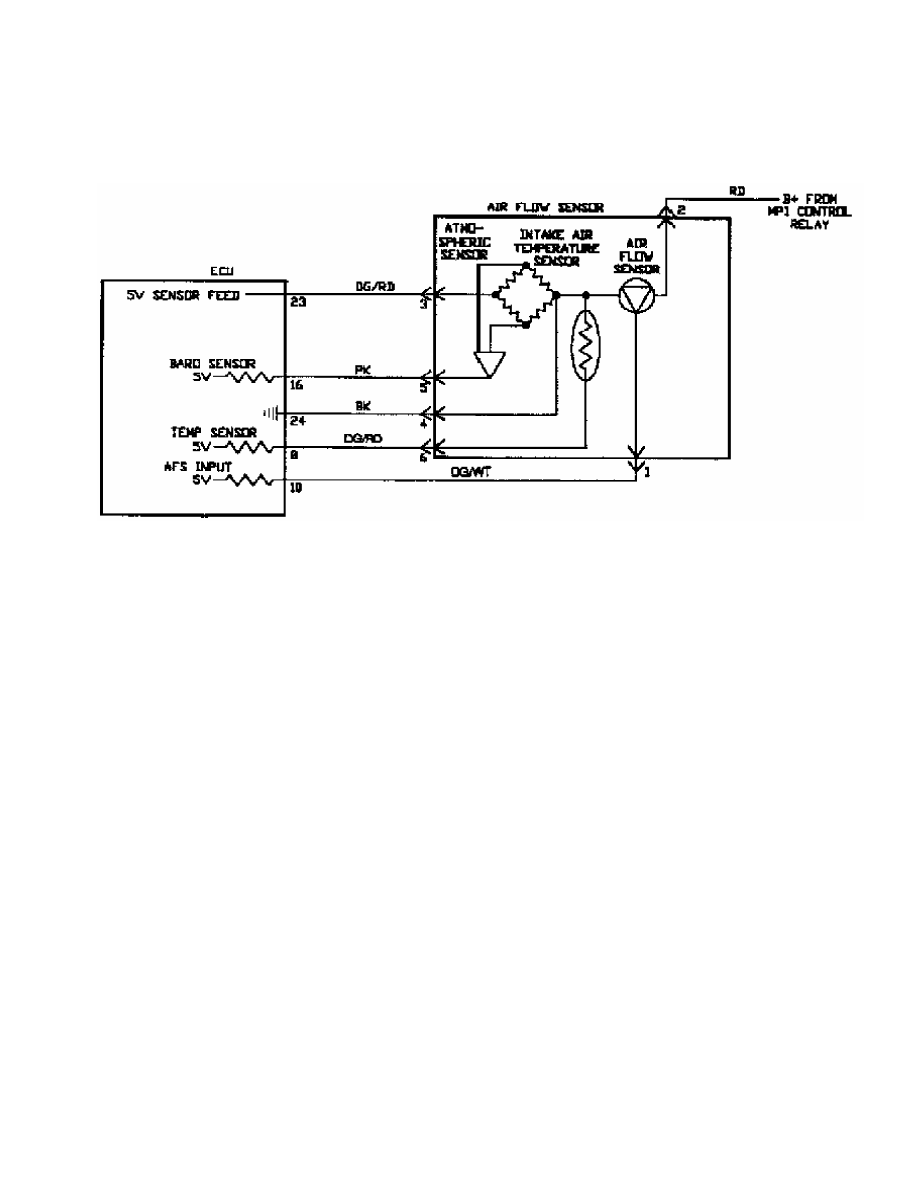

         DR-3: CODE 12 AIRFLOW SENSOR CIRCUIT - 1.8L

Fig. 189:  Circuit Diagram DR-3 (1.8L)
