Mitsubishi Montero (1991+). Manual - part 241

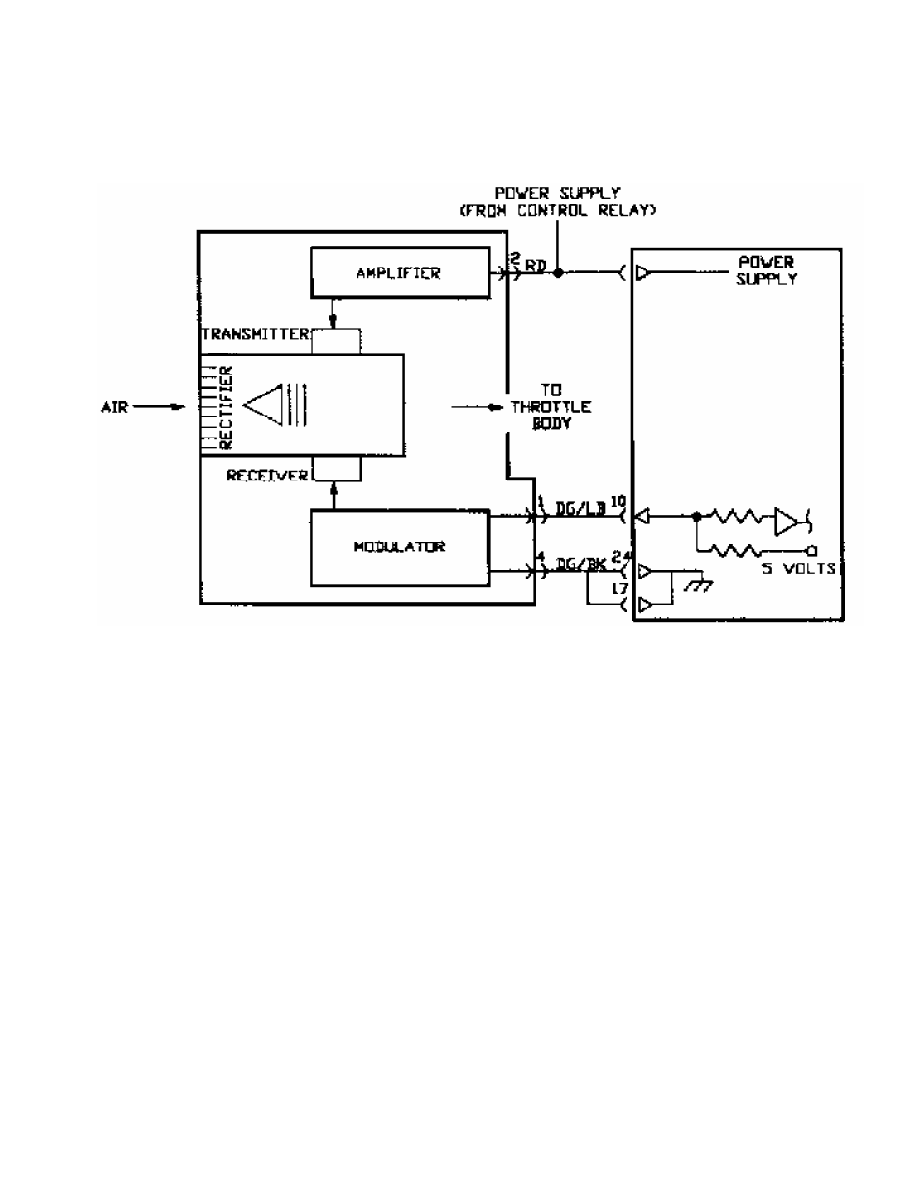

Fig. 105:  Circuit Diagram DR-4 (1.6L)

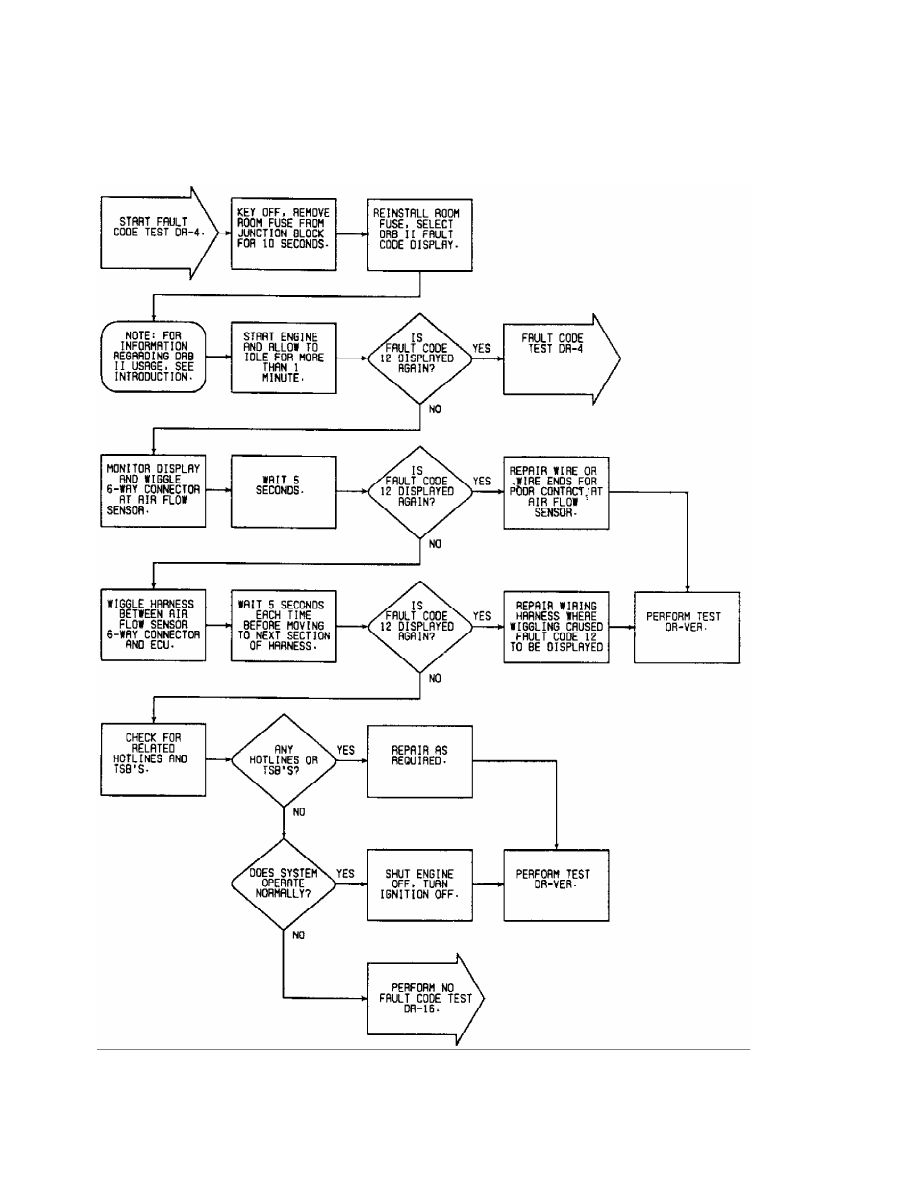

Fig. 106:  Flow Chart DR-4 (1.6L) (1 of 3)

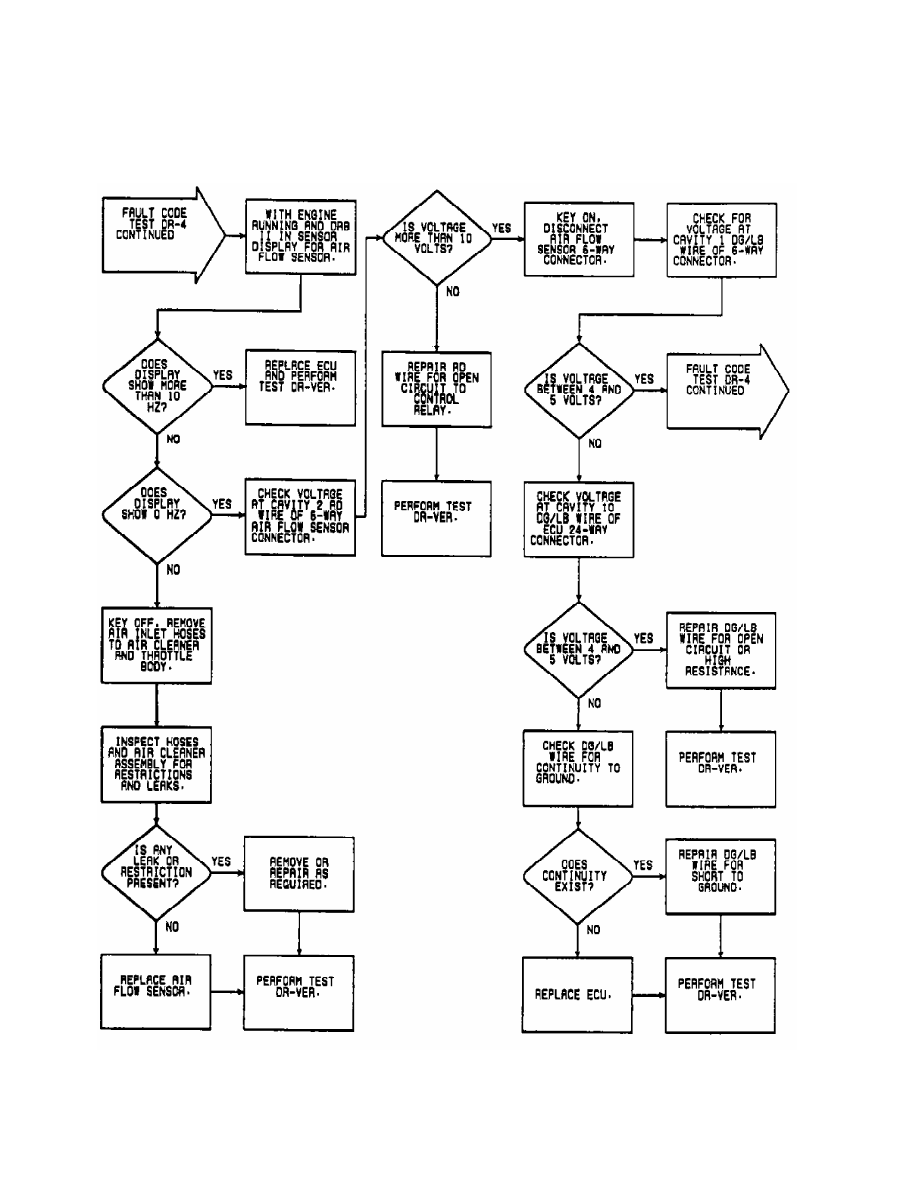

Fig. 107:  Flow Chart DR-4 (1.6L) (2 of 3)

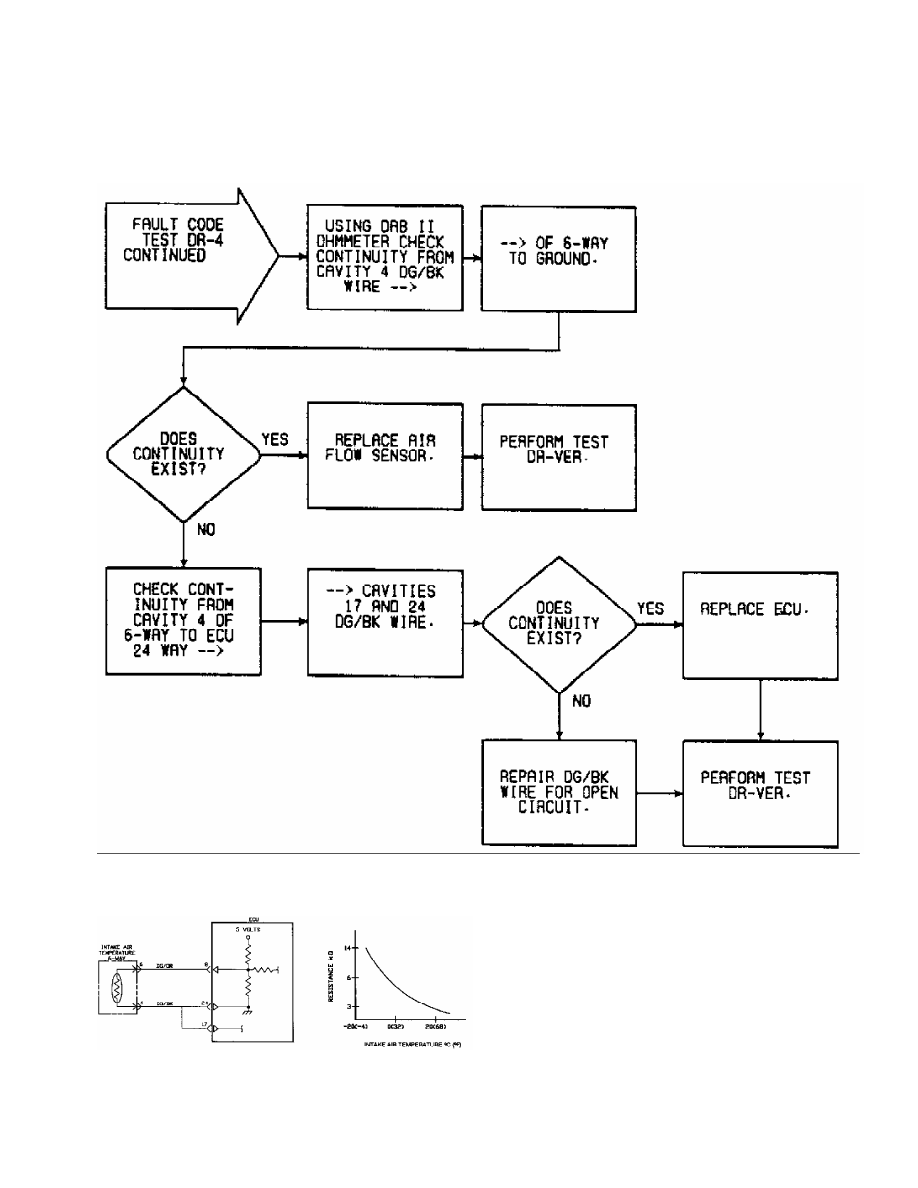

Fig. 108:  Flow Chart DR-4 (1.6L) (3 of 3)

         DR-5: CODE 13 INTAKE AIR TEMPERATURE SENSOR CIRCUIT - 1.6L

Fig. 109:  Circuit Diagram DR-5 (1.6L)
