Mitsubishi Montero (1991+). Manual - part 240

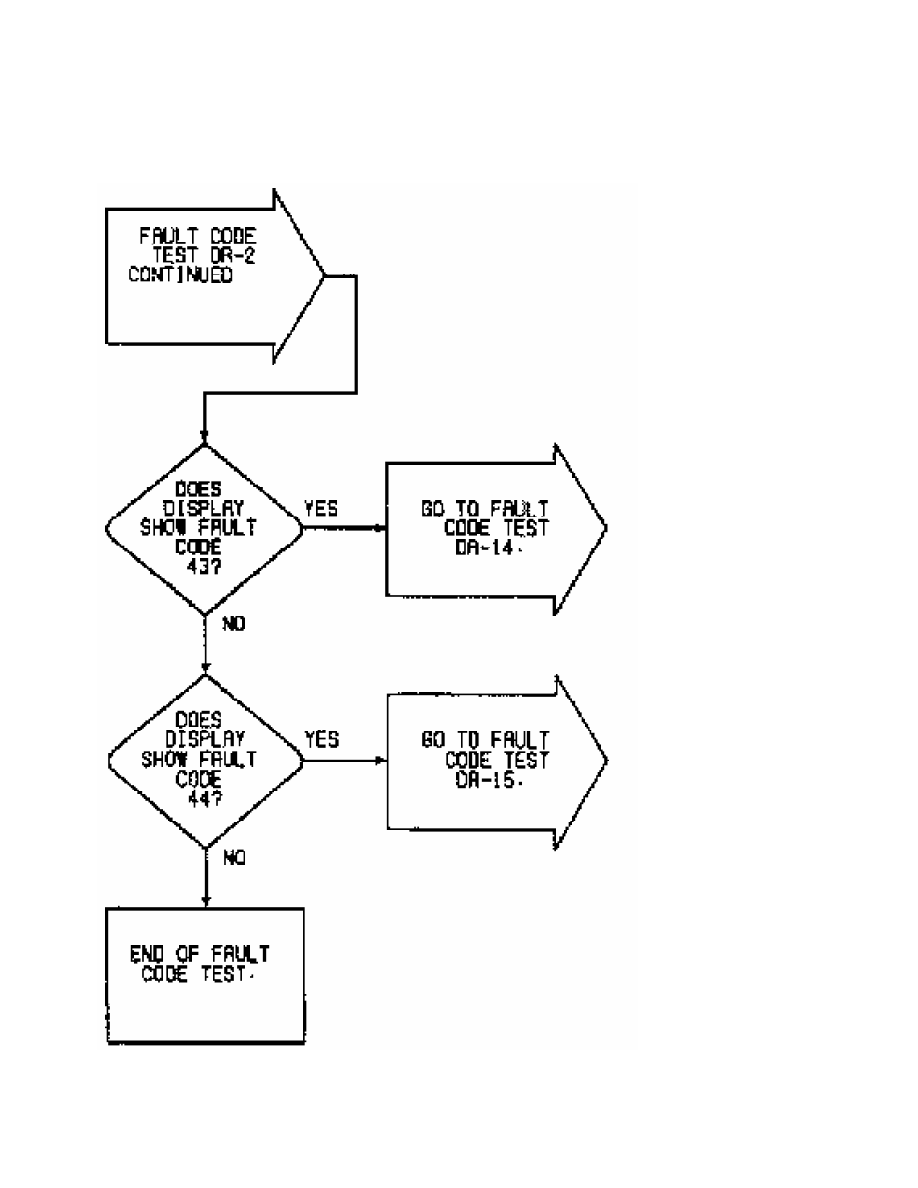

Fig. 101:  Flow Chart DR-2 (1.6L) (2 of 2)

         DR-3: CODE 11 OXYGEN SENSOR CIRCUIT - 1.6L

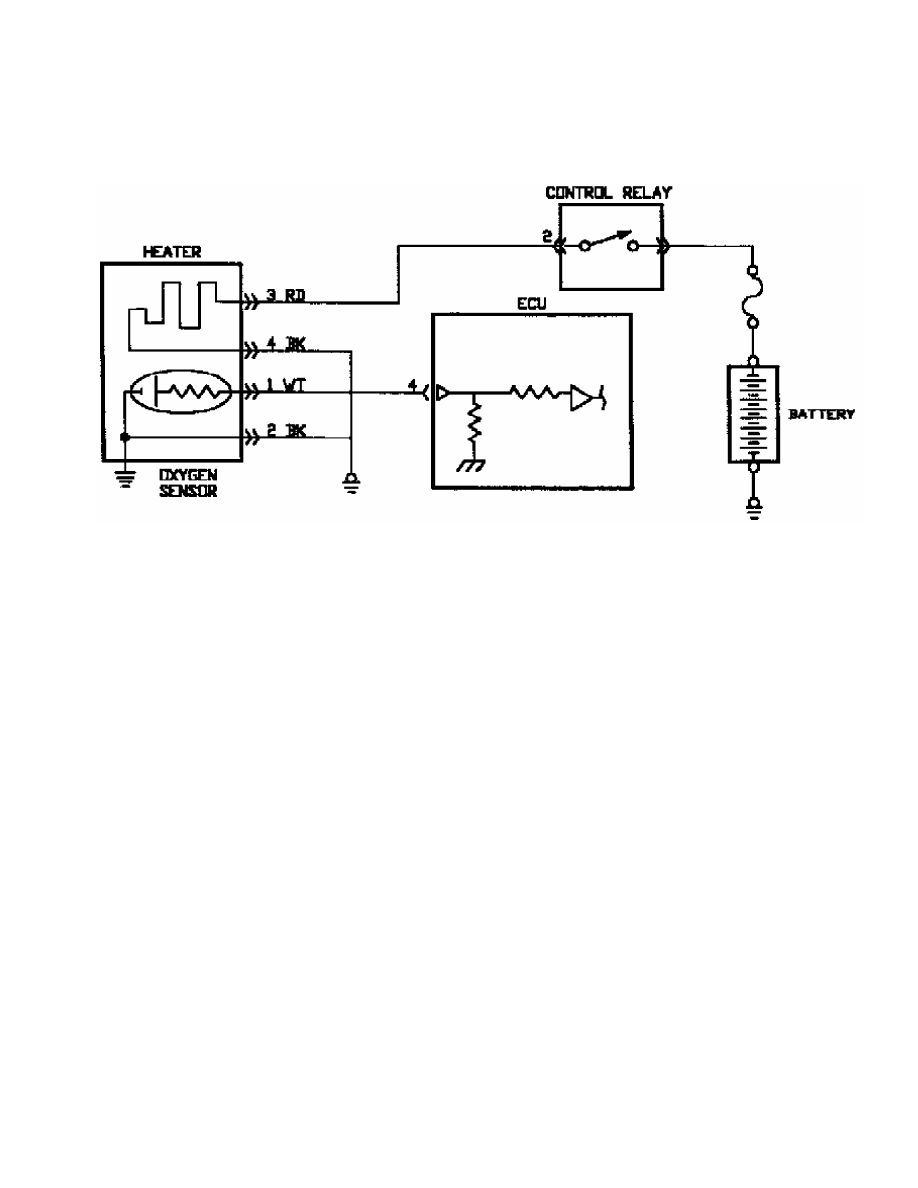

Fig. 102:  Circuit Diagram DR-3 (1.6L)

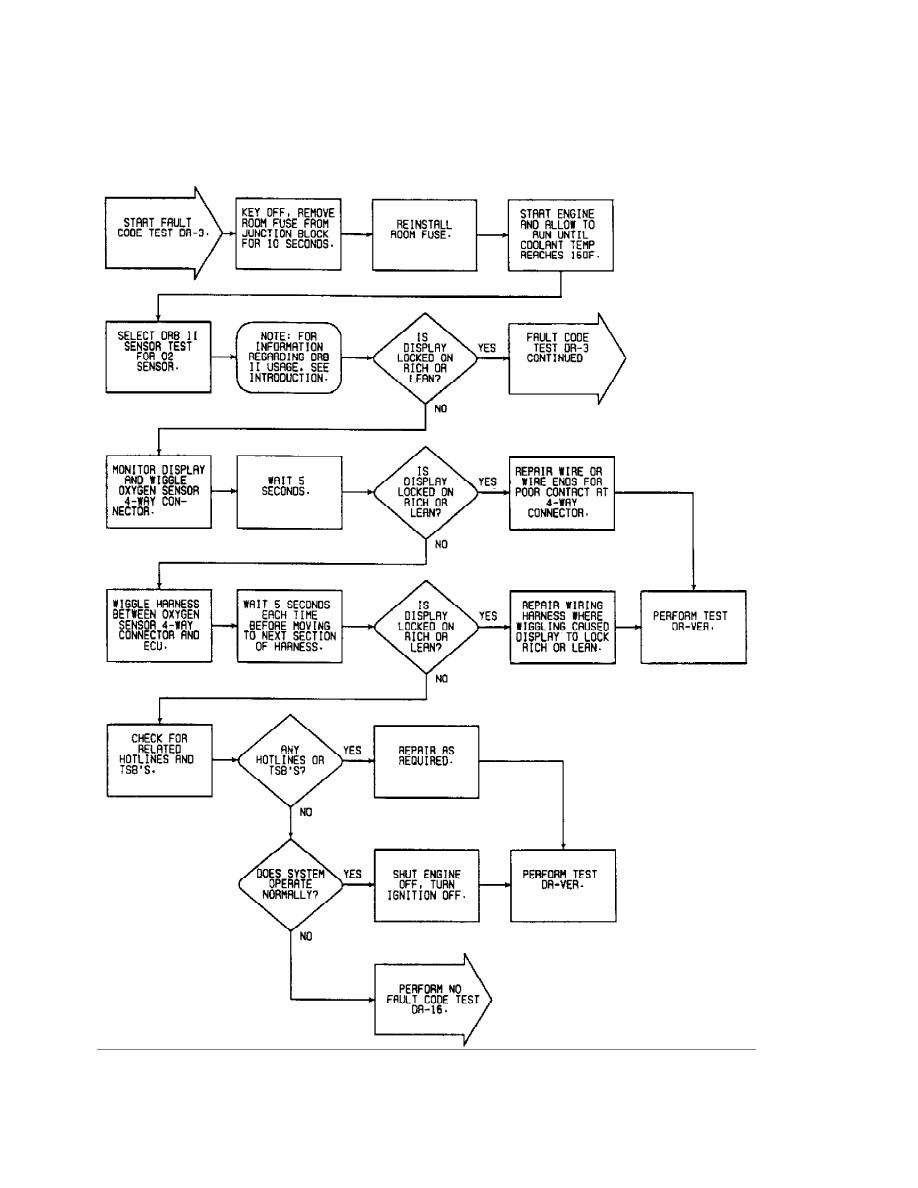

Fig. 103:  Flow Chart DR-3 (1.6L) (1 of 3)

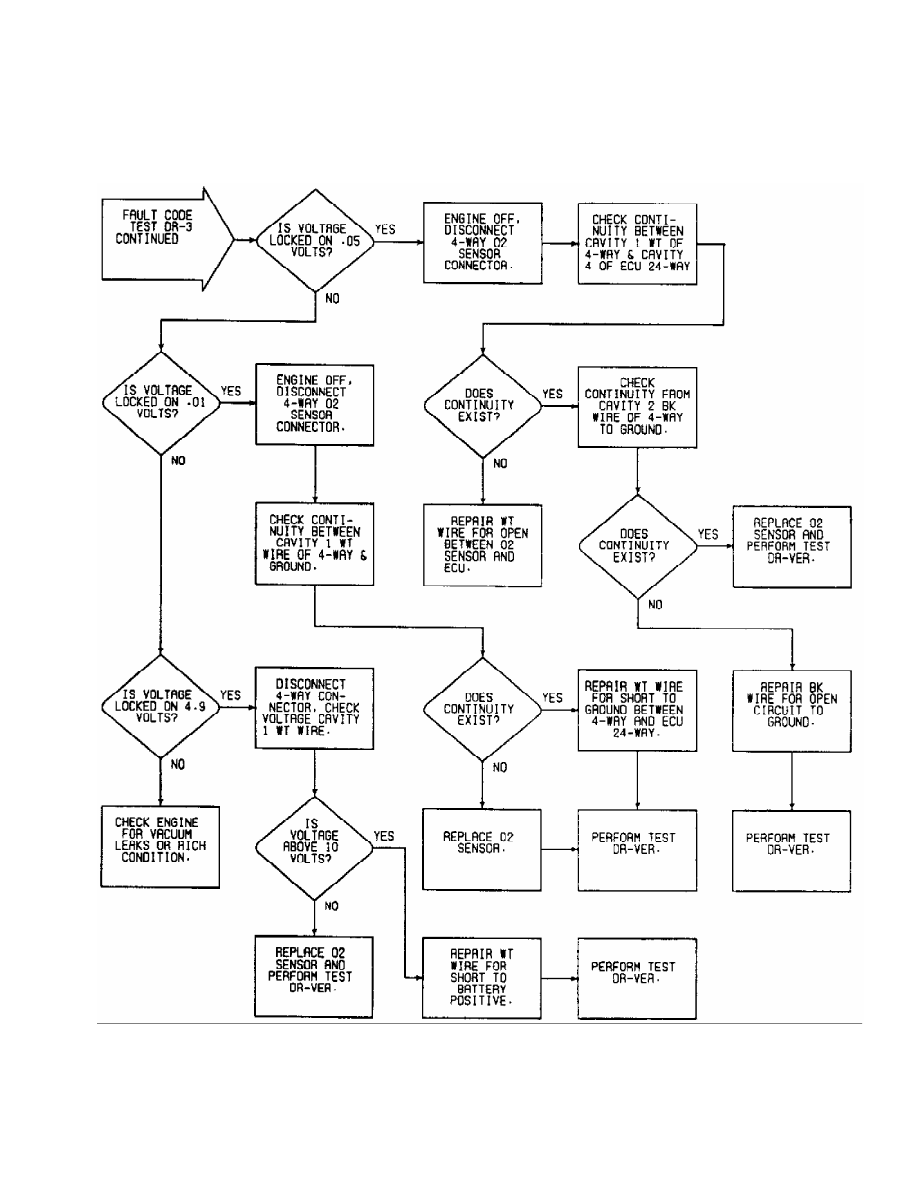

Fig. 104:  Flow Chart DR-3 (1.6L) (2 of 3)

         DR-4: CODE 12 AIRFLOW SENSOR CIRCUIT - 1.6L
