Mitsubishi Montero (1991+). Manual - part 86

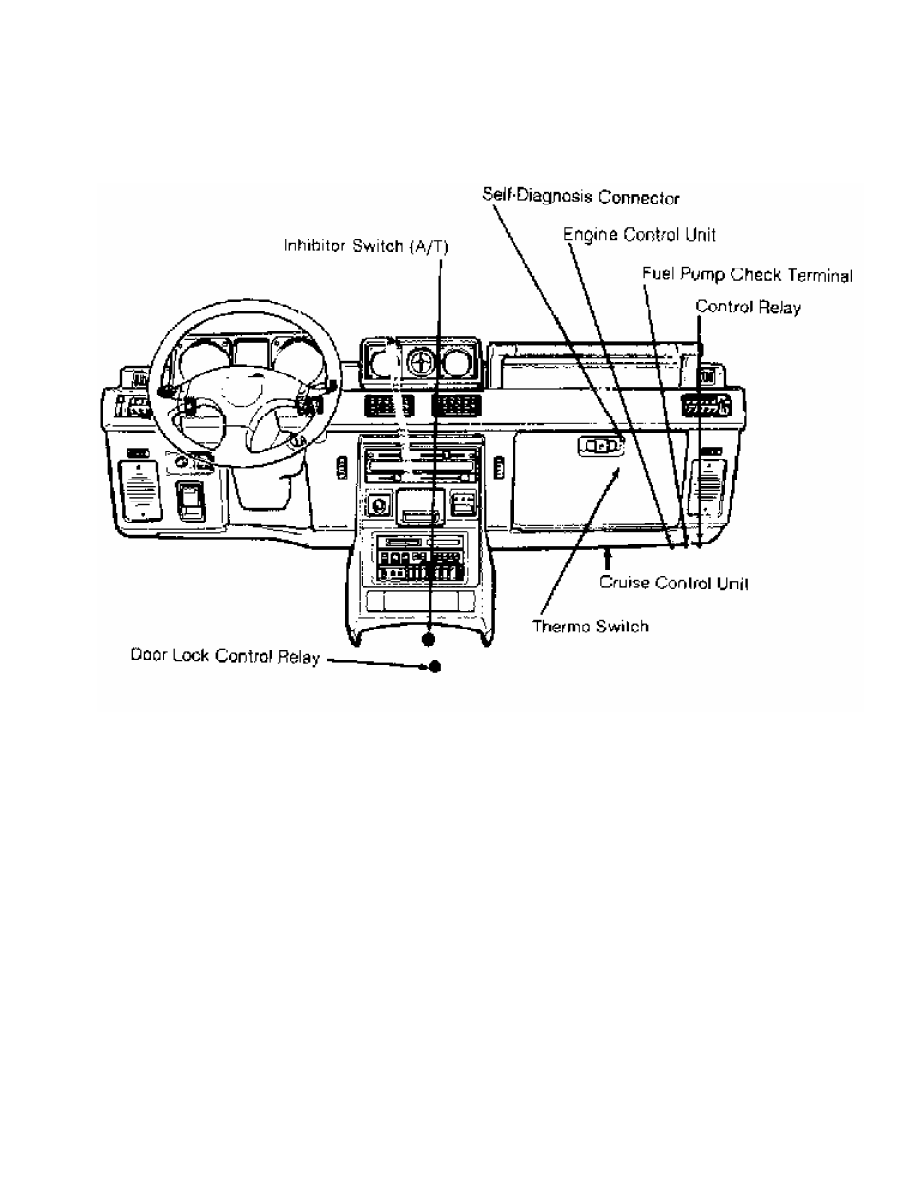

Engine Control Unit (ECU)               Under right side of dash.

         MOTORS

Component                               Component Location

A/C-Heater Blower Motor                 Behind right side of dash.

Idle Speed Control (ISC) Motor          At base of throttle body.

Windshield Wiper Motor                  On left side of firewall.

         SENDING UNITS & SENSORS

Component                               Component Location

A/C Temperature Sensor

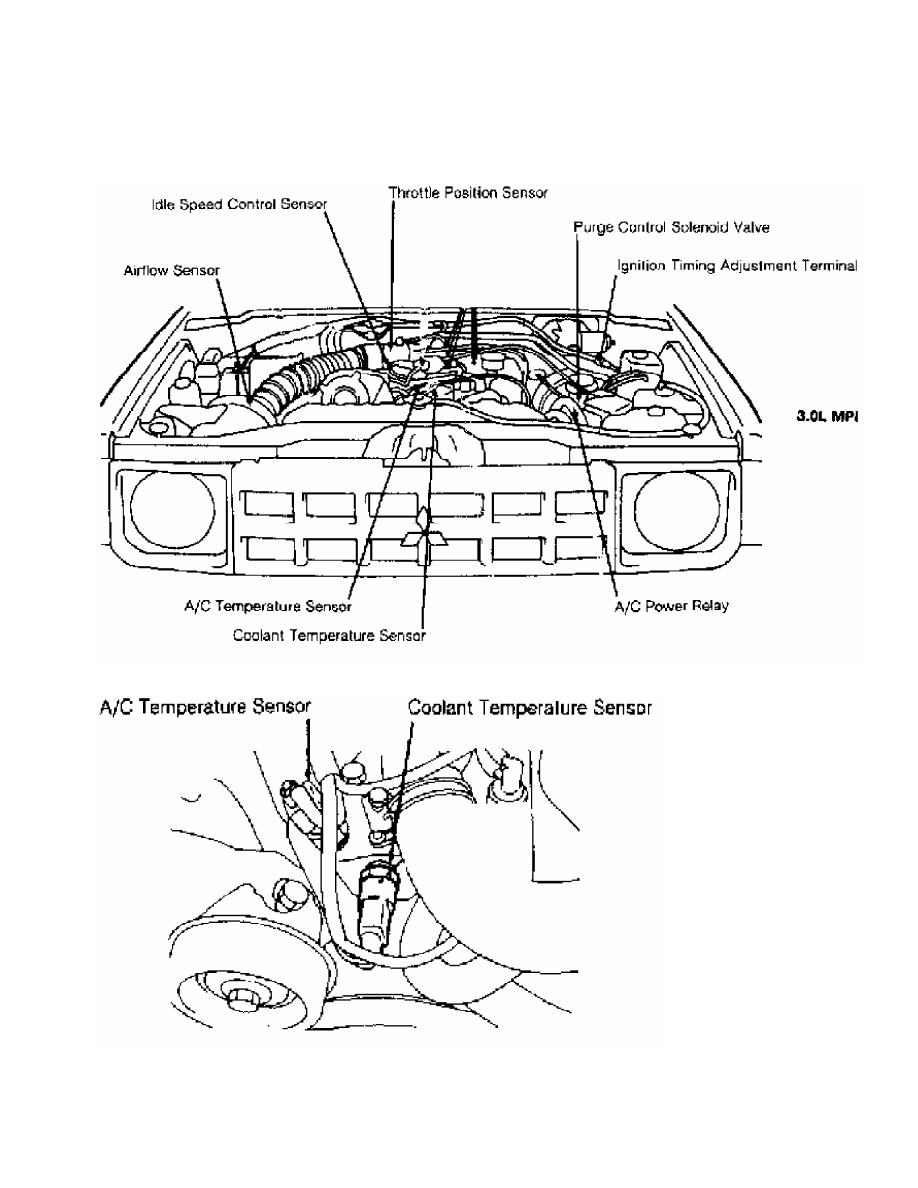

  View of 3.0L MPI Engine               In thermostat housing.

  View of A/C & Coolant

    Temperature Sensor                  In thermostat housing.

Airflow Sensor                          In air cleaner housing

                                        (Includes air temp. and baro.

                                        sensor).

Barometric Pressure Sensor              Inside airflow sensor

                                        assembly.

Coolant Temperature Sensor

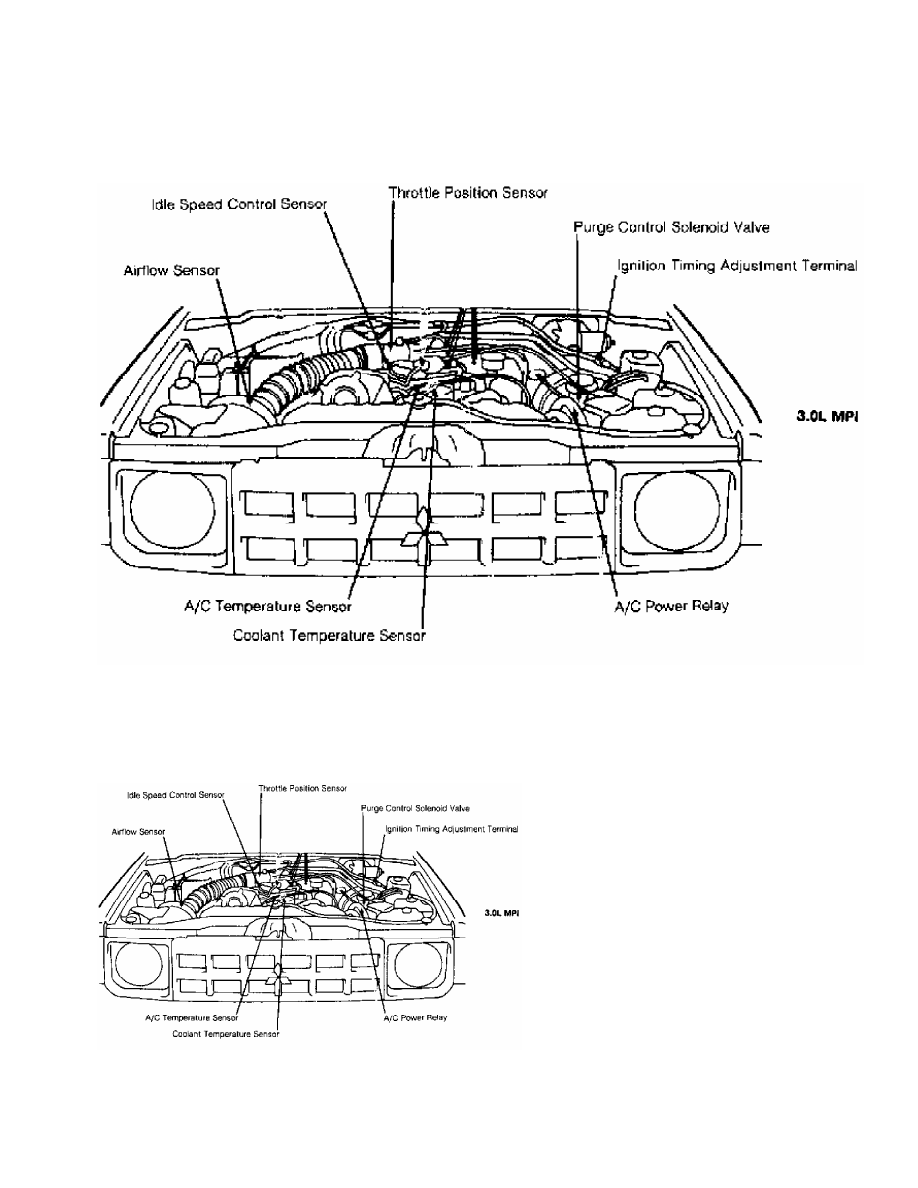

  View of 3.0L MPI Engine               On front of intake manifold.
