  Front                                 Behind left side of dash.

  Rear                                  Behind right side of dash,

                                        left of blower unit.

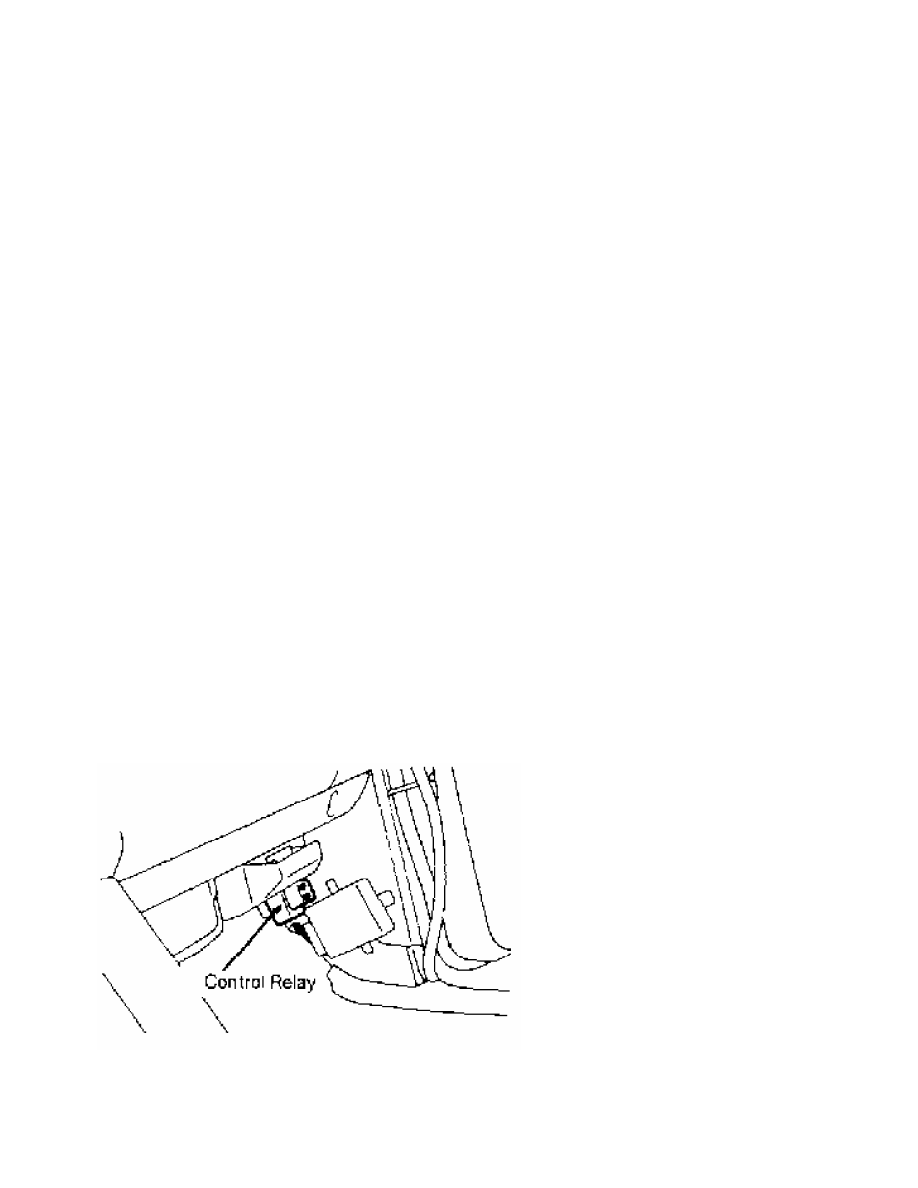

MPI Control Relay                       Under right of dash, below

                                        glove box.

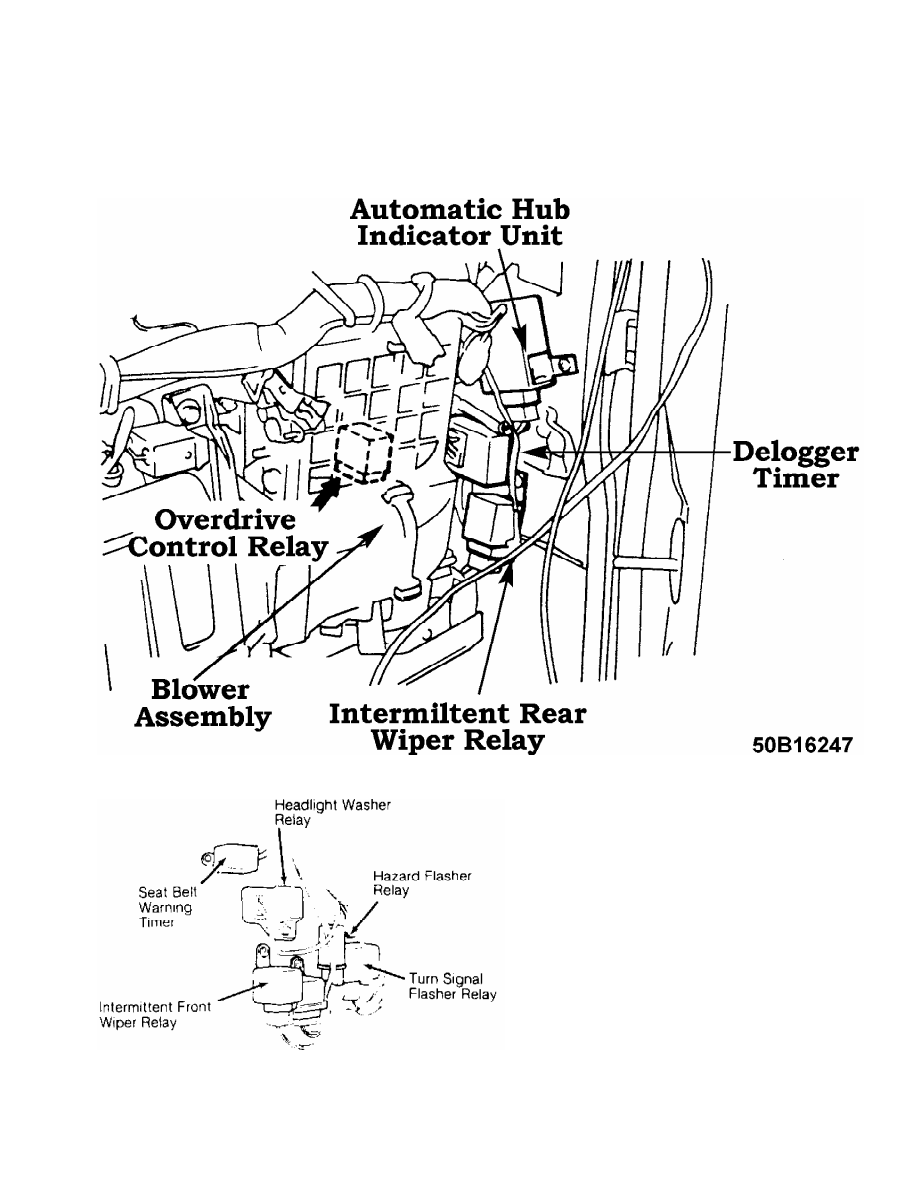

Overdrive Control Relay                 Behind right side of dash, on

                                        blower case.

Power Window Relay                      Behind left side of dash.

Power Window Control Relay              In left front door, behind

                                        trim panel.

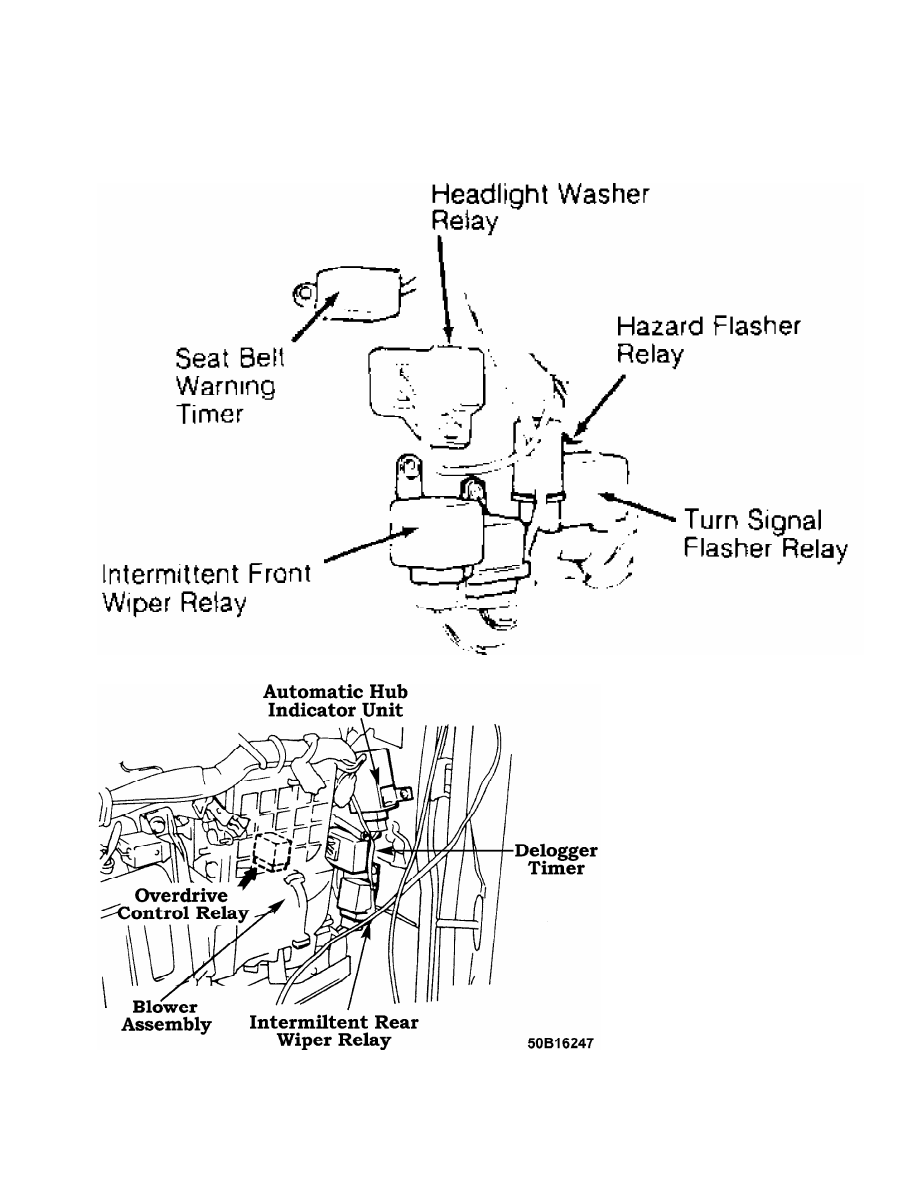

Seat Belt Warning Timer                 Behind left side of dash.

Sun Roof Control Relay                  In headliner, near dome light

                                        bracket.

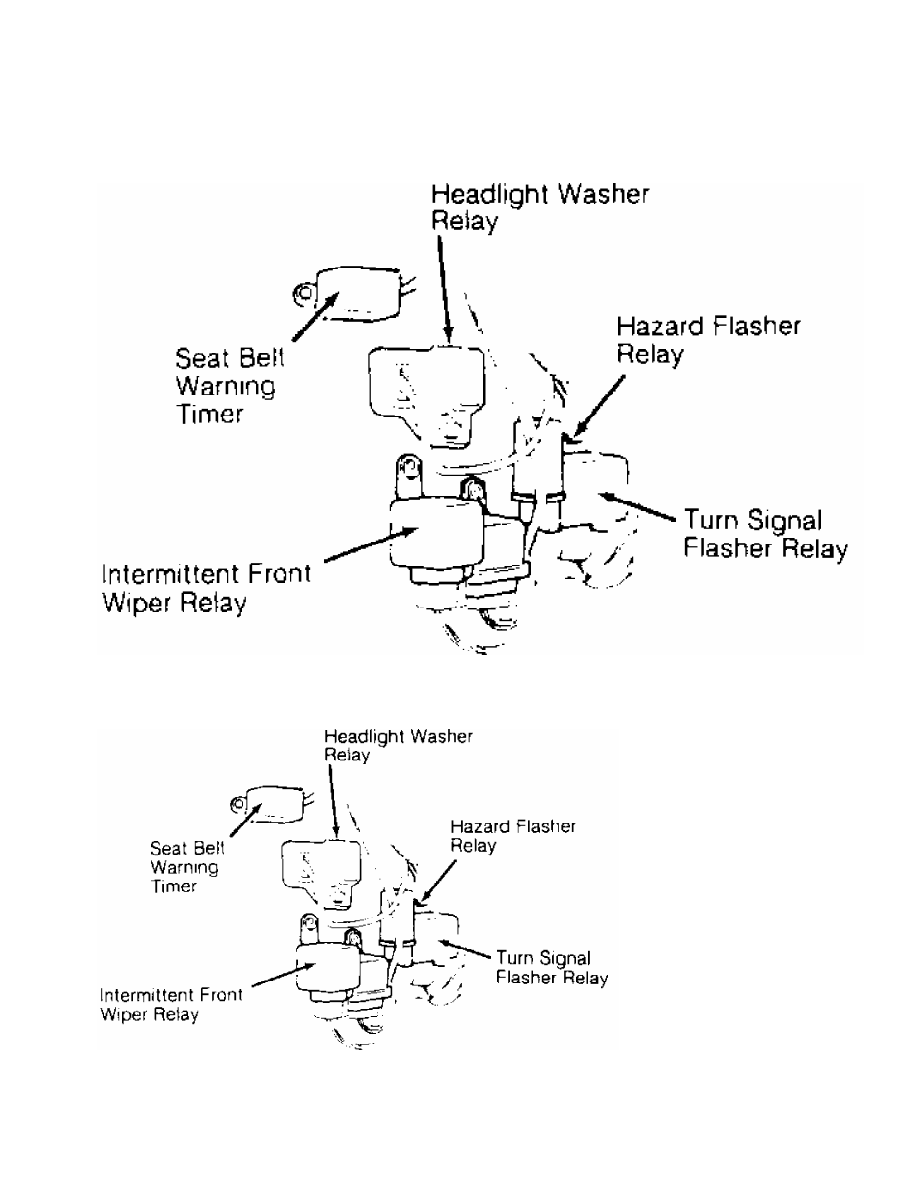

Turn Signal Flasher Relay               Behind left side of dash.

         CIRCUIT PROTECTION DEVICES

Component                               Component Location

A/C Dedicated Fuse                      Behind right side of dash, on

                                        evaporator case.

Central Door Lock Dedicated Fuse        Behind right side of dash,

                                        left of blower assembly.

Defogger Sub-Fusible Link               On wiring harness, near front

                                        wiper motor.

Dual A/C Dedicated Fuse                 Behind right side of dash, on

                                        blower case.

Headlight Dedicated Fuse                On left front corner of engine

                                        compartment.

Fuse Block                              On left end side of dash, near

                                        door.

Fusible Links:

  Main                                  On right rear corner of engine

                                        compartment, near battery.

  Sub                                   On right rear corner of engine

                                        compartment, near battery.

Sun Roof Dedicated Fuse                 Behind right side of dash.

         CONTROL UNITS

Component                               Component Location

Auto. Free Wheeling Hub Cntrl. Unit     Behind right side of dash,

                                        left of blower unit.

Cruise Control Unit                     Behind right kick panel.

Door Lock Control Unit                  Under center console, beside

                                        parking brake lever.
