DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-579

.

TROUBLE JUDGMENT
If the MUT-III cannot received signals from the
powertrain control module, CAN bus line connec-
tor(s) are broken or an open circuit has occurred.

.

COMMENTS ON TROUBLE SYMPTOM
The wiring harness wire or connectors may have
loose, corroded, or damage terminals, or terminals
pushed back in the connector, or the powertrain con-
trol module may be defective.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damage terminals, or termi-
nals pushed back in the connector

• The powertrain control module may be defective

• The ABS-ECU may be defective

DIAGNOSIS

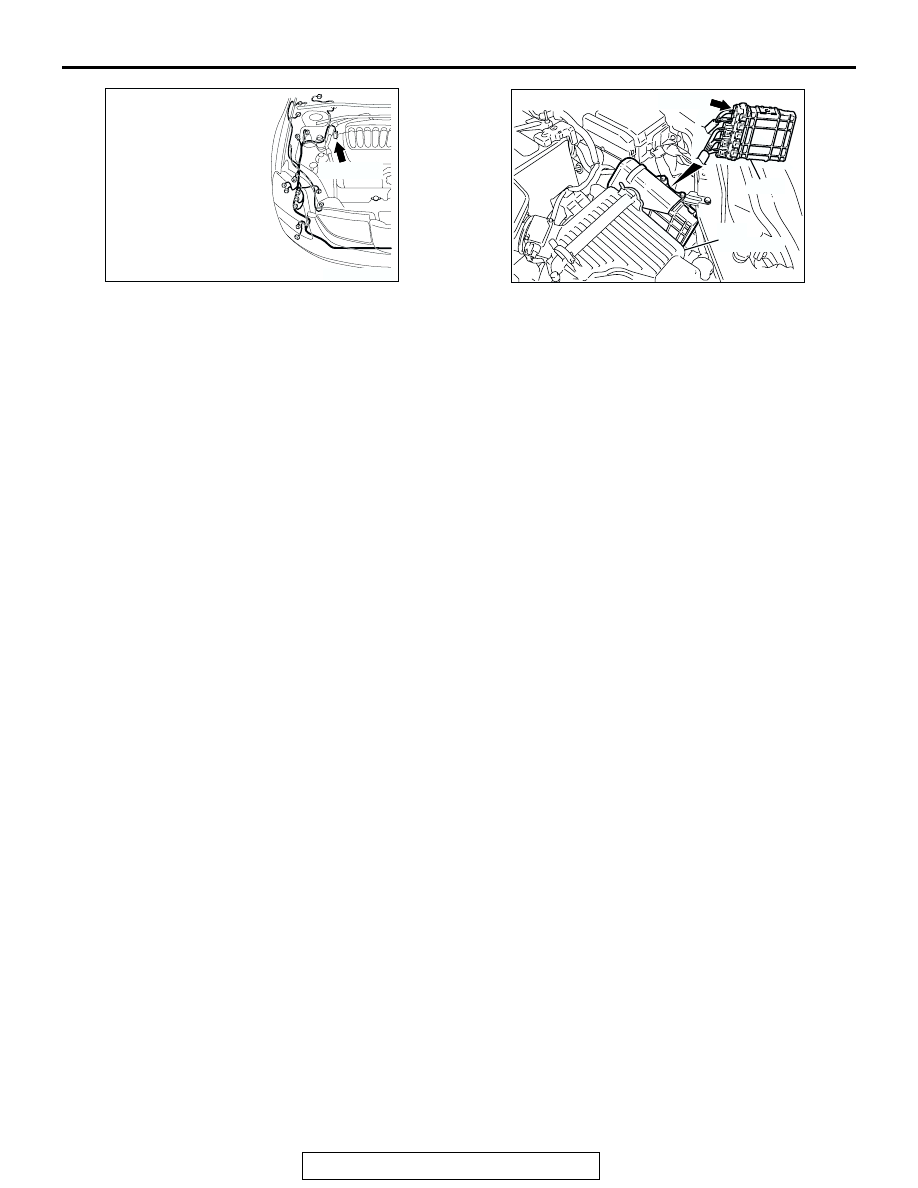

Required Special Tools:

• MB991223: Harness Set

• MB991970: ABS Check Harness

AC305206

CONNECTOR: A-02

AR

A-02 (GR)

AC306248AB

B-19 (B)

CONNECTOR: B-19

AIR
CLEANER

PCM

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-580

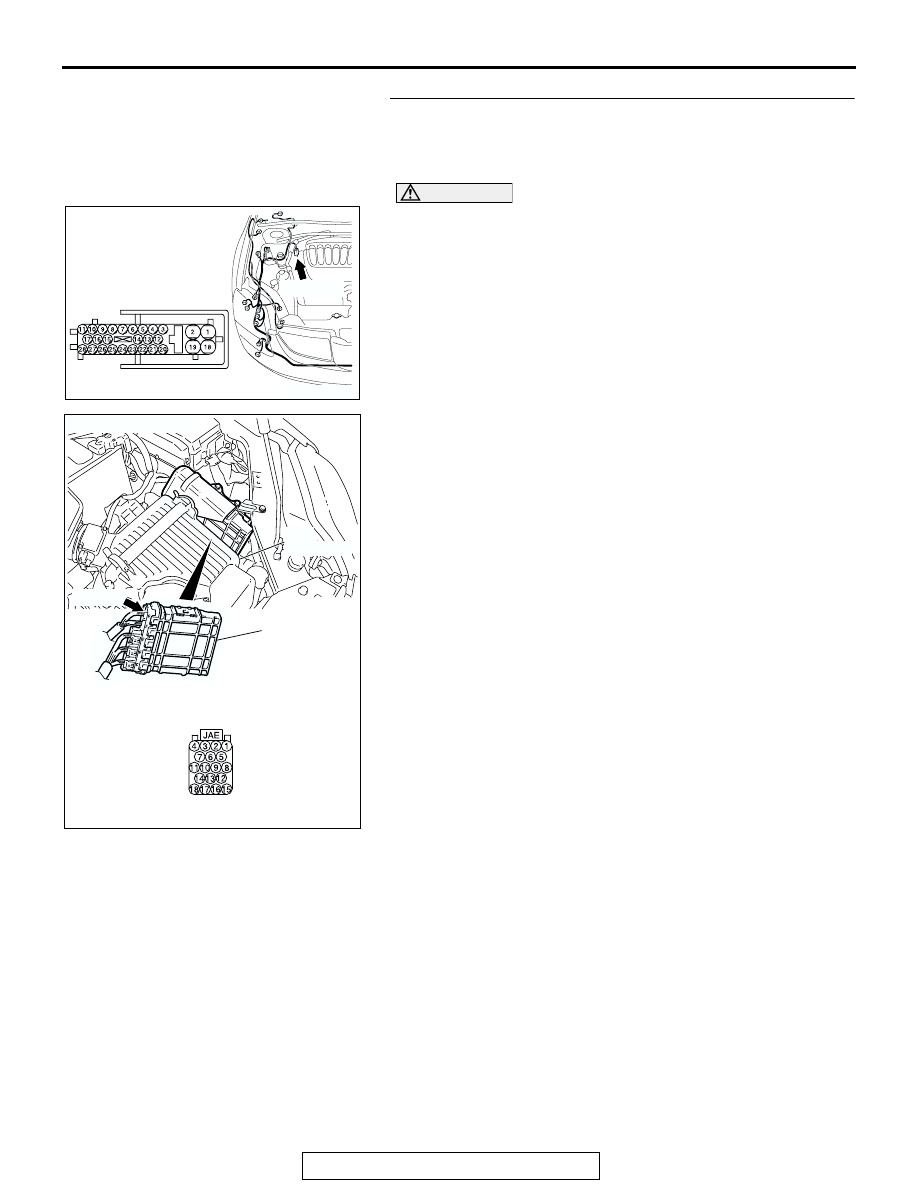

STEP 1. Check ABS-ECU connector A-02 and powertrain
control module connector B-19 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Are ABS-ECU connector A-02 and powertrain control

module connector B-19 in good condition?
YES : Go to Step 2.
NO :  Repair the damaged parts.

AC305206

CONNECTOR: A-02

AG

A-02 (GR)

HARNESS SIDE

AC306248AD

B-19 (B)

CONNECTOR: B-19

PCM

AIR
CLEANER

HARNESS SIDE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-581

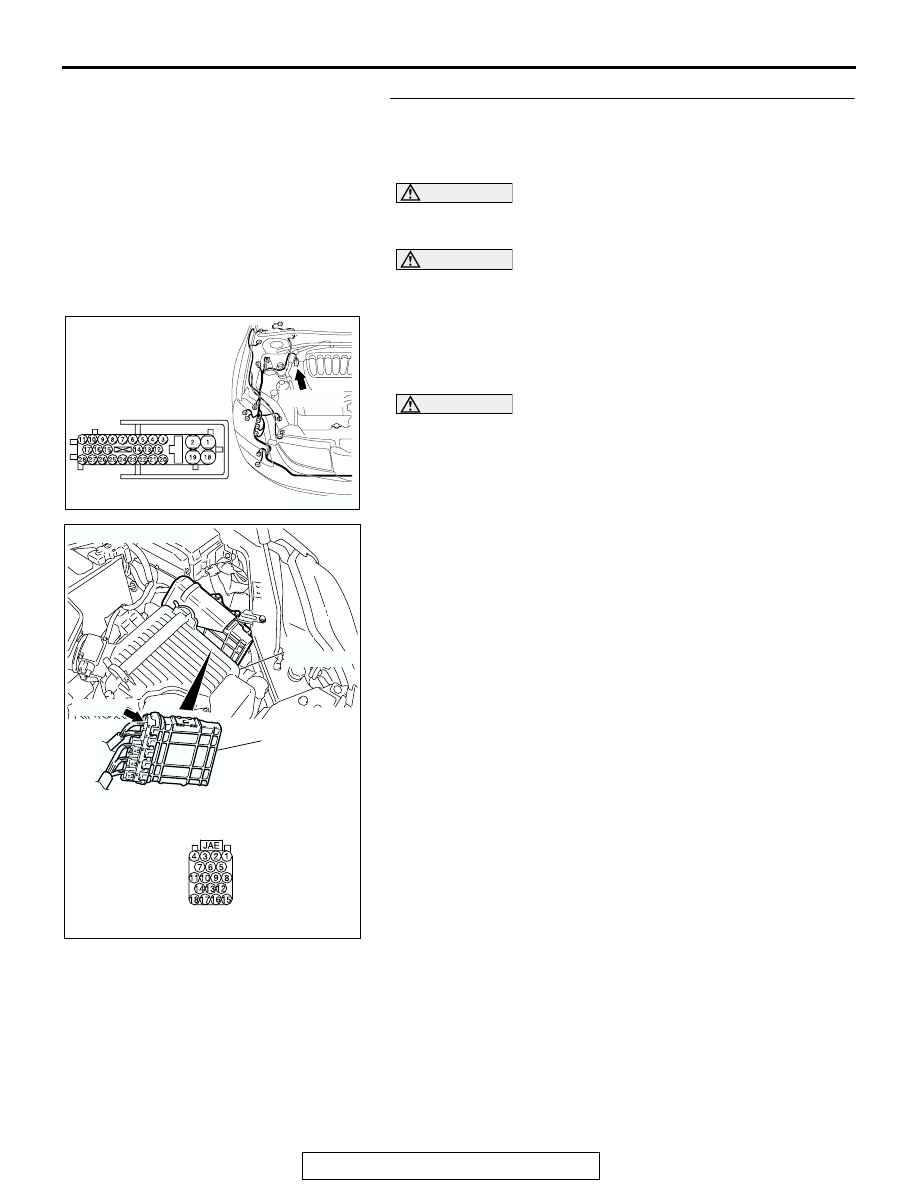

STEP 2. Check the CAN bus lines between the ABS-ECU
and the powertrain control module. Measure the resistance
between ABS-ECU connector A-02 and powertrain control

module connector B-19.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect ABS-ECU connector A-02 and powertrain

control module connector B-19, and measure the resistance
between each wiring harness side connector.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

AC305206

CONNECTOR: A-02

AG

A-02 (GR)

HARNESS SIDE

AC306248AD

B-19 (B)

CONNECTOR: B-19

PCM

AIR
CLEANER

HARNESS SIDE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-582

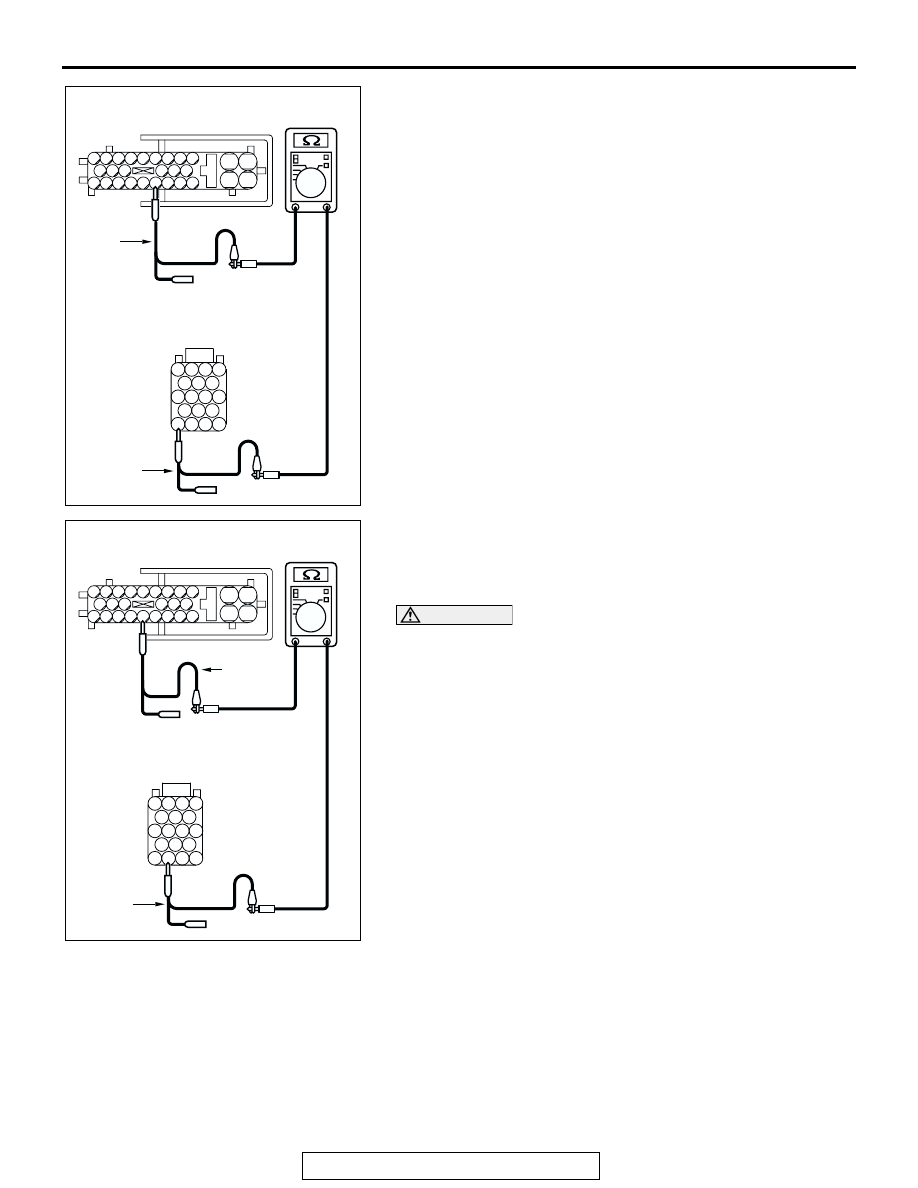

(4) Measure the resistance between ABS-ECU connector

terminal 23 and powertrain control module connector

terminal 18.

OK: 2 ohms or less

(5) Measure the resistance between ABS-ECU connector

terminal 24 and powertrain control module connector

terminal 17.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES : If all the resistances measure 2 ohms or less, go to

Step 3.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between ABS-ECU
connector and the powertrain control module
connector.

AC204582

HARNESS SIDE: A-02

HARNESS SIDE: B-19

TEST
HARNESS

TEST
HARNESS

3

17

10

13

18

4

11

14

7

16 15

1

2

5

12

9

6

8

JAE

19

18

2

1

25

8

15

16

17

27

28

26

11

9

10

12

13

14

23

24

22 21

7

6

5

4

20

3

CU

AC204582

3

17

10

13

18

4

11

14

7

16 15

1

2

5

12

9

6

8

JAE

19

18

2

1

25

8

15

16

17

27

28

26

11

9

10

12

13

14

23

24

22 21

7

6

5

4

20

3

HARNESS SIDE: A-02

HARNESS SIDE: B-19

TEST
HARNESS

TEST
HARNESS

CT
