DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-571

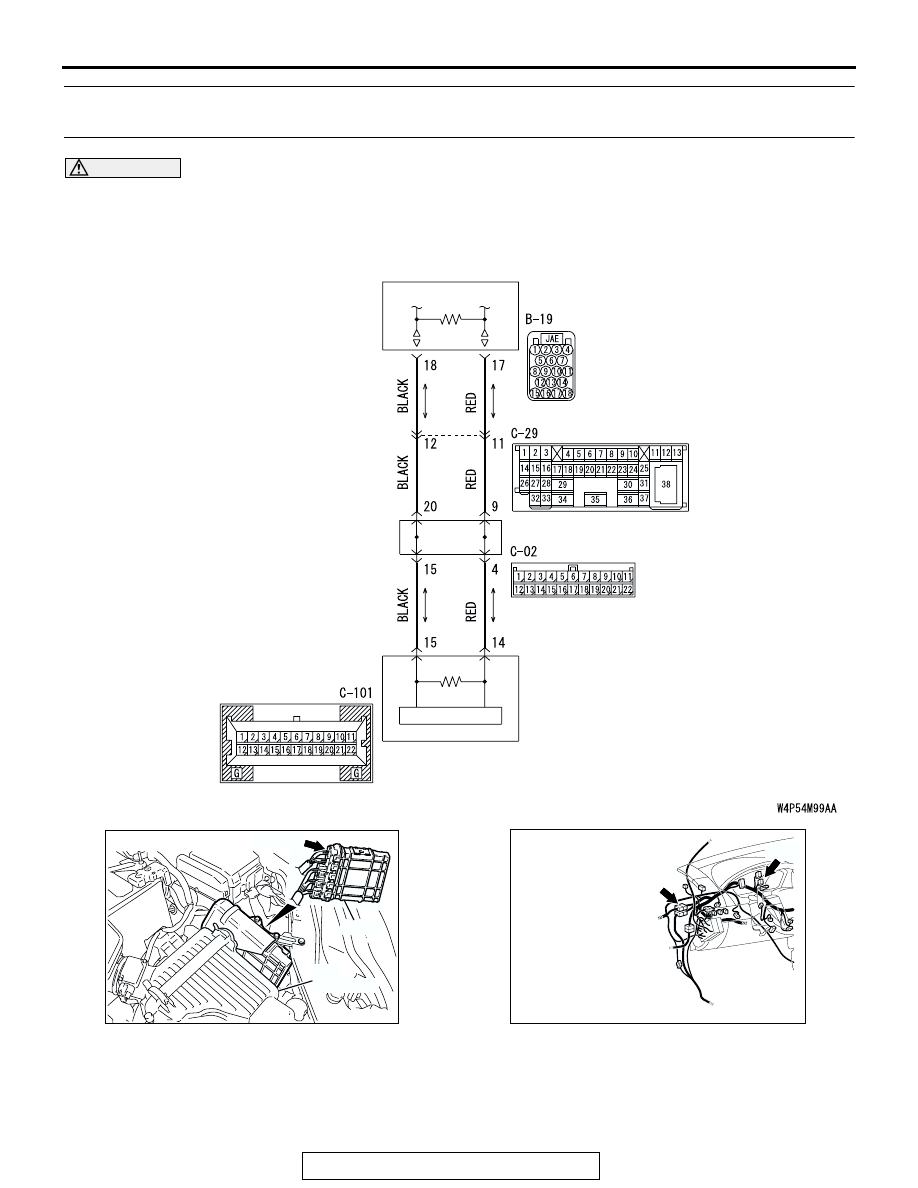

DIAGNOSTIC ITEM 17: Diagnose the lines between CAN main bus line and the powertrain control
module <Vehicles without ABS>

CAUTION

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component con-
nected to the CAN bus line may be damaged.

.

POWERTRAIN
CONTROL MODULE

JOINT
CONNECTOR (3)

COMBINATION
METER

AC306248AB

B-19 (B)

CONNECTOR: B-19

AIR
CLEANER

PCM

AC305231AX

CONNECTORS: C-02, C-29

C-02

C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-572

TROUBLE JUDGMENT
If the MUT-III cannot received signals from the
powertrain control module, CAN bus line connec-
tor(s) are broken or an open circuit has occurred.

.

COMMENTS ON TROUBLE SYMPTOM
The wiring harness wire or connectors may have
loose, corroded, or damage terminals, or terminals
pushed back in the connector, or the powertrain con-
trol module may be defective.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damage terminals, or termi-
nals pushed back in the connector

• The powertrain control module may be defective

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

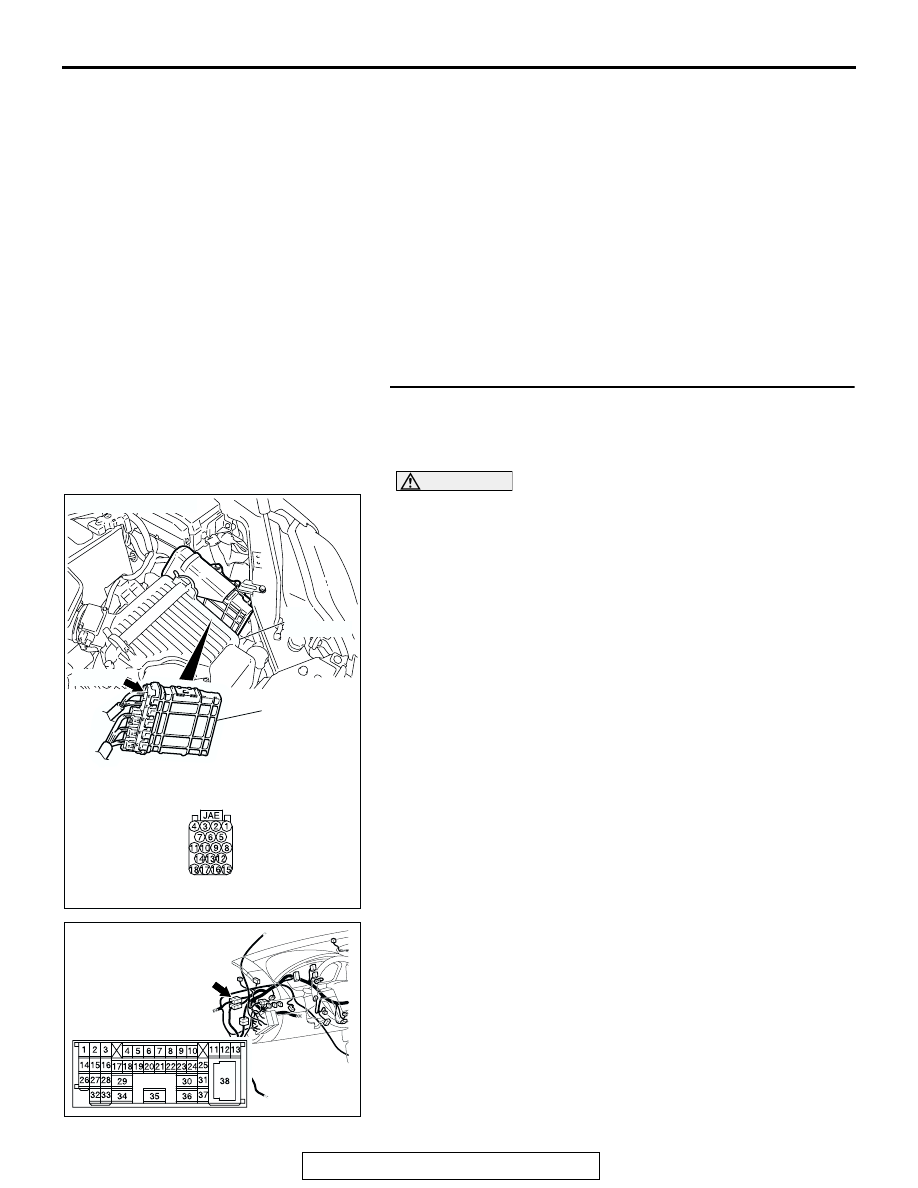

STEP 1. Check intermediate connector C-29 and
powertrain control module connector B-19 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Are intermediate connector C-29 and powertrain control

module connector B-19 in good condition?
YES : Go to Step 2.
NO :  Repair the damaged parts. Replace the joint

connector as necessary.

AC306248AD

B-19 (B)

CONNECTOR: B-19

PCM

AIR
CLEANER

HARNESS SIDE

AC305231AI

CONNECTOR: C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-573

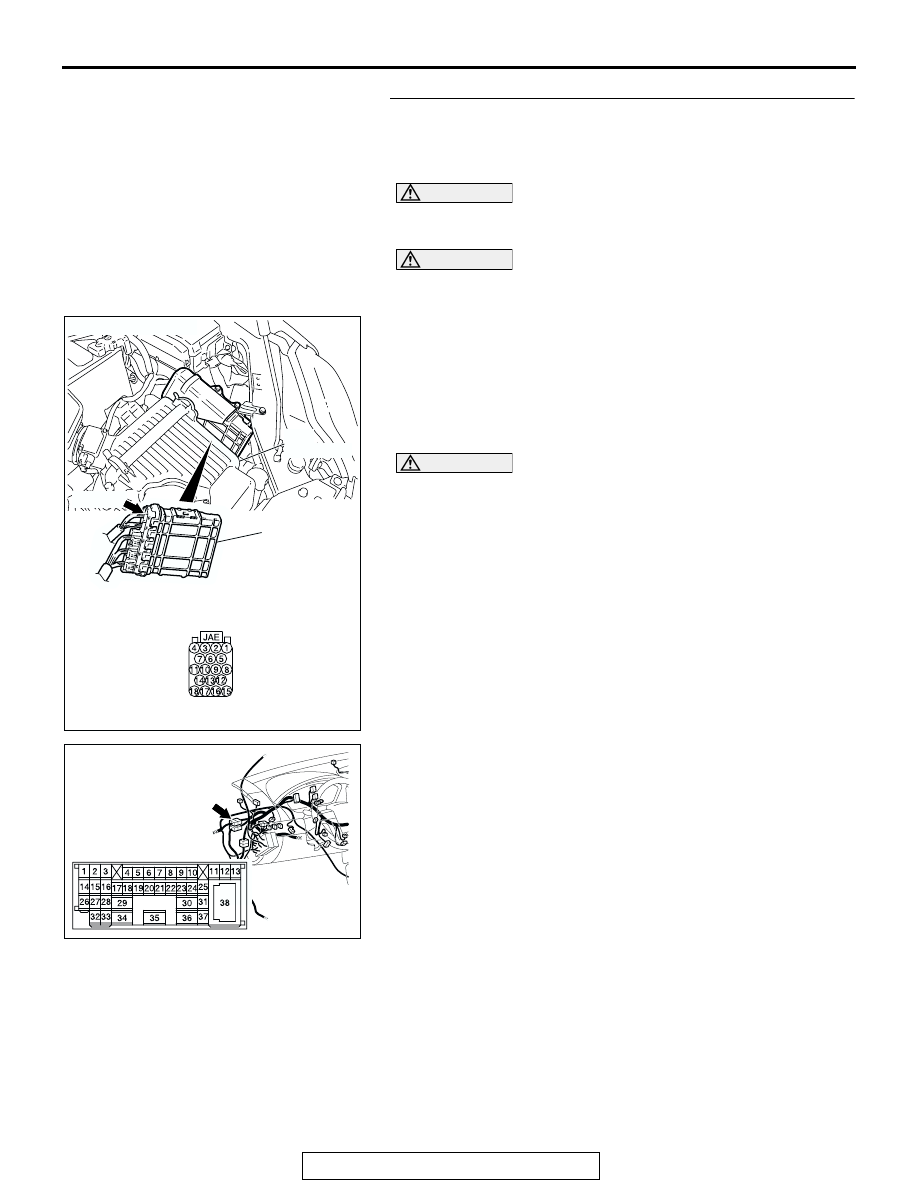

STEP 2. Check the CAN bus lines between intermediate
connector C-29 and the powertrain control module.
Measure the resistance between intermediate connector

C-29 and powertrain control module connector B-19.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29 and powertrain

control module connector B-19, and measure the resistance
between the wiring harness side connector of powertrain
control module connector B-19 and the male side connector
of intermediate connector C-29 (at front wiring harness
side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

AC306248AD

B-19 (B)

CONNECTOR: B-19

PCM

AIR
CLEANER

HARNESS SIDE

AC305231AI

CONNECTOR: C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-574

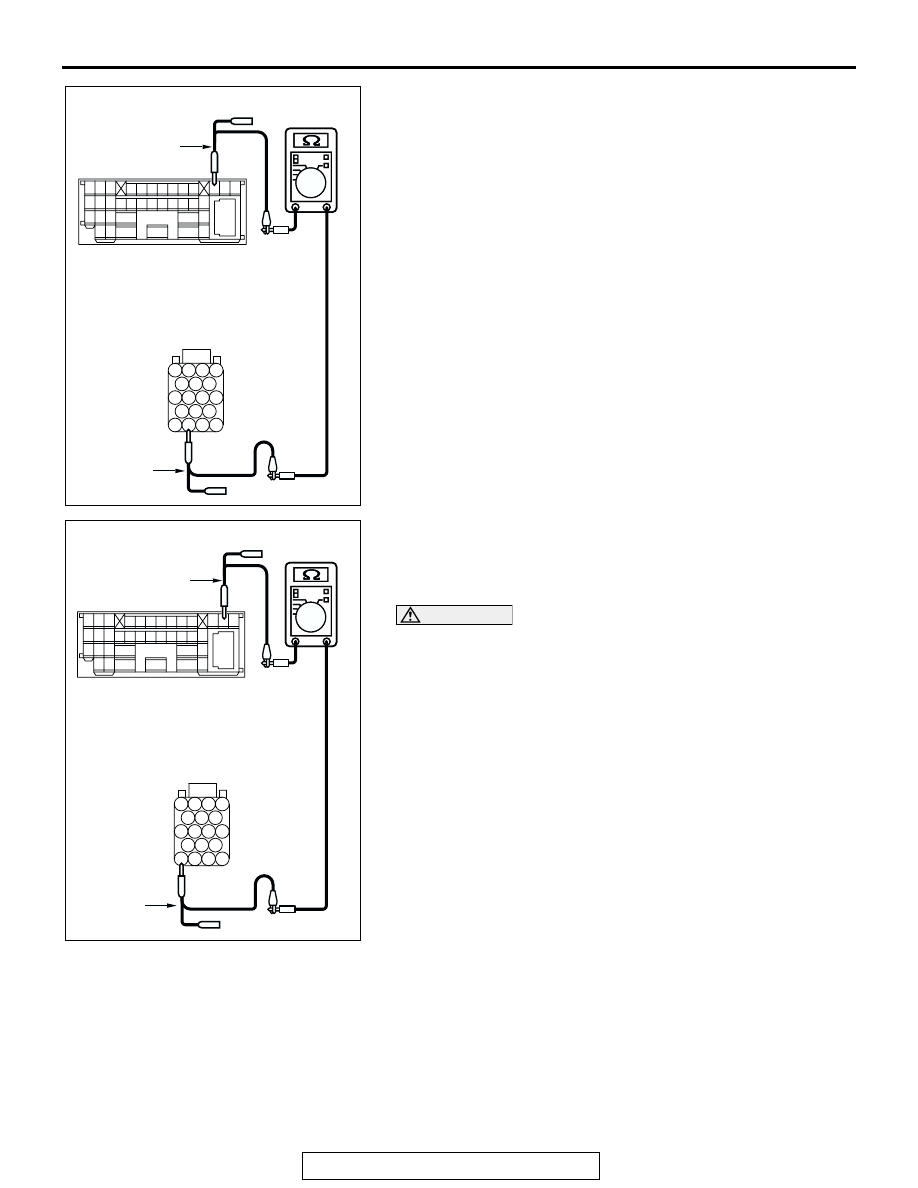

(4) Measure the resistance between intermediate connector

terminal 11 and powertrain control module connector

terminal 17.

OK: 2 ohms or less

(5) Measure the resistance between intermediate connector

terminal 12 and powertrain control module connector

terminal 18.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES : If all the resistances measure 2 ohms or less, go to

Step 3.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between intermediate
connector C-29 and the powertrain control module
connector.

AC204582

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204582

TEST
HARNESS

3

17

10

13

18

4

11

14

7

16 15

1

2

5

12

9

6

8

JAE

HARNESS SIDE: B-19

TEST
HARNESS

CY

MALE SIDE: C-29

AC204582

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204582

TEST
HARNESS

HARNESS SIDE: B-19

TEST
HARNESS

3

17

10

13

18

4

11

14

7

16 15

1

2

5

12

9

6

8

JAE

CX

MALE SIDE: C-29
