POWER STEERING HOSES

TSB Revision

POWER STEERING

37A-43

INSTALLATION SERVICE POINTS

>>A<< PRESSURE TUBE ASSEMBLY INSTALLATION
Align the marks on the pressure tube assembly and steering
gear box, and install the pressure tube assembly.

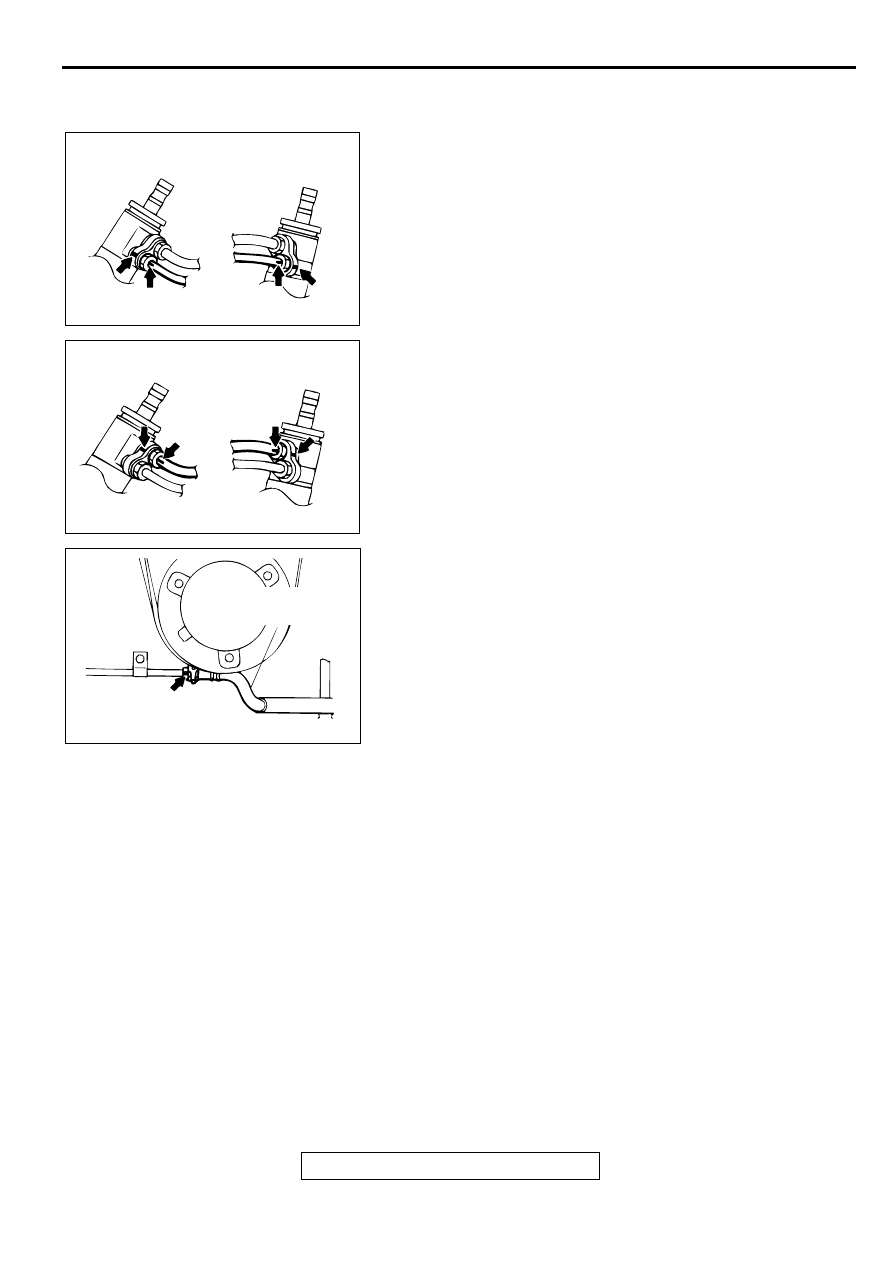

>>B<< RETURN HOSE ASSEMBLY INSTALLATION
1. Align the marks on the return hose assembly and steering

gear box, and install the return hose assembly.

2. Install the return hose assembly so that the marking is

positioned as shown in the illustration.

AC001021

<3.0L ENGINE>

AB

<2.4L ENGINE>

AC001022

<3.0L ENGINE>

AB

<2.4L ENGINE>

AC001023 AB

RETURN HOSE
ASSEMBLY

POWER STEERING HOSES

TSB Revision

POWER STEERING

37A-44

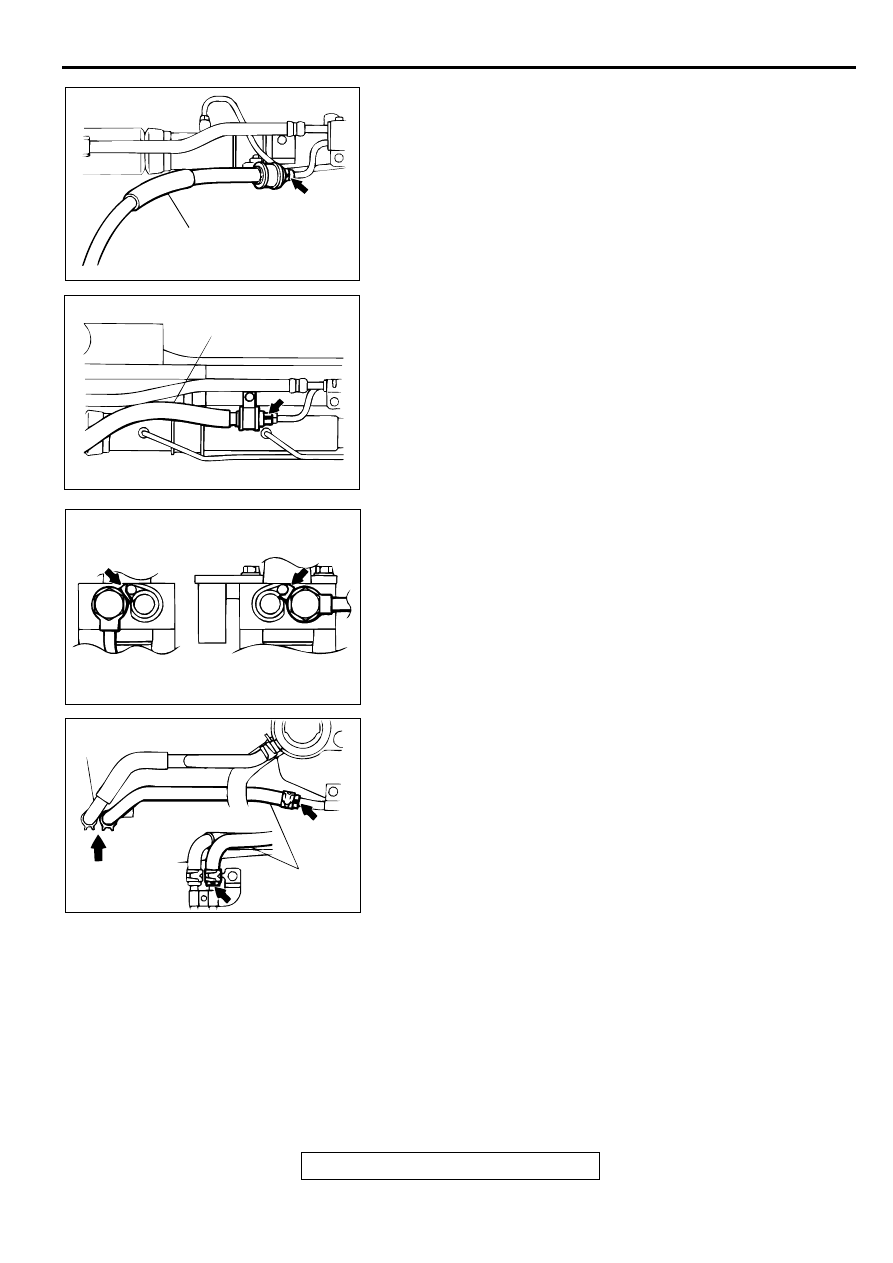

>>C<< PRESSURE HOSE INSTALLATION
1. Install the pressure hose at the gear box side so that the

marking is positioned as shown in the illustration.

2. Install the pressure hose at the power steering oil pump side

as shown in the illustration.

>>D<< RETURN HOSE INSTALLATION
Install the return hose so that the markings are positioned as
shown in the illustration.

AC0010 24 AB

PRESSURE HOSE

<2.4L ENGINE>

AC001025 AB

<3.0L ENGINE>

PRESSURE HOSE

AC001026AB

<2.4L ENGINE>

<3.0L ENGINE>

AC001027

A

AB

VIEW A

RETURN HOSE

SPECIFICATIONS

TSB Revision

POWER STEERING

37A-45

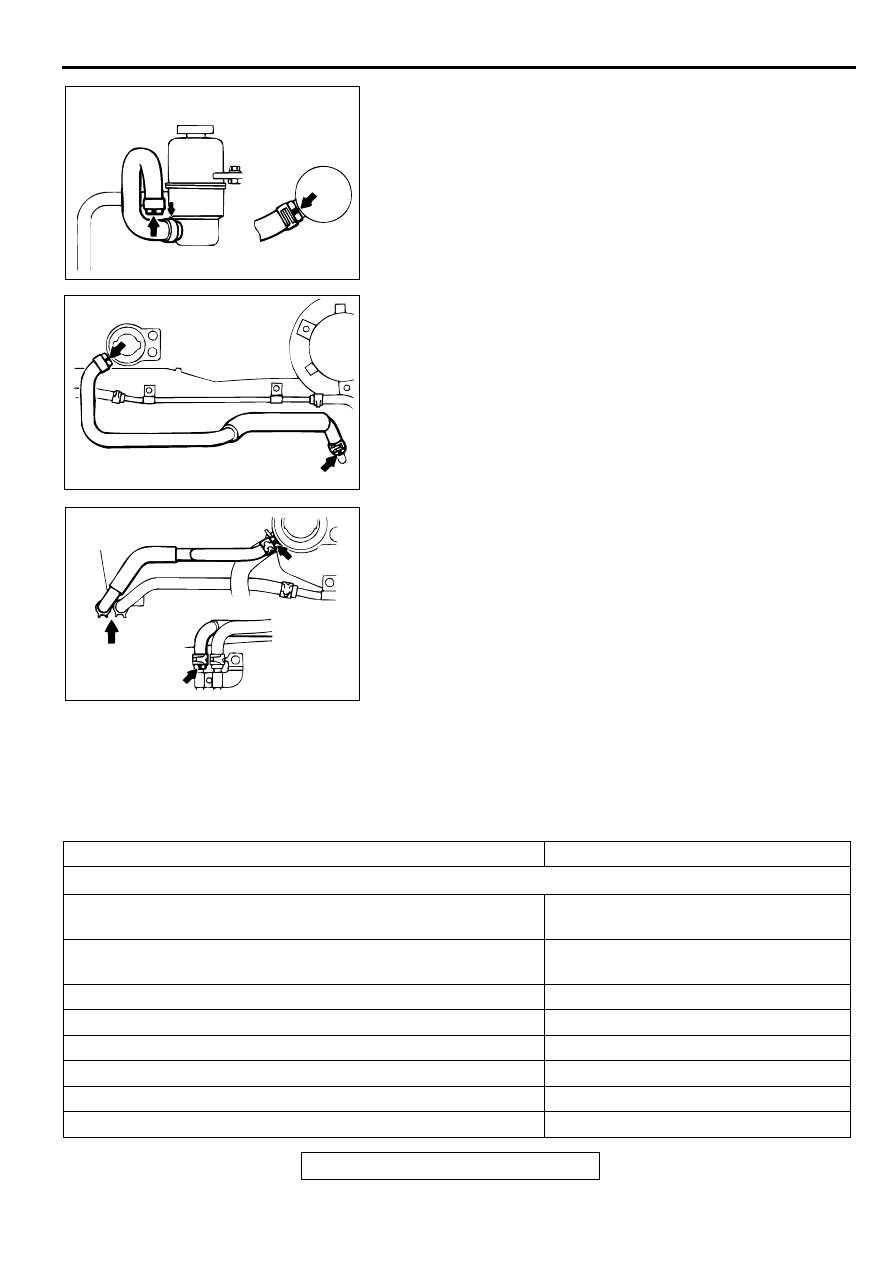

>>E<< SUCTION HOSE INSTALLATION
Install the suction hose so that the markings are positioned as
shown in the illustration.

>>F<< RETURN HOSE INSTALLATION
Install the return hose so that the markings are positioned as
shown in the illustration.

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1372008400053

AC001028

A

VIEW A

AB

<2.4L ENGINE>

AC001029 AB

<3.0L ENGINE>

AC001030 AB

A

VIEW A

ITEMS

SPECIFICATIONS

Power steering gear box

Cylinder clamp assembly nut, gear box assembly bolt <3.0L EN-
GINE>

69 N

⋅

m (51 ft-lb)

Cylinder clamp assembly bolt, gear box assembly bolt <2.4L EN-
GINE>

69 N

⋅

m (51 ft-lb)

End plug

59 N

⋅

m (43 ft-lb)

Feed tube flare nut

13 N

⋅

m (113 in-lb)

Pinion and valve assembly jam nut

25 N

⋅

m (18 ft-lb)

Rack support cover

13 N

⋅

m (113 in-lb)

Rack support cover jam nut

59 N

⋅

m (43 ft-lb)

Return hose flare nut, pressure tube flare nut

15 N

⋅

m (11 ft-lb)

SPECIFICATIONS

TSB Revision

POWER STEERING

37A-46

GENERAL SPECIFICATIONS

M1372000200055

Stay bolt <2.4L ENGINE>

86 N

⋅

m (63 ft-lb)

Steering shaft and gear box connecting bolt

18 N

⋅

m (13 ft-lb)

Tie rod

88 N

⋅

m (65 ft-lb)

Tie rod end nut

49

−

 54 N

⋅

m (36

−

 40 ft-lb)

Tie rod end to knuckle fixing nut

24

−

 33 N

⋅

m (17

−

 25 ft-lb)

Valve housing bolt

19 N

⋅

m (14 ft-lb)

Power steering hose

Oil pump eye bolt

57 N

⋅

m (42 ft-lb)

Oil reservoir, pressure hose, pressure tube, return tube, cooler
tube bolt

12 N

⋅

m (106 in-lb)

Pressure tube flare nut (Gear box side)

15 N

⋅

m (11 in-lb)

Pressure tube flare nut (Pressure hose side)

34 N

⋅

m (25 ft-lb)

Power steering oil pump

Front/rear bracket bolt <3.0L ENGINE>

16 N

⋅

m (12 ft-lb)

Oil pump bolt/nut <3.0L ENGINE>

42 N

⋅

m (31 ft-lb)

Oil pump bracket bolt

M8 <2.4L ENGINE>

28 N

⋅

m (21 ft-lb)

M10 <2.4L ENGINE>

49 N

⋅

m (36 ft-lb)

M8 <3.0L ENGINE>

24 N

⋅

m (18 ft-lb)

M10 <3.0L ENGINE>

44 N

⋅

m (32 ft-lb)

Oil pump eye bolt

57 N

⋅

m (42 ft-lb)

Pressure switch assembly

20 N

⋅

m (15 ft-lb)

Rear cover bolt

25

−

 29 N

⋅

m (18

−

 22 ft-lb)

Suction pipe bolt

3.4

−

 4.0 N

⋅

m (30

−

 35 in-lb)

Power steering wheel and shaft

Clock spring and column switch assembly bolt

25 N

⋅

m (18 ft-lb)

Steering shaft and gear box connecting bolt

18 N

⋅

m (13 ft-lb)

Steering column assembly bolt

12 N

⋅

m (106 in-lb)

Steering cover bolt

5.0 N

⋅

m (44 in-lb)

Steering wheel nut

41 N

⋅

m (30 ft-lb)

ITEMS

SPECIFICATIONS

ITEMS

SPECIFICATIONS

Power steering gear box

Type

Rack and pinion

Gear ratio

45.74

Oil pump

Type

Vane type

Displacement cm

3

/rev (cu in/rev)

9.6 (0.59)

Relief set pressure MPa (psi)

8.8 (1,276)
