PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-7

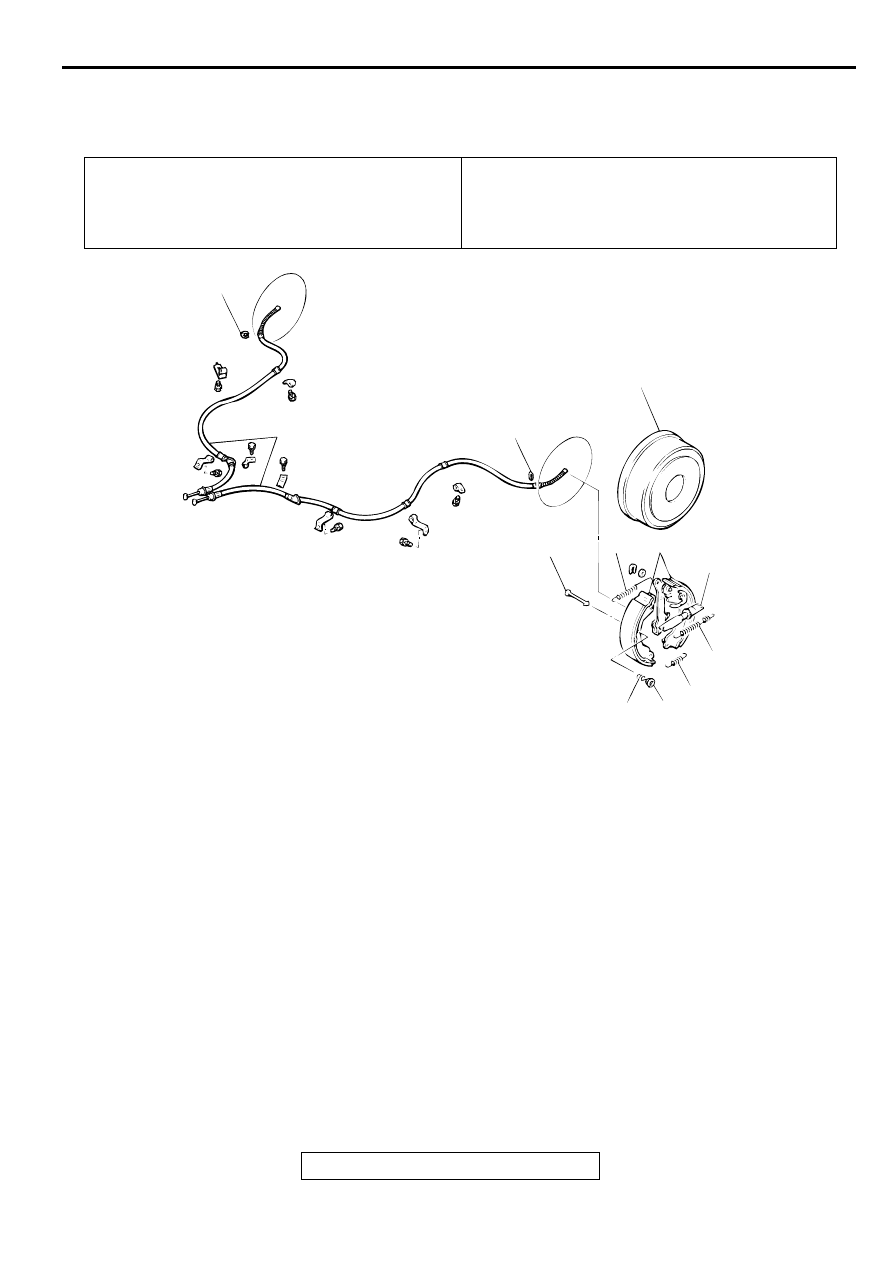

PA R K IN G  B R A K E C A B LE

REMOVAL AND INSTALLATION <DRUM BRAKE>

M1361001900075

Pre-removal Operation
Floor Console Removal (Refer to GROUP 52A, Floor Con-
sole

P.52A-11

.)

Post-installation Operation

•

Parking Brake Lever Stroke Check and adjustment (Refer
to

P.36-4

.)

•

Floor Console Installation (Refer to GROUP 52A, Floor
Console

P.52A-11

.)

AC001131AB

1

2

3

4

5

6

7

8

9

10

11

10

REMOVAL STEPS

1.

REAR BRAKE DRUM

2.

SHOE-TO-LEVER SPRING

3.

AUTO ADJUSTER ASSEMBLY

4.

SHOE-TO-SHOE SPRING

5.

RETAINER SPRING

6.

SHOE HOLD-DOWN CUP

7.

SHOE HOLD-DOWN SPRING

8.

SHOE HOLD-DOWN PIN

9.

SHOE AND LINING ASSEMBLY

10. SNAP RING
11. PARKING BRAKE CABLE

REMOVAL STEPS (Continued)

PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-8

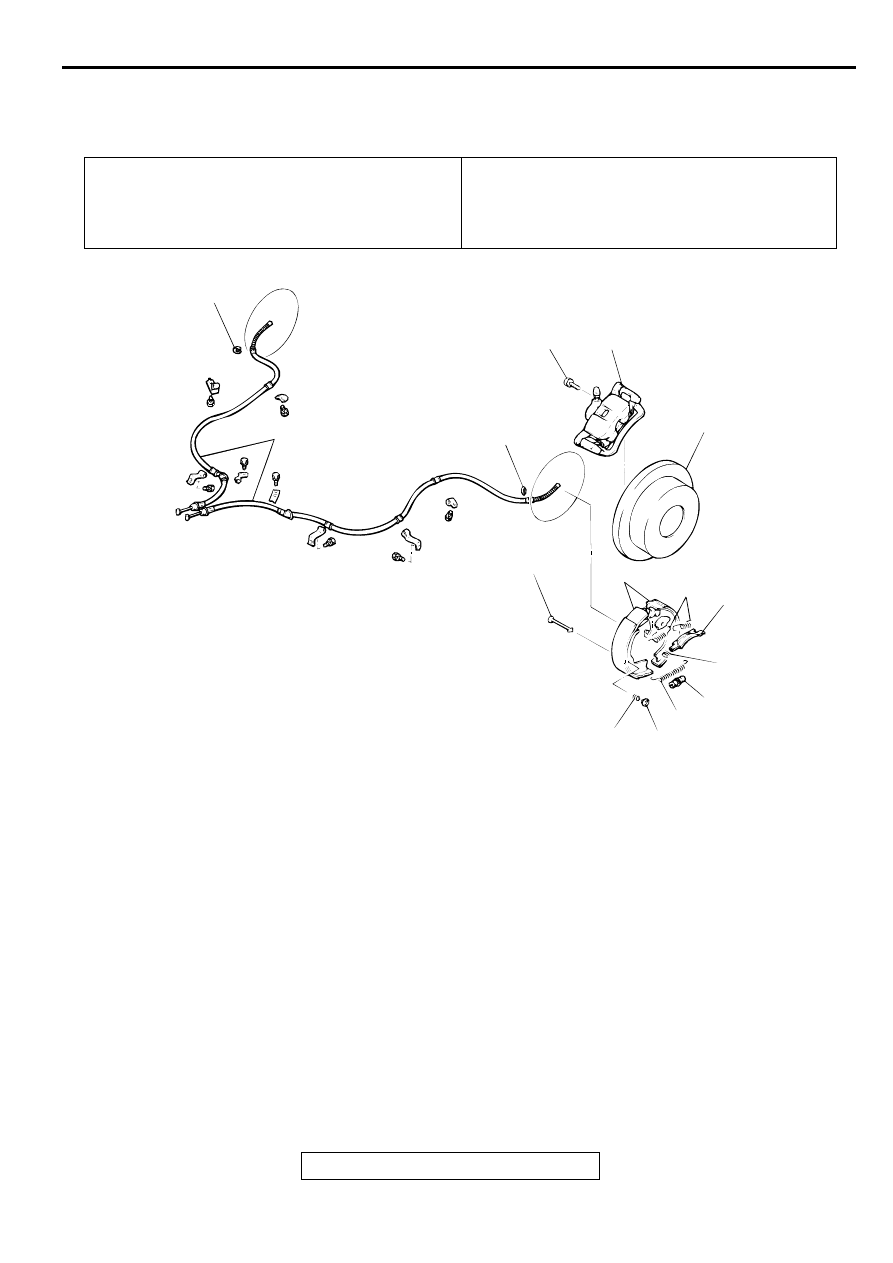

PA R K IN G  B R A K E C A B LE

REMOVAL AND INSTALLATION <DRUM-IN-DISC BRAKE>

M1361001900086

Pre-removal Operation
Floor Console Removal (Refer to GROUP 52A, Floor
Console

P.52A-11

.)

Post-installation Operation

•

Parking Brake Lever Stroke Check and adjustment (Refer
to

P.36-4

.)

•

Floor Console Installation (Refer to GROUP 52A, Floor
Console

P.52A-11

.)

AC001201 AC

1

13

12

11

10

9

8

7

6

5

4

3

2

12

55 - 65 N·m
41 - 48 ft-lb

REMOVAL STEPS

<<A>>

1.

REAR BRAKE CALIPER
ASSEMBLY

2.

REAR BRAKE DISC

>>B<<

3.

SHOE-TO-ANCHOR SPRING

4.

ADJUSTING SCREW SPRING

>>A<<

5.

ADJUSTER

6.

STRUT

7.

STRUT RETURN SPRING

<<B>>

8.

SHOE HOLD-DOWN CUP

9.

SHOE HOLD-DOWN SPRING

10. SHOE HOLD-DOWN PIN
11. SHOE AND LINING ASSEMBLY
12. CLIP
13. PARKING BRAKE CABLE

REMOVAL STEPS (Continued)

PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-9

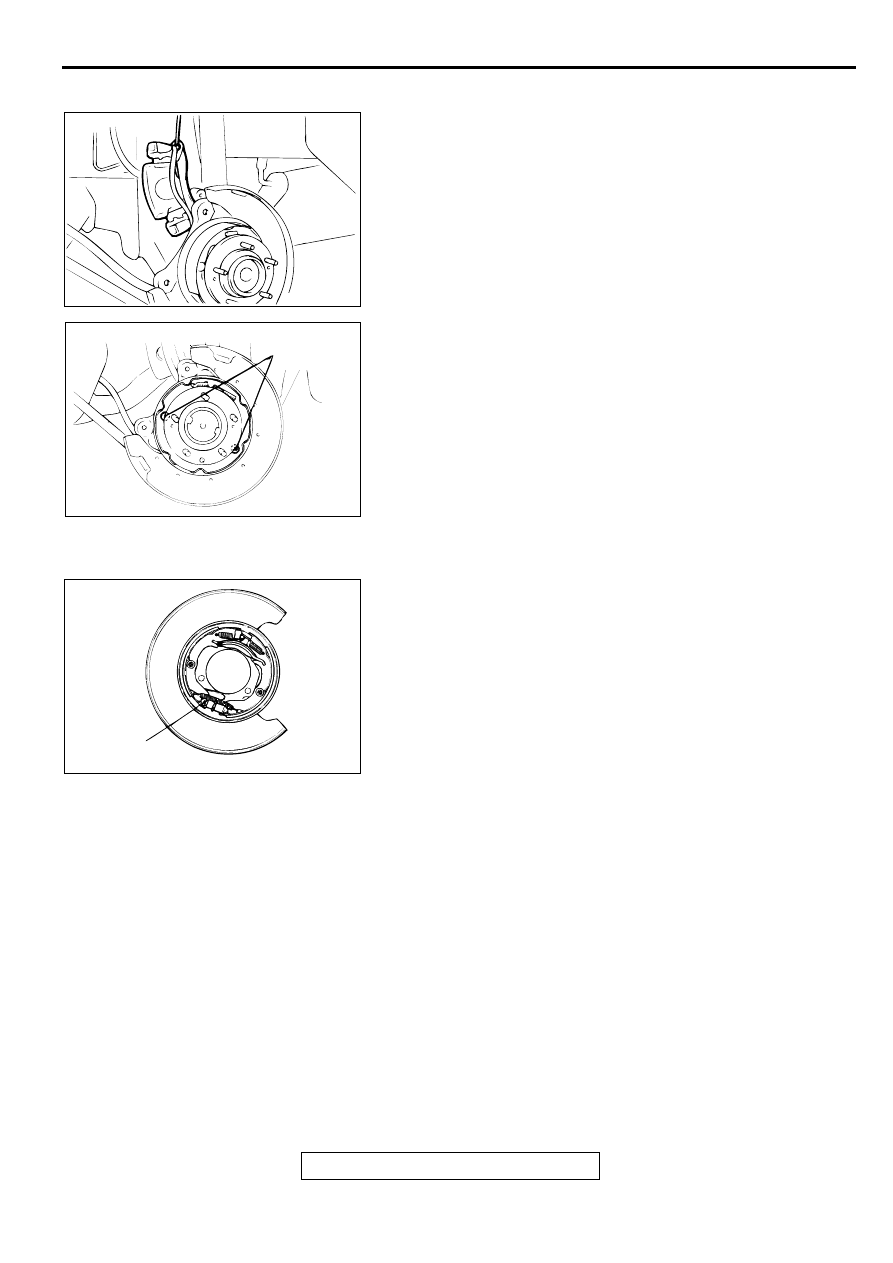

REMOVAL SERVICE POINTS

<<A>> REAR BRAKE CALIPER ASSEMBLY REMOVAL
Remove the rear brake caliper assembly and support it with
wire or something similar.

<<B>> SHOE HOLD-DOWN CUP REMOVAL
Extend the shoe and lining assembly, and remove the shoe
hold-down cup.

INSTALLATION SERVICE POINTS

>>A<< ADJUSTER INSTALLATION
Install the adjuster so that the shoe adjusting bolt of left hand
wheel is attached towards the front of the vehicle, and the shoe
adjusting bolt of right hand wheel is towards the rear of the
vehicle.

AC000981

AC000982AB

SHOE

HOLD-DOWN

CUP

AC000983AB

SHOE ADJUSTING

BOLT

PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-10

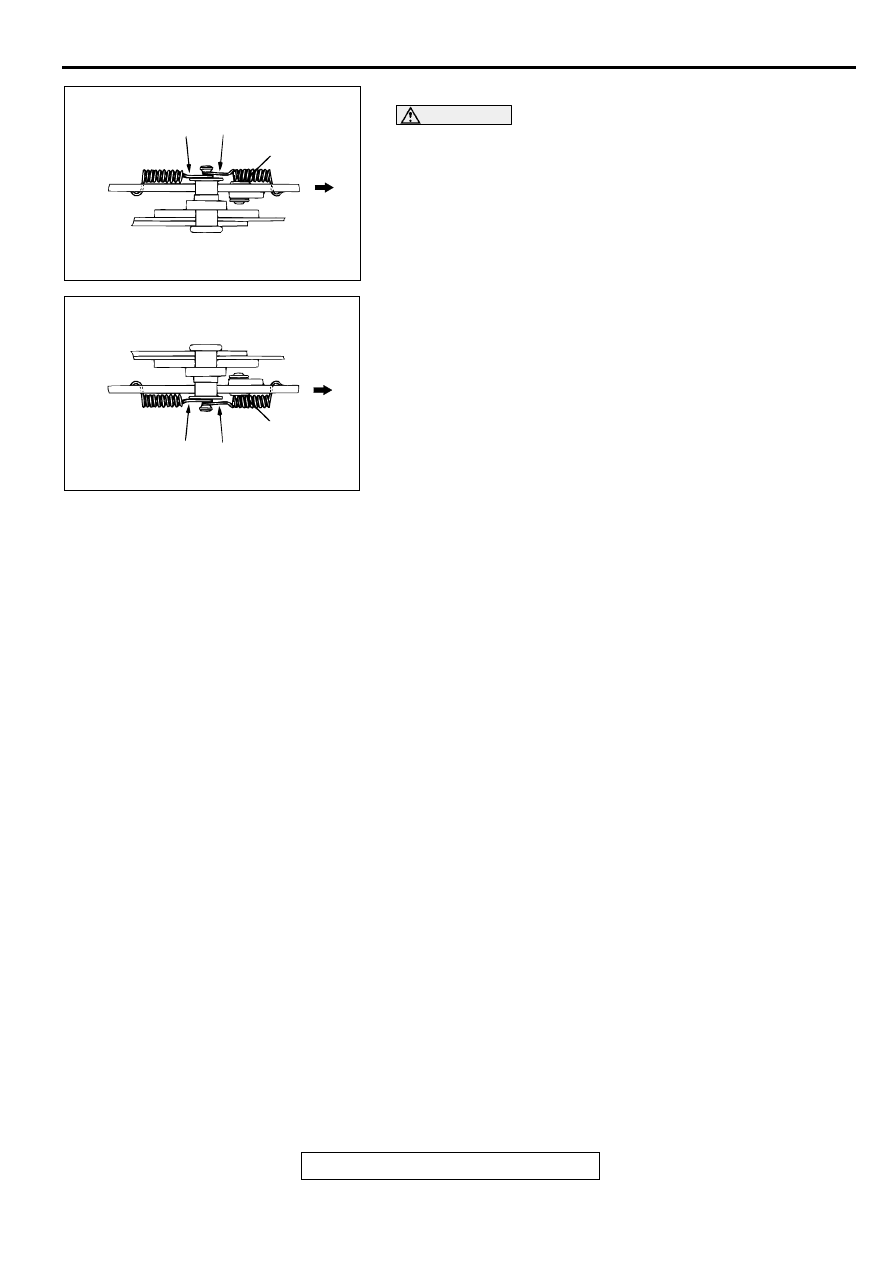

>>B<< SHOE-TO-ANCHOR SPRING INSTALLATION

CAUTION

The load on the respective shoe-to-anchor springs is
different, so the rear side spring in the figure has been
painted.
Install the shoe-to-anchor springs in the order shown in the
illustration.

AC000973

RIGHT SIDE WHEEL

PAINTED

1

2

REAR

AB

AC000984 AB

PAINTED

1

2

LEFT SIDE WHEEL

REAR
