ITEMS

2.4L ENGINE

3.0L ENGINE

Oil pump type

Involute gear type

Trochoid type

Drive method

Timing belt

Crankshaft

SPECIAL TOOLS

TSB Revision

ENGINE LUBRICATION

12-3

SPECIA L TO O LS

M1121000600084

O N -VEH IC LE SERVIC E

ENGINE OIL CHECK

M1121000900063

1. Pull out the oil dipstick slowly and check that the oil level is

within the marks on the oil dipstick.

2. Check that the oil is not excessively dirty, that there is no

coolant or gasoline mixed in, and that it has sufficient
viscosity.

ENGINE OIL REPLACEMENT

M1121001000074

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

C (176

)

90°

(194

F).

2. Remove the engine oil filler cap.

WARNING

Use care as oil could be hot.

3. Remove the drain plug to drain oil.

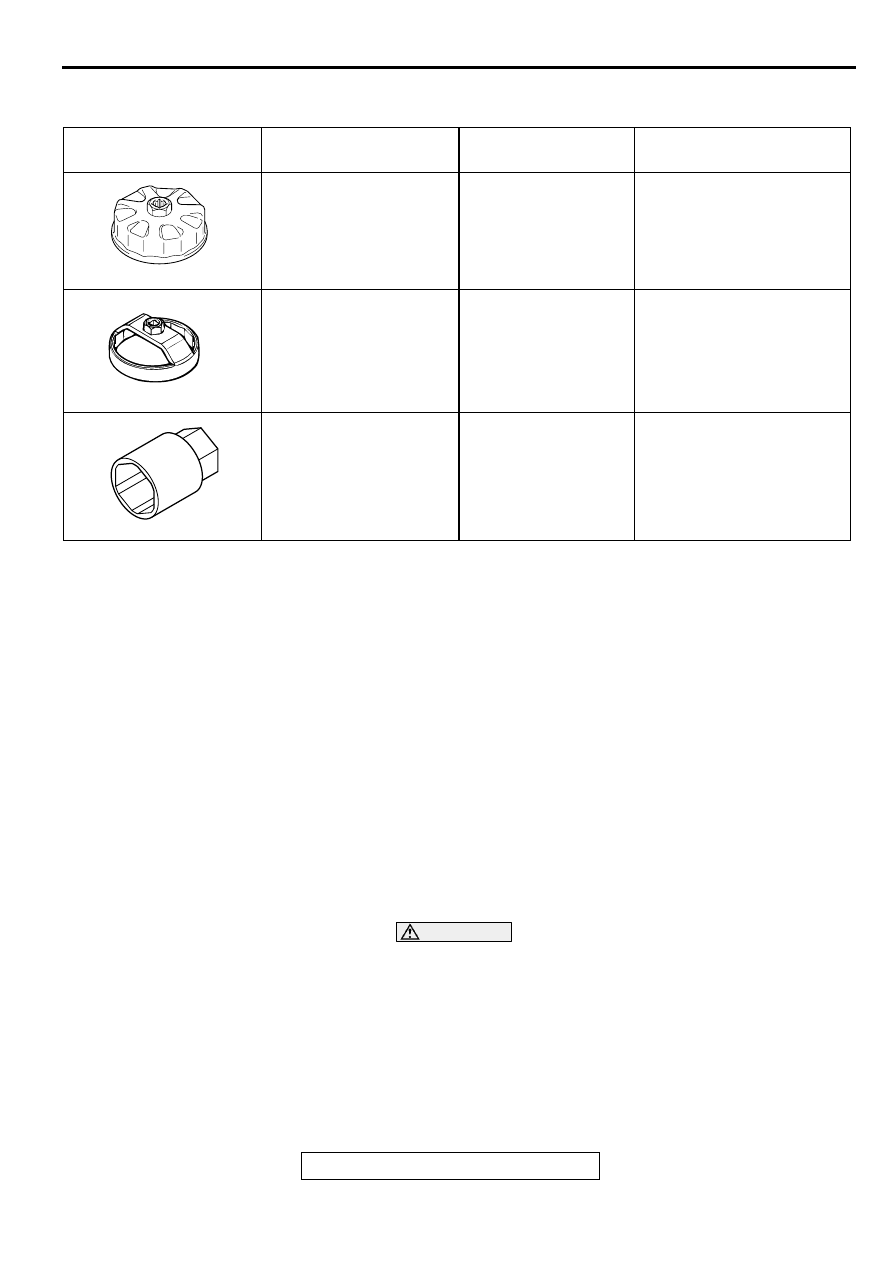

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991396
Oil filter wrench

−

Removal and installation of
engine oil filter (when using
the oil filter of MD360935,
MD325714, MD332687 and
MD365876) <2.4L Engine>

MB991610
Oil filter wrench

−

Removal and installation of
engine oil filter (when using
the oil filter of MD352626)
<3.0L Engine>

MD998054
Oil pressure switch
wrench

−

Removal and installation of
oil pressure switch

B991396

MB991610

ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-4

4. Install a new drain plug gasket so that it faces in the

direction shown in the illustration, and then tighten the drain
plug to the specified torque.

Tightening torque: 39 N

⋅⋅⋅⋅

m (29 ft-lb)

5. Refill the specified quantity of oil.

Specified Engine Oil (API classification): SJ or higher
Total quantity (Includes volume inside oil filter): 4.3

(4.5 quarts)

6. Install the engine oil filler cap.

7. Check oil level.

ENGINE OIL FILTER REPLACEMENT

M1121001100071

Required Special Tools:

•

MB991396 (When using the oil filter of MD360935,
MD325717, MD332687 and MD365876): Oil Filter Wrench

•

MB991610 (When using the oil filter of MD135737):
Oil Filter Wrench

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

C (176

F) to

90°

(194

F).

2. Remove the engine oil filler cap.

WARNING

Use care as oil could be hot.

3. Remove the drain plug to drain oil.

AC000092

<2.4L ENGINE>

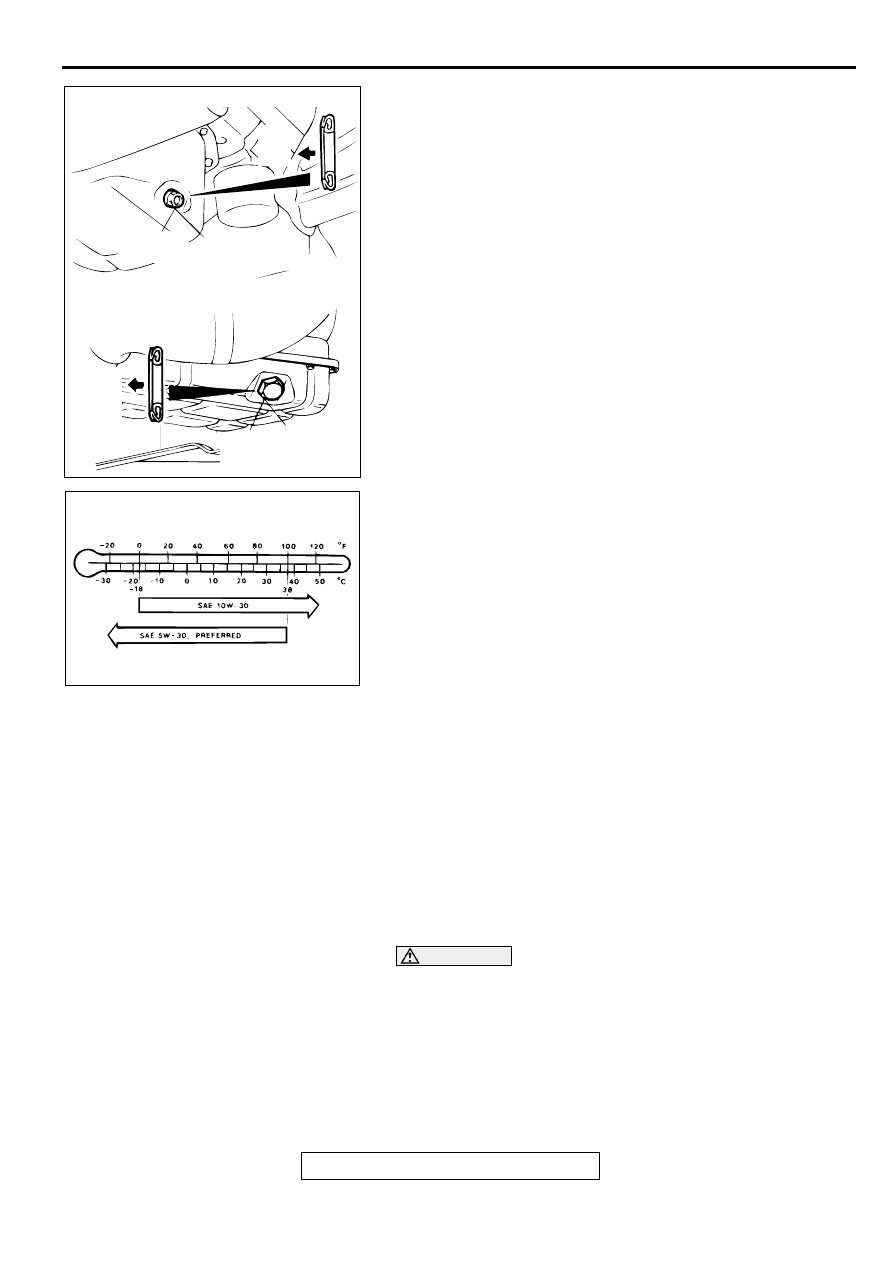

DRAIN PLUG GASKET

OIL
PAN
SIDE

DRAIN
PLUG

39 N·m
29 ft-lb

DRAIN
PLUG

OIL
PAN
SIDE

DRAIN PLUG GASKET

<3.0L ENGINE>

ACX00887AB
