PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-49

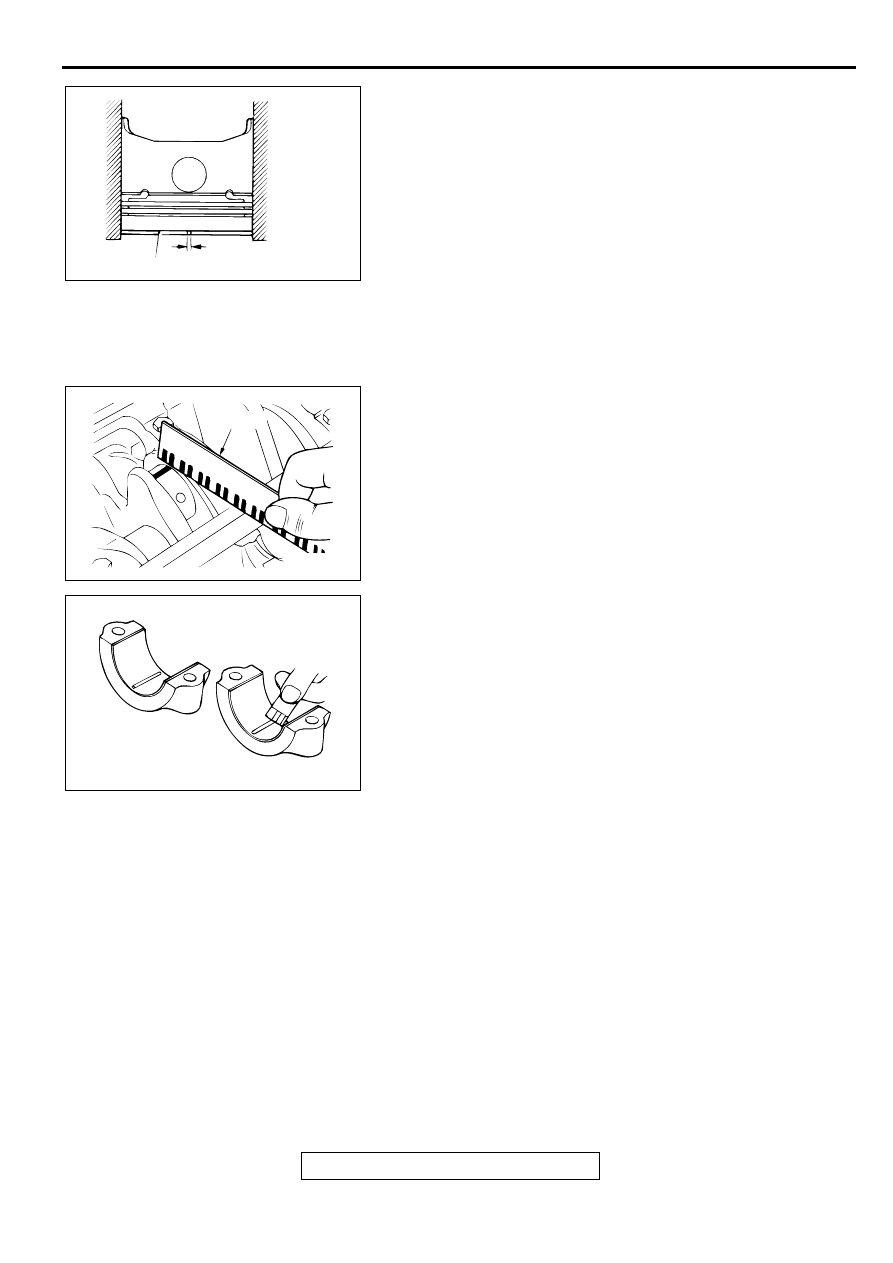

3. Insert the piston ring into the cylinder bore. Force the ring

down with a piston, the piston crown being in contact with
the ring, to correctly position it at right angles to the cylinder
wall. Then, measure the end gap with a feeler gauge.
If the ring gap is excessive, replace the piston ring.

Standard value:

Number 1: 0.30

−−−−

 0.45 mm (0.012

−−−−

 0.017 inch)

Number 2: 0.45

−−−−

 0.60 mm (0.018

−−−−

 0.023 inch)

Oil: 0.20

−−−−

 0.60 mm (0.008

−−−−

 0.023 inch)

Limit:

Number 1, Number 2: 0.8 mm (0.03 inch)
Oil: 1.0 mm (0.03 inch)

CRANKSHAFT PIN OIL CLEARANCE (PLASTIC GAUGING
MATERIAL METHOD)
1. Remove oil from the crankshaft pin and the connecting rod

bearing.

2. Cut plastic gauging material to the same length as the width

of the bearing and place it on the pin in parallel with its axis.

3. Install the connecting rod cap carefully and tighten the nuts

to the specified torque.

4. Carefully remove the connecting rod cap.

5. Measure the width of the plastic gauging material at its

widest part by using a scale printed on the plastic gauging
material package.

Standard value: 0.02

−−−−

 0.05 mm (0.0008

−−−−

 0.0019 inch)

Limit: 0.1 mm (0.003 inch)

AKX00719

PUSH IN BY
PISTON

PISTON
RING
GAP

PISTON RING

AB

AKX00731AB

SCALE

AKX00609

CRANKSHAFT AND CYLINDER BLOCK

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-50

C R A N K SH A FT A N D   C YLIN D ER  B LO C K

REMOVAL AND INSTALLATION

M1113008700121

Required Special Tool:

MD998718: Crankshaft Rear Oil Seal Installer

AK000426

11

APPLY ENGINE OIL TO
ALL MOVING PARTS
BEFORE INSTALLATION.

23 N·m
17 ft-lb

28 N·m
21 ft-lb

11 N·m
95 in-lb

74 N·m
54 ft-lb

11 N·m
95 in-lb

93 N·m
69 ft-lb

10

3

2

4

9

8

19

18

6

15

14

16

13

12

AC

7

5

17

1

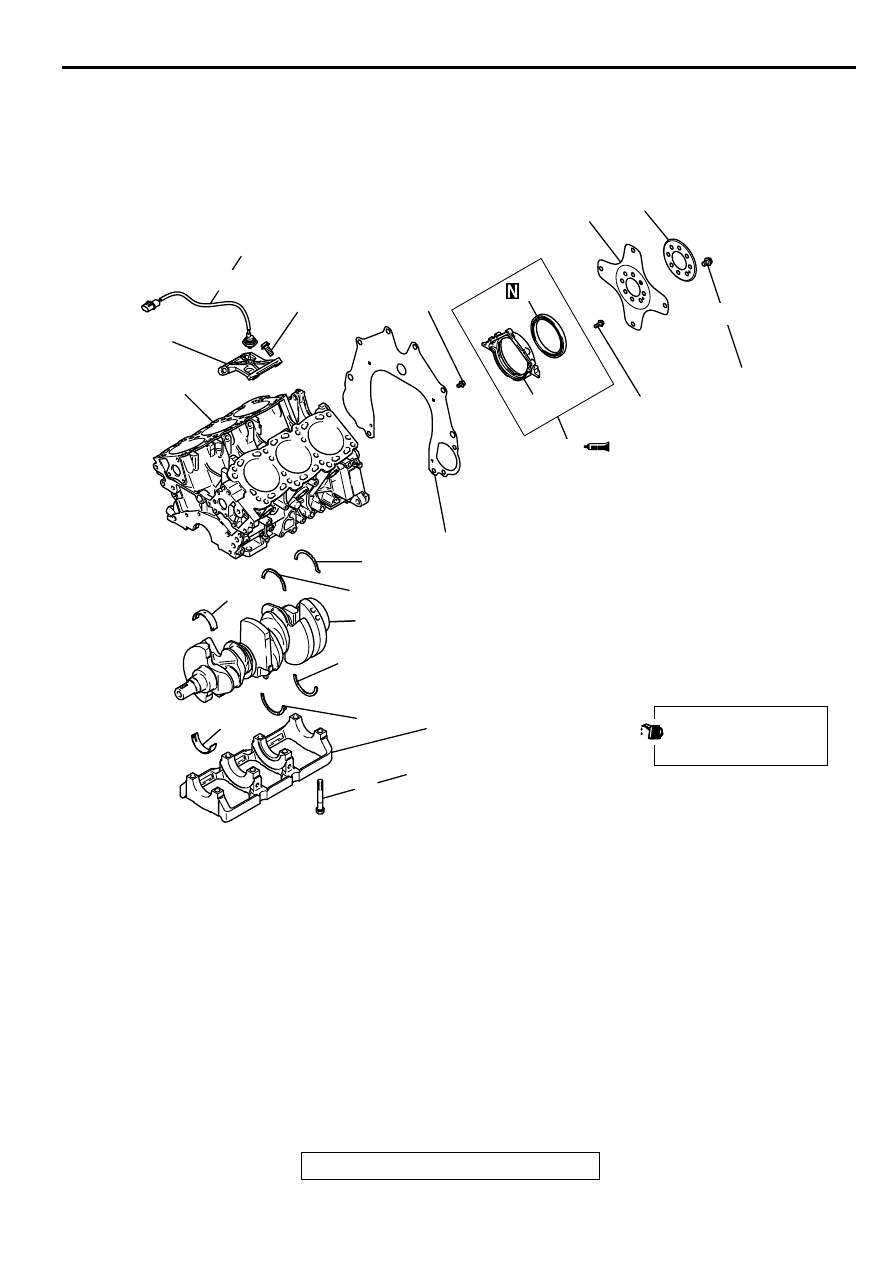

REMOVAL STEPS
1. DRIVE PLATE BOLT
2. ADAPTOR PLATE
3 DRIVE PLATE
4. REAR PLATE

>>F<<

5. OIL SEAL CASE ASSEMBLY

>>E<<

6. CRANKSHAFT REAR OIL SEAL
7. OIL SEAL CASE

>>D<<

8. BEARING CAP BOLT

>>D<<

9. BEARING CAP

>>C<<

10.THRUST BEARING A

>>C<<

11. THRUST BEARING B

>>B<<

12.CRANKSHAFT BEARING, LOWER
13.CRANKSHAFT

>>C<<

14.THRUST BEARING B

>>C<<

15.THRUST BEARING A

>>B<<

16.CRANKSHAFT BEARING, UPPER
17.KNOCK SENSOR

>>A<<

18.KNOCK SENSOR BRACKET
19.CYLINDER BLOCK

REMOVAL STEPS (Continued)

CRANKSHAFT AND CYLINDER BLOCK

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-51

INSTALLATION SERVICE POINTS

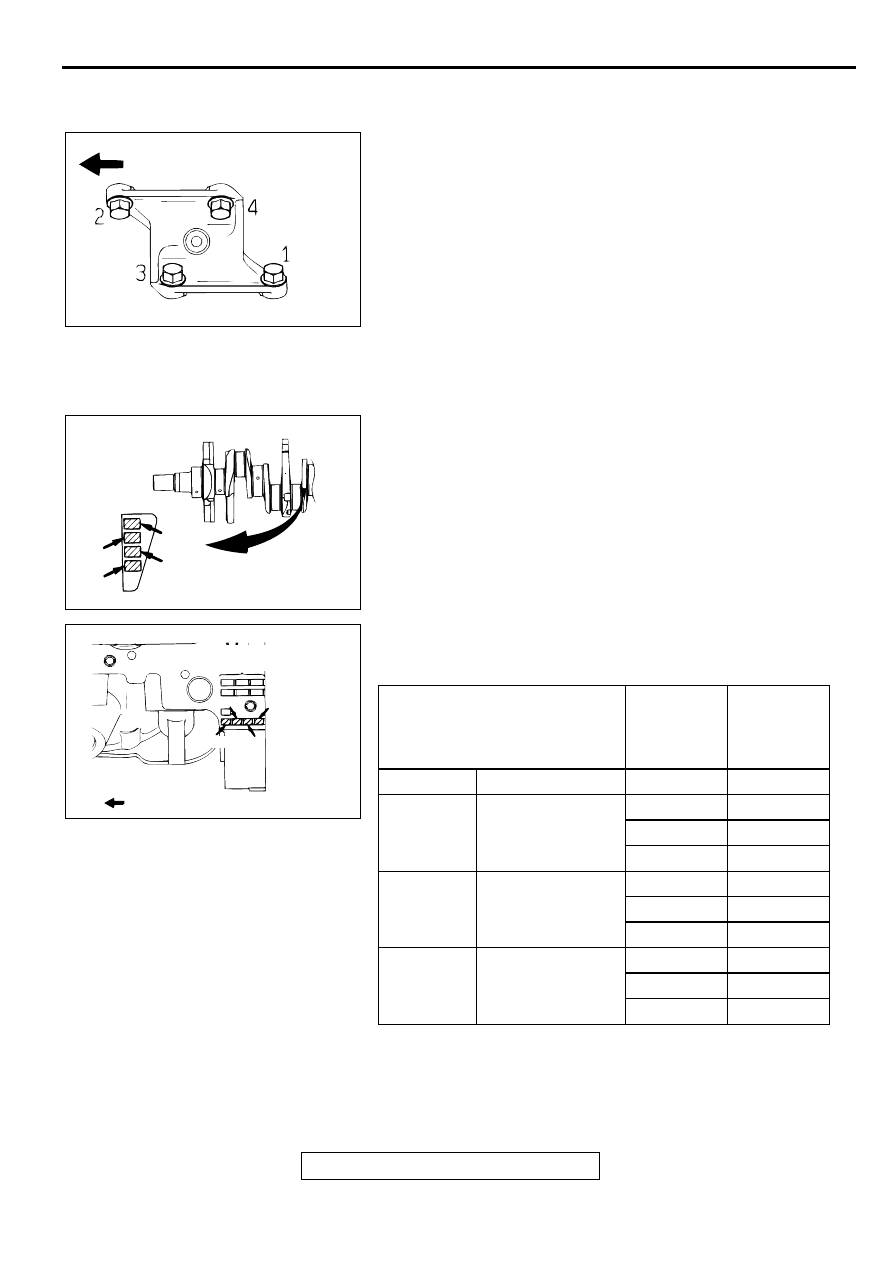

>>A<< KNOCK SENSOR BRACKET INSTALLATION
Check that the bracket is in proper contact with the cylinder
block boss and tighten to the specified torque in the order
shown.

Tightening torque: 28 N

⋅⋅⋅⋅

m (21 ft-lb)

>>B<< CRANKSHAFT BEARING INSTALLATION
When bearing replacement is required, select and install the
correct bearing by the following procedure.
1. Measure the crankshaft journal diameter and confirm its

classification from the following table. In the case of a
crankshaft supplied as a service part, identification colours/
marks of its journals are painted/stamped at the positions
shown in the illustration.

2. The cylinder block bearing bore diameter identification

marks are stamped at the position shown in the illustration
from left to right, bearing at No.1.

AKX00649

TIMING BELT SIDE

AB

CRANKSHAFT JOURNAL
OUTSIDE DIAMETER

CYLINDER
BLOCK
BEARING
BORE

CRANKSH
AFT
BEARING

ID COLOR

SIZE mm (inch)

ID MARK

ID COLOR

Yellow

59.990

 59.996

(2.3618

 2.3620)

I

Pink

II

Red

III

Green

None

59.984

 59.990

(2.3616

 2.3618)

I

Red

II

Green

III

Black

White

59.978

 59.984

(2.3613

 2.3616)

I

Green

II

Black

III

Brown

AKX00647

NO. 2
JOURNAL

LOCATION OF IDENTIFICATION COLOR

NO. 1
JOURNAL

NO. 3
JOURNAL

NO. 4
JOURNAL

AB

AKX00648

BEARING BORE
DIAMETER
IDENTIFICATION
MARK

CYLINDER INSIDE
DIAMETER SIZE MARK

TIMING BELT SIDE

AB

No.4

No.2

No.3

No.1

CRANKSHAFT AND CYLINDER BLOCK

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-52

3. For example, if the crankshaft journal outside diameter ID

color is "Yellow " and the cylinder block bearing bore ID
mark is "III,"  select a bearing whose ID color is "Green."
If there is no ID color paint on the crankshaft, measure the
journal outside diameter and select a bearing appropriate for
the measured value.

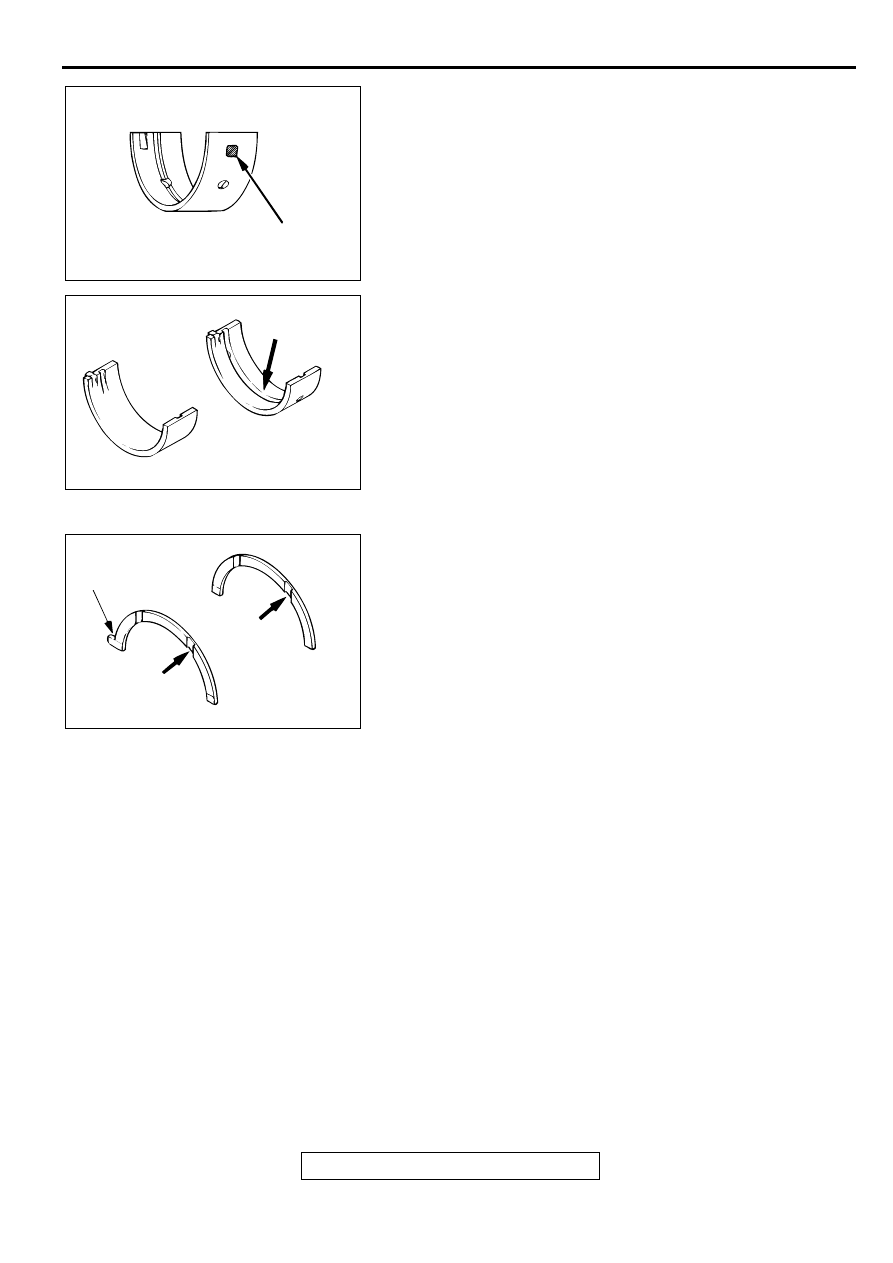

4. Install the bearings having a groove to the cylinder block.

5. Install the bearings having no groove to the bearing cap.

>>C<< CRANKSHAFT THRUST BEARING INSTALLATION
1. Install the thrust bearings in the number 3 bearing bore in

the cylinder block and in the bearing cap. For easier
installation, apply engine oil to the bearings; this will help
hold them in position.

2. The thrust bearings must be installed with their groove

toward the crankshaft web. The two thrust bearings are
different from each other. One has a tab while the other has
no tab. Be careful not to confuse them.

AKX00621

IDENTIFICATION COLOR

AB

AKX00623

GROOVE

FOR UPPER

FOR LOWER

AB

AKX00679

TAB

GROOVE

THRUST BEARING
"B"

GROOVE

THRUST BEARING "A"

AB
