CONVERTIBLE TOP

TSB Revision

BODY

42-141

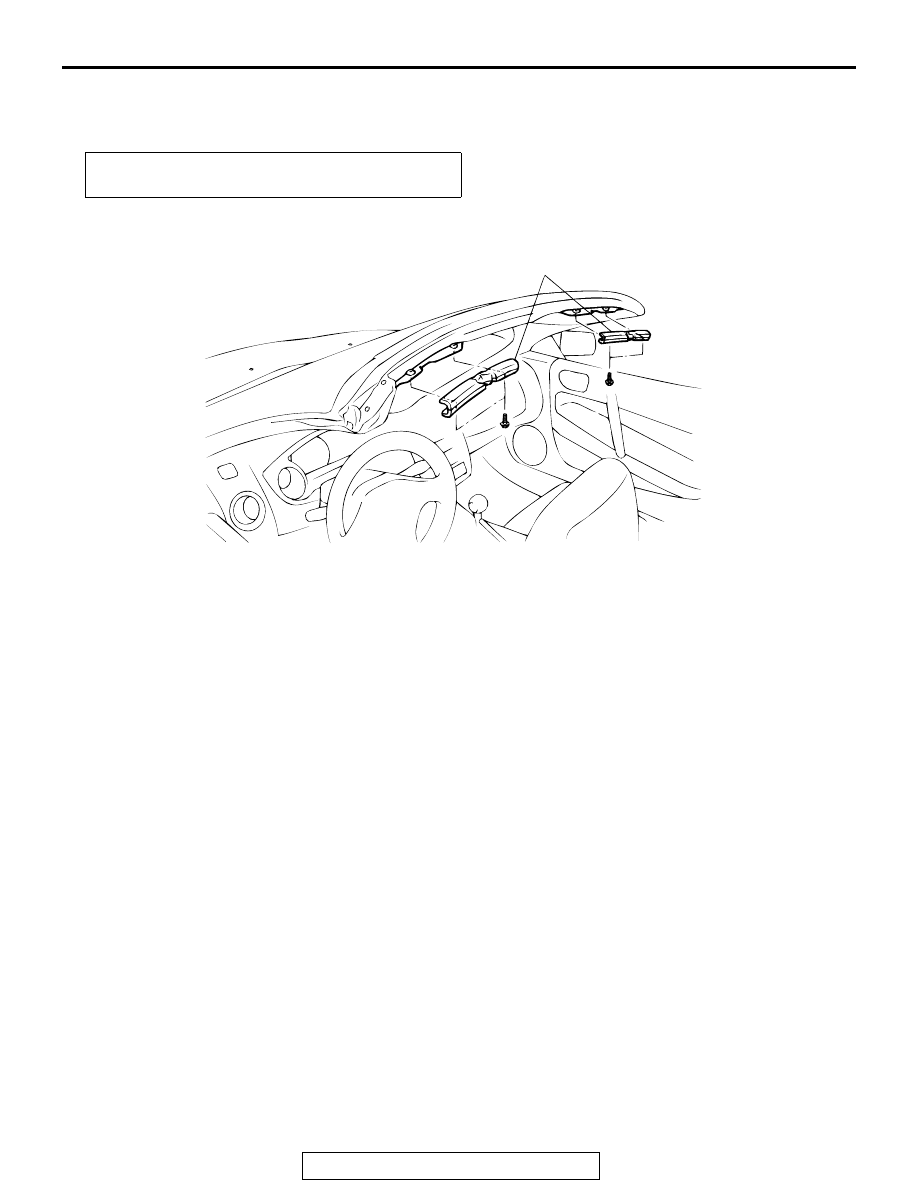

TOPSTACK FRONT HEADER LATCH RECEIVER

REMOVAL AND INSTALLATION

M1426207200043

Pre-removal Operation
• Completely Open the Convertible Top.

AC004156

TOPSTACK LATCH RECEIVER

AB

CONVERTIBLE TOP

TSB Revision

BODY

42-142

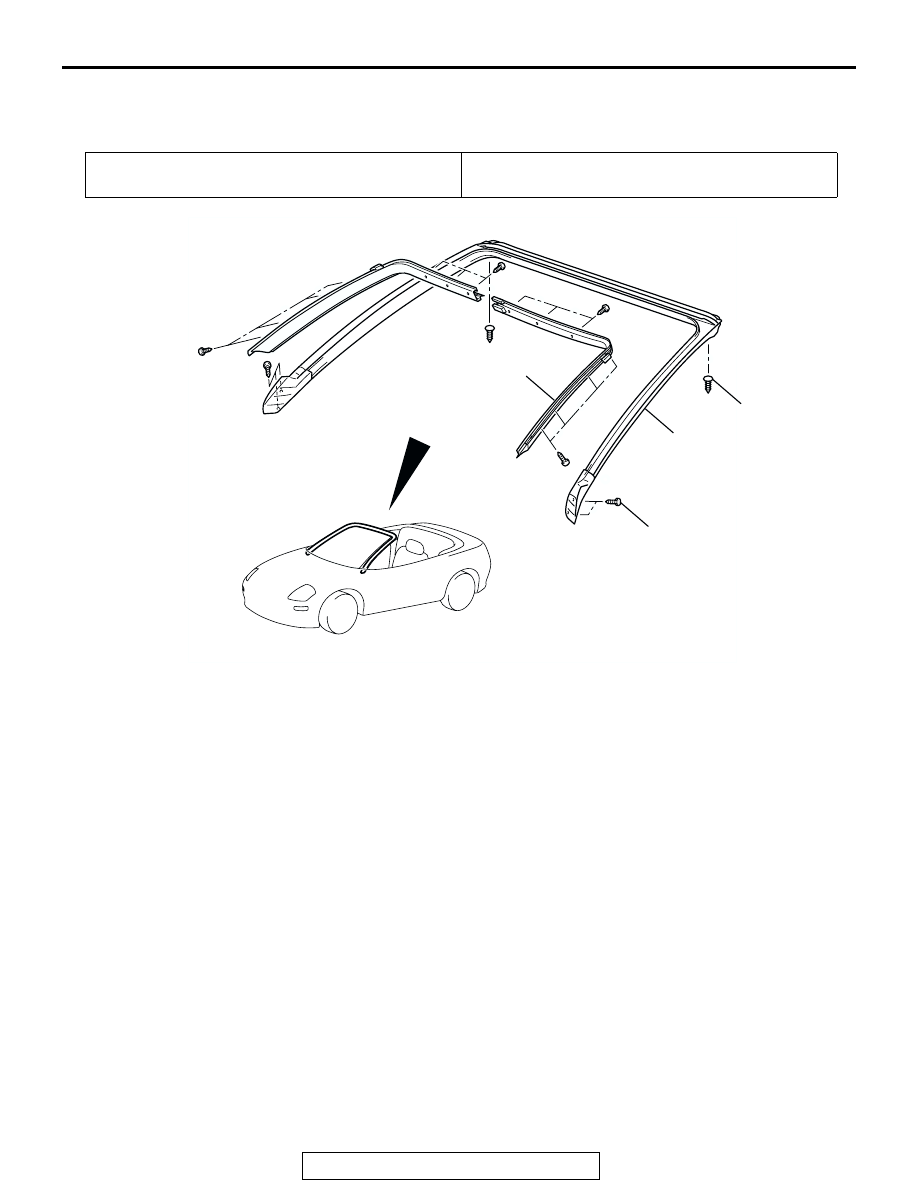

FRONT ROOF WEATHERSTRIP

REMOVAL AND INSTALLATION

M1426202000044

Pre-removal Operation
• Completely Open the Convertible Top.

Post-installation Operation
• Convertible Top Fit Adjustment (Refer to

P.42-118

.)

AC004157 AB

2

1

1

3

REMOVAL STEPS
• TOPSTACK LATCH RECEIVER

(REFER TO

P.42-122

.)

1. CLIP

2. FRONT ROOF WEATHERSTRIP
3. FRONT ROOF WEATHERSTRIP

HOLDER

REMOVAL STEPS (Continued)

CONVERTIBLE TOP

TSB Revision

BODY

42-143

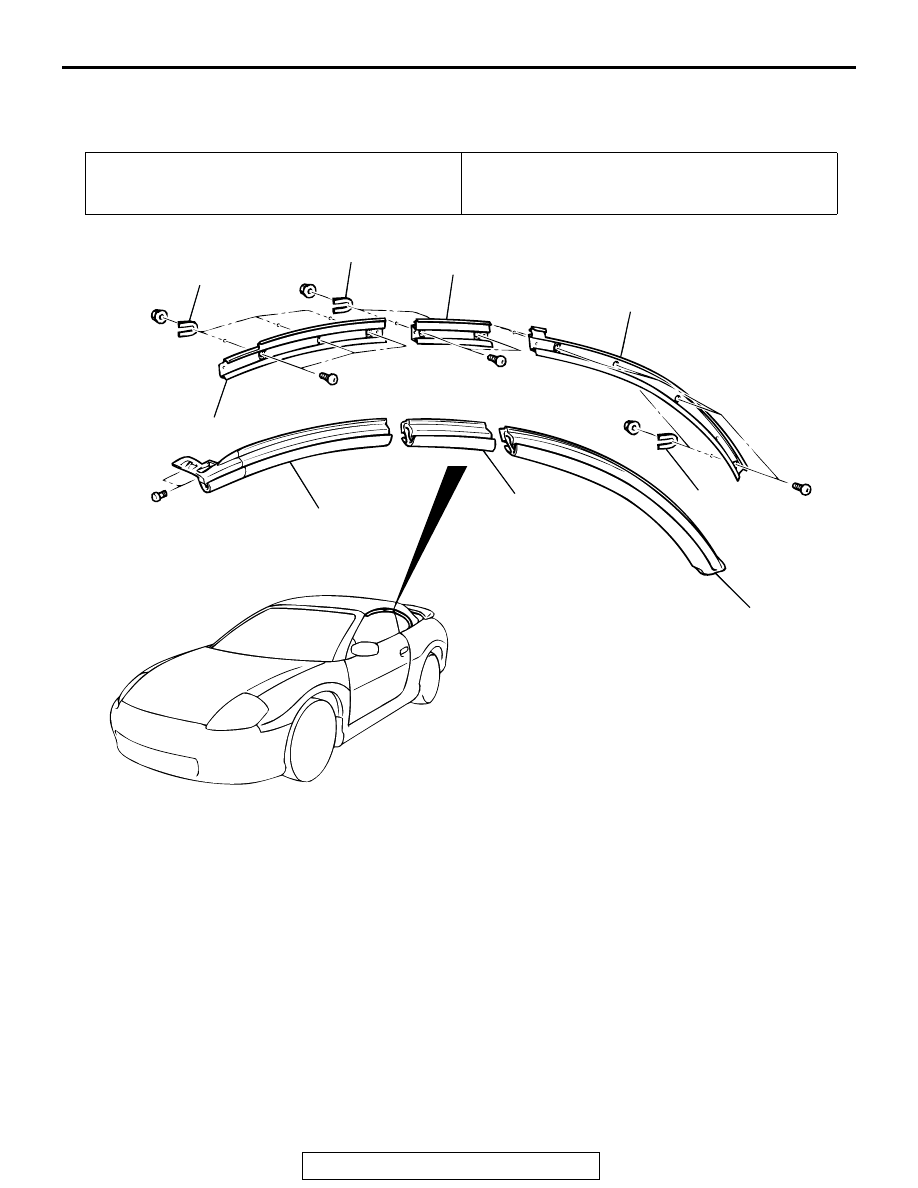

TOPSTACK RAIL WEATHERSTRIP

REMOVAL AND INSTALLATION

M1426208600033

Pre-removal Operation
• Completely Open the Convertible Top.

• Completely Down the Quarter Window Glass.

Post-installation Operation
• Convertible Top Fit Adjustment (Refer to

P.42-118

.)

AC004158 AB

2

4

1

3

7

6

5

8

9

REMOVAL STEPS
1. TOPSTACK FRONT RAIL

WEATHERSTRIP

2. TOPSTACK FRONT RAIL

WEATHERSTRIP HOLDER

3. SHIM
4. TOPSTACK CENTER RAIL

WEATHERSTRIP

5. TOPSTACK CENTER RAIL

WEATHERSTRIP

6. SHIM
7. TOPSTACK REAR RAIL

WEATHERSTRIP

8. TOPSTACK REAR RAIL

WEATHERSTRIP HOLDER

9. SHIM

REMOVAL STEPS (Continued)

CONVERTIBLE TOP

TSB Revision

BODY

42-144

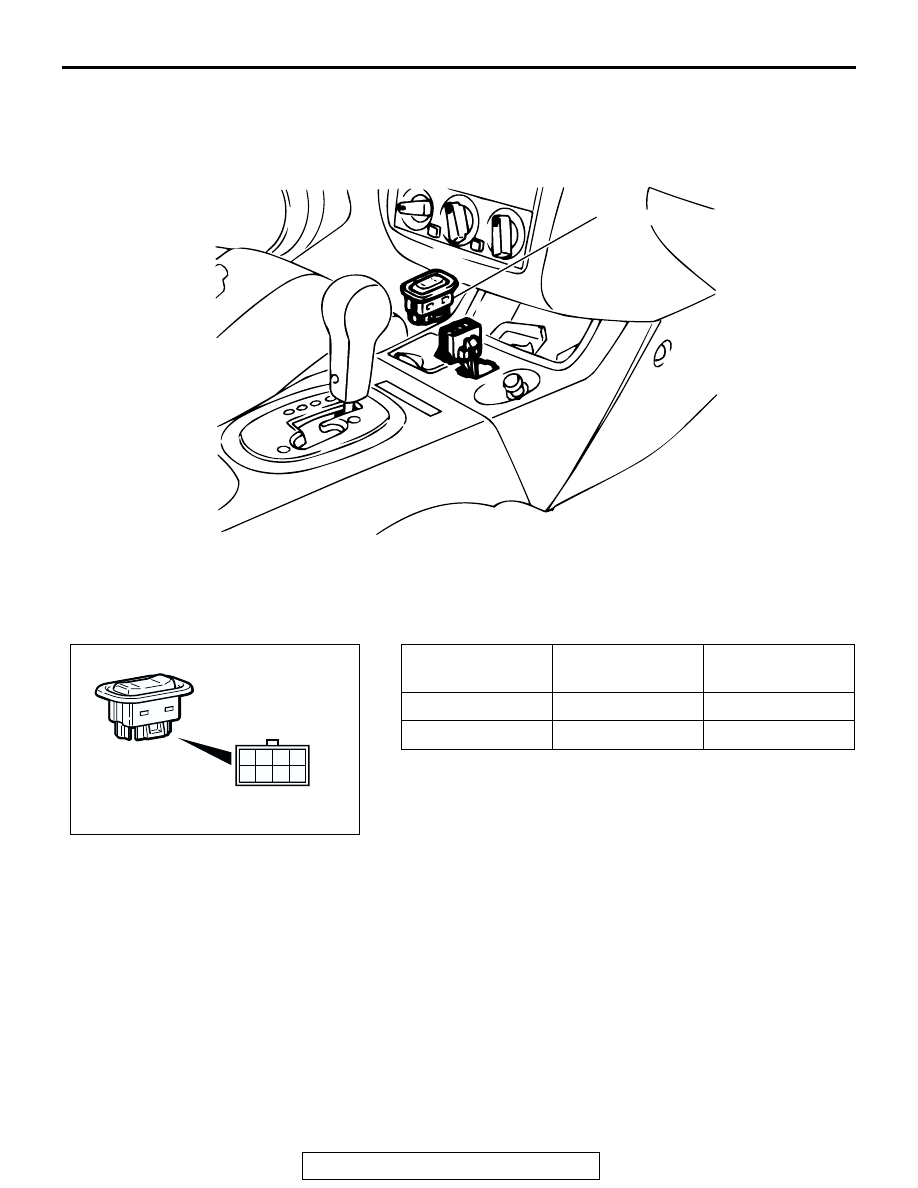

CONVERTIBLE TOP SWITCH

REMOVAL AND INSTALLATION

M1426202400042

INSPECTION

M1421007600514

CONVERTIBLE TOP SWITCH CHECK

AC004159 AB

CONVERTIBLE TOP SWITCH

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

CLOSE

4

− 7

Less than 2 ohm

OPEN

5

− 7

Less than 2 ohm

1

2

3

4

5

6

7

8

AC004160
