CONVERTIBLE TOP

TSB Revision

BODY

42-137

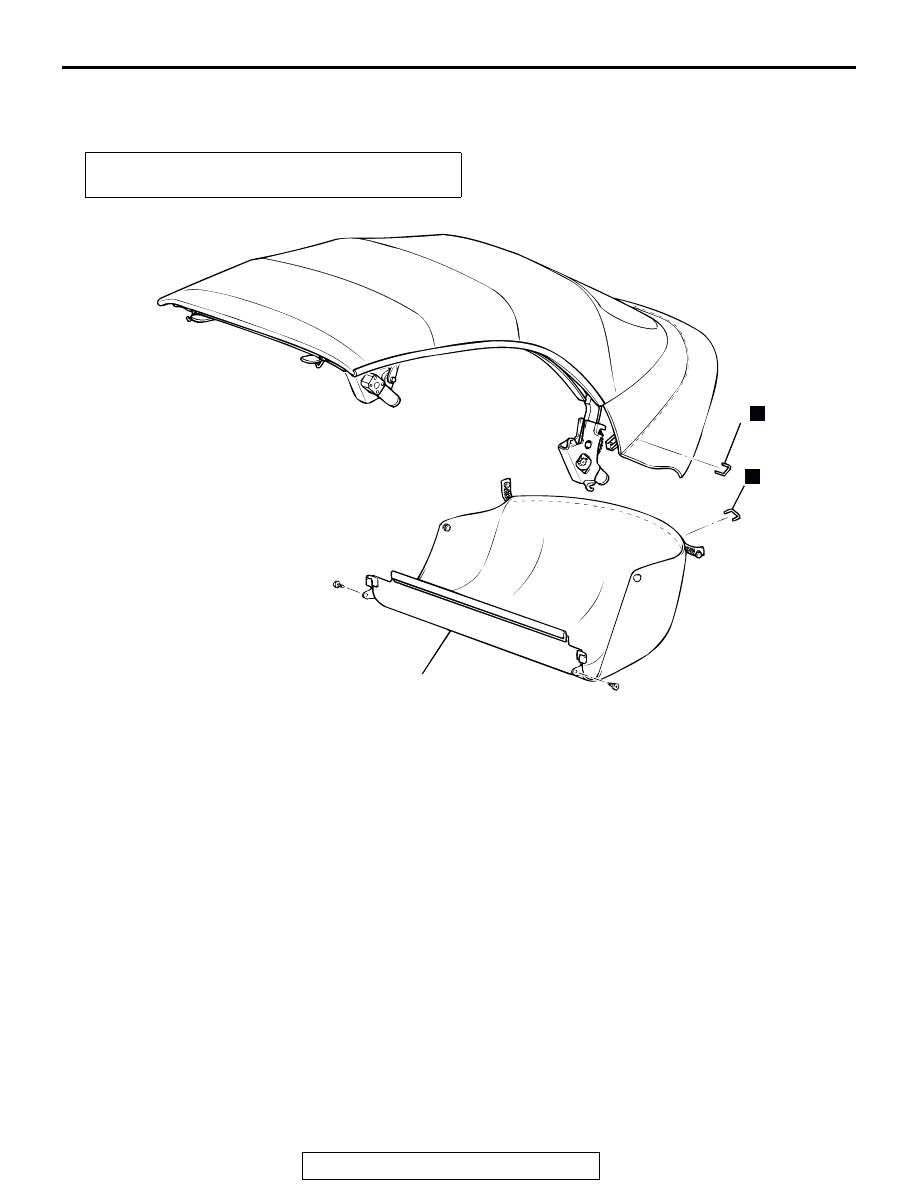

TOPSTACK WELL

REMOVAL AND INSTALLATION

M1426204500045

Post-installation Operation
• Convertible Top Fit Adjustment (Refer to

P.42-118

.)

AC004143AB

N

2

1

N

REMOVAL STEPS
• CONVERTIBLE TOP ASSEMBLY

(REFER TO

P.42-119

.)

1. TOPSTACK WELL TO NO.5 BOW

CONNECTION

2. TOPSTACK WELL

REMOVAL STEPS (Continued)

CONVERTIBLE TOP

TSB Revision

BODY

42-138

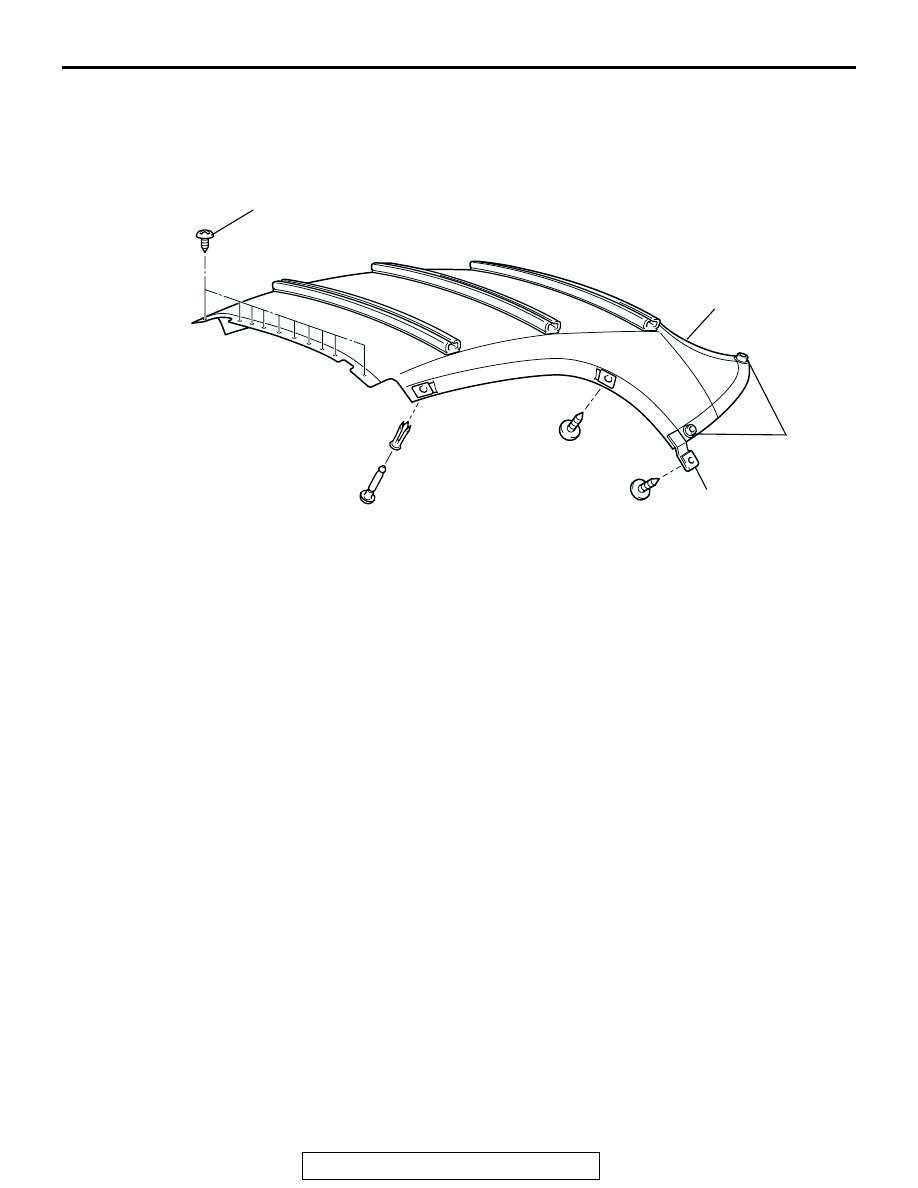

HEADLINER

REMOVAL AND INSTALLATION

M1426201500046

AC004144 AB

2

1

3

4

REMOVAL STEPS
• NO.1 BOW GARNISH (REFER TO

P.42-123

.)

1. SCREW

2. SNAPS
3. HEADLINER ATTACHING STRAP
4. HEADLINER

CONVERTIBLE TOP

TSB Revision

BODY

42-139

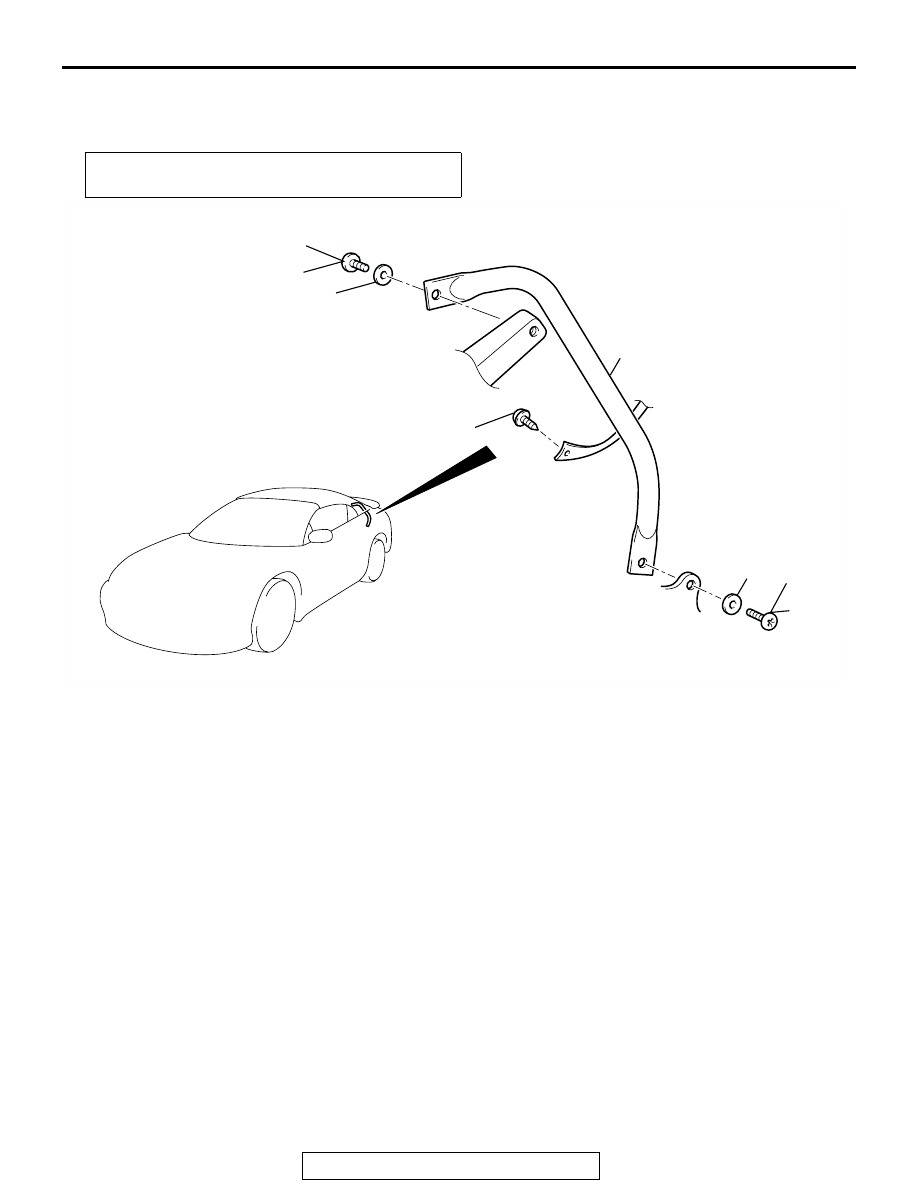

BALANCE LINK

REMOVAL AND INSTALLATION

M1426202200048

Post-installation Operation
• Convertible Top Fit Adjustment (Refer to

P.42-118

.)

AC004146 AB

29 ± 3 N·m
22 ± 2 ft-lb

4

5

6

1

3

2

29 ± 3 N·m
22 ± 2 ft-lb

REMOVAL STEPS
• QUARTER TRIM (REFER TO

GROUP 52A

− TRIMS

P.52A-8

.)

1. SCREW
2. BOLT

3. WASHER
4. BOLT
5. WASHER
6. BALANCE LINK

REMOVAL STEPS (Continued)

CONVERTIBLE TOP

TSB Revision

BODY

42-140

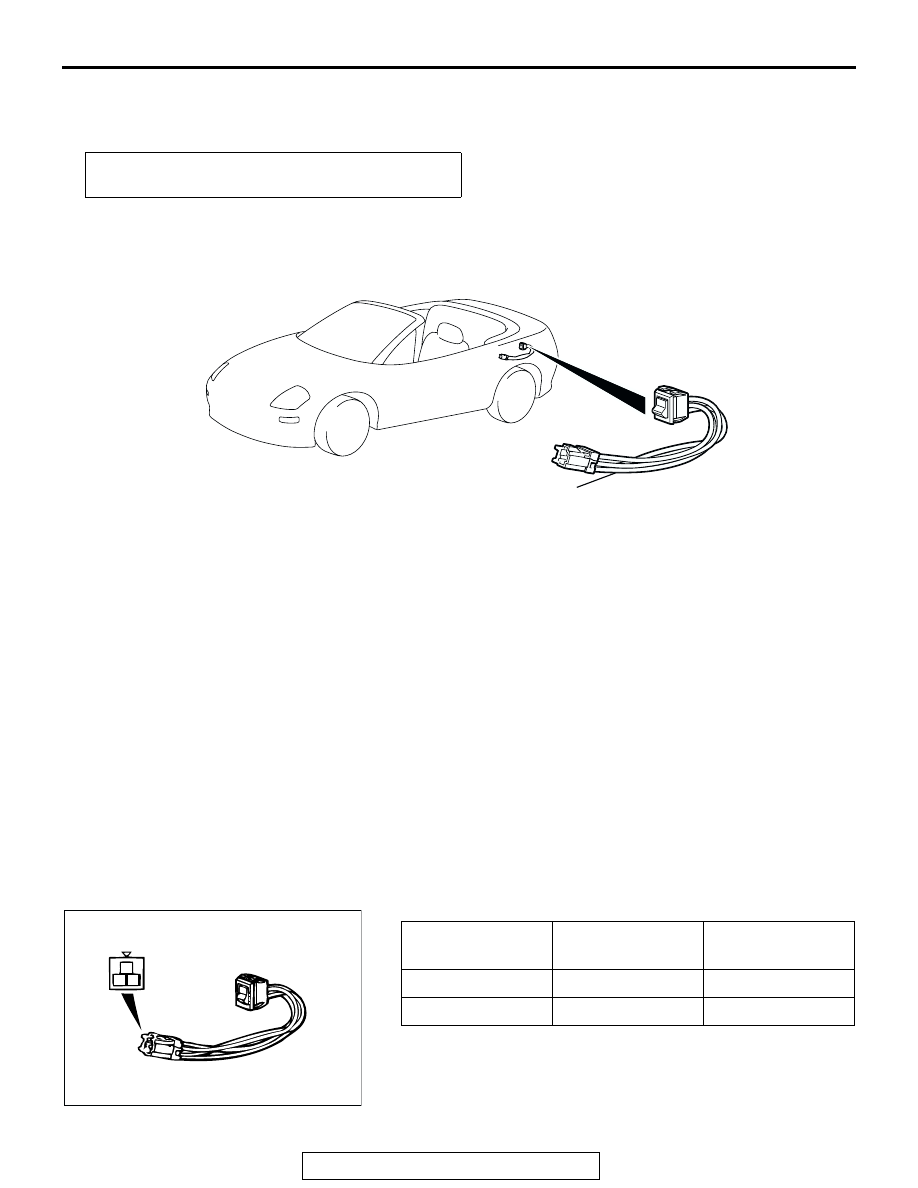

CONVERTIBLE TOP BYPASS SWITCH

REMOVAL AND INSTALLATION

M1426202700043

REMOVAL SERVICE POINT

.

<<A>> CONVERTIBLE TOP BYPASS SWITCH REMOVAL
1. Depress lower clips.
2. While holding lower clip, push the lower front of the switch

past the lower clip [approximately 5 mm (0.2 inch)].

3. Depress upper clip.
4. While holding upper clip, jiggle and slide switch out.

INSPECTION

M1421007600503

CONVERTIBLE TOP BYPASS SWITCH  CHECK

Post-installation Operation
• Convertible Top Fit Adjustment (Refer to

P.42-118

.)

AC004153AB

1

REMOVAL STEPS
• TRUNK ROOM TRIM (REFER TO

GROUP 52A

− TRIMS

P.52A-8

.)

<<A>>

1. CONVERTIBLE TOP BYPASS

SWITCH

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

1

− 2 − 3

Less than 2 ohm

MANUAL

1

− 2 − 3

Open circuit

AC106876

1

2 3
