DOOR DIAGNOSIS

M1423000700323

The central door locking system is controlled by the
Simplified by the Simplified Wiring System (SWS).
Refer to GROUP 54B, Diagnosis for troubleshooting

P.54B-19

INTRODUCTION TO GLASS AND DOOR DIAGNOSIS

M1423007300081

Glass and door faults include water leaks and
improper opening and closing. Causes for these
faults can include faults in the glass, weatherstrip,
drain hole, waterproof film or door installation.

GLASS AND DOOR DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1423006700086

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
glass and door fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1423007000109

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Water Leak through Door Window Glass

DIAGNOSIS

STEP 1. Check the door window glass
installation.

Q: Is the door window glass installed correctly?

YES :

Go to Step 2.

NO :

Adjust it. (Refer to

P.42-47

.) Then go to

Step 3.

STEP 2. Check the clearance at the top of the
window glass.

Q: Is the clearance at the top of the window glass

correct?
YES :

Go to Step 3.

NO :

Adjust it. (Refer to

P.42-47

.) Then go to

Step 3.

SYMPTOMS

INSPECTION PROCEDURE REFERENCE PAGE

Water leak through door window glass

P.42-41

Door window malfunction

P.42-42

Water leak through door edge

P.42-42

Water leak from door center

P.42-42

Door hard to open

P.42-43

Door does not open or close completely

P.42-43

Uneven gap between body

P.42-43

Wind noise around door

P.42-44

DOOR

TSB Revision

BODY

42-42

STEP 3. Check symptoms.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

INSPECTION PROCEDURE 2: Door Window Malfunction

DIAGNOSIS

STEP 1. Check the door window installation
condition.

Q: Is the door window installation condition good?

YES :

Go to Step 2.

NO :

Adjust it. (Refer to

P.42-47

.) Then go to

Step 4.

STEP 2. Check the door sash.

Q: Is the door sash in good condition?

YES :

Go to Step 3.

NO :

Repair or replace it, then go to Step 4.

STEP 3. Inspect the window regulator assembly.

Q: Is the window regulator assembly in good

condition?
YES :

Go to Step 4.

NO :

Repair or replace it, then go to Step 4.

STEP 4. Check symptoms.

Q: Does the door window operate correctly?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Water Leak through Door Edge

DIAGNOSIS

STEP 1. Check the weatherstrip.

Q: Is the weatherstrip in good condition?

YES :

Go to Step 2.

NO :

Replace it, then go to Step 3.

STEP 2. Check door fit (alignment).

Q: Is the door fit (alignment) correct?

YES :

Go to Step 3.

NO :

Adjust it. (Refer to

P.42-46

.) Then go to

Step 3.

STEP 3. Check symptoms.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

INSPECTION PROCEDURE 4: Water Leak through Door Center

DIAGNOSIS

STEP 1. Check the drain hole.

Q: Is the drain hole clogged?

YES :

Replace it, then go to Step 3.

NO :

Go to Step 2.

STEP 2. Check the waterproof film.

Q: Is the waterproof film in good condition?

YES :

Go to Step 3.

NO :

Repair or replace it, then go to Step 3.

DOOR

TSB Revision

BODY

42-43

STEP 3. Check symptoms.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

INSPECTION PROCEDURE 5: Door Hard to Open

DIAGNOSIS

STEP 1. Adjust the latch and striker engagement.
(Refer to

P.42-46

Q: Is the latch and striker engagement adjusted?

YES :

Go to Step 2.

NO :

Adjust it. (Refer to

P.42-46

.) Then go to

Step 4.

STEP 2. Check for possible lock rod damage.

Q: Is the possible lock rod damaged?

YES :

Repair or replace it, then go to Step 4.

NO :

Go to Step 3.

STEP 3. Check door handle flexibility (amount of
movement of handle required to open door).

Q: Is the door handle flexibility good?

YES :

Go to Step 4.

NO :

Adjust it. (Refer to

P.42-52

and

P.42-52

Then go to Step 4.

STEP 4. Check symptoms.

Q: Does the door open easily?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 6: Door does Open or Close Completely

DIAGNOSIS

STEP 1. Check the door hinge position.

Q: Is the door hinge position correct?

YES :

Go to Step 2.

NO :

Adjust it. (Refer to

P.42-46

.) Then go to

Step 4.

STEP 2. Check the door.

Q: Is the door in good condition?

YES :

Go to Step 3.

NO :

Repair or replace it, then go to Step 4.

STEP 3. Check the grease.

Q: Is the door check or door hinge grease sufficient?

YES :

Go to Step 4.

NO :

Apply the grease, then go to Step 4.

STEP 4. Check symptoms.

Q: Does the door open and close correctly?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 7: Uneven Gap between Body

DIAGNOSIS
Adjust the door fit. (Refer to

P.42-47

.) Then check

that the gap has been improved.

DOOR

TSB Revision

BODY

42-44

INSPECTION PROCEDURE 8: Wind Noise around Door

DIAGNOSIS

STEP 1. Check the weatherstrip for holding
condition.

Q: Is the weatherstrip installed properly?

YES :

Go to Step 2.

NO :

Repair or replace it. Then go to Step 5.

STEP 2. Check the weatherstrip for installation
condition.

Q: Is the weatherstrip installed properly?

YES :

Go to Step 3.

NO :

Repair or replace it. Then go to Step 5.

STEP 3. Check the clearance.

Q: Is the clearance between the door glass and the

door weatherstrip holder proper?
YES :

Go to Step 4.

NO :

Adjust it. (Refer to

P.42-47

.) Then go to

Step 5.

STEP 4. Check the door.

Q: Is the door deformed?

YES :

Repair or replace it. Then go to Step 5.

NO :

Go to Step 5.

STEP 5. Check symptoms.

Q: Has the wind noise been improved?

YES :

Return to Step 1.

NO :

This diagnosis complete.

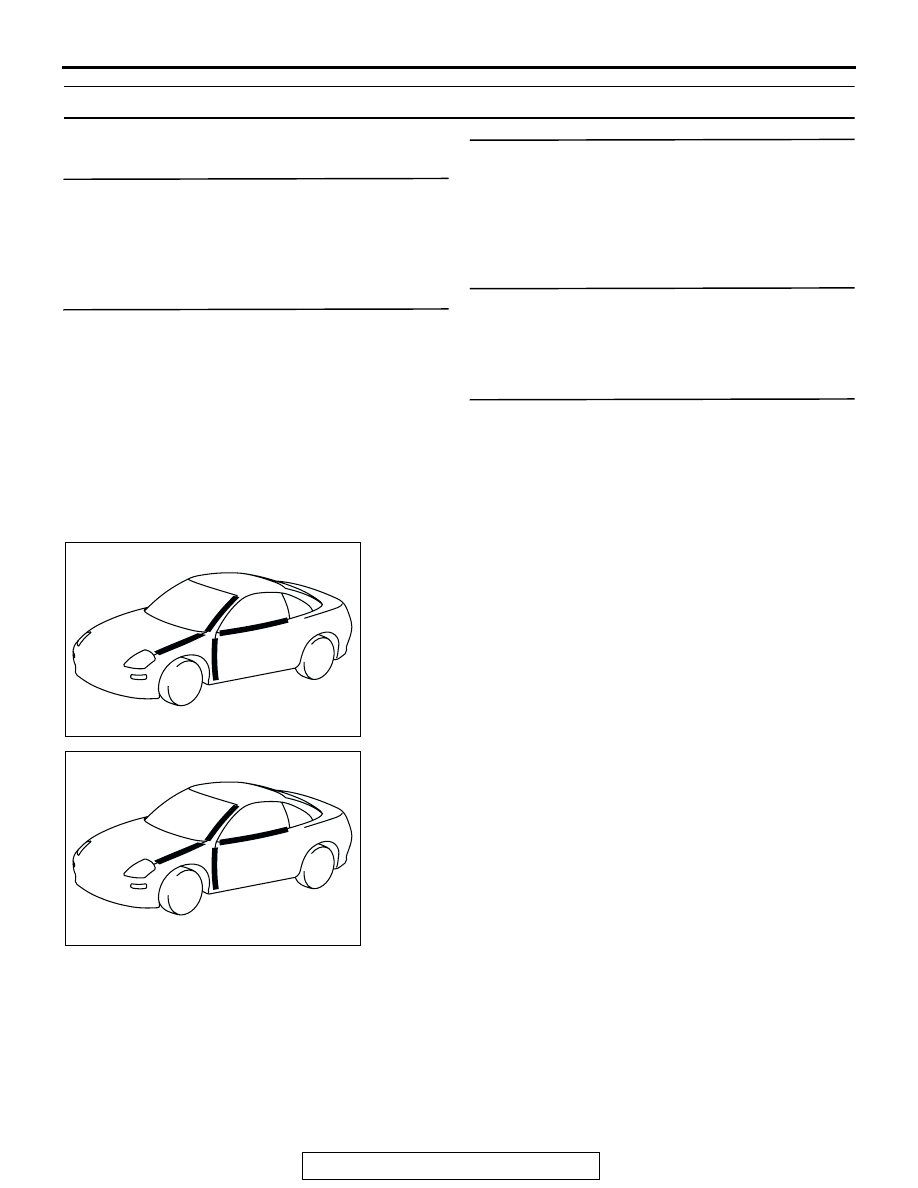

HOW TO LOCATE WIND NOISES

M1421004200067

1. Attach cloth tape to every place, such as panel seams,

projections, molding seams, glass and body seams, etc.
which might conceivably be the source of wind noise.

2. Then make a road test to check that the places not covered

by tape are not sources of wind noise.

3. Remove the strips of tape one by one, making a road test

after each is removed, until a wind noise source is
discovered.
