QUARTER WINDOW GLASS AND REGULATOR ASSEMBLY

TSB Revision

BODY

42-37

STEP 3. Check the power window main switch continuity.
(1) Exchange the power window main switch with one in good

condition to check that the quarter window glass operates
properly. (Refer to

P.42-54

(2) If normal operates can not be seen, replace the convertible

top control module. (Refer to

P.42-145

Q: Is the power window main switch damaged?

YES : Replace it, then go to Step 4.
NO : Go to Step 4.

STEP 4. Check symptoms.
Q: Does the quarter windows open and close normally?

YES : This diagnosis is complete.
NO : Return to Step 1.

ON-VEHICLE SERVICE

QUARTER WINDOW GLASS ADJUSTMENT

M1422005800054

1. Remove the quarter lower trim. (Refer to GROUP 52A

P.52A-8

2. Remove the topstack rear rail weatherstrip. (Refer to

P.42-143

3. Loosen the bolts and nuts of the following parts.

• Quarter window regulator assembly

• Glass carrier plate

• Up-stop

4. Tighten the glass carrier plate mounting nuts so that the gap

between the quarter window glass and topstack rear rail
weatherstrip holder meets the value shown.

5. Using the quarter window regulator assembly adjusting bolt,

adjust so that the gap between the quarter window glass
and topstack rear rail weatherstrip holder meets the value
shown.

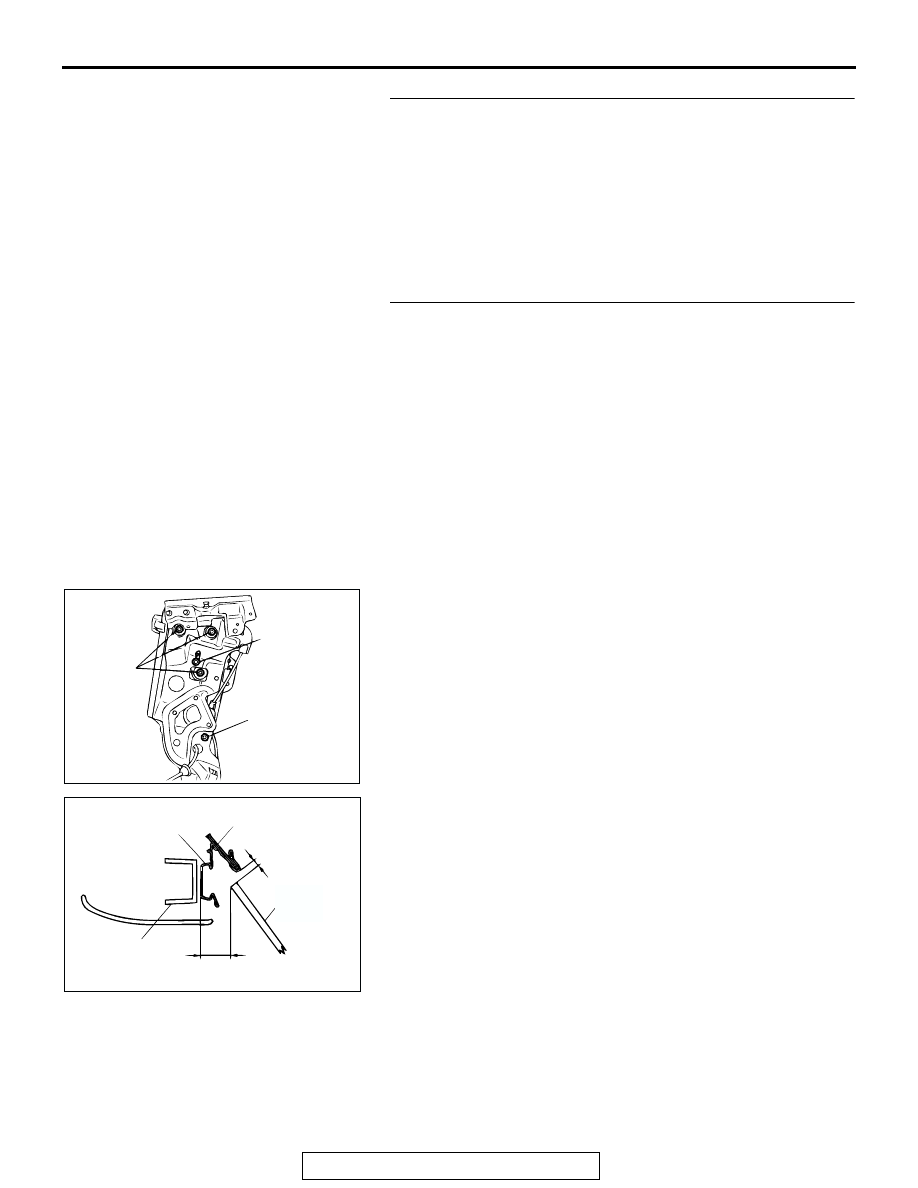

AC003341AB

GLASS
CARRIER
PLATE
MOUNTING
NUTS

UP-STOP
BOLT

QUARTER
WINDOW
REGULATOR
ASSEMBLY
ADJUSTING
BOLT

AC003342

REAR RAIL
WEATHERSTRIP
HOLDER

TOP COVER

REAR RAIL

5 mm (0.20 in)

QUARTER
WINDOW
GLASS

20 mm (0.80 in)

QUARTER WINDOW GLASS AND REGULATOR ASSEMBLY

TSB Revision

BODY

42-38

6. Press the up-stop against the quarter window glass stop,

and then tighten the up-stop bolt.

7. Lock the adjusting bolt with a nut.

CAUTION

Ensure that the weatherstrip is not wrinkled or out of posi-
tion.
8. Install the topstack rear rail weatherstrip. (Refer to

P.42-143

9. Install the quarter lower trim. (Refer to GROUP 52A

P.52A-8

10.Check the quarter window glass alignment according to the

following procedure.

(1) The upper end of the front door glass and the quarter

window glass should be positioned so that standard value
(a) is met.

Standard value (a): 1.0

± 1.0 mm (0.04 ± 0.04 inches)

(2) The front door glass and the quarter window glass should

be positioned to meet standard value (c) so that gap in
their upper end lines is smooth.

Standard value (c): 3.0

± 1.0 mm (0.12 ± 0.04 inches)

(3) The end line of the front door glass and the front line of

the quarter window glass should be parallel in the interval
of standard value (b).

Standard value (b): 8.7 mm (0.34 inches)

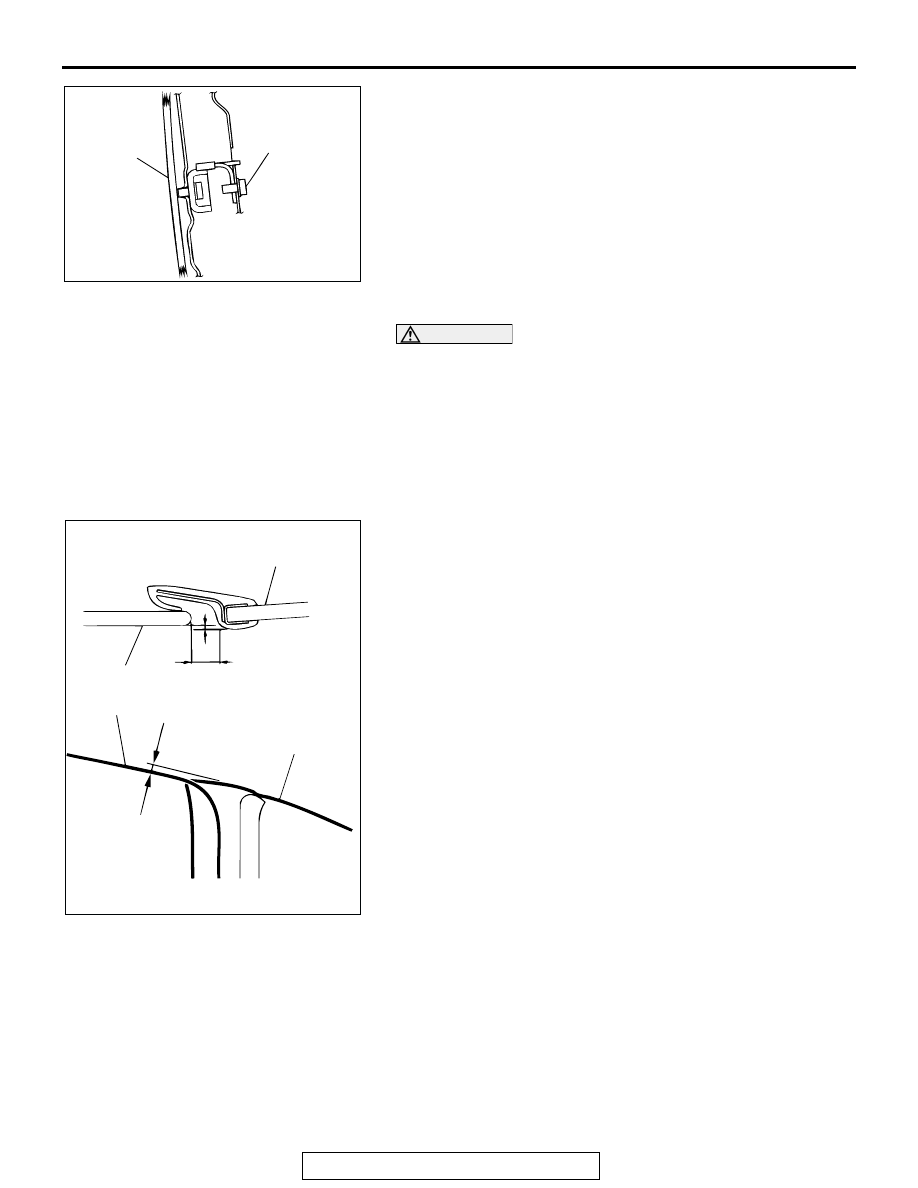

AC003343AB

QUARTER
WINDOW
GLASS

UP-STOP BOLT

AC003344

QUARTER WINDOW GLASS

FRONT DOOR
GLASS

QUARTER WINDOW
GLASS

QUARTER WINDOW GLASS AND REGULATOR ASSEMBLY

TSB Revision

BODY

42-39

QUARTER WINDOW GLASS AND REGULATOR ASSEMBLY

REMOVAL AND INSTALLATION

M1422006000040

REMOVAL SERVICE POINTS

<<A>> QUARTER WINDOW GLASS REMOVAL
1. Completely raise the quarter window.
2. Remove the quarter window

<<B>> QUARTER WINDOW REGULATOR ASSEMBLY
REMOVAL
Disconnect regulator motor connector, remove the quarter win-
dow regulator assembly.

Post-installation Operation
• Quarter Window Glass Adjustment (Refer to

P.42-37

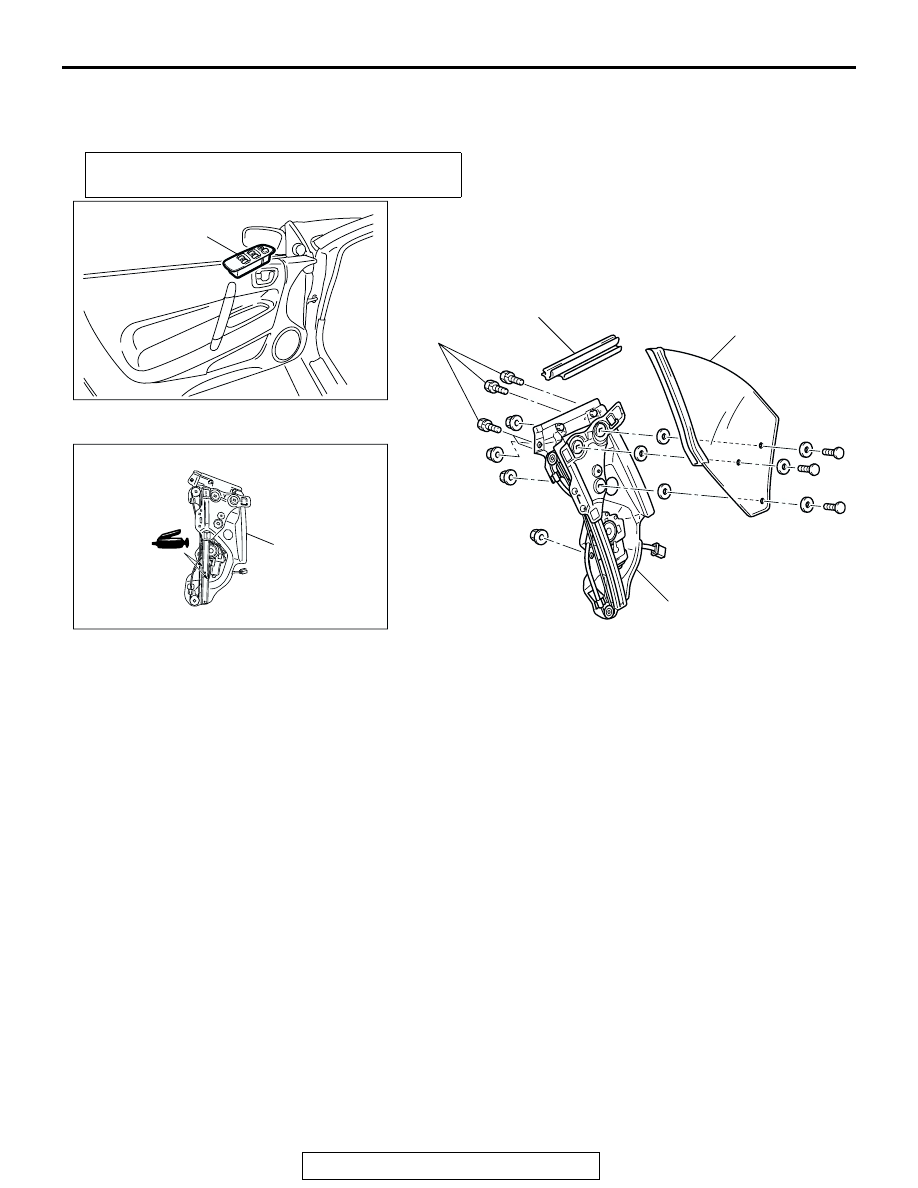

AC003345AB

8 ± 1.5 N·m

71 ± 13 in-lb

POWER WINDOW MAIN SWITCH
SWITCH REMOVAL STEPS
1. POWER WINDOW MAIN SWITCH

(REFER TO

P.42-53

QUARTER WINDOW GLASS
REMOVAL STEPS
• REAR SPEAKER GARNISH (REFER

TO GROUP 52A

P.52A-8

• QUARTER BELT MOLDING (REFER

TO GROUP 51

P.51-9

<<A>>

2. QUARTER WINDOW GLASS

QUARTER WINDOW REGULATOR
ASSEMBLY REMOVAL STEPS

<<A>>

2. QUARTER WINDOW GLASS
• QUARTER TRIM (REFER TO

GROUP 52A

P.52A-8

• REAR SPEAKER (REFER TO

GROUP 54A

P.54A-226

3. QUARTER WINDOW INNER

BELTLINE MOLDING

<<B>>

4. QUARTER WINDOW REGULATOR

ASSEMBLY

DOOR

TSB Revision

BODY

42-40

INSPECTION

M1421007600451

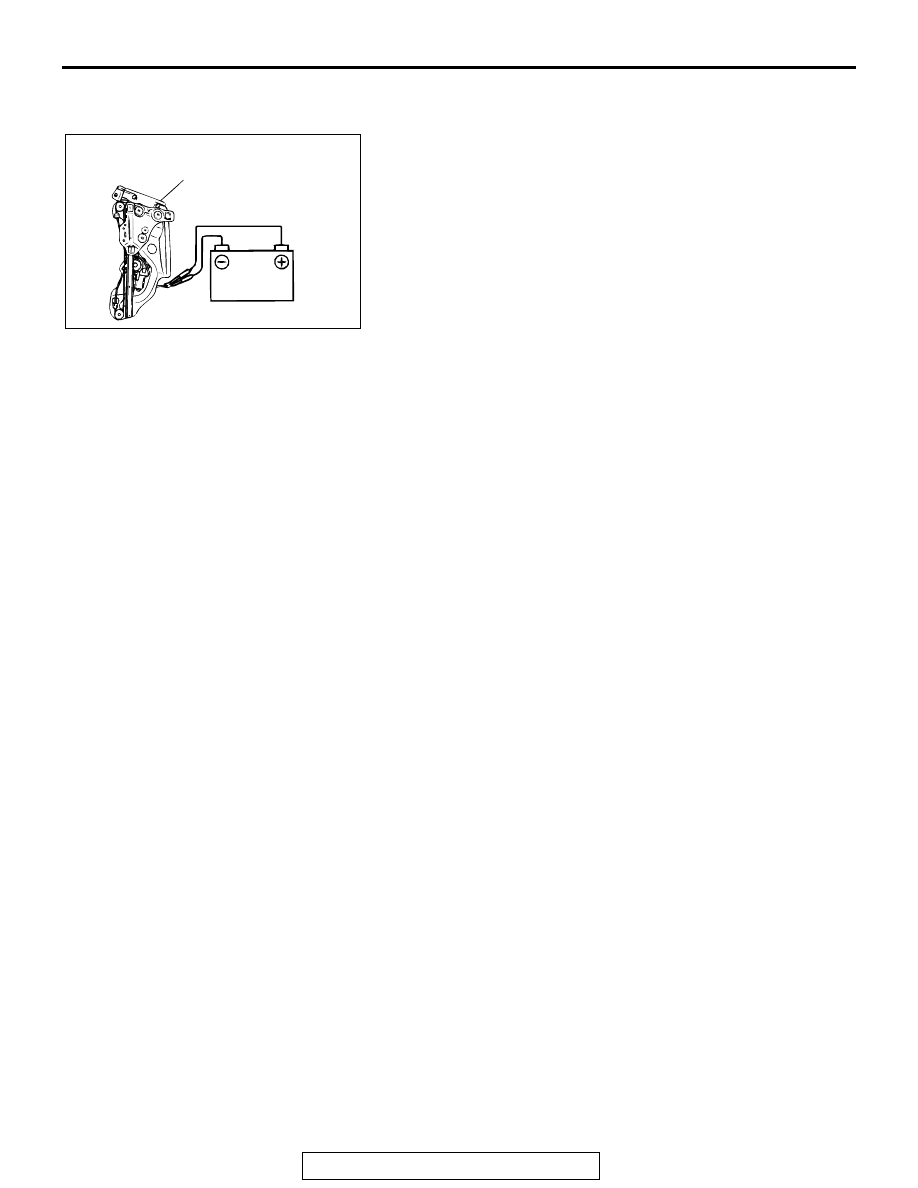

QUARTER WINDOW REGULATOR MOTOR CHECK
Check that motor runs smoothly when the battery is connected
directly to the motor terminals.
Furthermore, check that the motor operates in reverse when
the terminal connections are switched.

DOOR

GENERAL DESCRIPTION

M1423000100257

OPERATION

CENTRAL DOOR LOCKING SYSTEM
The central door locking system operates the door
lock actuator to lock or unlock the doors using the
operation of the door lock switch or key built into the
driver's side inside door lock knob and power window
(main or sub) switch.The system has the following
operations and features:

• All doors can be locked or unlocked using the

door (LH or RH <vehicles without keyless entry
system>) key cylinder key operation.

• All doors can be locked using the driver's inside

door lock knob.

• All doors can be locked using the door lock

switch built into the power window (main or sub)
switch.

• You cannot lock an open door if the key is in the

ignition switch. The key reminder function auto-
matically unlocks all doors when the door is
locked.

POWER WINDOWS
Power windows are used in all vehicles. When the
power window (main or sub) switch is operated, the
door windows will open or close. This system has the
following operations and features:

• When the power window main switch lock/unlock

switch is locked, the door windows can only be
opened or closed by the power window main
switch on the driver's door.

• When all doors are closed and the ignition is

turned off, the power windows can be operated
for 30 seconds from the time the ignition is turned
off.

• The power window main switch contains a

one-touch down switch that will automatically fully
open driver's side door window only.

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

M1427000700228

The central door locking system is controlled by the
Simplified Wiring System (SWS). For troubleshoot-
ing, refer to GROUP 54B, Diagnosis

P.54B-6

POWER WINDOW DIAGNOSIS

M1429000700235

The power window is controlled by the Simplified
Wiring System (SWS). For troubleshooting, refer to
GROUP 54B, Diagnosis

P.54B-6

AC003346

QUARTER WINDOW

REGULATOR ASSEMBLY
