TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-39

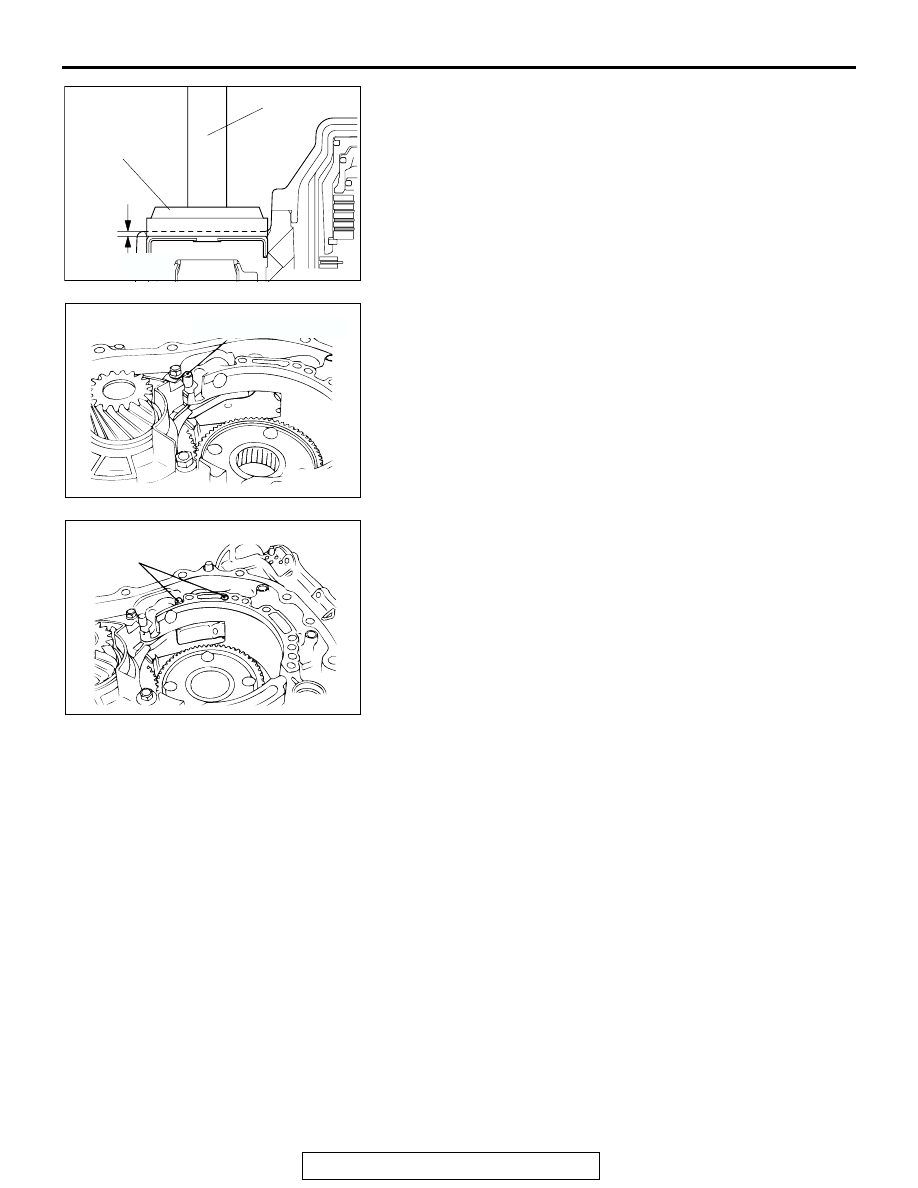

31.Use special tools MB990931 and MB990938 to install the

cap as shown in the illustration.

32.Install the parking pawl, spacer, and spring. Then insert the

parking pawl shaft.

33.Install the parking roller support, and then insert the two

parking roller support shafts.

AKX01065

MB990938

MB990931

AB

2.5 - 3.0mm
(0.098 - 0.118in)

AKX01066AB

PARKING PAWL SHAFT

AKX01067

PARKING ROLLER
SUPPORT SHAFTS

AB

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-40

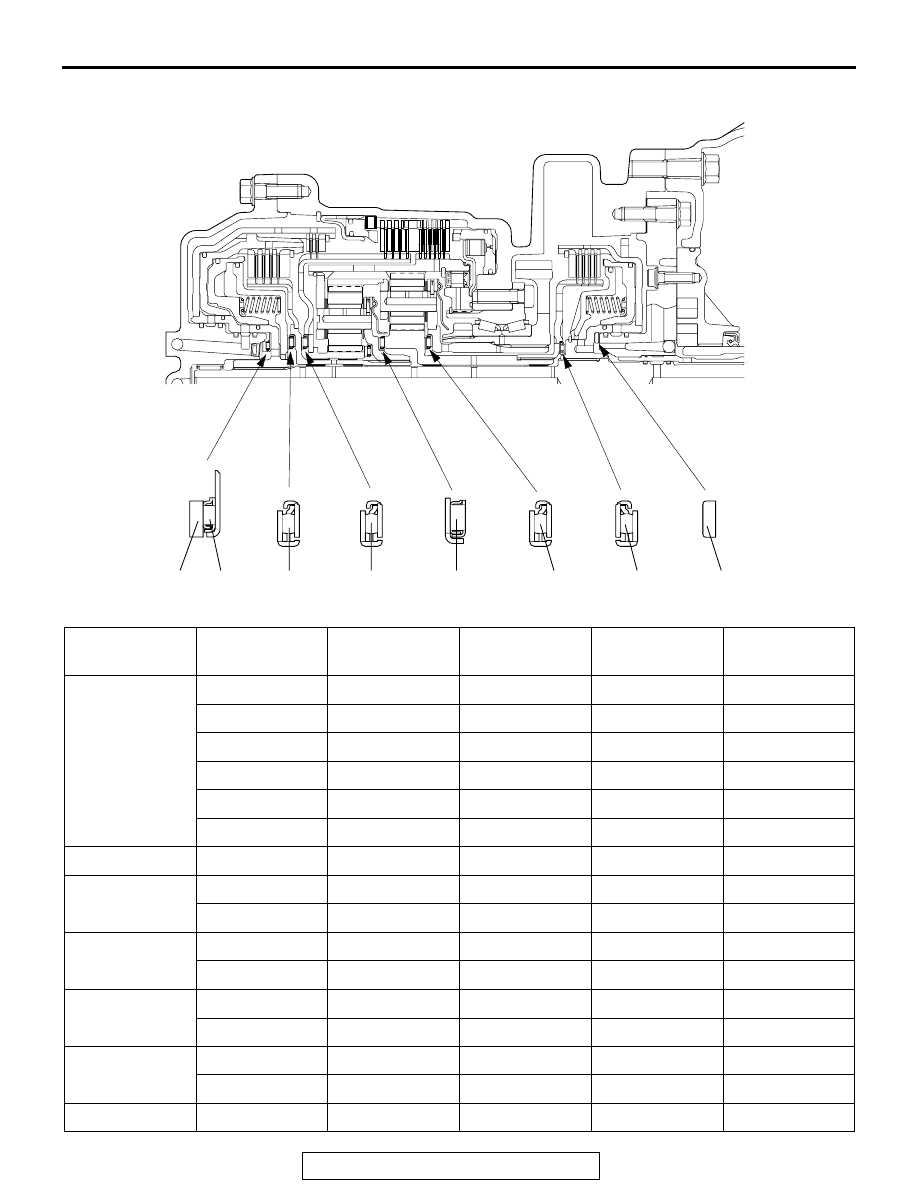

IDENTIFICATION OF THRUST BEARING, THRUST RACES, AND THRUST WASHERS

SYMBOL

OD mm (in)

ID mm (in)

THICKNESS
mm (in)

PART NO.

APPLICATION

No.1

59 (2.32)

47 (1.85)

1.8 (0.071)

MD754509

59 (2.32)

47 (1.85)

2.0 (0.079)

MD754508

59 (2.32)

47 (1.85)

2.2 (0.087)

MD754507

59 (2.32)

47 (1.85)

2.4 (0.094)

MD753793

59 (2.32)

47 (1.85)

2.6 (0.102)

MD753794

59 (2.32)

47 (1.85)

2.8 (0.110)

MD753795

No.2

49 (1.93)

34 (1.34)

3.6 (0.142)

MD756846

No.3

49 (1.93)

34 (1.34)

3.6 (0.142)

MD756846

F4A42

57 (2.24)

38.5 (1.516)

4.12 (0.1622)

MD758556

F4A51

No.4

45.3 (1.783)

31 (1.22)

3.3 (0.130)

MD757647

F4A42

55.4 (2.181)

38.5 (1.516)

3.3 (0.130)

MD761683

F4A51

No.5

49 (1.93)

34 (1.34)

3.6 (0.142)

MD756846

F4A42

57 (2.244)

38.5 (1.516)

4.1 (0.161)

MD758556

F4A51

No.6

49 (1.93)

34 (1.34)

3.6 (0.142)

MD756846

F4A42

57 (2.244)

38.5 (1.516)

4.1 (0.161)

MD758556

F4A51

No.7

59 (2.32)

37 (1.46)

2.8 (0.110)

MR305718

AKX01108

No. 8

No. 7

No. 6

No. 5

No. 4

No. 3

No. 2

No. 1

(SELECT)

(SELECT)

AB

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-41

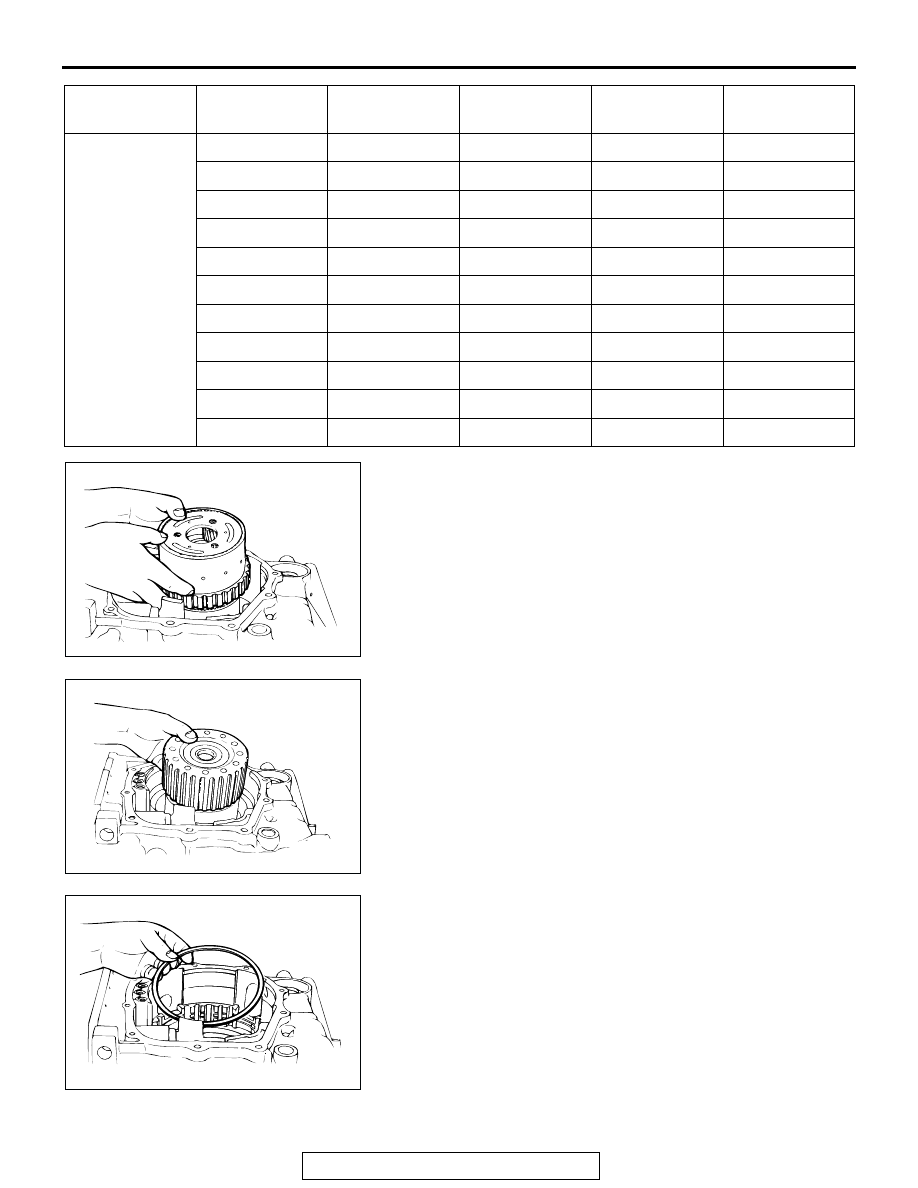

34.Install the planetary carrier assembly.

35.Install the planetary reverse sun gear.

36.Install the wave spring on the low-reverse brake piston.

No.8

48.9 (1.925)

37 (1.46)

1.6 (0.063)

MD707267

48.9 (1.925)

37 (1.46)

1.7 (0.067)

MD759681

48.9 (1.925)

37 (1.46)

1.8 (0.071)

MD723064

48.9 (1.925)

37 (1.46)

1.9 (0.075)

MD754794

48.9 (1.925)

37 (1.46)

2.0 (0.079)

MD707268

48.9 (1.925)

37 (1.46)

2.1 (0.083)

MD754795

48.9 (1.925)

37 (1.46)

2.2 (0.087)

MD723065

48.9 (1.925)

37 (1.46)

2.3 (0.091)

MD754796

48.9 (1.925)

37 (1.46)

2.4 (0.094)

MD724358

48.9 (1.925)

37 (1.46)

2.5 (0.098)

MD754797

48.9 (1.925)

37 (1.46)

2.6 (0.102)

MD754798

SYMBOL

OD mm (in)

ID mm (in)

THICKNESS
mm (in)

PART NO.

APPLICATION

AKX01018

AKX01014

AKX01023

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-42

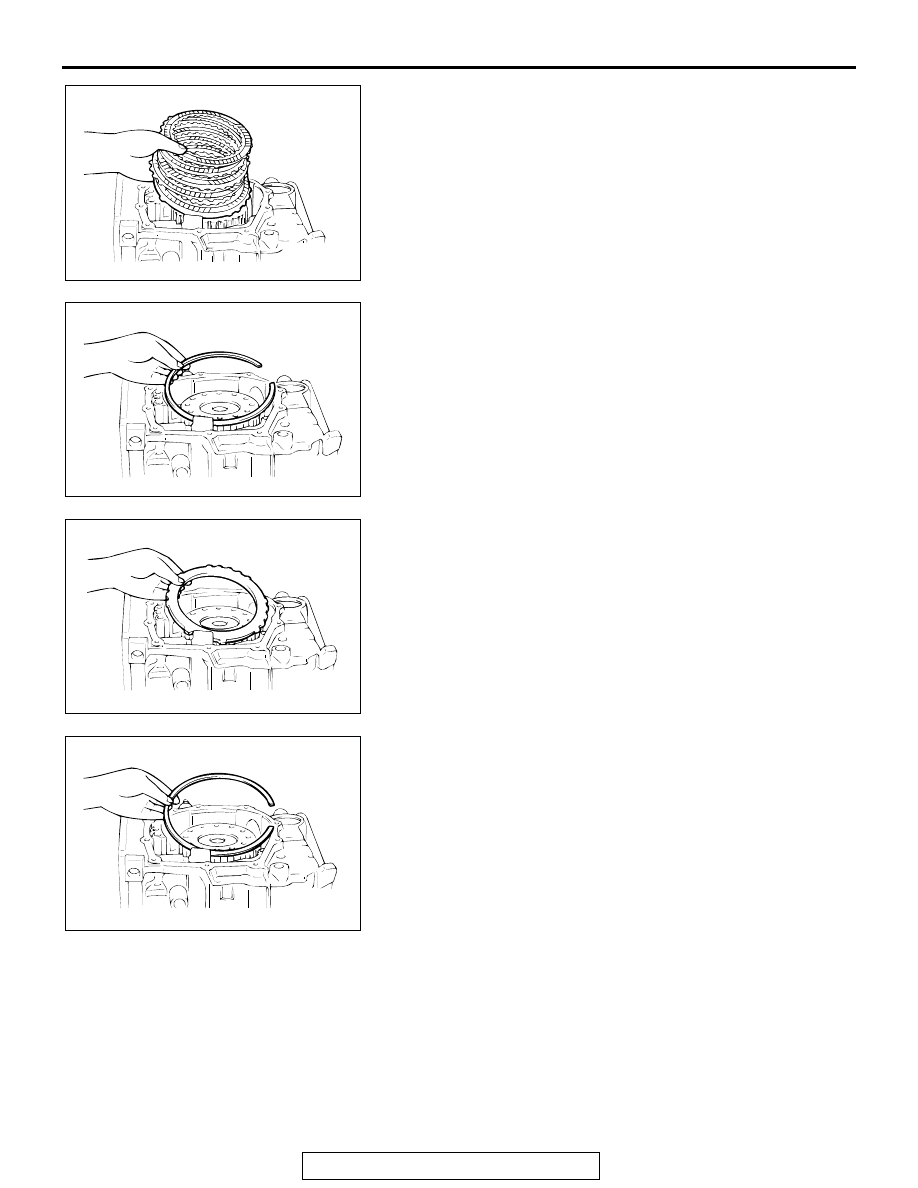

37.Install the pressure plate that was selected in step 19. Next,

install six brake discs and five brake plates, one on top of
the other.

38.Install the snap ring.

39.Install the reaction plate.

40.Install the snap ring that was selected in step 12.

AKX01083

AKX01095

AKX01070

AKX01096
