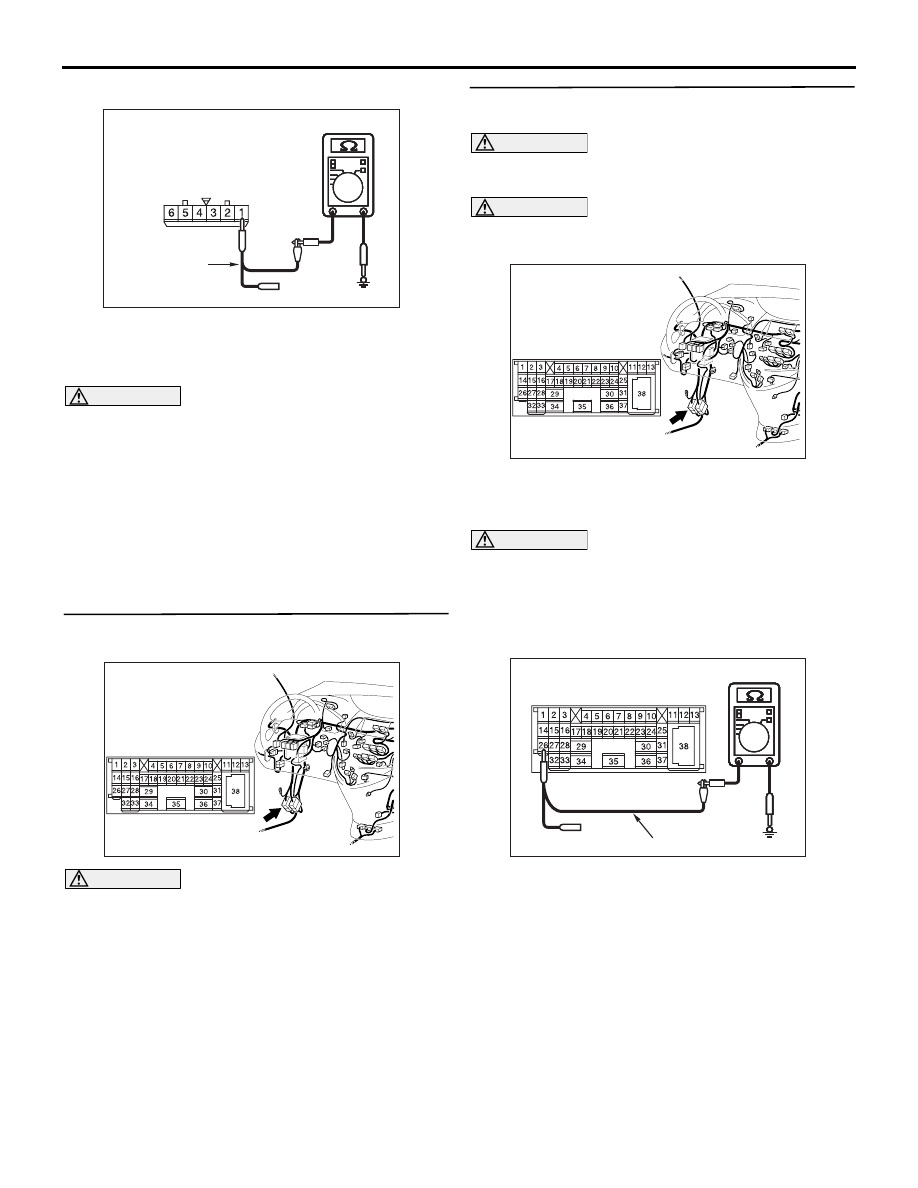

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-190

disconnected.

(3) Resistance between A-07 joint connector (CAN1)

terminal No.1 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 17,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-452

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN1) and the
intermediate connector.

STEP 28. Connector check: C-125 intermediate
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 29 .

NO :

Repair the defective connector.

STEP 29. Resistance measurement at the C-125
intermediate connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at its

male-side intermediate connector (at the front
wiring harness side).

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-125 intermediate

connector terminal No.26 and body earth

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 30.

NO :

<less than 1 k

Ω> Go to Step 45.

AC209364

AC209364

AC209364

AC209364

Harness side: A-07

AC209364LQ

Test
harness

AC310613

AD

Connector: C-125 <LHD>

AC310613

AD

Connector: C-125 <LHD>

AC209364

Male side: C-125

Test harness

AC209364

AC209364

AC209364

AC209364

AC209364LR

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-191

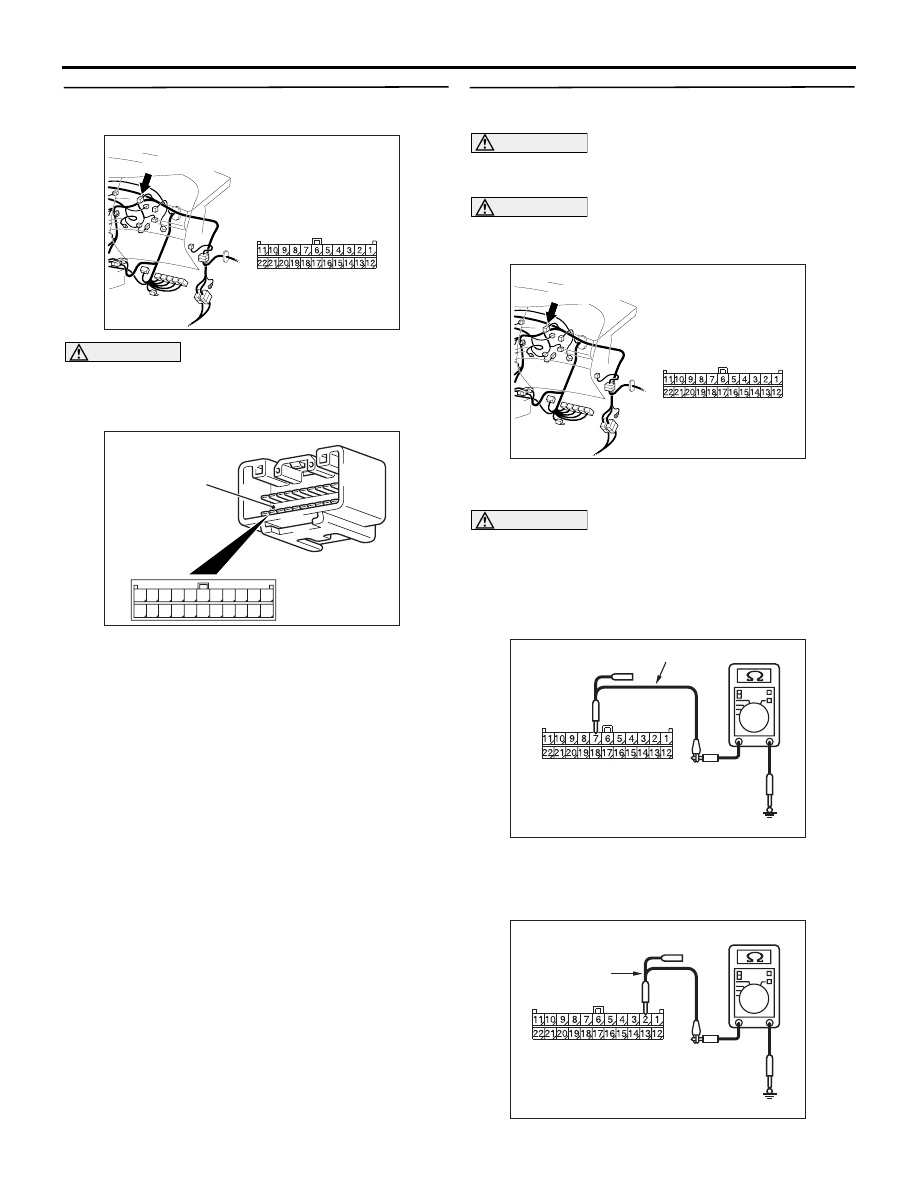

STEP 30. Connector check: C-09 joint connector
(CAN2)

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

When checking the joint connector, ensure that its
wiring harness side and its short pins are not
damaged.

Q: Is the check result normal?

YES :

Go to Step 31 .

NO :

Repair a defective connector or replace the
joint connector.

STEP 31. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at the

wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.7 and body earth

OK: 1 k

Ω or more

(4) Resistance between C-09 joint connector (CAN2)

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

Short pin

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC209364LS

Harness side: C-09

Test harness

AC209364LT

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-192

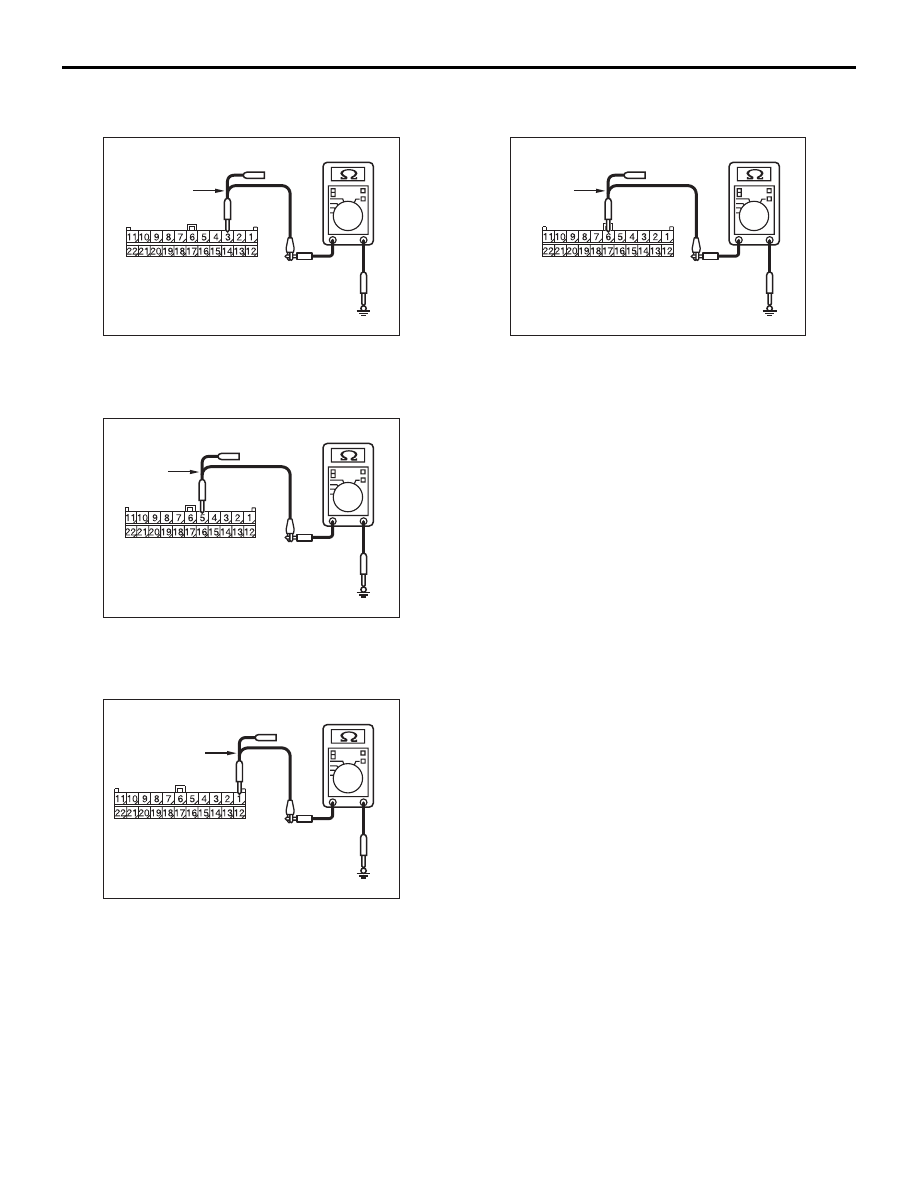

terminal No.2 and body earth

OK: 1 k

Ω or more

(5) Resistance between C-09 joint connector (CAN2)

terminal No.3 and body earth

OK: 1 k

Ω or more

(6) Resistance between C-09 joint connector (CAN2)

terminal No.5 and body earth

OK: 1 k

Ω or more

(7) Resistance between C-09 joint connector (CAN2)

terminal No.1 and body earth

OK: 1 k

Ω or more

(8) Resistance between C-09 joint connector (CAN2)

terminal No.6 and body earth

OK: 1 k

Ω or more

Q: Are the check result normal?

YES <all of the measurement results show 1 k

Ω or

more> :

Go to Step 44 .

NO <The resistance between terminal No.7 and
body earth is less than 1 k

Ω> :

Go to Step 32 .

NO <The resistance between terminal No.2 and
body earth is less than 1 k

Ω> :

Go to Step 33 .

NO <The resistance between terminal No.3 and
body earth is less than 1 k

Ω> :

Go to Step 35 .

NO <The resistance between terminal No.5 and
body earth is less than 1 k

Ω> :

Go to Step 37 .

NO <The resistance between terminal No.1 and
body earth is less than 1 k

Ω> :

Go to Step 41 .

NO <The resistance between terminal No.6 and
body earth is less than 1 k

Ω> :

Go to Step 43 .

AC209364LV

Harness side: C-09

Test
harness

AC209364LU

Harness side: C-09

Test
harness

AC209364LW

Harness side: C-09

Test
harness

AC209364LX

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-193

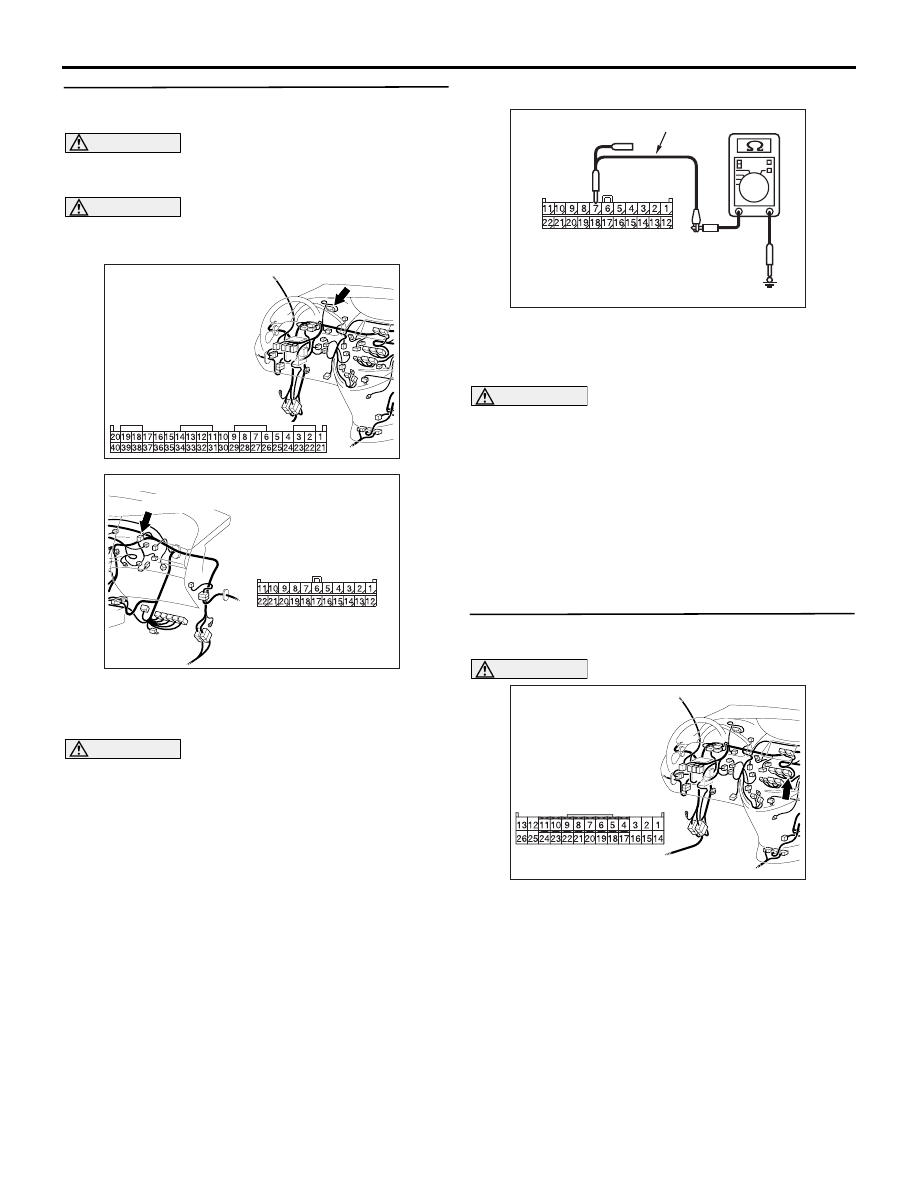

STEP 32. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

combination meter connector, and measure at
the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.7 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 17,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-452

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
combination meter connector.

STEP 33. Connector check: C-106 A/C-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 34 .

NO :

Repair the defective connector.

AC310613

BB

Connector: C-02 <LHD>

Harness side

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC209364LS

Harness side: C-09

Test harness

AC310613

AB

Connector: C-106 <LHD>

Harness side
