TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-177

wiring harness side.

(2) Measure the voltage between terminal 4 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

Step 7. Check the wiring harness between C-106
A/C-ECU connector terminal No.4 and the fusible
link (30).

NOTE: Prior to the wiring harness inspection, check
joint connector C-32 and intermediate connector
C-125, and repair if necessary.

• Check the rear fan switch power supply line for

open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 8. Measure the resistance at the C-106 front
power transistor connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Continuity between terminal 7 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Replace the A/C-ECU.

NO :

Go to Step 9.

Step 9. Check the wiring harness between C-106
A/C-ECU connector terminal No.7 and body
earth.

• Check the A/C-ECU earth line for open circuit.

Q: Is the check result normal?

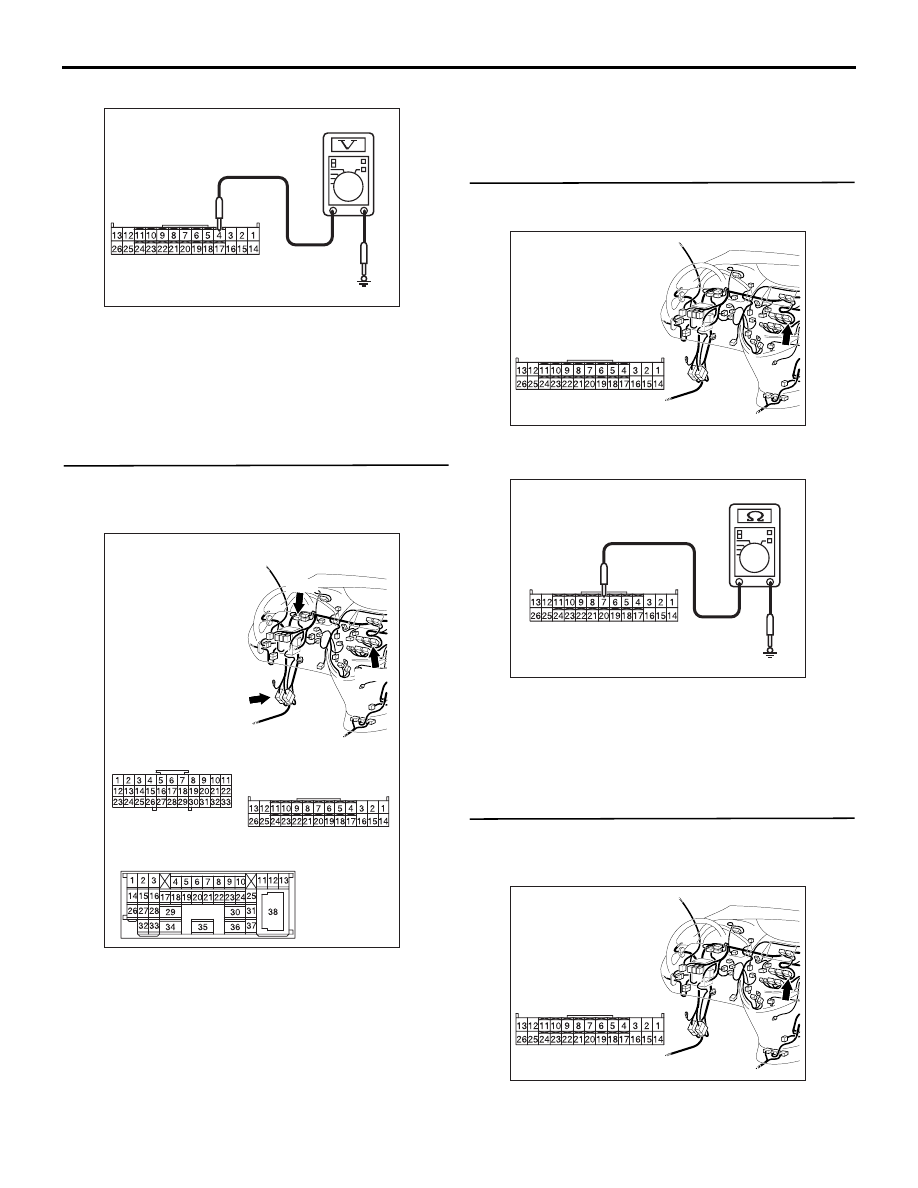

AC310507

Connector C-106
(Harness side)

BK

AC310614

AQ

Connectors: C-32, C-106, C-125 <LHD>

C-106

C-125

C-106

Harness side

C-125

C-32

C-32

AC310613

AB

Connector: C-106 <LHD>

Harness side

AC310506

Connector C-106
(Harness side)

AU

AC310613

AB

Connector: C-106 <LHD>

Harness side

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-178

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

.)

NO :

Repair the wiring harness.

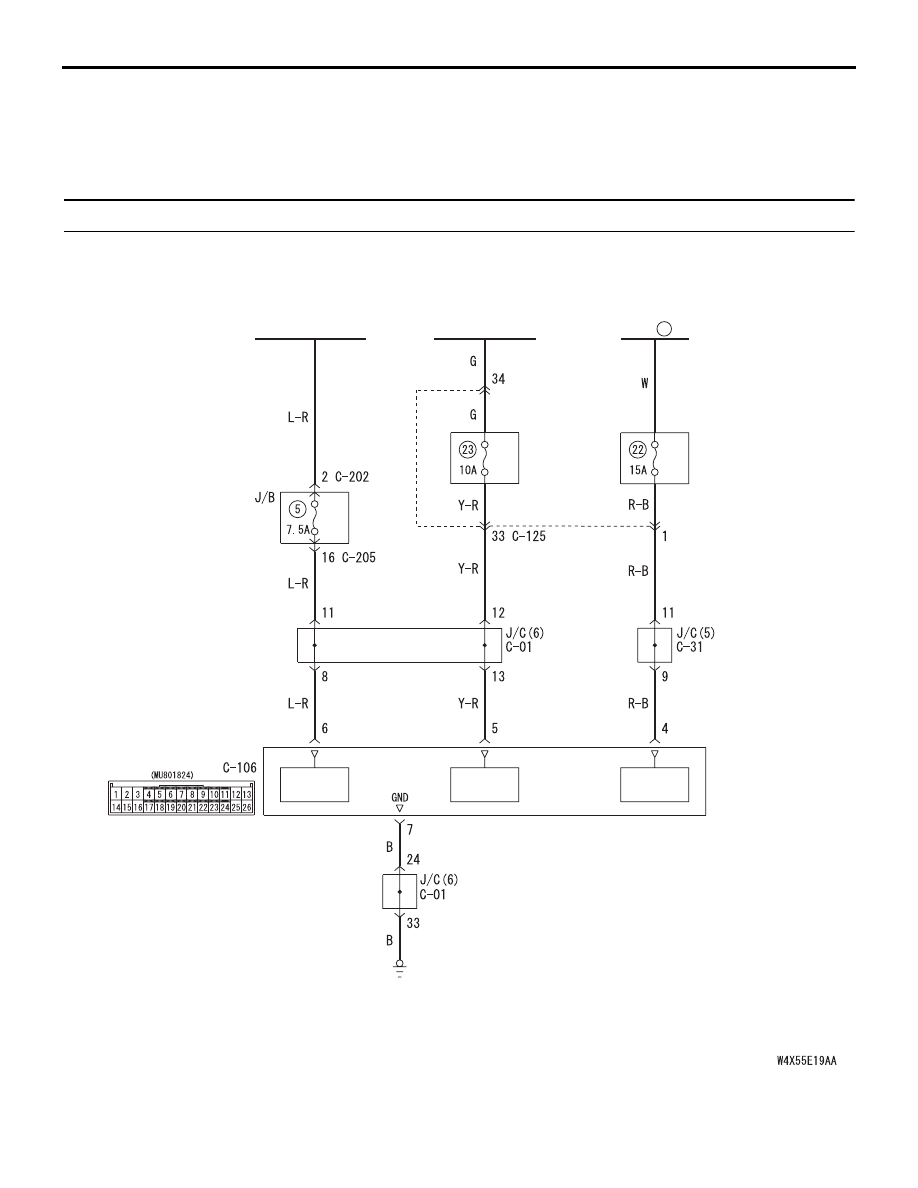

INSPECTION PROCEDURE 27: A/C-ECU power supply system <RHD>

CIRCUIT OPERATION

If a power supply is not provided to the A/C-ECU, the
A/C-ECU power supply system or the earth system

may be defective.

IGNITION
SWITCH (IG2)

IGNITION
SWITCH (ACC)

A/C-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

RELAY
BOX

RELAY
BOX

FUSIBLE
LINK

26

POWER
SOURCE

POWER
SOURCE

BATTERY
BACK-UP

A/C-ECU Power Supply Circuit

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-179

POSSIBLE CAUSES

• Malfunction of the A/C-ECU

• Damaged harness wires and connectors

DIAGNOSIS

Step 1. Connector check: C-106 A/C-ECU
connector

Q:  Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

Step 2. Voltage measurement at C-106 A/C-ECU
connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Measure the voltage between terminal 6 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

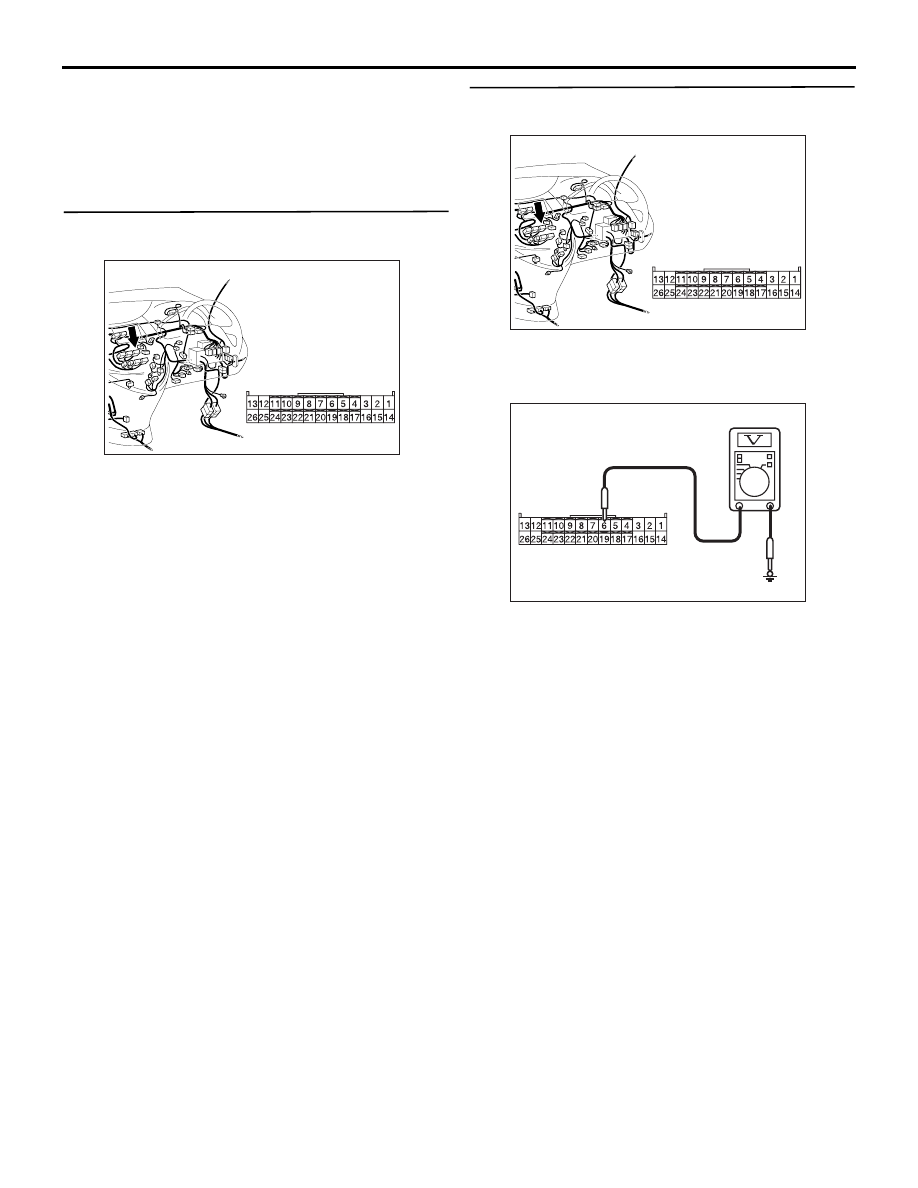

AC310631AB

Connectors: C-106 <RHD>

Harness side

AC310631AB

Connectors: C-106 <RHD>

Harness side

AC310507

Connector C-106
(Harness side)

BI

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-180

Step 3. Check the wiring harness between C-106
A/C-ECU connector terminal No.6 and the
ignition switch (IG2).

NOTE:

Prior to the wiring harness inspection, check joint
connector C-01 and junction block connector C-205
and C-202, and repair if necessary.

• Check the A/C-ECU power supply line for open

circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

.)

NO :

Repair the wiring harness.

Step 4. Voltage measurement at C-106 A/C-ECU
connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Measure the voltage between terminal 5 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

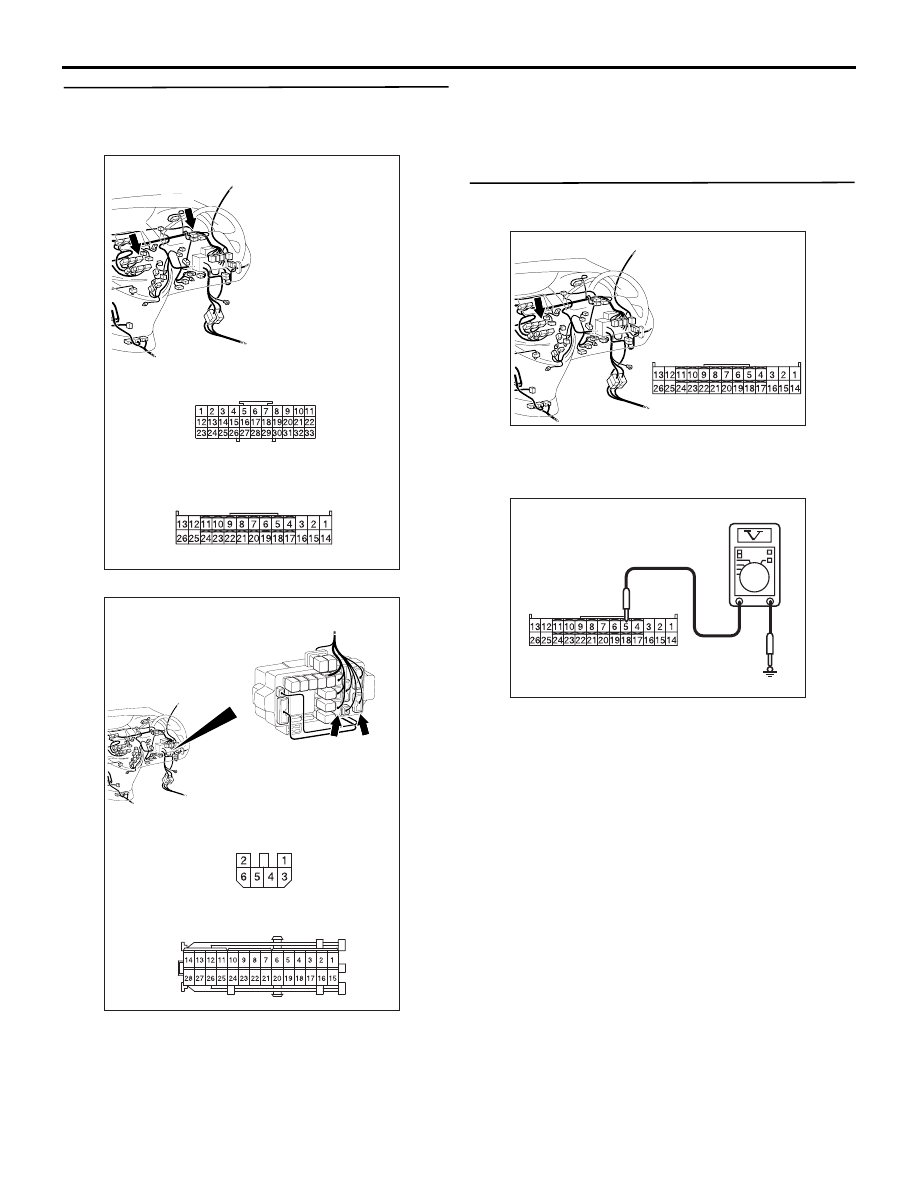

AC310632AK

Connectors: C-01, C-106 <RHD>

C-01

C-106

C-01

C-106

Harness side

AC310619

Connectors: C-202, C-205 <RHD>

AF

Junction block (Front view)

C-205

C-202

C-205

Harness side

C-202

Harness side

AC310631AB

Connectors: C-106 <RHD>

Harness side

AC310507

Connector C-106
(Harness side)

BJ
