Mitsubishi Grandis. Manual - part 156

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-86

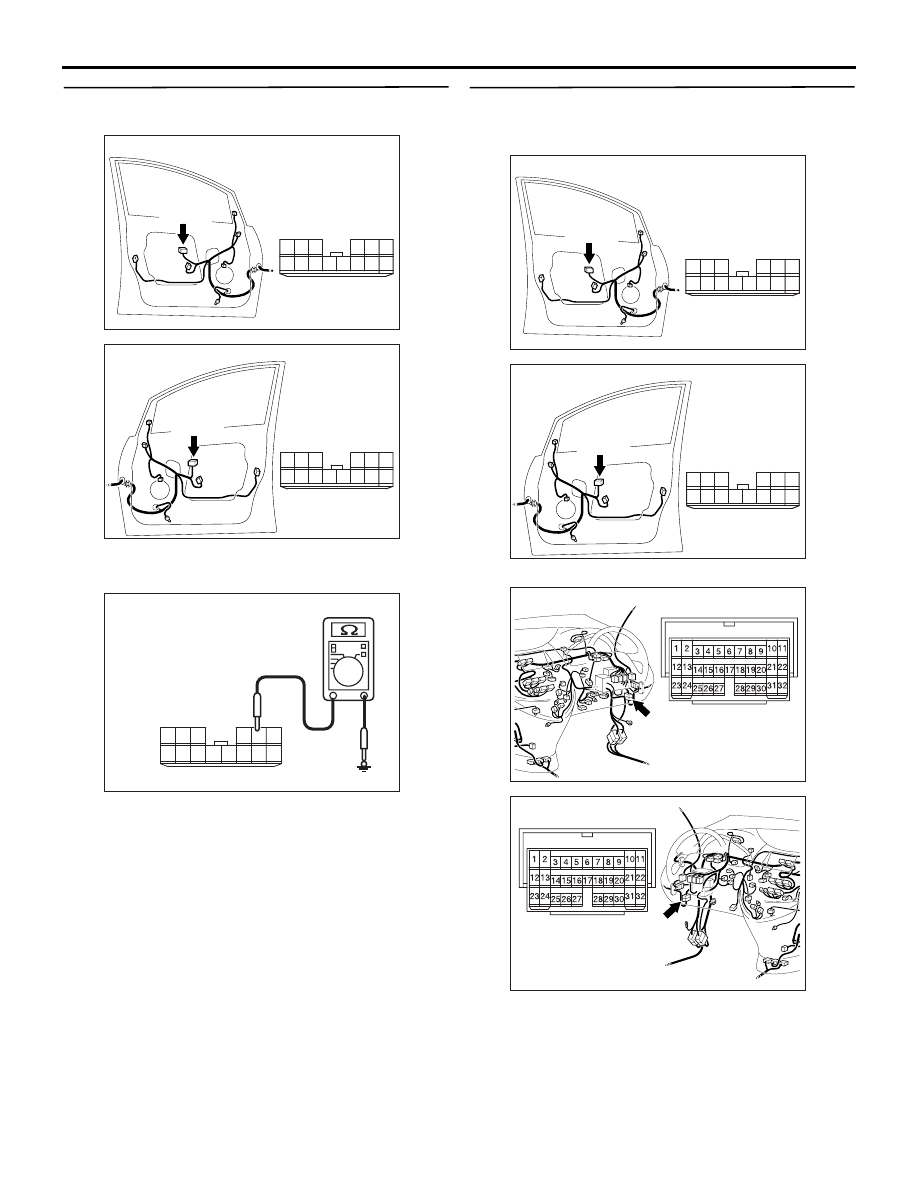

Step 13. Resistance measurement at the F-05
power window main switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between F-05 power window main

switch connector terminal No.2 and body earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Go to Step 14.

Step 14. Check the wiring harness between F-05
power window main switch connector terminal
No.2 and body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-14 <RH drive vehicles>,
C-27 <LH drive vehicles>, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

AC311150

AB

Connector: F-05

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AC310213

Connector: F-05

Harness side

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AB

AC310506BG

Connector F-05
(Harness side)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC311150

AB

Connector: F-05

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AC310213

Connector: F-05

Harness side

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AB

AC310631

Connector: C-14 <RHD>

AG

AC310613

Connector: C-27 <LHD>

AJ

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-87

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

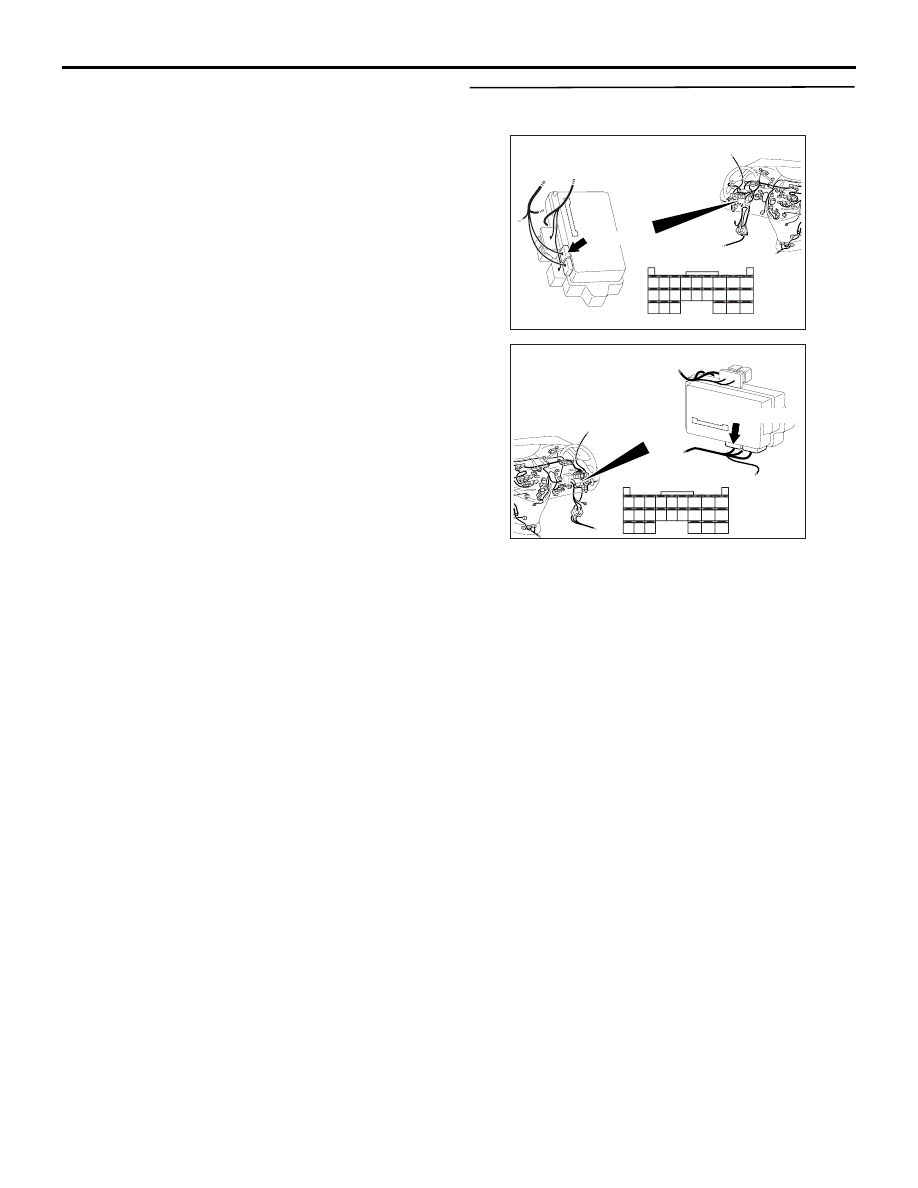

Step 15. Connector check: C-221 ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair the defective connector.

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-88

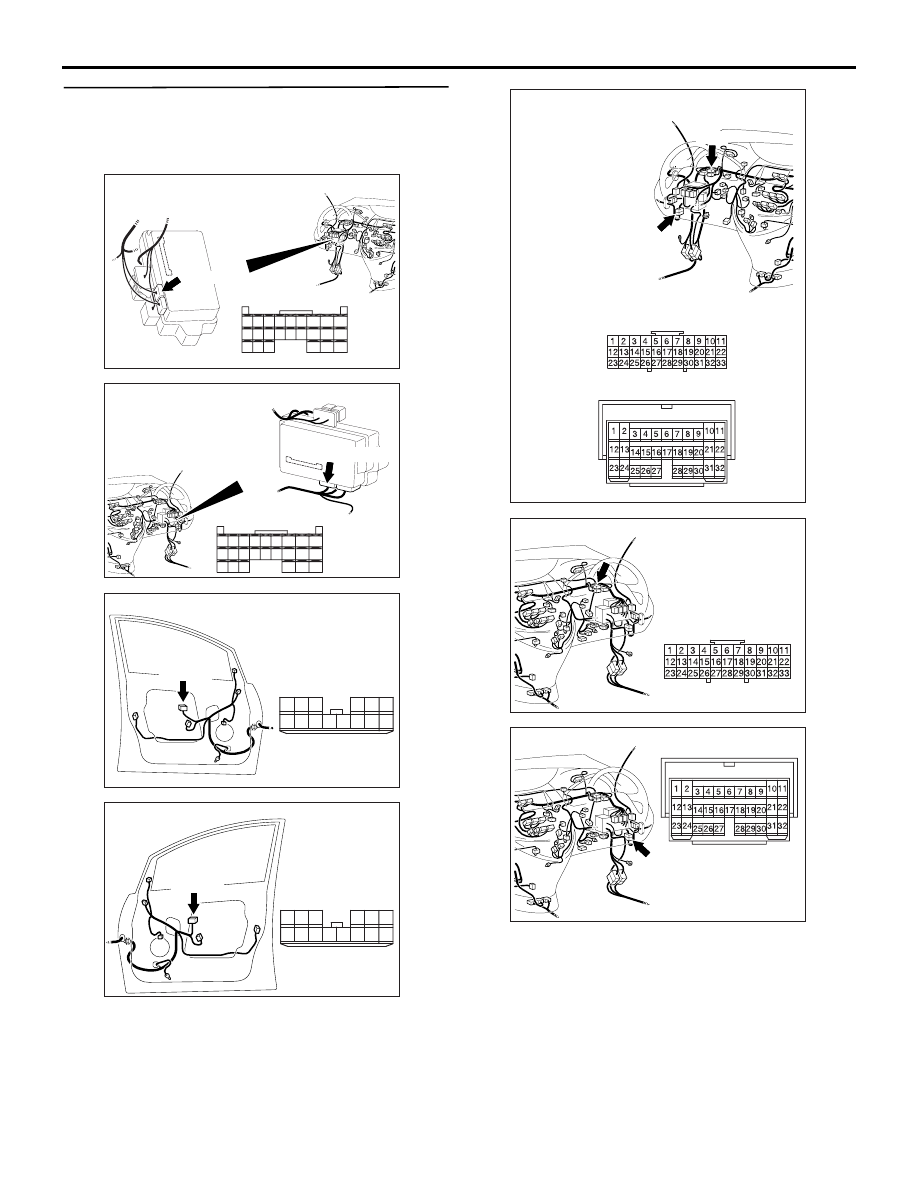

Step 16. Check the wiring harness between C-221
ETACS-ECU connector terminal No.59 and F-05
power window main switch connector terminal
No.4.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-14 <RH drive vehicles>,
C-27 <LH drive vehicles> and joint connector C-01,
and repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the wiring harness.

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC311150

AB

Connector: F-05

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AC310213

Connector: F-05

Harness side

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AB

AC310614

Connector: C-01, C-27 <LHD>

C-27

AM

C-27

C-01

C-01

AC310631AE

Connector: C-01 <RHD>

AC310631

Connector: C-14 <RHD>

AG

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-89

Step 17. ECU check by using the SWS monitor.

Check that the power supply and earth lines to the
power window main switch (power window module)
and the SWS communication lines are normal.

• Ignition switch: ON

ECUS TO BE CHECKED

• P/W MODULE

OK: "OK" is displayed on the "P/W
MODULE" menu.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window main switch.
