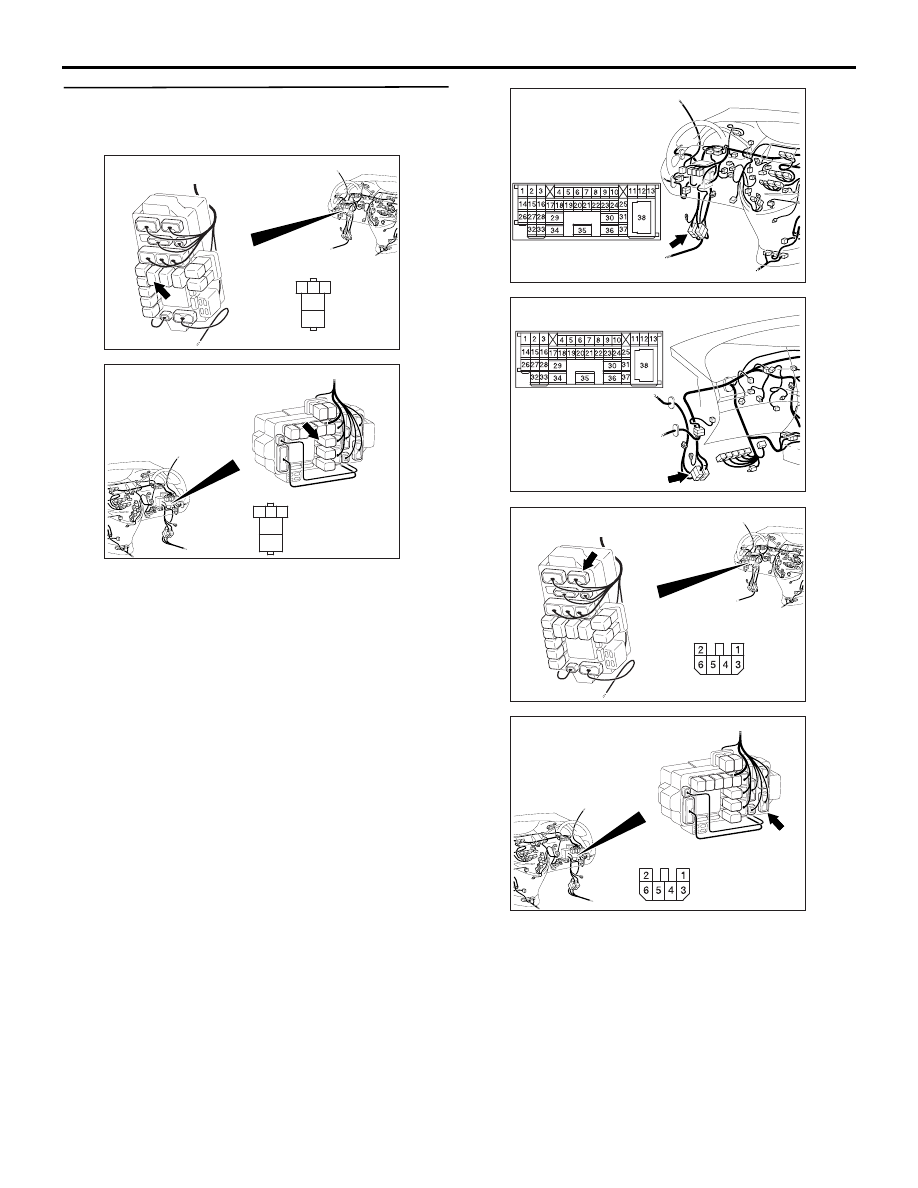

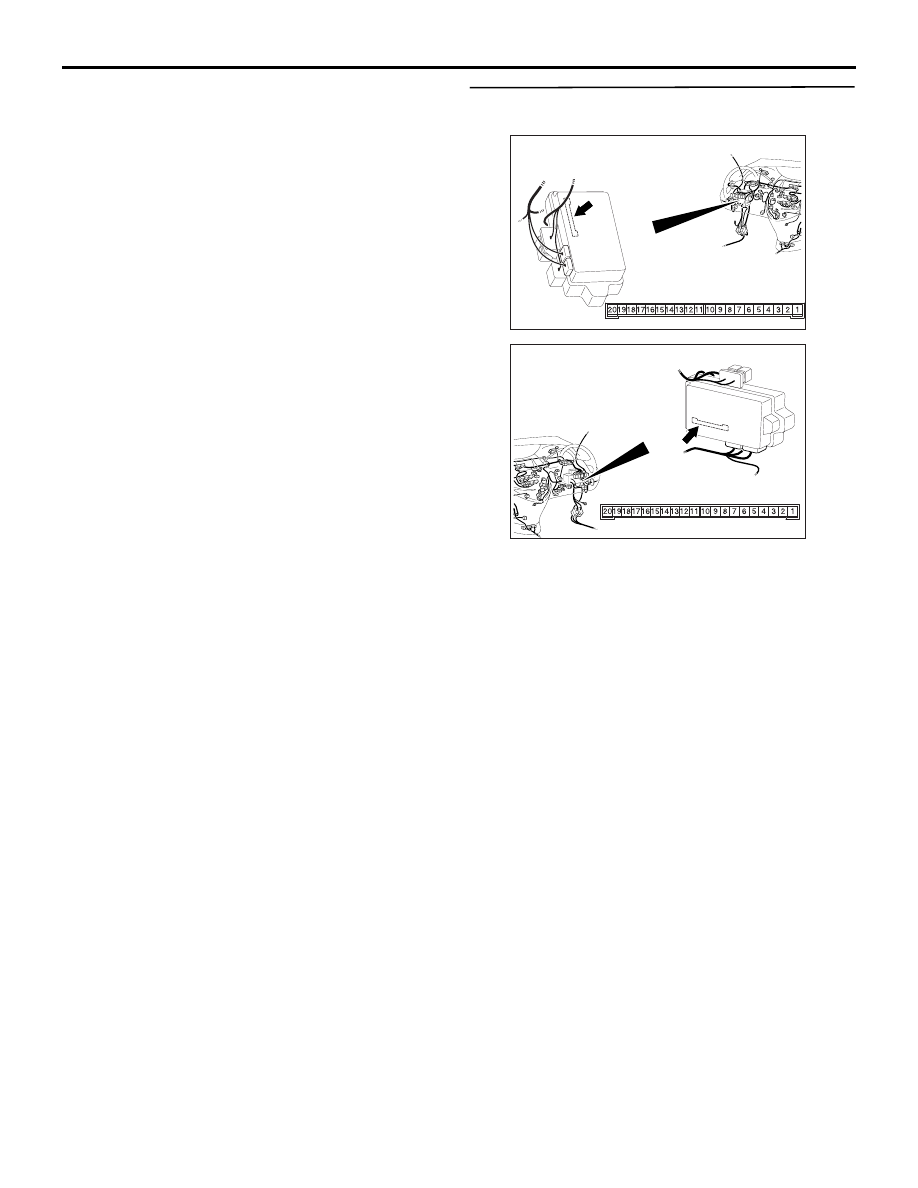

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-82

Step 8. Check the wiring harness between C-217
power window relay connector terminal No.5 and
fusible link (5).

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-125 and junction block
connector C-202, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310623

Connector: C-217

AB

3

4

5

1

2

Junction block side

<LHD>

Junction block (Front view)

AC310618

Connector: C-217

3

4

5

1

2

Junction block side

<RHD>

Junction block (Front view)

AB

AC310613

AD

Connector: C-125 <LHD>

AC310628AB

Connector: C-125 <RHD>

AC310623

Connector: C-202

AC

<LHD>

Junction block (Front view)

Harness side

AC310618

Connector: C-202 <RHD>

Junction block (Front view)

C-202

AC

Harness side

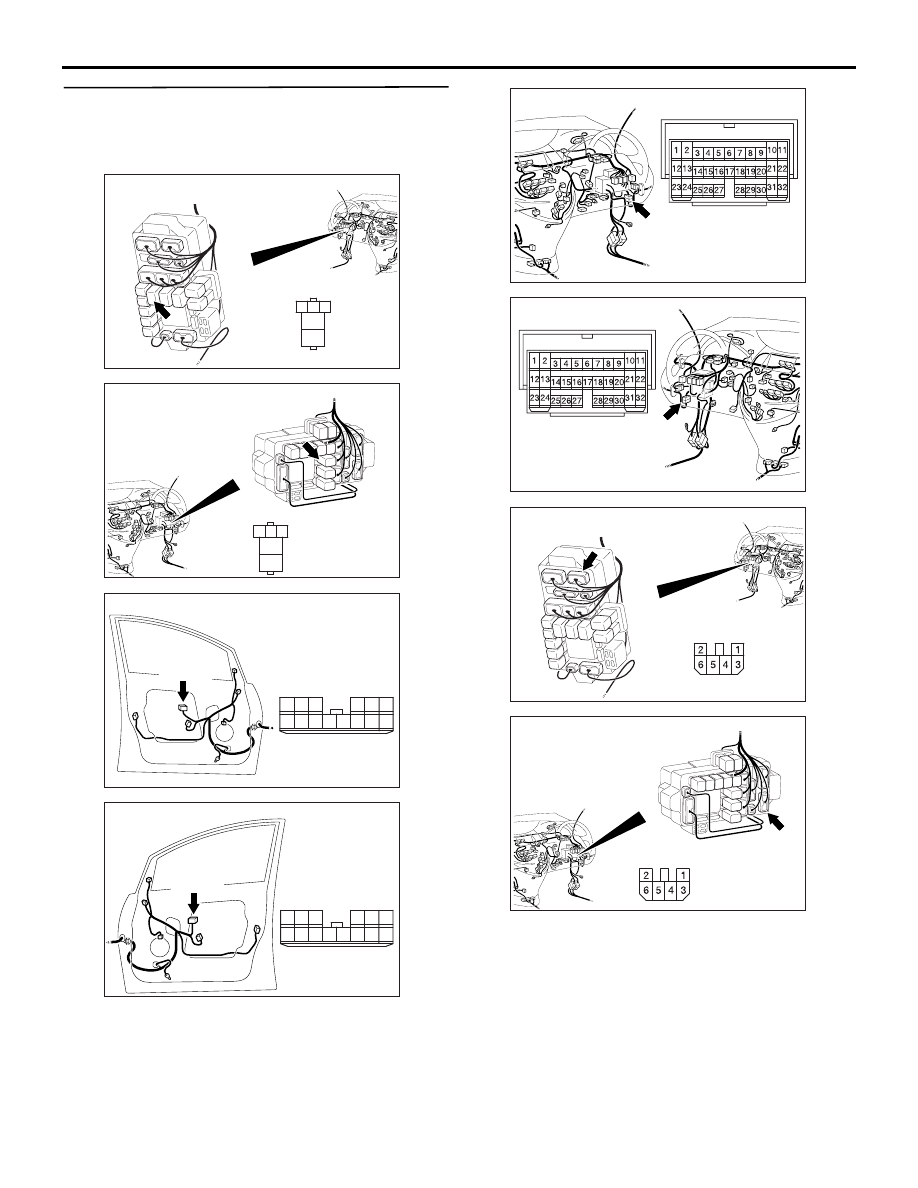

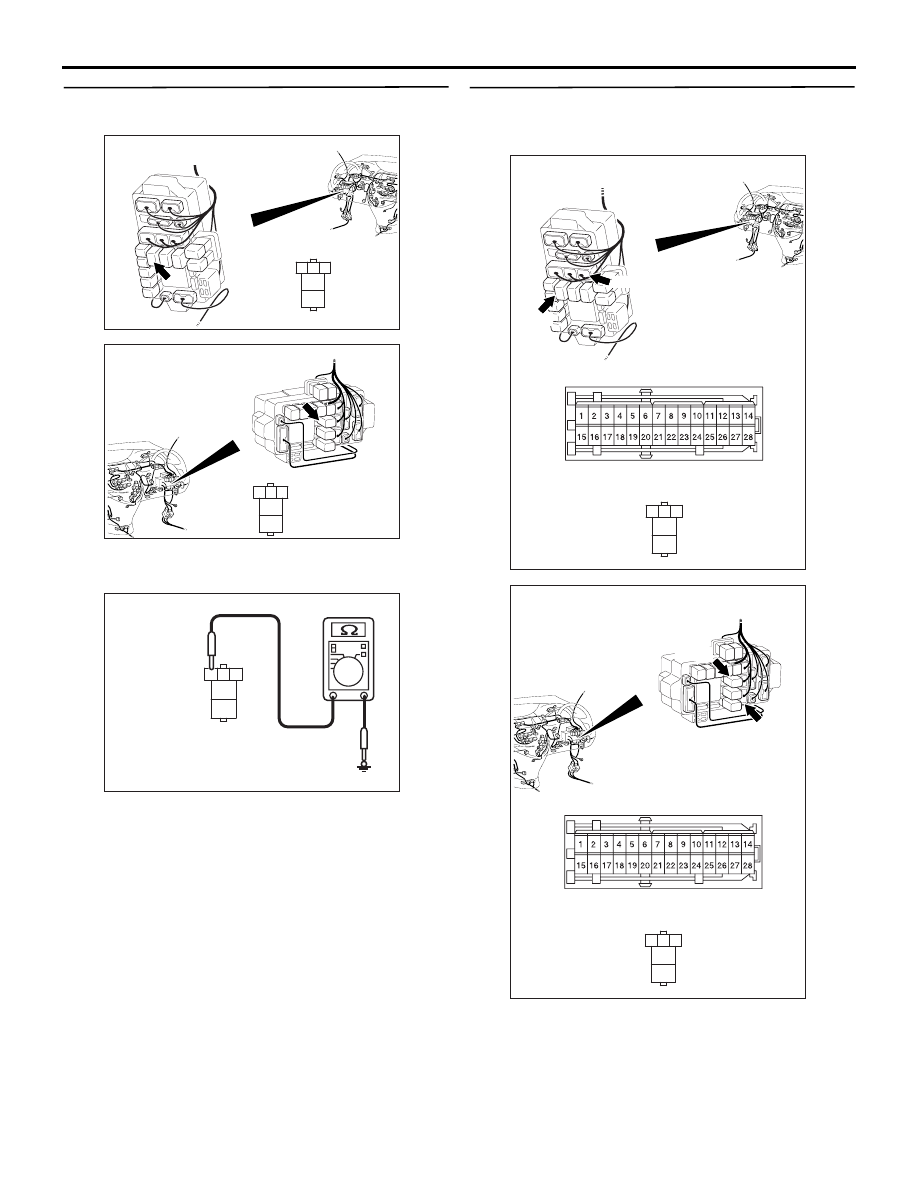

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-83

Step 9. Resistance measurement at C-217 power
window relay connector.

(1) Remove the power window relay, and measure at

the junction block side.

(2) Resistance between C-217 power window relay

connector terminal No.3 and body earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 10.

Step 10. Check the wiring harness between C-217
power window relay connector terminal No.3 and
body earth.

NOTE: Prior to the wiring harness inspection, check
junction block connector C-205, and repair if
necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

AC310623

Connector: C-217

AB

3

4

5

1

2

Junction block side

<LHD>

Junction block (Front view)

AC310618

Connector: C-217

3

4

5

1

2

Junction block side

<RHD>

Junction block (Front view)

AB

AC310506 BF

Connector C-217
(Junction block side)

3

4

5

1

2

AC310624

Connector: C-205, C-217

C-205

AK

C-217

C-217

C-205

3

4

5

1

2

Junction block side

<LHD>

Harness side

AC310619

Connector: C-205, C-217

C-205

AI

C-217

C-217

C-205

3

4

5

1

2

Junction block side

Harness side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-84

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 11. Connector check: C-219 ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the defective connector.

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-85

Step 12. Check the wiring harness between C-217
power window relay connector terminal No.4 and
F-05 power window main switch connector
terminal No.6.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-14 <RH drive vehicles>,
C-27 <LH drive vehicles> and junction block
connector C-202, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310623

Connector: C-217

AB

3

4

5

1

2

Junction block side

<LHD>

Junction block (Front view)

AC310618

Connector: C-217

3

4

5

1

2

Junction block side

<RHD>

Junction block (Front view)

AB

AC311150

AB

Connector: F-05

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AC310213

Connector: F-05

Harness side

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AB

AC310631

Connector: C-14 <RHD>

AG

AC310613

Connector: C-27 <LHD>

AJ

AC310623

Connector: C-202

AC

<LHD>

Junction block (Front view)

Harness side

AC310618

Connector: C-202 <RHD>

Junction block (Front view)

C-202

AC

Harness side
