SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-289

NOTE: Prior to the wiring harness inspection, check
intermediate connector G-14 <licence plate lamp>,
G-21 <tail/stop lamp (LH) >, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

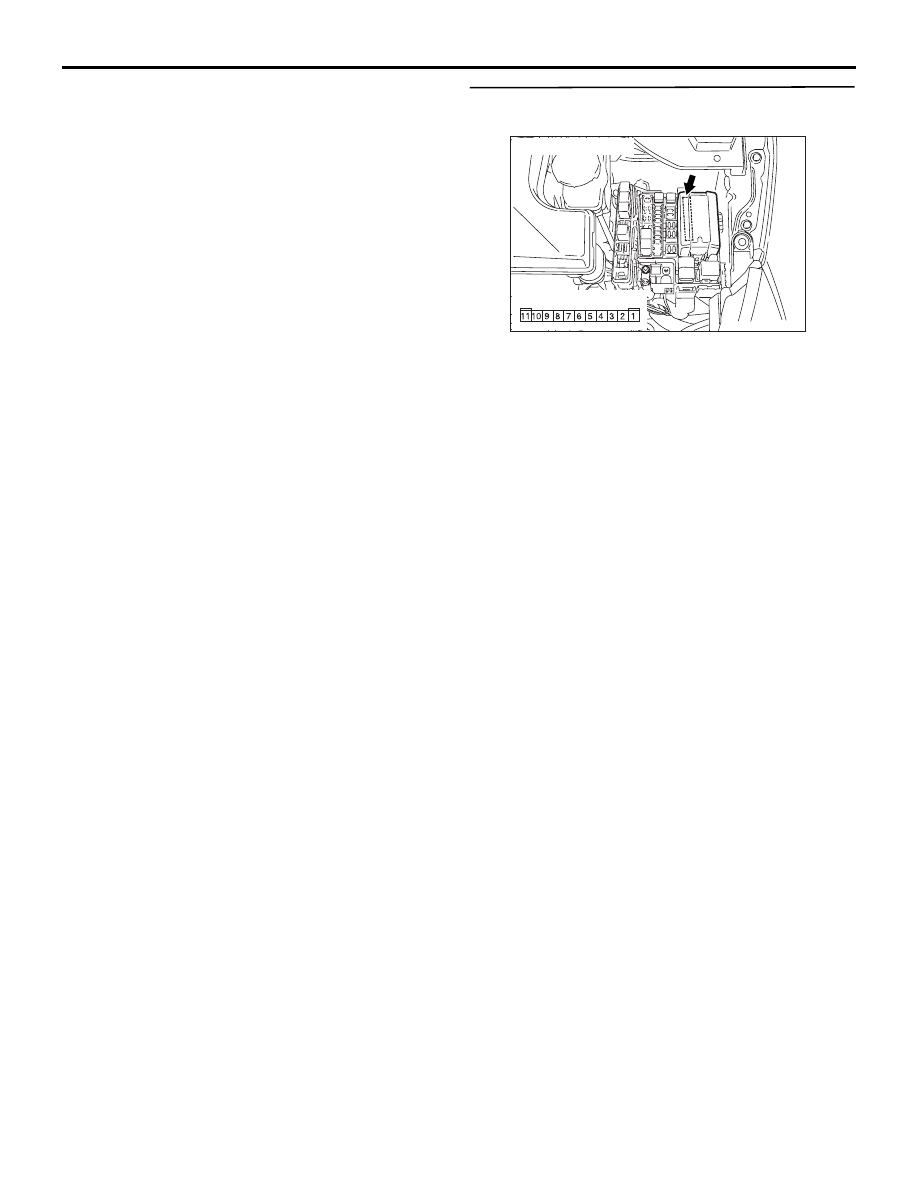

Step 6. Connector check: A-14X front-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

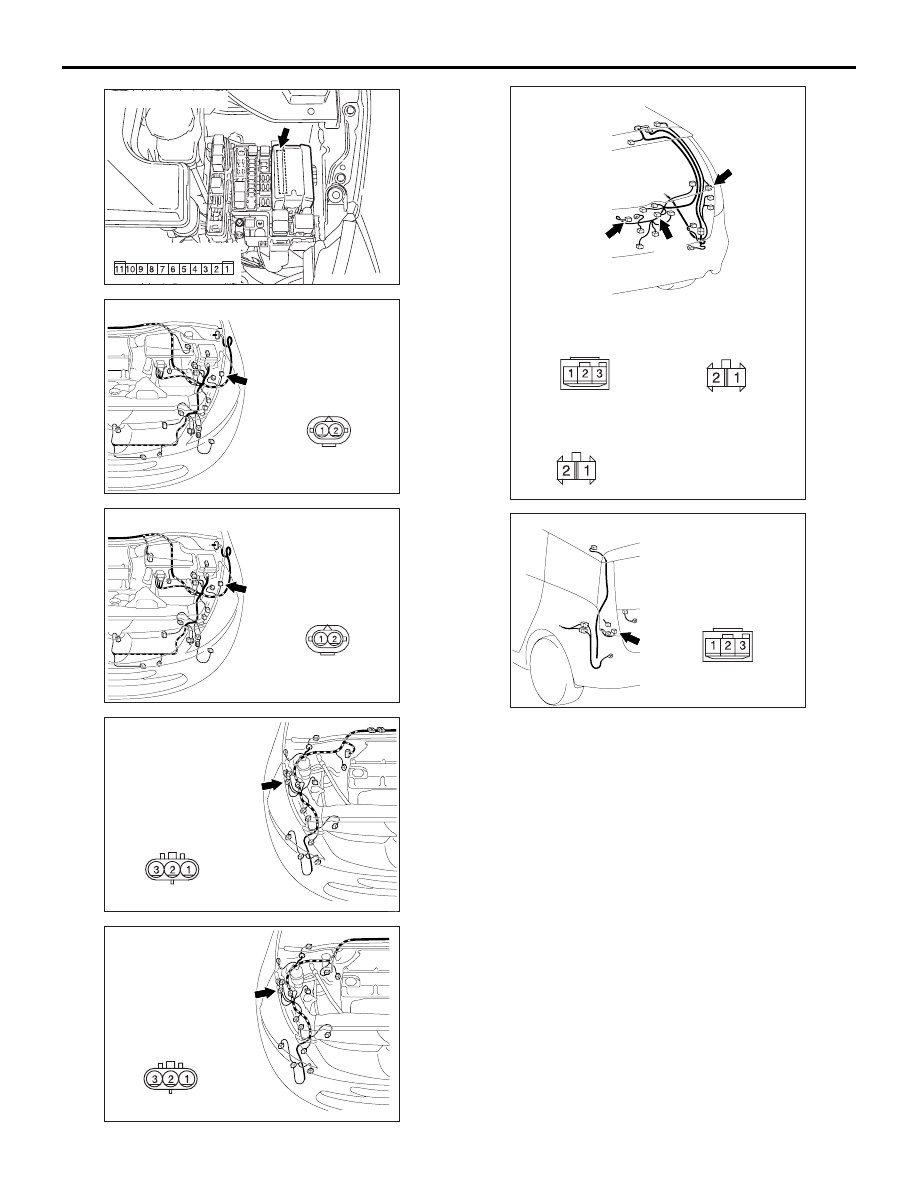

AC311521AB

Connector: A-14X

Relay box side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-290

Step 7. Check the wiring harness from G-08
tail/stop lamp (RH) connector terminal No.2 or
G-20 tail/stop lamp (LH) connector terminal No.2,
A-39 position lamp (RH) connector terminal No.2
or A-17 position lamp (LH) connector terminal
No.2 or G-15 licence plate lamp (RH) connector
terminal No.2 or G-19 licence plate lamp (LH)
connector terminal No.2 to A-14X front-ECU
connector terminal No.8.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-291

AC311521AB

Connector: A-14X

Relay box side

AC310403

A-17 (GR)

AD

Connector: A-17 <LHD>

AC310398

A-17 (GR)

AD

Connector: A-17 <RHD>

AC310401

Connector: A-39 <LHD>

Harness side

A-39 (GR)

AB

AC310396

Connector: A-39 <RHD>

Harness side

A-39 (GR)

AB

AC310223

Connectors: G-08, G-15, G-19

AC

Harness side

G-08

G-15

G-19

G-08

Harness side

G-15

Harness side

G-19

AC310220

AD

Connector: G-20

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-292

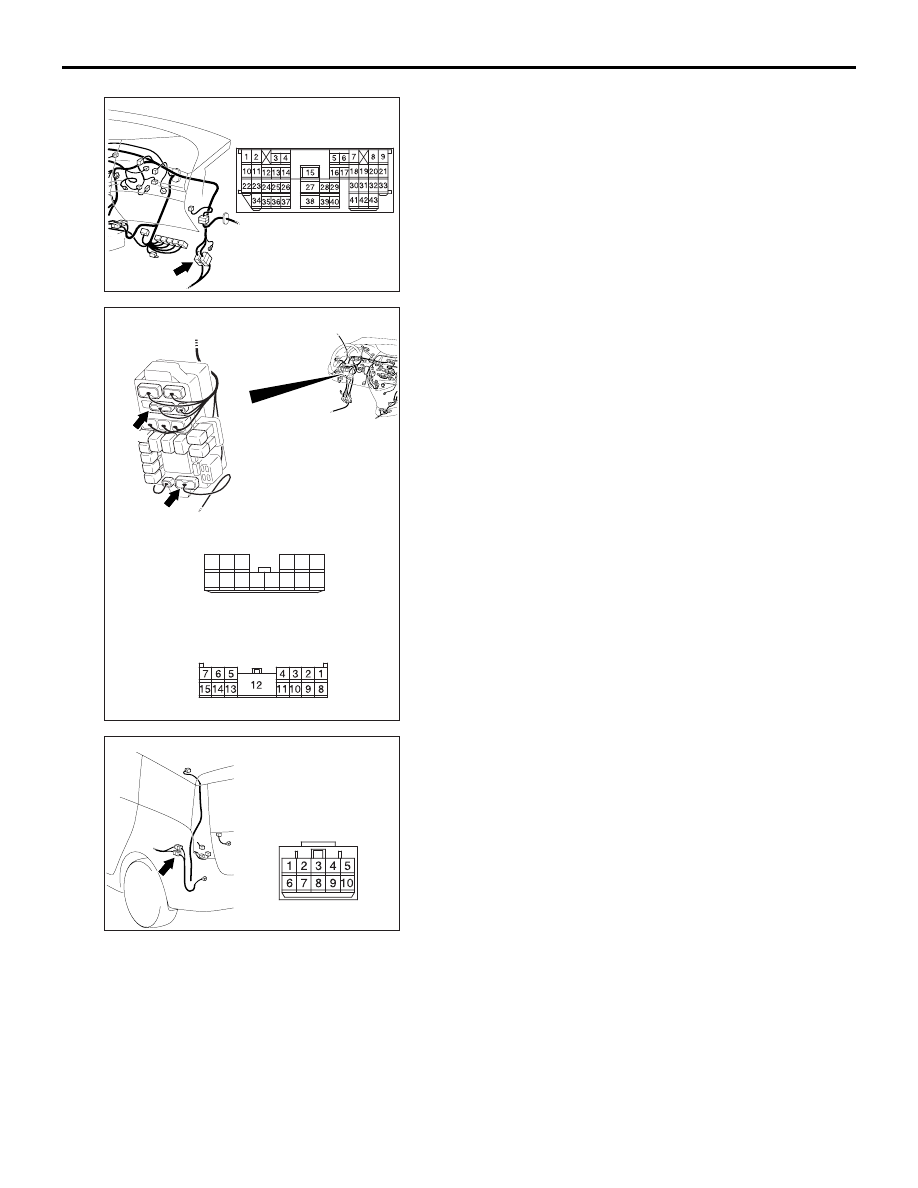

NOTE:

<LH drive vehicles> Prior to the wiring harness
inspection, check intermediate connector C-16
<tail/stop lamp (LH) and licence plate lamp>, C-125
<tail/stop lamp and licence plate lamp>, G-14
<licence plate lamp>, G-21 <tail/stop lamp (LH)>,
junction block connector C-203 <tail/stop lamp (LH)>
and C-210 <tail/stop lamp (LH)>, and repair if
necessary.

AC310615

AE

Connector: C-16 <LHD>

AC310624

Connectors: C-203, C-210 <LHD>

AP

Junction block side

Junction block (Front view)

C-210

C-203

Harness side

C-210

C-203

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC310220

Connector: G-21 <LHD>

AC
