SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-281

POSSIBLE CAUSES

• Burned-out bulb

• Damaged harness wires and connectors

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-282

DIAGNOSIS PROCEDURE

Step 1. Connector check: G-08 tail/stop lamp
(RH) connector or G-20 tail/stop lamp (LH)
connector, A-39 position lamp (RH) connector or
A-17 position lamp (LH) connector, G-15 licence
plate lamp (RH) connector or G-19 licence plate
lamp (LH) connector

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-283

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the bulbs of the position lamp or
the licence plate lamp.

Check the bulb of the lamp which does not
illuminate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb of the lamp which does not
illuminate.

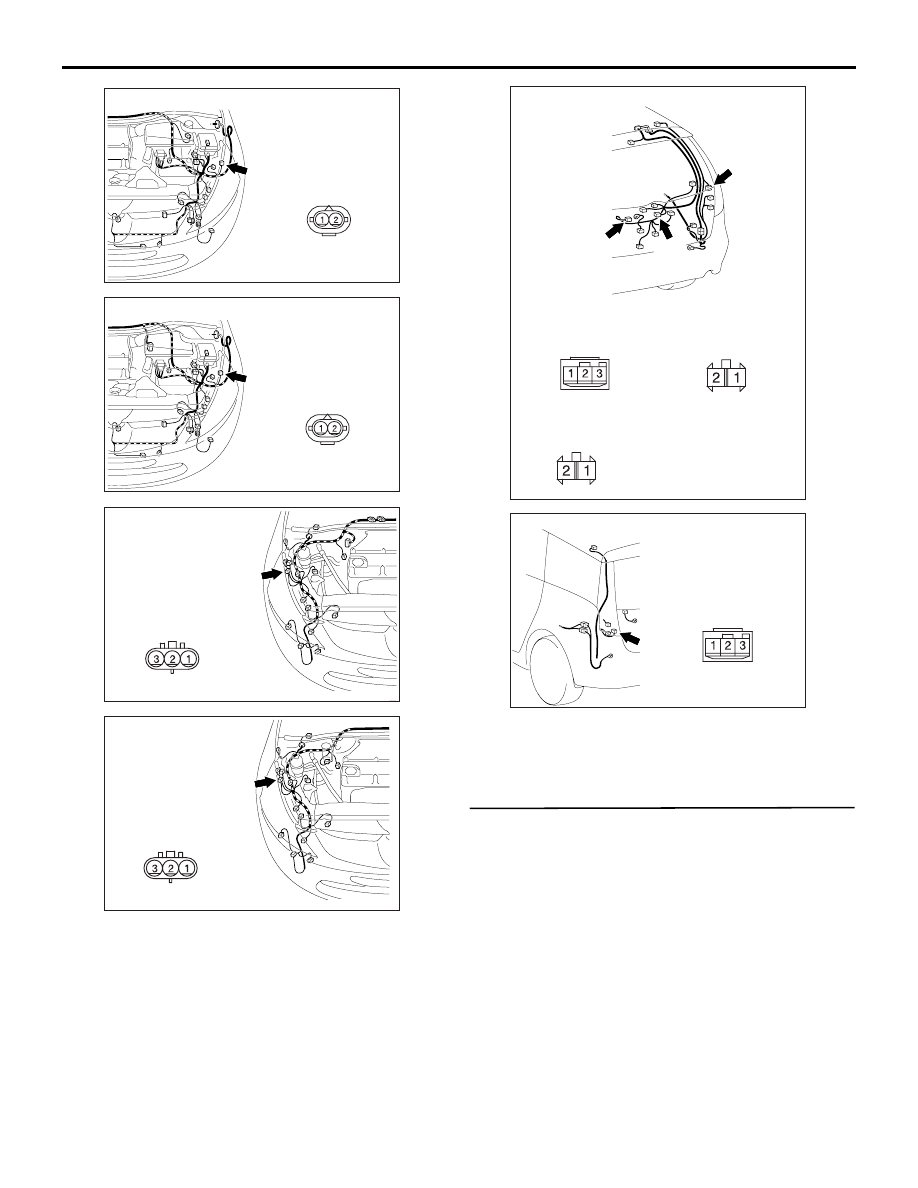

AC310403

A-17 (GR)

AD

Connector: A-17 <LHD>

AC310398

A-17 (GR)

AD

Connector: A-17 <RHD>

AC310401

Connector: A-39 <LHD>

Harness side

A-39 (GR)

AB

AC310396

Connector: A-39 <RHD>

Harness side

A-39 (GR)

AB

AC310223

Connectors: G-08, G-15, G-19

AC

Harness side

G-08

G-15

G-19

G-08

Harness side

G-15

Harness side

G-19

AC310220

AD

Connector: G-20

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-284

Step 3. Resistance measurement at the G-08
tail/stop lamp (RH) connector or G-20 tail/stop
lamp (LH) connector, the A-39 position lamp (RH)
connector or A-17 position lamp (LH) connector,
the G-15 licence plate lamp (RH) connector or
G-19 licence plate lamp (LH) connector.
