HEADLAMP

CHASSIS ELECTRICAL

54A-99

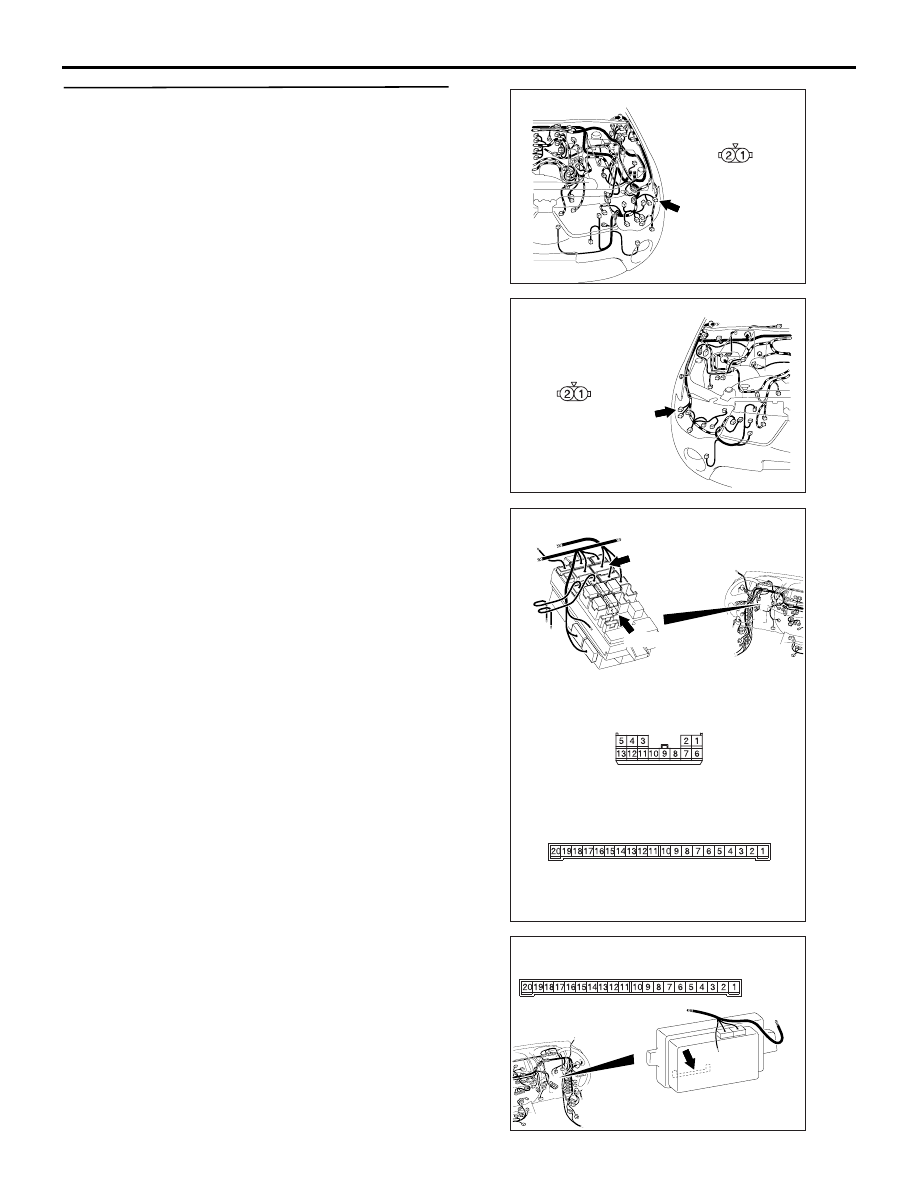

STEP 7. Check the wiring harness from the A-118
front turn-signal lamp (LH) connector terminal
No.2 or A-127 front turn-signal lamp (RH)
connector terminal No.2 to C-218 ETACS-ECU
connector terminal No.3 or No.4.

AC903898

AD

Harness side

Connector: A-118

A-118 (BR)

AC903897

AC

Connector: A-127

Harness side

A-127 (BR)

AC509935AL

Connectors: C-210, C-218 <LHD>

C-210

Harness side

C-210

C-218

Junction block side

C-218

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

HEADLAMP

CHASSIS ELECTRICAL

54A-100

NOTE:

Prior to the wiring harness inspection, check junction
block connector C-210, and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness. Go to Step 23.

STEP 8. Retest the system.
Check that the front turn-signal lamps illuminate nor-
mally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ). Go to Step 23.

NO :

Replace the front turn-signal lamp. Go to
Step 23.

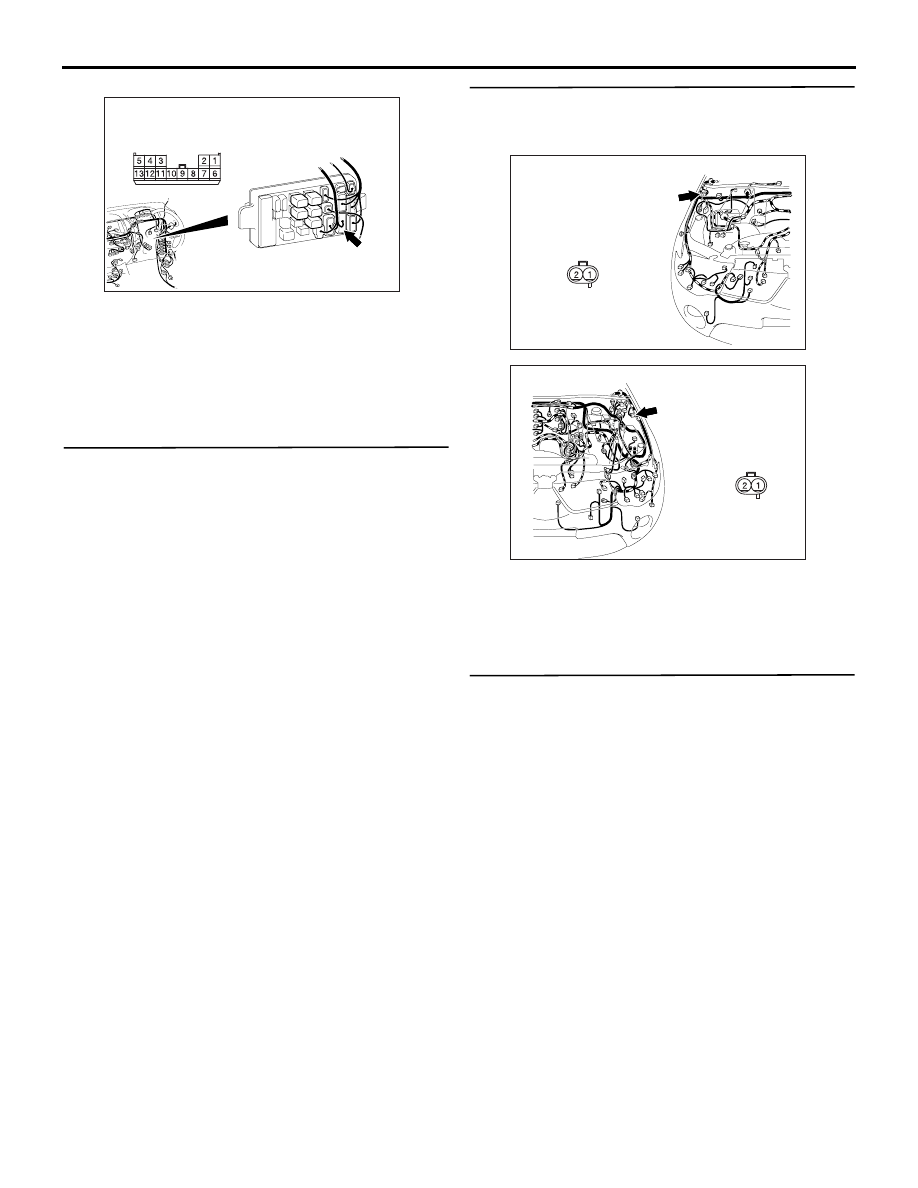

STEP 9. Connector check: A-114 side turn-signal
lamp (LH) connector or A-101 side turn-signal
lamp (RH) connector.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the defective connector. Go to Step
23.

STEP 10. Check the bulb(s) of side turn-signal
lamps.
Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Replace the bulb(s) of the defective lamp.
Go to Step 23.

AC509936

Connector: C-210 <RHD>

Harness side

BD

Junction block

(Front view)

AC903897

AD

Harness side

A-101 (GR)

Connector: A-101

AC903898

AE

Harness side

A-114 (GR)

Connector: A-114

HEADLAMP

CHASSIS ELECTRICAL

54A-101

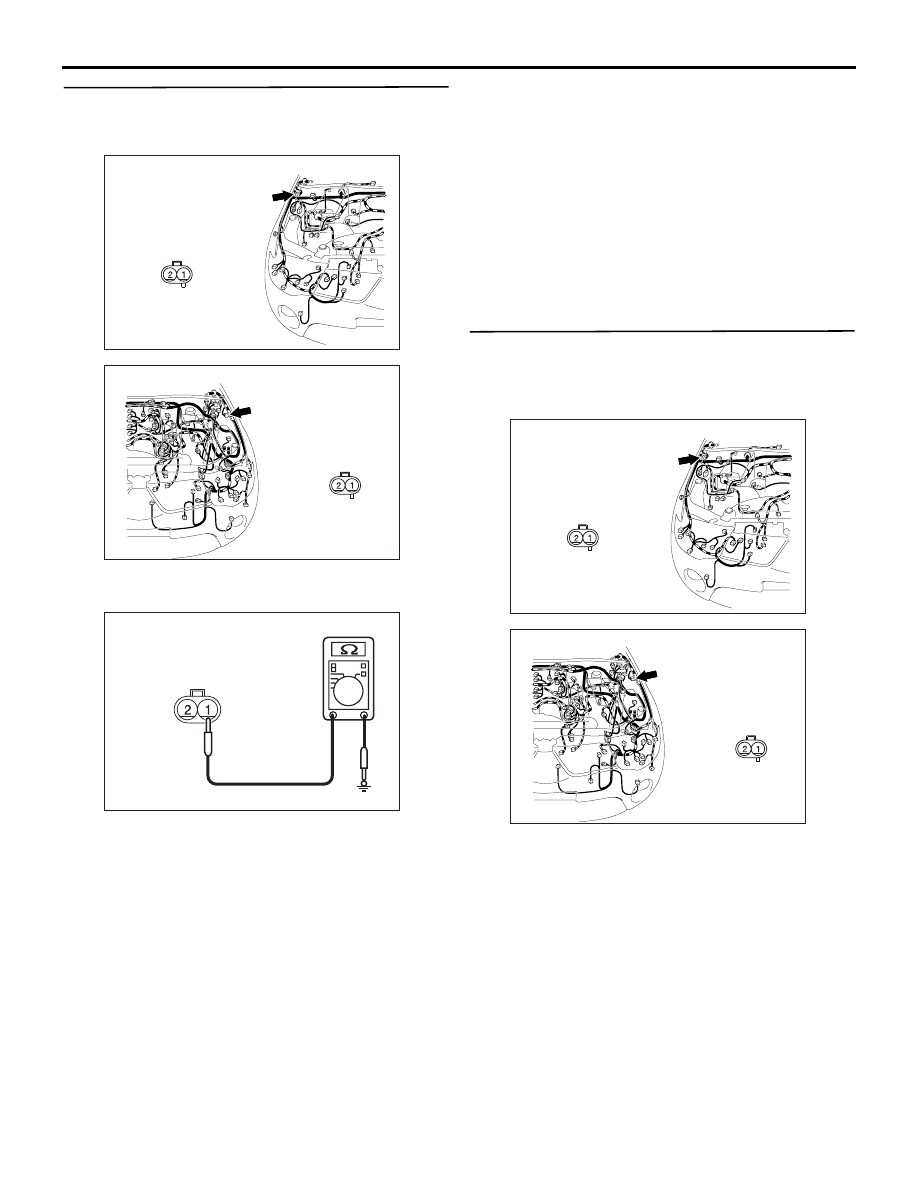

STEP 11. Resistance measurement at the A-114
side turn-signal lamp (LH) connector or A-101
side turn-signal lamp (RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance measurement between the defective

lamp connector terminal and body earth.

• Resistance between A-114 side turn-signal

lamp (LH) connector terminal No.1 and body
earth

• Resistance between A-101 side turn-signal

lamp (RH) connector terminal No.1 and body
earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Go to Step 12.

STEP 12. Check the wiring harness from A-114
side turn-signal lamp (LH) connector terminal
No.1 or A-101 side turn-signal lamp (RH)
connector terminal No.1 and body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness. Go to Step 23.

AC903897

AD

Harness side

A-101 (GR)

Connector: A-101

AC903898

AE

Harness side

A-114 (GR)

Connector: A-114

AC310506

Connectors A-101, A-114

FU

(Harness side)

AC903897

AD

Harness side

A-101 (GR)

Connector: A-101

AC903898

AE

Harness side

A-114 (GR)

Connector: A-114

HEADLAMP

CHASSIS ELECTRICAL

54A-102

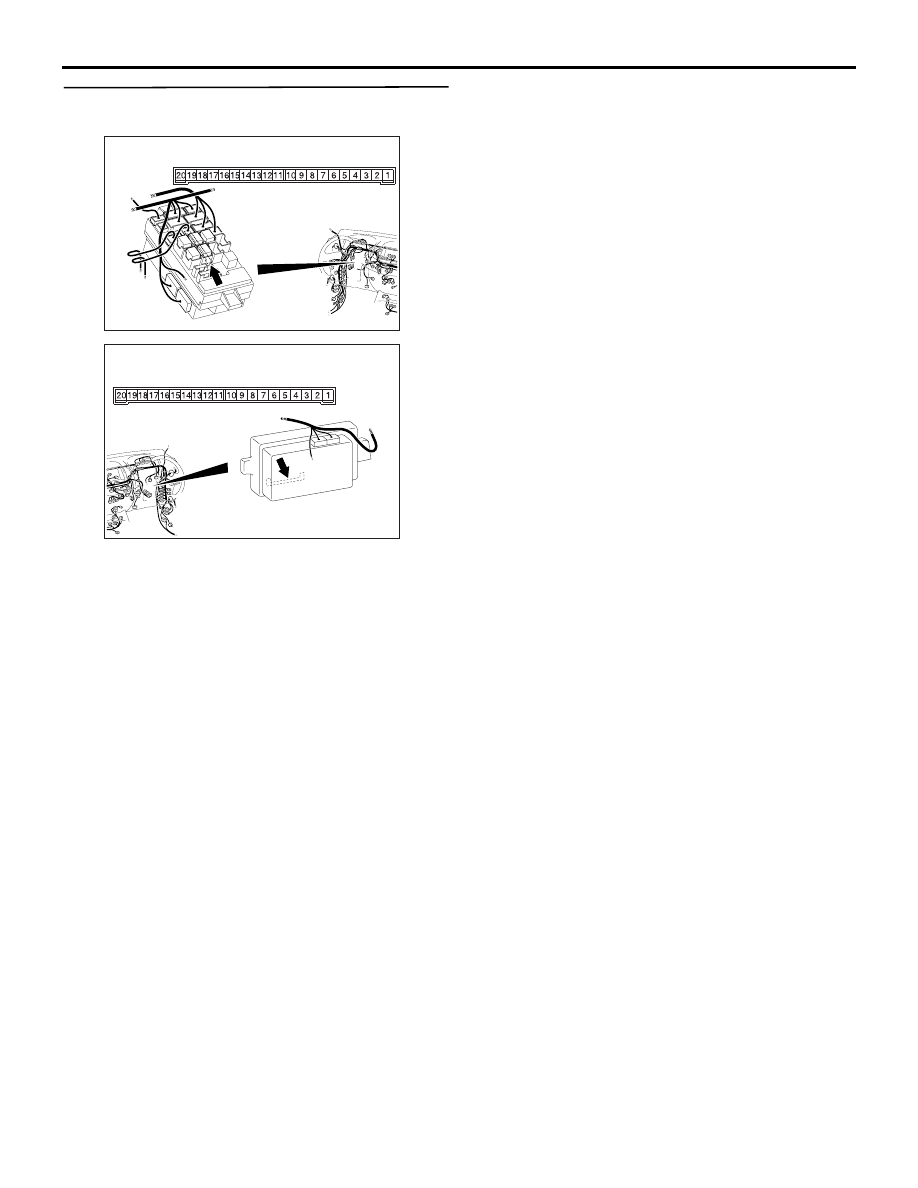

STEP 13. Connector check: C-218 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the defective connector. Go to Step
23.

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side
