COMBINATION METER

CHASSIS ELECTRICAL

54A-91

INSPECTION

INSPECTION

M1540207600116

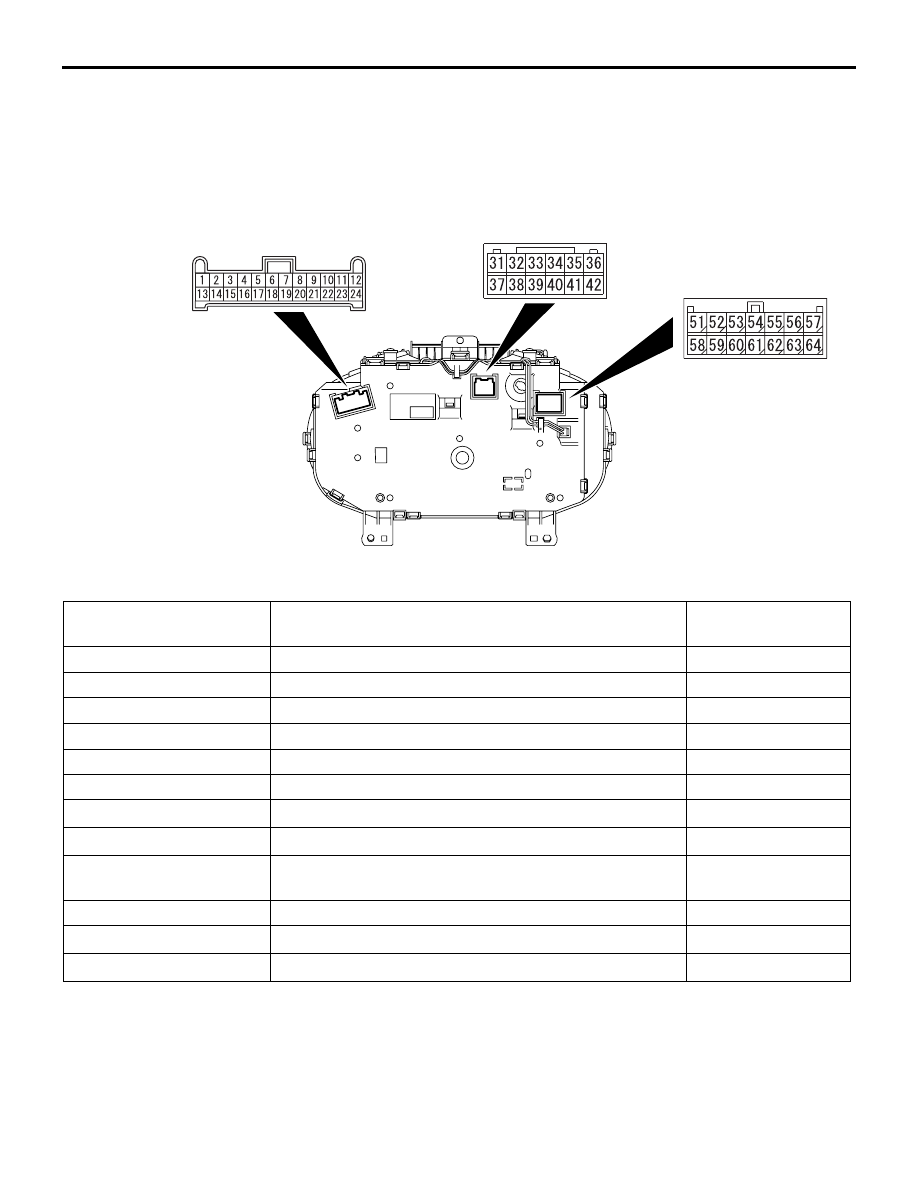

CHECK OF COMBINATION METER
INTERNAL RESISTANCE

Measure the resistance between terminals using an ohmmeter.

AC502672AF

C-111

C-112

C-113

Terminal No. to measure
resistance

Terminal name

Standard value

42

− 13

Battery power source and earth

1 M

Ω or more

42

− 57

Battery power source and earth

1 M

Ω or more

36

− 13

IG power source and earth

1 M

Ω or more

36

− 57

IG power source and earth

1 M

Ω or more

42

− 22

Battery power source and fuel gauge

1 M

Ω or more

36

− 22

IG power source and fuel gauge

1 M

Ω or more

22

− 13

Fuel gauge and earth

−

22

− 57

Fuel gauge and earth

−

42

− 21

Battery power source and engine coolant temperature
gauge

1 M

Ω or more

36

− 21

IG power source and engine coolant temperature gauge  1 M

Ω or more

21

− 13

Engine coolant temperature gauge and earth

−

21

− 57

Engine coolant temperature gauge and earth

−

HEADLAMP

CHASSIS ELECTRICAL

54A-92

HEADLAMP

SERVICE SPECIFICATIONS

M1540100200411

PRECAUTIONS ON HOW TO USE THE HEADLAMP ASSEMBLY

Be careful with the following items as resin lenses
are used in the headlamp assembly.

• Don't illuminate the headlamp for three minutes

or more when the headlamp is covered with
scratch protector.

• Don't tape the outer lens.

• Don't scratch the outer lens surface with a sharp

edged special tool.

• Use the specified genuine bulb.

Item

Standard value

Limit

Headlamp aiming

Low beam
(halogen
headlamp)

Vertical
direction

36 mm (0.69

°)

below horizontal
line (H)

Between 21 mm
(0.4

°) to 51 mm

(0.98

°) downward

from the horizontal
line (H)

Horizontal
direction

Elbow point
intersects the
vertical line (V)

± 26 mm (± 0.5°)
from the vertical
line (V)

Headlamp luminous intensity measurement cd
(When a screen is set 25 m ahead of the vehicle)

−

30,000 cd or more

HEADLAMP

CHASSIS ELECTRICAL

54A-93

SPECIAL TOOLS

M1540104400031

HEADLAMP

CHASSIS ELECTRICAL

54A-94

Tool

Number

Name

Use

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III sub-
assembly

a. Vehicle

Communicati
on Interface
(V.C.I.)

b. M.U.T.-III

USB cable

c. M.U.T.-III

main harness
A (Vehicles
with CAN
communicatio
n system)

d. M.U.T.-III

main harness
B (Vehicles
without CAN
communicatio
n system)

e. M.U.T.-III

measure
adapter

f. M.U.T.-III

trigger
harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness B
instead, the CAN communication
does not function correctly.
Diagnosis code, service data and
actuator test check.

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check

harness

b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally sourced

tester

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

MB991223

a

d

c

b

DO NOT USE

BA
