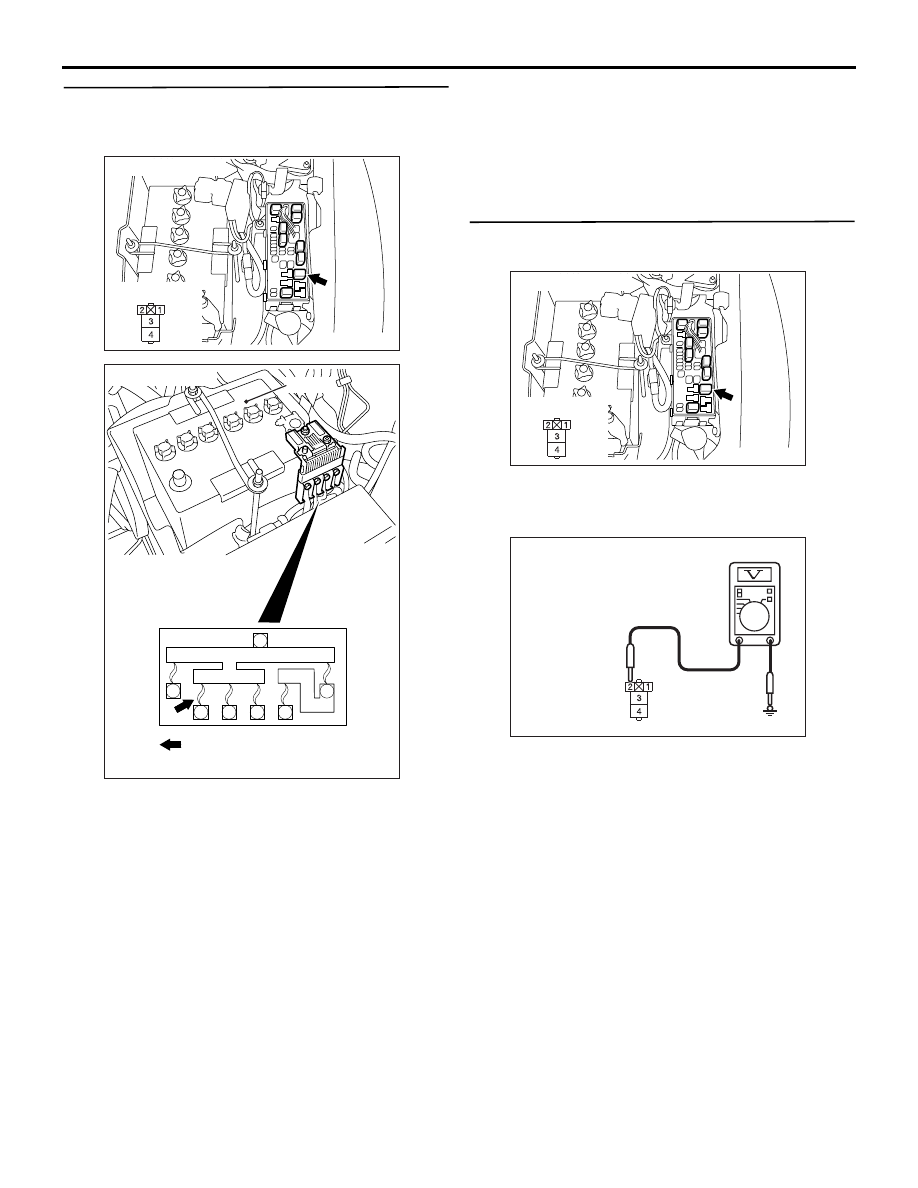

STEP 6. Check the wiring harness between A-24X
power window relay connector terminal No.4 and
fusible link (23).

AC600252

AG

Connector: A-24X

Relay box side

AC600241AC

Battery

Fusible link (23)

Front of vehicle

24

23

22

21

20

19

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 7. Voltage measurement at the A-24X
power window relay connector.

AC600252

AG

Connector: A-24X

Relay box side

(1) Disconnect the relay, and measure at the relay

box side.

(2) Turn the ignition switch to the ON position.

AC310507GP

Connector A-24X
(Relay box side)

(3) Check the voltage between the A-24X power

window relay connector terminal No.2 and body
earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Go to Step 8.

DOOR

BODY

42-121

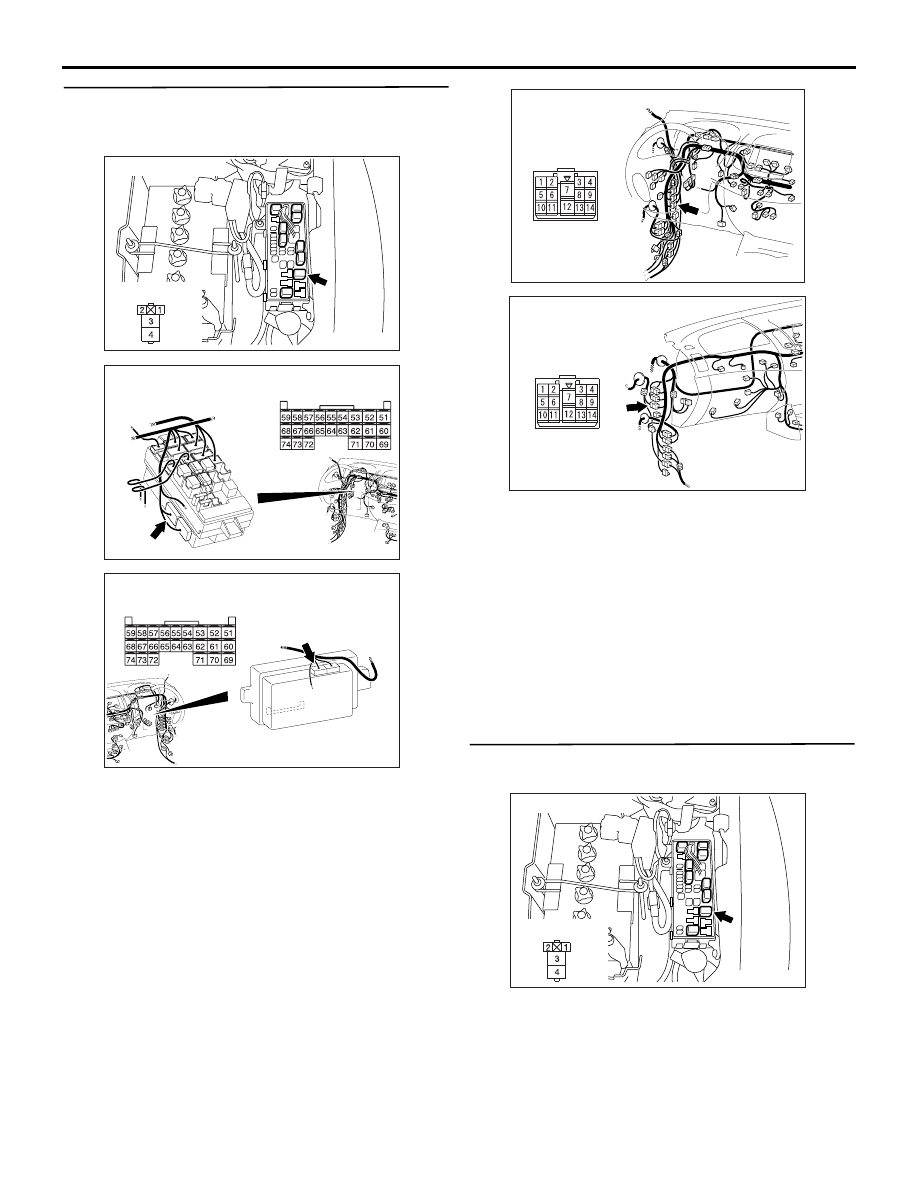

STEP 8. Connector check: C-219 ETACS-ECU
connector

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC509943

Connector: C-219 <RHD>

AB

C-219 (GR)

Harness side

Junction block
 (Rear view)

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the connector.

DOOR

BODY

42-122

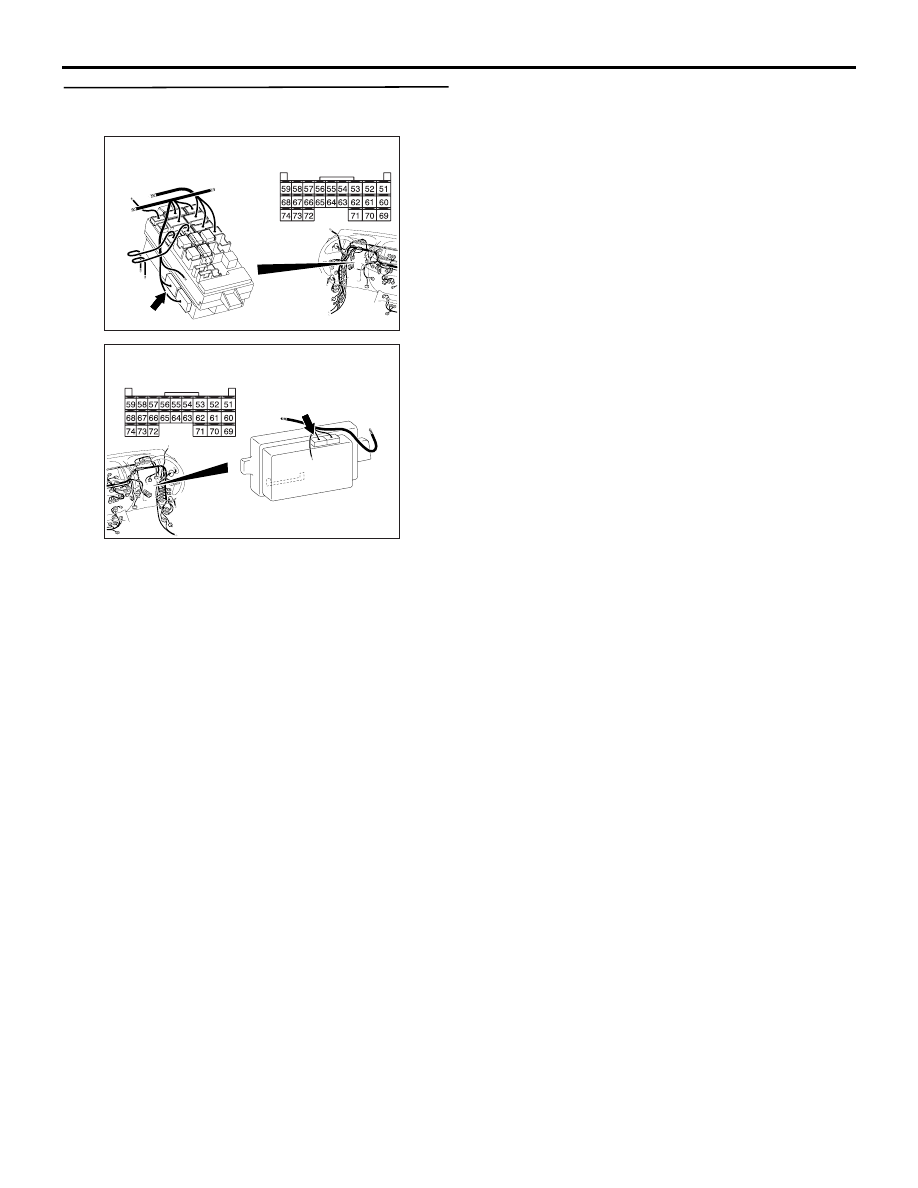

STEP 9. Check the wiring harness between C-219
ETACS-ECU connector terminal No.59 and A-24X
power window relay connector terminal No.2.

AC600252

AG

Connector: A-24X

Relay box side

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC509943

Connector: C-219 <RHD>

AB

C-219 (GR)

Harness side

Junction block
 (Rear view)

NOTE:

AC805686AR

Connector: C-33 <LHD>

AC509930BX

Connector: C-33 <RHD>

Prior to the wiring harness inspection, check interme-
diate connector C-33, and repair if necessary.

• Check the power supply line for open and short

circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

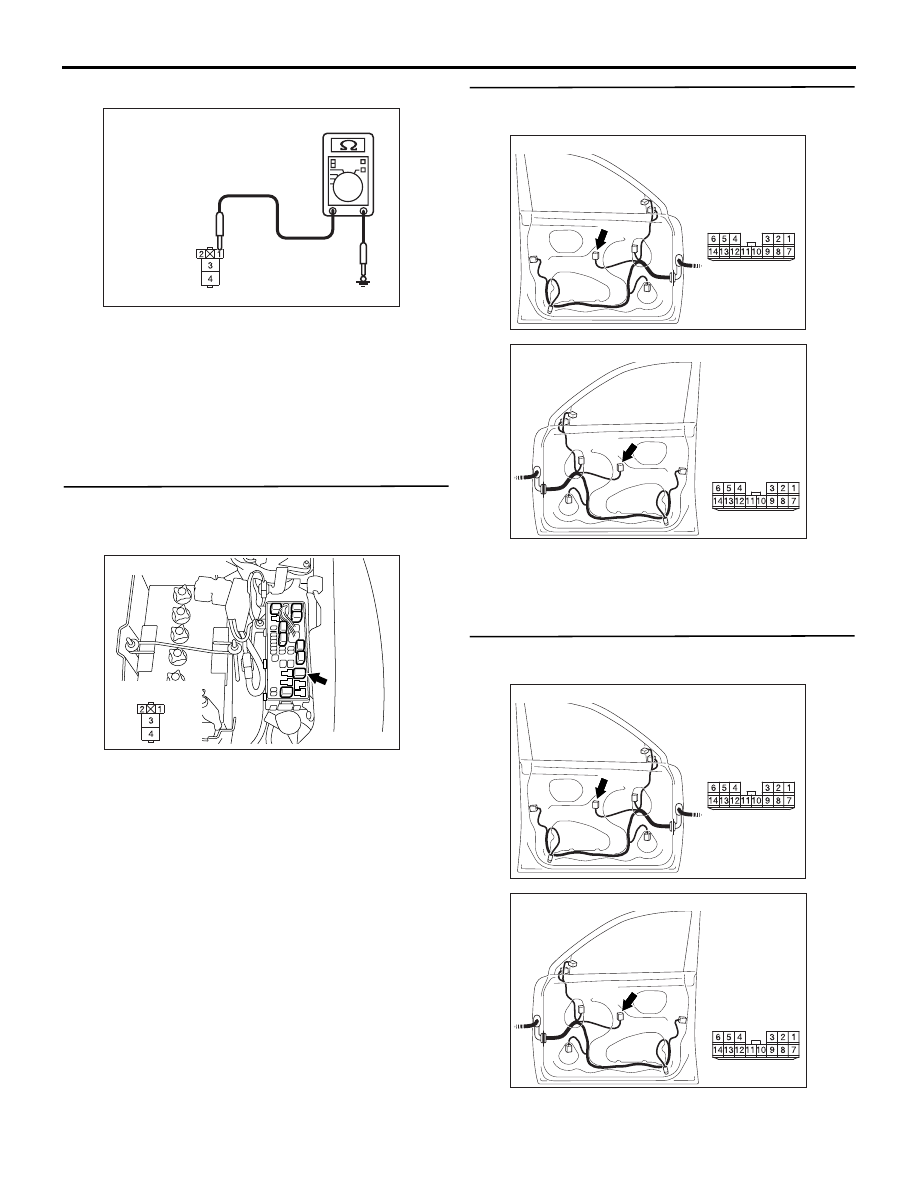

STEP 10. Resistance measurement at the A-24X
power window relay connector.

AC600252

AG

Connector: A-24X

Relay box side

(1) Disconnect the relay, and measure at the relay

DOOR

BODY

42-123

box side.

AC209731

AC208731AV

Connector A-24X
(Relay box side)

(2) Check the resistance between A-24X power

window relay connector terminal No.1 and body
earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Go to Step 11.

STEP 11. Check the wiring harness between A-
24X power window relay connector terminal No.1
and body earth.

AC600252

AG

Connector: A-24X

Relay box side

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 12. Connector check: E-03 power window
main switch connector

AC509952

Connector: E-03 <LHD>

AI

Harness side

AC509954

Connector: E-03 <RHD>

AI

Harness side

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the connector.

STEP 13. Voltage measurement at the E-03 power
window main switch connector.

AC509952

Connector: E-03 <LHD>

AI

Harness side

AC509954

Connector: E-03 <RHD>

AI

Harness side

(1) Disconnect the connector, and measure at the

wiring harness side.
