COMMENTS ON TROUBLE SYMPTOM
If the pulse 2 signal from the power window motor
(front: LH) cannot be received, the power window
main switch sets the diagnosis trouble code No.
1002.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Connector check: E-03 power window
main switch connector and E-18 front power
window motor (LH) connector

AC509952

Connectors: E-03, E-18 <LHD>

AG

Harness side

E-03

E-03

Harness side

E-18 (B)

E-18 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the wiring harness between E-03
power window main switch connector terminal
Nos.8, 9, 12 and E-18 front power window motor
(LH) connector terminal Nos.6, 2, 5.

AC509952

Connectors: E-03, E-18 <LHD>

AG

Harness side

E-03

E-03

Harness side

E-18 (B)

E-18 (B)

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (LH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

DOOR

BODY

42-89

Code No.1002: P/W (DR) SW pulse2 disconnection <RH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

AC903671

7  C-122

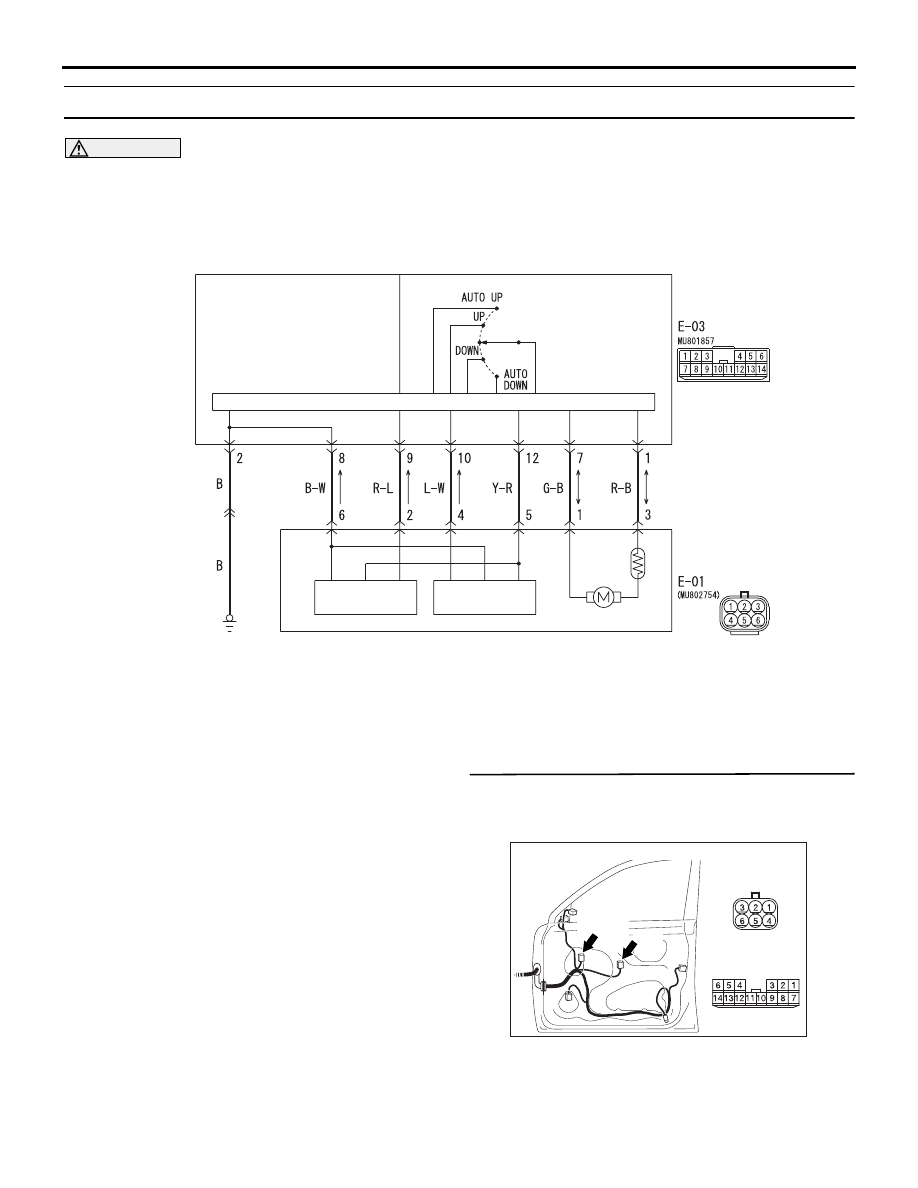

Power Window (Front: RH) Circuit

CPU

HALL IC

HALL IC

POWER
WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (RH)

AB

COMMENTS ON TROUBLE SYMPTOM
If the pulse 2 signal from the power window motor
(front: RH) cannot be received, the power window
main switch sets the diagnosis trouble code No.
1002.

PROBABLE CAUSES

• Malfunction of the front power window motor

(RH)

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Connector check: E-03 power window
main switch connector and E-01 front power
window motor (RH) connector

AC509954

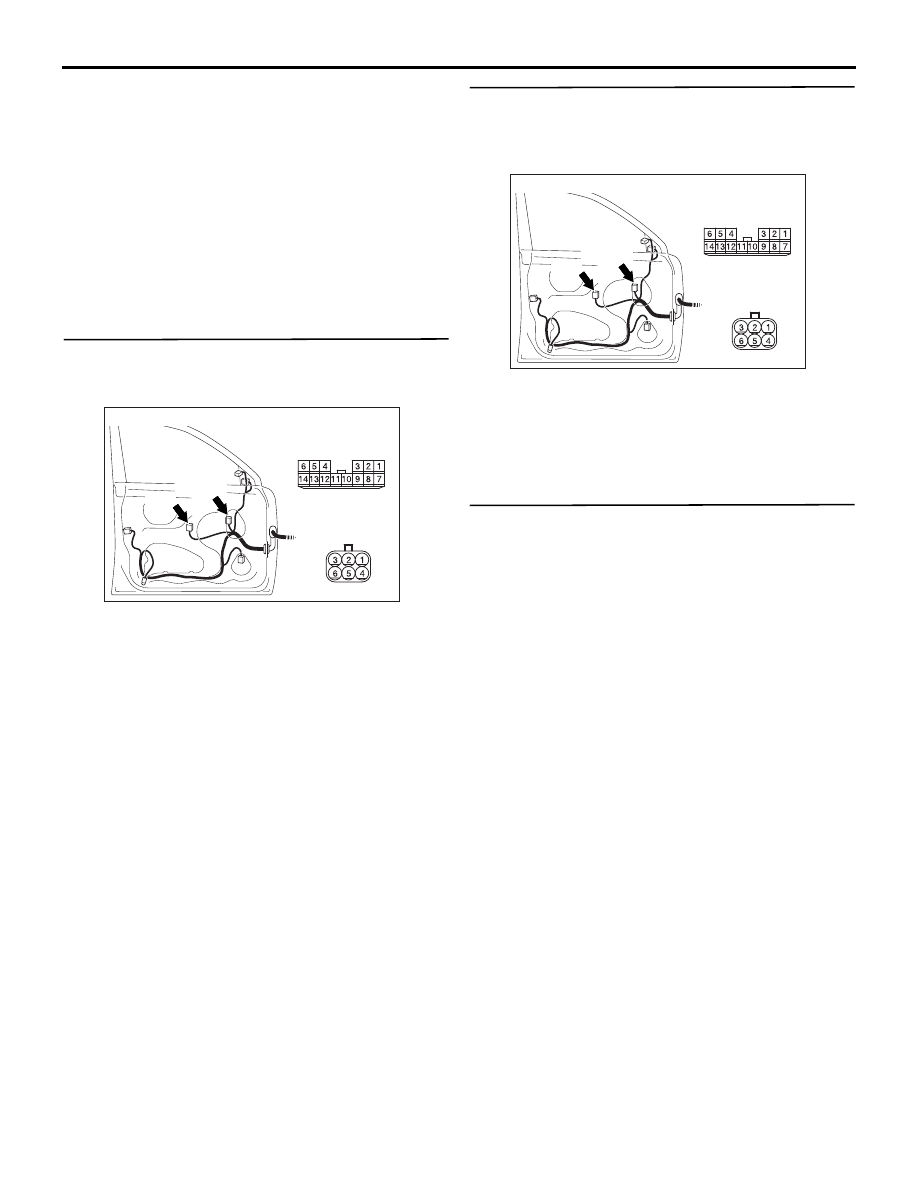

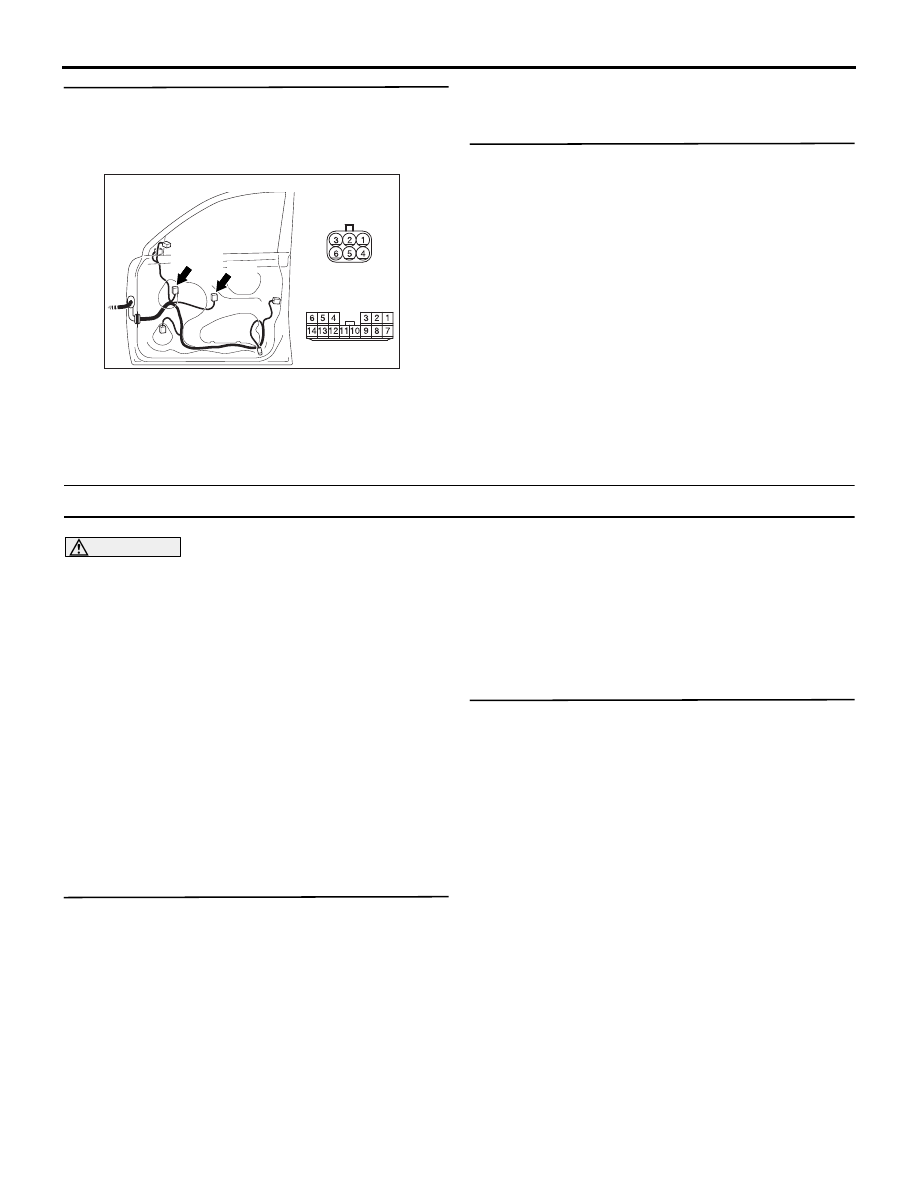

Connectors: E-01, E-03 <RHD>

AG

Harness side

E-03

E-03

Harness side

E-01 (B)

E-01 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

DOOR

BODY

42-90

STEP 2. Check the wiring harness between E-03
power window main switch connector terminal
Nos.8, 9, 12 and E-01 front power window motor
(RH) connector terminal Nos.6, 2, 5.

AC509954

Connectors: E-01, E-03 <RHD>

AG

Harness side

E-03

E-03

Harness side

E-01 (B)

E-01 (B)

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (RH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

Code No.1003: P/W (DR) Above window position

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
COMMENTS ON TROUBLE SYMPTOM
If the driver's door window glass exceeds the fully
closed position, power window main switch sets the
diagnosis code No. 1003. And, if the driver’s door
window glass is removed or installed with the power
is supplied to the power window main switch sets this
diagnosis code.

PROBABLE CAUSES

• Malfunction of the front power window motor

<driver’s side>

• Malfunction of the power window main switch

DIAGNOSIS PROCEDURE

STEP 1. Confirm the front power window
<driver’s side> learning function.
(1) Check that the power window main switch has

learned the fully closed position of the window
(Refer to

P.42-172

).

(2) On completion, check that diagnosis code

No.1003 is not reset.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Go to Step 2.

STEP 2. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor <driver’s

side>.

(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

DOOR

BODY

42-91

Code No.1004: P/W (DR) Sensor fail (earth) <LH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

AC806142

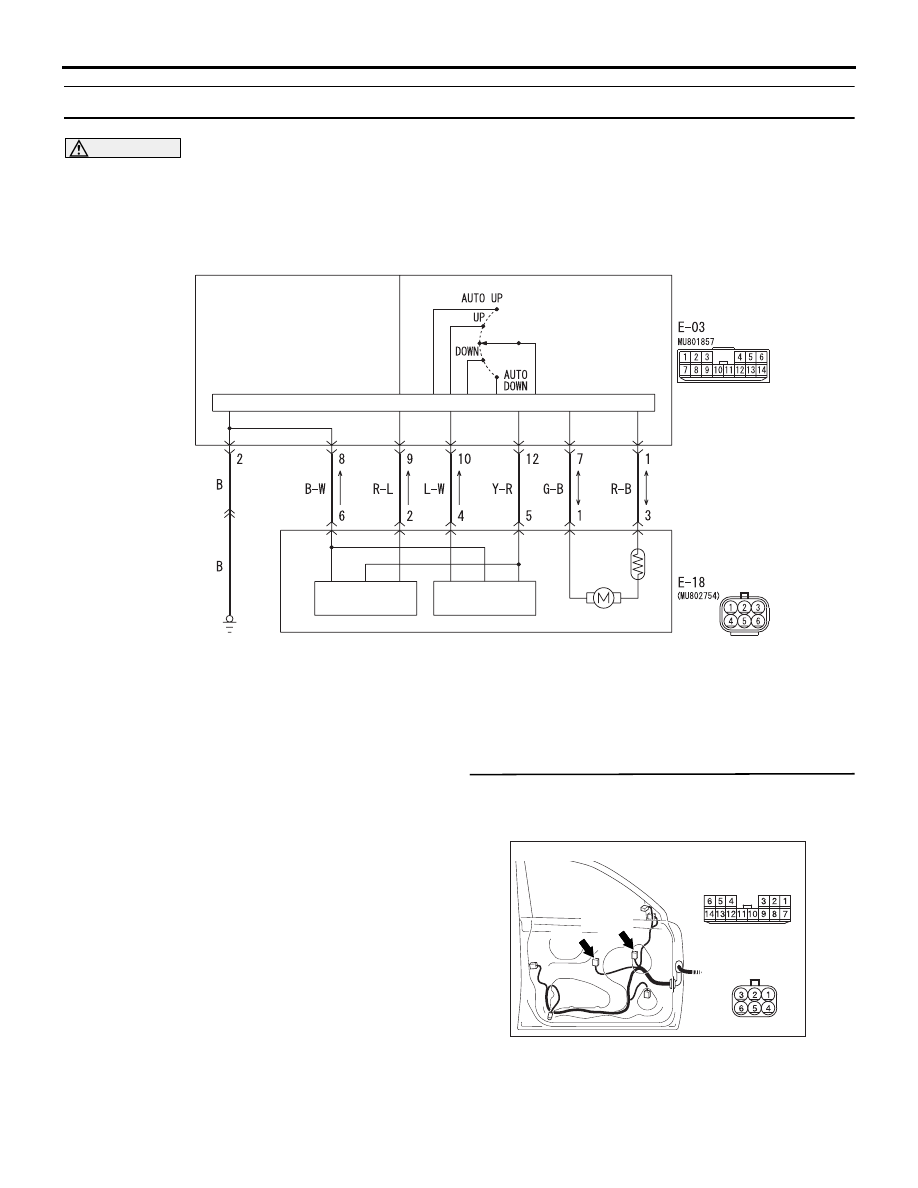

Power Window (Front: LH) Circuit

CPU

HALL IC

HALL IC

POWER
WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (LH)

AC

7  C-134

COMMENTS ON TROUBLE SYMPTOM
If the earth fault of the power window motor (front:
LH) sensor power supply is detected, power window
main switch sets the diagnosis trouble code No.
1004.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Connector check: E-03 power window
main switch connector and E-18 front power
window motor (LH) connector

AC509952

Connectors: E-03, E-18 <LHD>

AG

Harness side

E-03

E-03

Harness side

E-18 (B)

E-18 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.
